Steel 20" Spray Wand with Polyurethane Grip

The Mosmatic 26.723 spray wand has an angled design that allows the user to reach awkward areas without having to contort their body or damage equipment. This stainless steel wand measures 20 inches total and has a 8 inch polyurethane grip. Other features include: a 4000 max PSI rating, a 1/4" male NPT inlet, and a 1/4" female NPT outlet.

Specifications:

4000 PSI maximum pressure
250° Fahrenheit maximum pressure
1/4" NPTM inlet port
1/4" NPTF outlet port
20" length
8" poly grip
Bent angle design
1/4" nominal width
.63" nozzle socket depth
3-12 pH throughput medium

PLEASE NOTE: This item does not come with the nozzle guard (as pictured). It can be ordered separately part number 29.010

Mosmatic wands made of high quality stainless steel are the standard in your wash bay. The solid construction and the unique workmanship ensure longevity and value. Each wand has a modular design which allows for individual customer requirements. You choose the in-put out-put, length, grip and matching accessories to suit your needs.

• High-quality workmanship
• Polyurethane grip
• Delivered ready for installation
• L=total length, GL=Grip length, Nozzle not included.

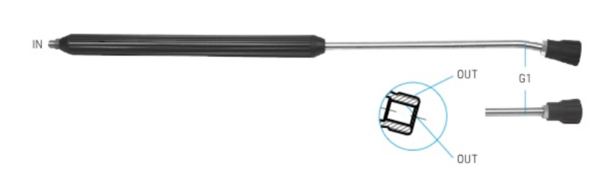

This wand has the following dimensions:

L 42", GL 32", G1 bent, IN 1/4"NPTM, OUT 1/4" NPTF, Weight 1.7 lbs

*Please note that the picture may vary slightly from the actual product. In this listing the length will be 42" and the black handle part will be 32" but the picture is for another size.

The Mosmatic Ceiling Boom DKP (66.019) is a durable, straight-arm ceiling boom engineered for a wide range of industrial applications. With a length of 5 ft 3 in, this boom offers 360° smooth rotation and features a sealed bearing design that ensures maintenance-free, long-lasting operation—even in high-demand environments.

Rated for up to 4000 PSI and temperatures up to 250°F, it is compatible with water, oil, and air (pH 3–12), and includes 3/8" NPTF inlets (top and side) and a 3/8" outlet. Whether used in car washes, food processing, manufacturing, or mining, the DKP boom delivers efficient fluid and air handling while maintaining environmental responsibility.

Applications

• Car wash bays and detailing centers

• Food and beverage production facilities

• Industrial manufacturing operations

• Mining and material transport sites

• Air, water, and chemical distribution systems

Key Features

• 5 ft 3 in straight ceiling boom with 360° rotation

• Sealed bearing design for smooth, durable use

• 3/8" NPTF top and side inlets + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Suitable for a wide range of industrial sectors

• Eco-friendly and low-maintenance construction

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 5'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 22 lbs

The Mosmatic Ceiling Boom DKP (66.049) is a robust and versatile straight-arm ceiling boom designed to meet the rigorous demands of industrial operations. With a length of 6 ft 9 in, this boom features 360° smooth rotation and a sealed bearing design, ensuring reliable, low-maintenance performance across a wide range of applications.

Rated for up to 4000 PSI and 250°F, it is ideal for handling water, oil, and air with a pH range of 3–12. The boom includes 3/8" NPTF inlets (top and side) and a 3/8" outlet, making it easy to integrate into existing setups. Whether used in car wash bays, food processing plants, mining operations, or manufacturing facilities, this environmentally friendly boom delivers dependable operation in fluid, air, or gas transfer systems.

Applications

• Car washes (self-service, tunnel, and automatic)

• Food and beverage processing systems

• Mining and materials handling

• Industrial manufacturing and assembly lines

• Fluid, gas, and air distribution setups

Key Features

• 6 ft 9 in straight ceiling boom with 360° swivel

• Sealed bearing design for durability and low maintenance

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Suitable for diverse industrial environments

• Eco-friendly construction and performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 6'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs

The Mosmatic Wall Boom WAE (68.579) is a durable and efficient wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial facilities where ceiling mounting is not possible. With an extended length of 9 feet, this boom provides exceptional range and 180° smooth rotation, allowing operators to clean with ease and precision. Its built-in wall bracket ensures the boom automatically returns to a designated resting position after use.

This model includes a heavy-duty insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. It supports the use of water, oil, and air across a pH range of 3–12, offering wide compatibility with various cleaning media. With 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE is easy to install and built for long-term, environmentally responsible operation.

Applications

• Outdoor vehicle and fleet wash bays

• Self-service car washes

• Industrial equipment washdown zones

• Agricultural and manufacturing facilities

• Areas without ceiling mount access

Key Features

• 9 ft wall-mounted boom for extended cleaning reach

• 180° smooth rotation with auto return-to-rest bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Eco-friendly and industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 29 lbs

The Mosmatic Ceiling Boom DKP (66.009) is a high-quality, straight-arm ceiling boom built for performance across a variety of industrial settings. Measuring 4 ft 9 in, this model features 360° smooth rotation and a sealed bearing design for seamless, long-lasting operation in demanding environments.

Rated for up to 4000 PSI and capable of handling temperatures up to 250°F, this boom is compatible with water, oil, and air across a pH range of 3–12. It includes 3/8" NPTF inlets (top and side) and a 3/8" outlet, making it adaptable for a wide range of installation needs. From car washes to food processing, manufacturing, and mining, the DKP boom delivers reliability and versatility. It is also environmentally friendly, supporting sustainability in industrial applications.

Applications

• Self-service and automatic car wash bays

• Food and beverage processing plants

• Industrial manufacturing facilities

• Mining and material handling operations

• Air, water, and fluid distribution systems

Key Features

• 4 ft 9 in ceiling boom with 360° rotation

• Sealed bearing design for smooth, maintenance-free use

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Handles up to 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Ideal for multi-industry applications

• Eco-conscious and durable construction

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 21 lbs

Specifications:

ø50/80x16mm (Boom)

Replacement spring for the Mosmatic boom. It sits at the end of the boom between the boom and the gun.

The Mosmatic Wall Boom Extension WSA (60.542) is built for operations that require maximum flexibility and extended reach. With a base length of 9 ft 10 in and a maximum working extension of 9 ft, this extension is ideal for truck wash bays, mining operations, aircraft maintenance, and industrial facilities where full mobility and long reach are essential.

When paired with a Mosmatic DKP ceiling boom (sold separately), the WSA enables a total working radius of up to 39 ft, providing broad coverage while ensuring smooth and controlled movement. Designed for single-medium applications, it includes one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Rated to handle up to 4000 PSI and temperatures up to 250°F, the WSA is compatible with water, oil, and air (pH 3–12). Built for durability, performance, and environmental responsibility.

Applications

• Truck and heavy vehicle wash systems

• Aircraft hangar maintenance operations

• Mining facility washdown

• Industrial cleaning and fluid delivery

• Extended-reach bay installations with ceiling boom compatibility

Key Features

• 9 ft 10 in boom extension, 9 ft max working reach

• Enables 39 ft working radius with DKP ceiling boom (sold separately)

• Single internal pipe design (1 inlet = 1 medium)

• 3/8" NPTF top/side inlets, 3/8" NPTM outlet

• Handles 4000 PSI pressure and 250°F temperatures

• Suitable for water, oil, and air (pH range 3–12)

• Supports environmentally friendly, high-efficiency wash operations

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 9'10"

Max. Lenght: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 63 lbs

The Mosmatic Ceiling Boom DKP (66.059) is a high-performance straight-arm boom built for reliability in demanding industrial environments. With a length of 7 ft 5 in, this ceiling-mounted boom delivers 360° smooth rotation and utilizes a sealed bearing design for consistent, low-maintenance operation across a wide range of fluid and air applications.

Engineered to handle pressures up to 4000 PSI and temperatures of 250°F, the DKP boom is compatible with water, oil, and air (pH 3–12). It features 3/8" NPTF inlets (top and side) and a 3/8" outlet, ensuring flexible installation. This environmentally friendly boom is ideal for use in car wash bays, food processing plants, manufacturing facilities, and mining operations, making it a truly versatile solution.

Applications

• Car wash systems (self-service, automatic, tunnel)

• Food and beverage production lines

• Industrial manufacturing plants

• Mining and material handling operations

• Fluid, air, and chemical transfer systems

Key Features

• 7 ft 5 in straight-arm ceiling boom

• 360° rotation for full-range mobility

• Sealed bearing design ensures long-term durability

• 3/8" NPTF top and side inlets + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Ideal for multi-industry use

• Eco-friendly and low-maintenance construction

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24.5 lbs

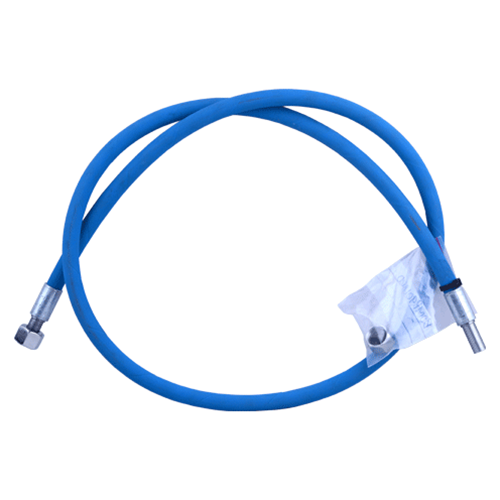

Specifications:

Nominal Width (NW): 5/16"

Pressure: 5800psi

Temperature: 300°F

Total Length: L=74"

2 x cut ring fitt.

The Mosmatic Wall Boom WAE (68.569) is a high-performance, wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling-mounted options are not feasible. With a length of 8 ft 2 in, this boom offers extended reach and 180° smooth rotation, ensuring full coverage and flexibility during cleaning tasks. The included wall bracket is engineered to return the boom to your preferred resting position automatically.

This model includes a durable insulated high-pressure (HP) hose, and is built to handle up to 4000 PSI and temperatures of 250°F. It supports water, oil, and air within a pH range of 3–12, making it ideal for multiple industrial applications. With 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE boom delivers reliable, environmentally friendly performance for professional cleaning operations.

Applications

• Outdoor self-service car wash bays

• Truck and fleet vehicle wash zones

• Washdown stations in food or chemical industries

• Equipment and machinery cleaning facilities

• Locations where ceiling installation is not an option

Key Features

• 8 ft 2 in wall-mounted boom for long-range coverage

• 180° smooth rotation with return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlet (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly, robust industrial construction

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 8'2"

Throughput/medium: water, oil, air at pH 3-12

Weight: 27 lbs

Enhance your self-service car wash with the Mosmatic Ceiling Boom Z-Series DKZ (65.009)—a durable, polished stainless steel boom arm designed to maximize functionality and efficiency. Measuring 4 ft 9 in, this Z-shaped boom allows for the integration of multiple units within a single wash bay, enabling value-added services like foam applications and air drying without compromising space or convenience.

With a 360° rotation capability, this boom offers excellent maneuverability and a clean, professional appearance. Built to withstand the rigors of daily use, it supports up to 4000 PSI and temperatures of up to 250°F. It features 3/8" NPTF inlet and outlet ports and is compatible with water, oil, and air across a pH range of 3 to 12, making it a versatile and eco-conscious upgrade for modern wash systems.

Applications

• Self-service car wash installations

• Overhead foam delivery systems

• Air drying extensions

• Multi-boom wash bay configurations

Key Features

• Length: 4 ft 9 in for broader bay coverage

• 360° swivel for full user control

• Corrosion-resistant polished stainless steel body

• 3/8" NPTF inlet and outlet connections

• Pressure rated up to 4000 PSI, temperature tolerance to 250°F

• Handles water, oil, air (pH 3–12)

• Environmentally responsible design with long-lasting performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Material Type: Stainless Steel (INOX)

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 22 lbs

The Mosmatic Ceiling Boom DKP (66.069) is a reliable and versatile straight-arm boom designed for tough industrial environments. With a generous length of 8 ft 2 in, this boom is built to support 360° smooth rotation and includes a sealed bearing design for long-lasting, maintenance-free operation in fluid, air, or gas transfer systems.

Rated for up to 4000 PSI and 250°F, the DKP boom is ideal for use with water, oil, and air (pH 3–12). It features 3/8" NPTF inlets (top and side) and a 3/8" outlet, ensuring compatibility with a wide range of installation setups. Whether used in car wash bays, food processing plants, manufacturing lines, or mining facilities, this environmentally friendly boom delivers outstanding performance and adaptability across multiple industries.

Applications

• Self-service and automatic car wash systems

• Food and beverage production facilities

• Mining and industrial material handling

• Manufacturing and assembly plants

• Air, fluid, and chemical distribution setups

Key Features

• 8 ft 2 in straight-arm ceiling boom

• 360° swivel rotation for maximum flexibility

• Sealed bearing design ensures long-term durability

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Supports water, oil, and air (pH 3–12)

• Suitable for a variety of industrial applications

• Environmentally friendly and low-maintenance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 8'2"

Throughput/medium: water, oil, air at pH 3-12

Weight: 25 lbs

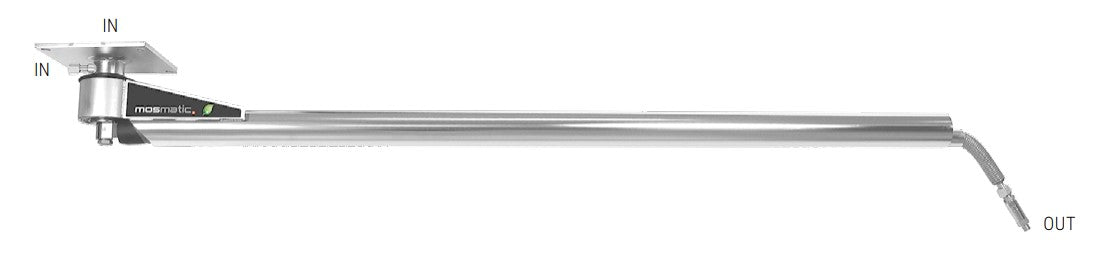

The Mosmatic Ceiling Boom DKP (66.039) is a high-performance straight-arm ceiling boom built for industrial-grade applications across a variety of sectors. Measuring 6 ft 3 in, this boom offers 360° smooth rotation and features a sealed bearing design to ensure long-lasting, maintenance-free operation in demanding environments.

Rated for up to 4000 PSI and 250°F, this boom is designed to handle water, oil, and air across a pH range of 3–12. With 3/8" NPTF inlets (top and side) and a 3/8" outlet, it integrates easily into existing systems. Whether used in car washes, food production, manufacturing, or mining operations, this environmentally friendly boom delivers flexibility, performance, and durability.

Applications

• Self-service and automatic car washes

• Food and beverage processing environments

• Industrial manufacturing and assembly lines

• Mining and heavy equipment facilities

• Air, fluid, and chemical distribution systems

Key Features

• 6 ft 3 in straight-arm ceiling boom

• 360° smooth rotation for unrestricted movement

• Sealed bearing design for extended service life

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Ideal for multi-industry fluid and air handling

• Environmentally friendly, low-maintenance build

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Lenght: 6'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 23 lbs
