Swivel by Name

The Mosmatic DGE Swivel - 34.873 is a high-performance swivel designed to withstand thrust and radial forces in demanding high-pressure applications. Crafted from nickel-plated brass with a stainless steel interior, it offers excellent corrosion resistance and durability for both industrial and food-grade use. Including one thrust ball bearing, ensures smooth and stable operation in high-flow systems. With a 4000 PSI pressure rating and temperature resistance up to 250°F, this swivel is built for reliable performance in continuous-use environments.

Applications:

• High-pressure cleaning and fluid handling systems

• Food and beverage sanitation and processing lines

• Chemical and washdown systems

• Industrial hose reels and rotary equipment

Key Features:

• Nickel-plated brass housing with stainless steel internal components

• With 1x thrust ball bearing

• Designed to support both thrust and radial loads

• Corrosion resistant and ideal for sanitary environments

• High-flow capacity with low-RPM stability

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 1.64"

• Overall Length: 3.81"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 0.87

Diameter (D1): 1.64"

Diameter 2 (D2): 1.64

Length 1 (L1) (overall length): 3.81"

Length 2 (L2): 2.09

Length 3 (L3): 0.59

Length 4 (L4): 0.63

Length 5 (L5): 0.75

Weight: 23.2oz

The Mosmatic DGE Swivel - 34.877 is a robust, high-flow swivel engineered for demanding high-pressure fluid systems where both thrust and radial forces are present. Constructed from nickel-plated brass with a stainless steel interior, it offers superior corrosion resistance and long-lasting durability in industrial and sanitary environments. Featuring one thrust ball bearing ensures smooth, stable operation under continuous use. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel is ideal for heavy-duty applications.

Applications:

• Industrial high-pressure washdown and fluid transfer

• Food and beverage processing systems

• Sanitary chemical delivery and cleaning lines

• High-volume rotary fluid connections

Key Features:

• Nickel-plated brass housing with stainless steel internal components

• With 1x thrust ball bearing

• Corrosion-resistant and built for sanitary or industrial use

• High-flow performance with support for radial and thrust loads

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM

• Nominal Width (NW): 1 1/2"

• Diameter: 3.35"

• Overall Length: 5.71"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTM

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.05

Diameter (D1): 3.35"

Diameter 2 (D2): 3.98

Length 1 (L1) (overall length): 5.71"

Length 2 (L2): 2.99

Length 3 (L3): 0.79

Length 4 (L4): 1.66

Length 5 (L5): 1.18

Weight: 175.4oz

The Mosmatic DGE Swivel - 34.857 is a heavy-duty, high-flow swivel designed for managing thrust and radial forces in high-pressure systems. Constructed with a nickel-plated brass body and a stainless steel interior, this swivel is corrosion resistant and built for durability in industrial and food service environments. This swivel includes a 1x thrust ball bearing, ensuring dependable performance, and smooth, consistent operation. Capable of withstanding pressures up to 2900 PSI and temperatures up to 250°F, it is ideal for demanding cleaning and fluid transfer applications.

Applications:

• High-pressure fluid transfer systems

• Food and beverage processing and washdown lines

• Industrial cleaning equipment

• Chemical and sanitary fluid systems

Key Features:

• Corrosion-resistant nickel-plated brass housing with stainless steel internals

• With 1x thrust ball bearing

• Handles both thrust and radial loads

• High-flow design for low-RPM, high-pressure systems

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM

• Nominal Width (NW): 1 1/2"

• Diameter: 3.35"

• Overall Length: 4.41"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTM

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.05

Wrench Size 2 (SW2): 2.76

Diameter (D): 3.35"

Length 1 (L1) (overall length): 4.41"

Length 2 (L2): 2.87

Length 3 (L3): 0.79

Weight: 95.3oz

The Mosmatic DGE Swivel - 34.884 is a high-performance, corrosion-resistant swivel designed for high-pressure fluid systems where both thrust and radial forces are present. Constructed with a nickel-plated brass housing and a stainless steel interior, this swivel is ideal for industrial and food-grade applications requiring durability and hygiene. With one thrust ball bearing, offering reliable rotation and smooth operation even under continuous use. Rated for up to 4000 PSI and 250°F, it supports high-flow performance in rigorous environments.

Applications:

• Industrial high-pressure fluid and washdown systems

• Food and beverage processing and sanitation lines

• Chemical transfer and hygienic applications

• Rotary connections in hose reels and cleaning systems

Key Features:

• Nickel-plated brass construction with stainless steel internals

• With 1x thrust ball bearing

• Engineered for both thrust and radial load stability

• High-flow capacity and corrosion resistance

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF

• Nominal Width (NW): 3/4"

• Diameter: 1.96"

• Overall Length: 4.29"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTF

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.26

Diameter (D1): 1.96"

Diameter 2 (D2): 1.96

Length 1 (L1) (overall length): 4.29"

Length 2 (L2): 2.40

Length 4 (L4): 0.75

Length 5 (L5): 0.87

Weight: 36.0oz

The Mosmatic DGE Swivel - 34.854 is a high-pressure, high-flow swivel designed for industrial and food service applications where both thrust and radial forces must be managed with precision. Constructed from nickel-plated brass with a stainless steel interior, this swivel offers excellent corrosion resistance and durability in demanding environments. The swivel includes a 1x thrust ball bearing, ensuring dependable performance, ideal for fluid transfer systems requiring strength, efficiency, and sanitation compliance.

Applications:

• Industrial high-pressure fluid and washdown systems

• Food and beverage processing equipment

• Chemical handling and sanitation systems

• Low-speed, high-pressure rotary unions

Key Features:

• Nickel-plated brass body with stainless steel internal components

• With 1x thrust ball bearing

• Designed to withstand both thrust and radial forces

• High-flow capacity with low maintenance requirements

• Corrosion-resistant for industrial and sanitary use

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 1.97"

• Overall Length: 3.46"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.06

Wrench Size 2 (SW2): 1.57

Diameter (D): 1.97"

Length 1 (L1) (overall length): 3.46"

Length 2 (L2): 2.38

Length 3 (L3): 0.63

Weight: 27.8oz

The Mosmatic DGE Swivel - 34.874 is a durable, high-pressure swivel engineered for demanding applications that require consistent support for both thrust and radial forces. Constructed from nickel-plated brass with a stainless steel interior, it is designed to withstand corrosion in industrial and food-grade environments. Featuring a 1x thrust ball bearing, ensuring dependable performance., this swivel ensures smooth rotation, and long-term reliability. Rated up to 4000 PSI and 250°F, it’s ideal for high-performance fluid transfer systems.

Applications:

• High-pressure cleaning and washdown equipment

• Food and beverage processing systems

• Sanitary fluid handling and chemical transfer

• Industrial hose reels and rotary connections

Key Features:

• Nickel-plated brass body with stainless steel internal components

• With 1x thrust ball bearing

• Corrosion-resistant and suitable for sanitary use

• Supports thrust and radial forces in low-RPM operations

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM

• Nominal Width (NW): 3/4"

• Diameter: 1.96"

• Overall Length: 4.37"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.06

Diameter (D1): 1.96"

Diameter 2 (D2): 1.96

Length 1 (L1) (overall length): 4.37"

Length 2 (L2): 2.40

Length 3 (L3): 0.63

Length 4 (L4): 0.75

Length 5 (L5): 0.87

Weight: 35.7oz

The Mosmatic DGE Swivel - 34.886 is a high-performance swivel designed for high-pressure fluid applications that involve both thrust and radial forces. Engineered with a nickel-plated brass body and stainless steel interior, this swivel is corrosion resistant and built for reliability in industrial and food-grade environments. With 1x thrust ball bearing, ensuring smooth operation and long service life. Rated for 2900 PSI and up to 250°F, this swivel supports continuous high-flow performance in demanding systems.

Applications:

• Industrial high-pressure cleaning and fluid transfer

• Food and beverage processing and washdown lines

• Sanitary and chemical delivery systems

• High-flow rotary connections for hose reels and equipment

Key Features:

• Nickel-plated brass housing with stainless steel internals

• With 1x thrust ball bearing

• Manages both thrust and radial loads with ease

• Built for high-pressure, low-RPM performance

• Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTF

• Nominal Width (NW): 1 1/4"

• Diameter: 2.36"

• Overall Length: 5.00"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/4"NPTF

Thread Out: G2 1 1/4"NPTF

Nominal Width (NW): 1 1/4"

Wrench Size 1 (SW1): 1.97

Diameter (D1): 2.36"

Diameter 2 (D2): 3.07

Length 1 (L1) (overall length): 5.00"

Length 2 (L2): 2.01

Length 4 (L4): 1.18

Length 5 (L5): 1.10

Weight: 90.1oz

The Mosmatic DGE Swivel - 34.864 is a high-performance swivel designed for high-pressure, high-flow applications that involve both thrust and radial forces. Built from nickel-plated brass with a stainless steel interior, this swivel offers superior corrosion resistance and is well-suited for industrial, food-grade, and sanitary environments. It features a 1x thrust ball bearing, ensuring dependable performance, smooth, low-RPM operation, and extended service life. With a pressure rating of 4000 PSI and temperature tolerance up to 250°F, it delivers reliable and efficient performance in demanding systems.

Applications:

• High-pressure industrial fluid systems

• Food and beverage processing and sanitation equipment

• Chemical transfer and washdown stations

• Low-RPM, high-torque fluid handling applications

Key Features:

• Durable nickel-plated brass housing with stainless steel internals

• With 1x thrust ball bearing

• Engineered for both thrust and radial load handling

• High-flow capacity with excellent corrosion resistance

• Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF

• Nominal Width (NW): 3/4"

• Diameter: 1.97"

• Overall Length: 3.39"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/4"NPTF

Thread Out: G2 3/4"NPTF

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.26

Wrench Size 2 (SW2): 1.57

Diameter (D): 1.97"

Length 1 (L1) (overall length): 3.39"

Length 2 (L2): 2.38

Weight: 31.8oz

The Mosmatic DGE Swivel - 34.853 is a high-performance swivel engineered for high-pressure fluid systems in industrial and food service environments. Constructed from nickel-plated brass with a stainless steel interior, this swivel is designed to manage both thrust and radial forces with exceptional durability. It features a 1x thrust ball bearing, ensuring dependable performance. With high-flow capabilities and a corrosion-resistant design, this swivel is built to perform in tough applications involving heat, pressure, and demanding sanitation requirements.

Applications:

• Industrial high-pressure fluid and cleaning systems

• Food and beverage processing and sanitation equipment

• Washdown stations and chemical delivery lines

• High-flow, low-RPM rotary connections

Key Features:

• Durable nickel-plated brass body with stainless steel interior

• With 1x thrust ball bearing

• Handles both thrust and radial loads

• Optimized for high-flow and high-pressure environments

• Corrosion-resistant for harsh or sanitary conditions

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 0.59"

• Overall Length: 3.15"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 1.38

Diameter (D): 0.59"

Length 1 (L1) (overall length): 3.15"

Length 2 (L2): 2.17

Length 3 (L3): 0.59

Weight: 18.9oz

The Mosmatic DGE Swivel - 34.865 is a robust and corrosion-resistant swivel designed for high-pressure applications that require dependable performance under both thrust and radial loads. Built with a nickel-plated brass body and a stainless steel interior, this swivel is ideal for industrial, food-grade, and sanitary fluid systems. This swivel includes a 1x thrust ball bearing, ensuring dependable performance, and smooth, stable operation in high-flow, low-RPM environments. Rated up to 2900 PSI and capable of withstanding temperatures up to 250°F, this swivel delivers both durability and precision.

Applications:

• High-pressure industrial fluid transfer

• Food and beverage processing equipment

• Cleaning, washdown, and sanitation systems

• Chemical and water handling in hygienic environments

Key Features:

• Corrosion-resistant nickel-plated brass housing with stainless steel internal parts

• With 1x thrust ball bearing

• Designed to manage both thrust and radial forces

• High-flow performance for pressure-sensitive operations

• Thread IN: 1" NPTF | Thread OUT: 1" NPTF

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 3.56"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.97

Diameter (D): 2.36"

Length 1 (L1) (overall length): 3.56"

Length 2 (L2): 2.36

Weight: 44.0oz

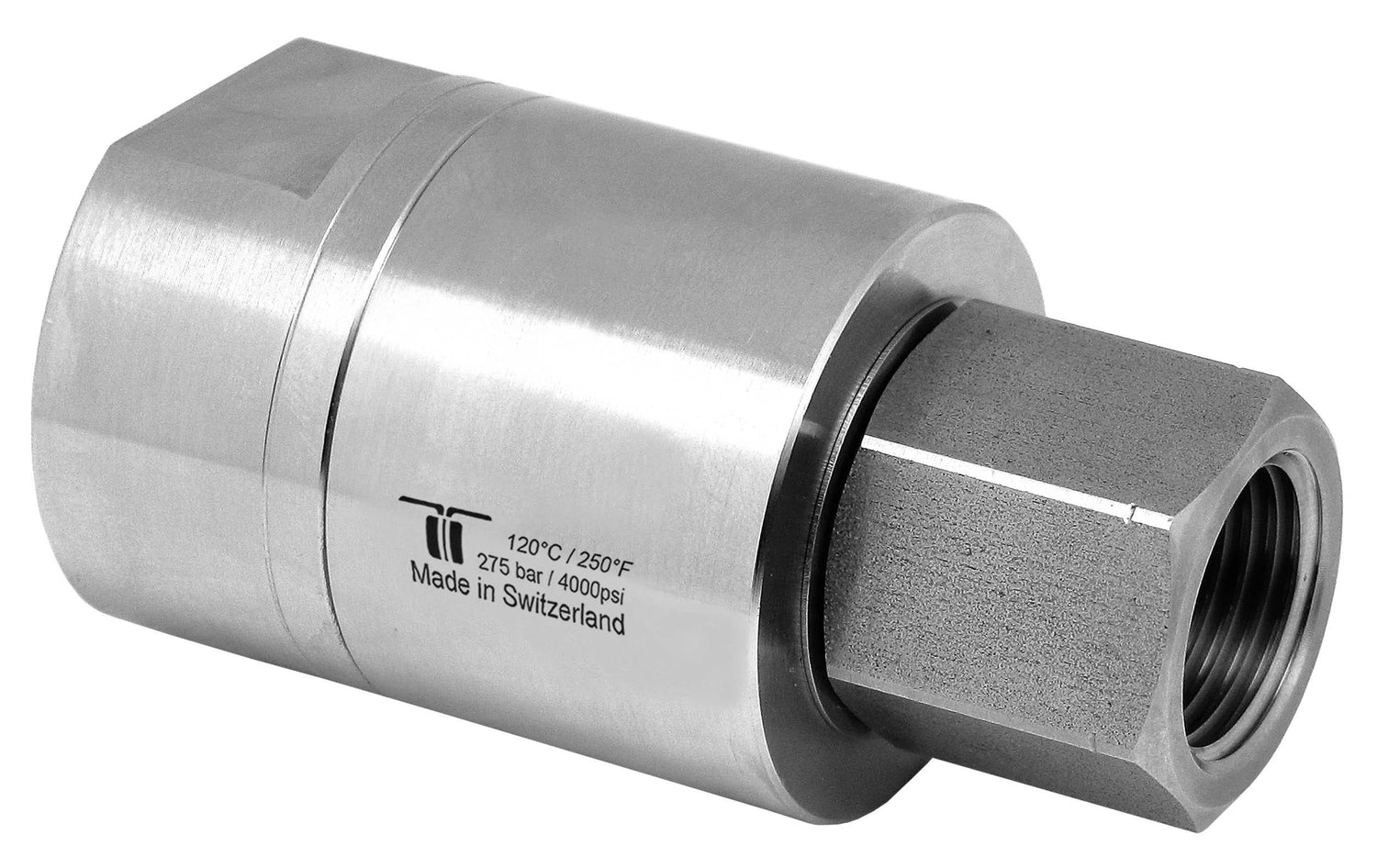

The Mosmatic DGE Swivel - 34.867 is a heavy-duty, high-flow swivel engineered for demanding high-pressure applications that involve thrust and radial forces. Featuring a nickel-plated brass body and stainless steel interior, this swivel offers excellent corrosion resistance and is ideal for use in both industrial and food service environments. Equipped with a 1x thrust ball bearing, ensuring dependable performance, it provides smooth rotation and long-lasting performance under continuous use. Rated for 2900 PSI and up to 250°F, this swivel is built for durability and fluid transfer efficiency.

Applications:

• High-pressure industrial fluid systems

• Food and beverage processing and washdown

• Sanitary and chemical handling systems

• Low-RPM, high-flow rotary connections

Key Features:

• Nickel-plated brass housing with corrosion-resistant stainless steel internals

• With 1x thrust ball bearing

• Handles both thrust and radial force loads

• High-flow performance for heavy-duty use

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTF

• Nominal Width (NW): 1 1/2"

• Diameter: 3.35"

• Overall Length: 4.15"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTF

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.13

Wrench Size 2 (SW2): 2.76

Diameter (D): 3.35"

Length 1 (L1) (overall length): 4.15"

Length 2 (L2): 2.87

Weight: 93.9oz

The Mosmatic DGE Swivel - 34.875 is a compact, high-flow swivel engineered to handle thrust and radial forces in high-pressure environments. Built with a nickel-plated brass housing and a stainless steel interior, it delivers superior corrosion resistance and durability in industrial and food-grade settings. Featuring a one thrust ball bearing, ensuring dependable performance, this swivel provides smooth, low-RPM operation and long-lasting reliability. Rated for 2900 PSI and up to 250°F, it is ideal for applications requiring robust performance in tight spaces.

Applications:

• High-pressure cleaning and fluid systems

• Food and beverage sanitation and processing equipment

• Chemical transfer and washdown operations

• Industrial hose reels and rotary connections

Key Features:

• Nickel-plated brass body with stainless steel interior

• With 1x thrust ball bearing

• Engineered to manage both thrust and radial forces

• Corrosion-resistant for industrial and sanitary use

• Compact design with high-flow capability

• Thread IN: 1" NPTF | Thread OUT: 1" NPTM

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 1.42"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Diameter (D1): 2.36"

Diameter 2 (D2): 2.83

Length 1 (L1) (overall length): 1.42"

Length 2 (L2): 2.52

Length 3 (L3): 0.71

Length 4 (L4): 1.18

Length 5 (L5): 0.83

Weight: 74.2oz

The Mosmatic DGE Swivel - 34.885 is a high-flow, corrosion-resistant swivel built for high-pressure applications requiring smooth handling of both thrust and radial forces. Constructed from nickel-plated brass with a stainless steel interior, this swivel is well-suited for industrial, sanitary, and food service environments. With 1x thrust ball bearing, delivering consistent performance under continuous use. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel ensures durability and reliable flow in demanding operations.

Applications:

• Industrial fluid and pressure wash systems

• Food and beverage processing and sanitation equipment

• Chemical handling and clean-in-place systems

• High-pressure hose reels and rotary joints

Key Features:

• Nickel-plated brass body with stainless steel internal components

• With 1x thrust ball bearing

• Supports both radial and thrust force loads

• High-flow, corrosion-resistant design

• Thread IN: 1" NPTF | Thread OUT: 1" NPTF

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 4.55"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Diameter (D1): 2.36"

Diameter 2 (D2): 2.83

Length 1 (L1) (overall length): 4.55"

Length 2 (L2): 2.52

Length 4 (L4): 1.18

Length 5 (L5): 0.83

Weight: 71.4oz

The Mosmatic DGE Swivel - 34.863 is a precision-engineered swivel designed for managing thrust and radial forces in high-pressure fluid systems. Constructed from nickel-plated brass with a stainless steel interior, it offers excellent corrosion resistance and long-lasting performance in both industrial and food-grade environments. Equipped with a 1x thrust ball bearing, ensuring dependable performance., this swivel supports smooth and stable operation under continuous use. Rated for up to 4000 PSI and 250°F, it's ideal for demanding fluid handling and sanitation systems.

Applications:

• Industrial fluid and pressure wash systems

• Food and beverage processing equipment

• Sanitary cleaning and washdown operations

• High-pressure chemical and water transfer lines

Key Features:

• Nickel-plated brass body with stainless steel internal components

• With 1x thrust ball bearing

• Corrosion resistant and suitable for hygienic applications

• Supports both thrust and radial loads

• High-flow, high-pressure rated performance

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF

• Nominal Width (NW): 1/2"

• Diameter: 1.65"

• Overall Length: 3.15"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTF

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.06

Wrench Size 2 (SW2): 1.38

Diameter (D): 1.65"

Length 1 (L1) (overall length): 3.15"

Length 2 (L2): 2.17

Weight: 22.0oz

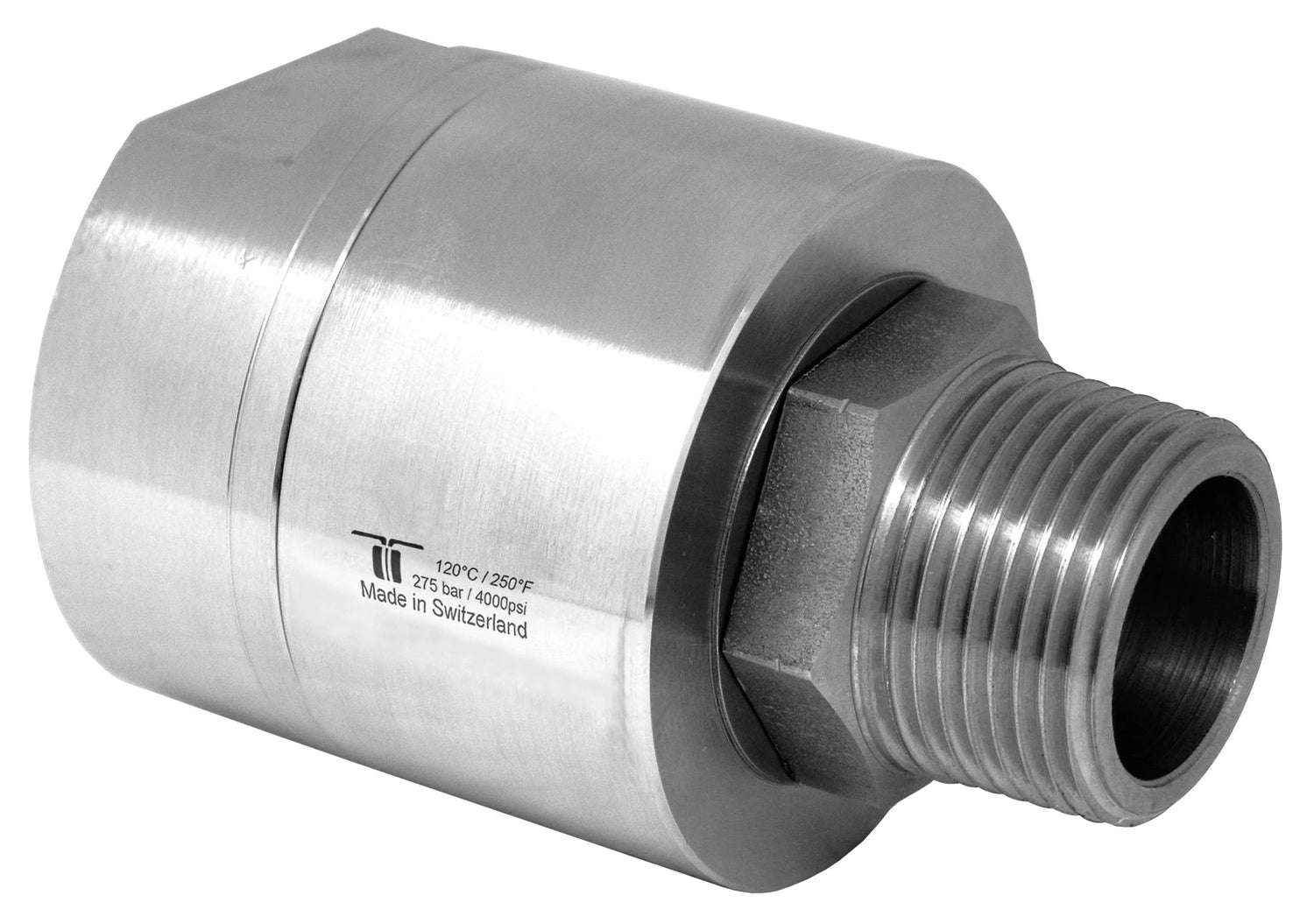

The Mosmatic DGE Swivel - 34.855 is a durable, high-performance swivel designed for use in high-pressure applications requiring both thrust and radial force support. Constructed from nickel-plated brass with a stainless steel interior, this swivel is corrosion-resistant and well-suited for industrial and food-grade environments. This swivel includes a 1x thrust ball bearing, ensuring dependable performance, ensuring stable rotation, and consistent performance in demanding operations. With a pressure rating of up to 2900 PSI and temperature tolerance up to 250°F, this swivel offers a reliable solution for fluid transfer and cleaning systems.

Applications:

• Industrial high-pressure cleaning systems

• Food and beverage processing lines

• Sanitary washdown and chemical delivery systems

• High-flow, low-RPM rotary fluid connections

Key Features:

• Nickel-plated brass construction with stainless steel interior

• With 1x thrust ball bearing

• Supports both thrust and radial force applications

• Corrosion-resistant for long-term industrial or sanitary use

• Thread IN: 1" NPTF | Thread OUT: 1" NPTM

• Nominal Width (NW): 1"

• Diameter: 2.36"

• Overall Length: 3.54"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1"NPTF

Thread Out: G2 1"NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.97

Diameter (D): 2.36"

Length 1 (L1) (overall length): 3.54"

Length 2 (L2): 2.36

Length 3 (L3): 0.71

Weight: 40.3oz
