Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/4"NPTF G2 3/4"NPTM 41.361

Mosmatic WDRS Swivel - 41.361 - G1 3/4" NPTF to G2 3/4" NPTM

(0)

$682.91 USD

The Mosmatic WDRS Swivel 41.361 is a premium stainless steel swivel engineered for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Designed for strength, durability, and smooth performance, this swivel ensures reliable rotation and long service life in the most demanding environments.

Featuring a robust dual bearing system with two radial ball bearings and an NBR O-ring seal, the WDRS 41.361 provides stable, low-friction operation while minimizing maintenance needs. Its corrosion-resistant stainless steel body is built to handle water, chemicals, and compressed air, making it ideal for both commercial and industrial use.

This model offers a Thread In of 3/4" NPTF and a Thread Out of 3/4" NPTM, with a nominal width of 3/4", an overall diameter of 1.97", and a length of 4.80". Rated for up to 3000 PSI, it operates at speeds up to 130 RPM and temperatures ranging from 40°F to 180°F. It supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical applications
Pneumatic tools and compressed air connections
Surface cleaners and rotary spray equipment
Commercial cleaning and spraying systems

Features

High-quality stainless steel construction for superior corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth, reliable rotation
NBR O-ring seal for effective leak prevention and long service life
Thread In: 3/4" NPTF | Thread Out: 3/4" NPTM
Nominal Width (NW): 3/4"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 130
Overall Diameter: 1.97" | Overall Length: 4.80" | Height: 1.69"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTM

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.26

Height (H): 1.69

Length 1 (L1) (overall length) : 4.80

Length 2 (L2): 3.54

Length 3 (L3): 0.63

Length 4 (L4): 2.64

Diameter (D) (overall diameter): 1.97

Weight: 41 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 1"NPTF G2 1"NPTF 41.462

Mosmatic WDRS Swivel - 41.462 - G1 1" NPTF to G2 1" NPTF

(0)

$869.00 USD

The Mosmatic WDRS Swivel 41.462 is a premium stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for durability and dependable performance, this swivel ensures smooth, stable rotation and effective leak prevention even in the toughest operating environments.

Equipped with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.462 provides reliable, low-friction operation while extending service life and reducing maintenance requirements. Its corrosion-resistant stainless steel body makes it ideal for water, chemical, and compressed air use.

This model features a Thread In of 1" NPTF and a Thread Out of 1" NPTF, with a nominal width (NW) of 1", an overall diameter of 2.20", and a length of 6.16". Rated for up to 3000 PSI, it operates efficiently at speeds up to 110 RPM and temperatures ranging from 40°F to 180°F. It supports media within a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer lines
Pneumatic and compressed air tool systems
Rotary spray equipment and surface cleaners
Commercial cleaning and spraying systems

Features

Rugged stainless steel construction for corrosion resistance and durability
Dual bearing system with 2x radial ball bearings for smooth rotational performance
NBR O-ring seal for reliable leak prevention and long service life
Thread In: 1" NPTF | Thread Out: 1" NPTF
Nominal Width (NW): 1"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 110
Overall Diameter: 2.20" | Overall Length: 6.16" | Height: 1.89"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 110

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTF

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Wrench Size 2 (SW2): 1.42

Height (H): 1.89

Length 1 (L1) (overall length) : 6.16

Length 2 (L2): 3.94

Length 3 (L3): 3.72

Diameter (D) (overall diameter): 2.20

Weight: 57 oz

Mosmatic rotary unions WDRS swivel with motor connection G1 1/2"NPTF G2 1/2"NPTM SW 1.06 41.920

Mosmatic WDRS Swivel - 41.920 - G1 1/2" NPTF to G2 1/2" NPTM

(0)

$628.73 USD

The Mosmatic WDRS Swivel 41.920 is a high-performance stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for reliable rotation and long service life, this swivel provides exceptional performance in demanding environments where durability and leak-free operation are essential.

Featuring a robust dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.920 ensures smooth, stable rotation with effective leak prevention. Its stainless steel construction delivers excellent corrosion resistance, making it suitable for water, chemicals, and compressed air systems.

This swivel offers a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTM, with a nominal width of 1/2", overall diameter of 1.77", and length of 6.10". Rated for pressures up to 3000 PSI, the unit operates at speeds up to 150 RPM and temperatures ranging from 40°F to 180°F. Compatible with media in the pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer lines
Pneumatic and compressed air tool connections
Rotary spray equipment and surface cleaners
Commercial cleaning and spraying systems

Features

Stainless steel construction for superior corrosion resistance and durability
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for reliable leak protection and extended service life
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTM
Nominal Width (NW): 1/2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 6.10" | Height: 1.57"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.06

Height (H): 1.57

Length 1 (L1) (overall length) : 6.10

Length 2 (L2): 2.76

Length 3 (L3): 0.60

Length 4 (L4): 3.31

Diameter (D) (overall diameter): 1.77

Weight: 33 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 1/2"NPTF G2 1/2"NPTM 41.261

Mosmatic WDRS Swivel - 41.261 - G1 1/2" NPTF to G2 1/2" NPTM

(0)

$552.84 USD

The Mosmatic WDRS Swivel 41.261 is a heavy-duty, stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for durability and smooth operation, this swivel ensures reliable performance under demanding conditions where consistent rotation and leak-free sealing are essential.

Engineered with a dual bearing system featuring two radial ball bearings and an NBR O-ring seal, the WDRS 41.261 provides superior rotational stability and long service life. Its stainless steel construction offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air in both commercial and industrial environments.

This model features a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTM, with a nominal width of 1/2". It is designed to handle up to 3000 PSI, operates at speeds up to 150 RPM, and withstands temperatures from 40°F to 180°F. Compatible with media in the pH 3–12 range and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial hose reels and high-flow applications
High-pressure cleaning equipment
Pneumatic tool connections and compressed air systems
Surface cleaners and rotary spray equipment
Commercial cleaning and spraying setups

Features

High-strength stainless steel construction for corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth rotation
Reliable NBR O-ring seal for effective leak prevention
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTM
Nominal Width (NW): 1/2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 4.33" | Height: 1.57"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.06

Height (H): 1.57

Length 1 (L1) (overall length) : 4.33

Length 2 (L2): 3.15

Length 3 (L3): 0.60

Length 4 (L4): 2.36

Diameter (D) (overall diameter): 1.77

Weight: 33 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 1"NPTF G2 1"NPTM 41.461

Mosmatic WDRS Swivel - 41.461 - G1 1" NPTF to G2 1" NPTM

(0)

$845.49 USD

The Mosmatic WDRS Swivel 41.461 is a heavy-duty, stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for optimal performance and longevity, this swivel ensures smooth rotation, high stability, and reliable sealing in demanding environments.

Built with a dual bearing system that includes two radial ball bearings and an NBR O-ring seal, the WDRS 41.461 provides low-friction operation and long-lasting durability. Its corrosion-resistant stainless steel body makes it suitable for water, chemicals, and compressed air, supporting consistent performance even in harsh conditions.

The swivel features a Thread In of 1" NPTF and a Thread Out of 1" NPTM, with a nominal width of 1", an overall diameter of 2.20", and a length of 5.35". Designed to handle pressures up to 3000 PSI, it operates efficiently at speeds up to 110 RPM and temperatures between 40°F and 180°F. It is compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer systems
Pneumatic tool connections and compressed air lines
Surface cleaners and rotary spray equipment
Commercial cleaning and fluid handling setups

Features

Corrosion-resistant stainless steel construction
Dual bearing system with 2x radial ball bearings for smooth rotation
NBR O-ring seal for reliable leak prevention and long service life
Thread In: 1" NPTF | Thread Out: 1" NPTM
Nominal Width (NW): 1"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 110
Overall Diameter: 2.20" | Overall Length: 5.35" | Height: 1.89"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 110

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1" NPTF

Thread Out: G2 1" NPTM

Nominal Width (NW): 1"

Wrench Size 1 (SW1): 1.42

Height (H): 1.89

Length 1 (L1) (overall length) : 5.35

Length 2 (L2): 3.94

Length 3 (L3): 0.71

Length 4 (L4): 2.91

Diameter (D) (overall diameter): 2.20

Weight: 56 oz

Mosmatic WDRS Swivel - 41.647 - G1 2 1/2" NPTF to G2 2 1/2" NPTF

(0)

$2,468.04 USD

The Mosmatic WDRS Swivel 41.647 is a heavy-duty stainless steel swivel coupling engineered for large-diameter, high-pressure applications such as automatic car wash systems, industrial hose reels, and high-flow transfer lines. Designed for durability and smooth performance, this swivel provides reliable rotation and leak-resistant operation under demanding conditions.

The swivel features a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, ensuring stable, low-friction operation and extended service life. Its corrosion-resistant stainless steel body is ideal for use with water, chemicals, and compressed air, making it well-suited for industrial and commercial environments.

This model offers a Thread In of 2 ½" NPTF and a Thread Out of 2 ½" NPTF, with a nominal width (NW) of 2 ½", an overall diameter of 5.51", and an overall length of 9.70". Rated for up to 3000 PSI, the swivel operates at speeds up to 50 RPM and within a temperature range of 40°F to 180°F. It supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
Large-diameter high-flow water and chemical transfer lines
Pneumatic tool and compressed air systems
Rotary spray equipment and surface cleaners
Commercial cleaning and fluid handling setups

Features

Stainless steel construction for superior durability and corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth and stable rotation
NBR O-ring seal for reliable leak protection and long service life
Thread In: 2 ½" NPTF | Thread Out: 2 ½" NPTF
Nominal Width (NW): 2 ½"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 50
Overall Diameter: 5.51" | Overall Length: 9.70" | Height: 3.94"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 290 psi

Temperature: 40°F - 180°F

RPM: max 50

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 2 1/2" NPTF

Thread Out: G2 2 1/2" NPTF

Nominal Width (NW): 2 1/2"

Wrench Size 1 (SW1): 3.35

Wrench Size 2 (SW2): 3.35

Height (H): 3.94

Length 1 (L1) (overall length) : 9.90

Length 2 (L2): 6.89

Length 3 (L3): 1.14

Diameter (D) (overall diameter): 5.51

Weight: 528 oz

Mosmatic rotary unions WDRS swivel with motor connection G1 1/2"NPTF G2 1/2"NPTM SW 0.75 41.921

Mosmatic WDRS Swivel - 41.921 - G1 1/2" NPTF to G2 1/2" NPTM

(0)

$628.73 USD

The Mosmatic WDRS Swivel 41.921 is a high-quality stainless steel swivel coupling engineered for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Designed for smooth, reliable performance, this swivel ensures long-lasting operation in environments where consistent rotation and leak resistance are critical.

Built with a robust dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.921 provides stable, low-friction operation while preventing leaks and extending service life. Its stainless steel body offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.

The swivel features a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTM, with a nominal width (NW) of 1/2", an overall diameter of 1.77", and an overall length of 6.10". Rated for up to 3000 PSI, it supports rotational speeds up to 150 RPM and operates within a temperature range of 40°F to 180°F. Compatible with pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer systems
Pneumatic tool and compressed air line connections
Rotary spray tools and surface cleaners
Commercial cleaning and spraying equipment

Features

Corrosion-resistant stainless steel construction for durability
Dual bearing system with 2x radial ball bearings for smooth rotation
NBR O-ring seal for reliable leak prevention and long service life
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTM
Nominal Width (NW): 1/2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 6.10" | Height: 1.57"
Suitable for pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 0.75

Height (H): 1.57

Length 1 (L1) (overall length) : 6.10

Length 2 (L2): 3.15

Length 3 (L3): 0.60

Length 4 (L4): 3.31

Diameter (D) (overall diameter): 1.77

Weight: 36 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/8"NPTF G2 3/8"NPTM 41.161

Mosmatic WDRS Swivel - 41.161 - G1 3/8" NPTF to G2 3/8" NPTM

(0)

$552.84 USD

The Mosmatic WDRS Swivel 41.161 is a high-performance stainless steel swivel designed for demanding applications such as automatic car wash systems, industrial equipment, high-pressure hose reels, and high-flow setups. Engineered for durability and smooth operation, this swivel coupling delivers reliable performance in harsh environments where consistent rotation and leak-free operation are critical.

Featuring a robust dual bearing system with two radial ball bearings and an NBR O-ring seal, the WDRS 41.161 ensures smooth rotation, reduced wear, and long service life. Its stainless steel construction offers excellent corrosion resistance, making it ideal for continuous use with water, chemicals, and compressed air.

This model includes a Thread In of 3/8" NPTF and a Thread Out of 3/8" NPTM, with a nominal width of 3/8", overall diameter of 1.77", overall length of 4.13", and height of 1.46". Designed to handle pressures up to 3000 PSI and temperatures ranging from 40°F to 180°F, it supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water or chemical applications
Pneumatic tool connections and compressed air lines
Surface cleaners and rotary arms
Commercial and industrial cleaning equipment

Features

Corrosion-resistant stainless steel construction
Dual bearing system with 2x radial ball bearings for smooth operation
NBR O-ring seal for reliable leak protection
Thread In: 3/8" NPTF | Thread Out: 3/8" NPTM
Nominal Width (NW): 3/8"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 4.13" | Height: 1.46"
Supports pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06

Height (H): 1.46

Length 1 (L1) (overall length) : 4.13

Length 2 (L2): 3.15

Length 3 (L3): 0.43

Length 4 (L4): 2.20

Diameter (D) (overall diameter): 1.77

Weight: 33 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/8"NPTF G2 3/8"NPTF 41.162

Mosmatic WDRS Swivel - 41.162 - G1 3/8" NPTF to G2 3/8" NPTF

(0)

$579.48 USD

The Mosmatic WDRS Swivel 41.162 is a high-performance stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for durability and smooth operation, this swivel delivers reliable, leak-free performance in demanding environments.

Built with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.162 ensures stable rotation, reduces friction, and extends service life. Its corrosion-resistant stainless steel construction makes it suitable for use with water, chemicals, and compressed air systems, providing exceptional resistance to wear and harsh conditions.

The swivel features a Thread In of 3/8" NPTF and a Thread Out of 3/8" NPTM, with a nominal width of 3/8", an overall diameter of 1.77", and an overall length of 3.62". Rated for up to 3000 PSI, it operates at speeds up to 150 RPM and temperatures between 40°F and 180°F. The unit supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer applications
Pneumatic and compressed air tool connections
Surface cleaners and rotary spray equipment
Commercial cleaning and spraying systems

Features

Durable stainless steel construction for superior corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth rotation
NBR O-ring seal for reliable leak prevention and extended service life
Thread In: 3/8" NPTF | Thread Out: 3/8" NPTM
Nominal Width (NW): 3/8"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 3.62" | Height: 1.46"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06

Height (H): 1.46

Length 1 (L1) (overall length) : 3.62

Length 2 (L2): 3.15

Length 3 (L3): 1.69

Diameter (D) (overall diameter): 1.77

Weight: 28 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 3/4"NPTF G2 3/4"NPTF 41.362

Mosmatic WDRS Swivel - 41.362 - G1 3/4" NPTF to G2 3/4" NPTF

(0)

$708.93 USD

The Mosmatic WDRS Swivel 41.362 is a high-performance stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for reliable operation and long service life, this swivel delivers smooth rotation and leak-free performance in the most demanding environments.

Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.362 ensures stable, low-friction operation while minimizing wear and maintenance. Its rugged stainless steel construction provides superior corrosion resistance, making it suitable for water, chemical solutions, and compressed air systems.

This model includes a Thread In of 3/4" NPTF and a Thread Out of 3/4" NPTF, with a nominal width (NW) of 3/4", an overall diameter of 1.97", and an overall length of 5.51". Rated for up to 3000 PSI, the swivel supports a maximum speed of 130 RPM and operates effectively within a temperature range of 40°F to 180°F. It is compatible with media pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer systems
Pneumatic and compressed air tool connections
Rotary spray tools and surface cleaners
Commercial cleaning and spraying equipment

Features

Corrosion-resistant stainless steel construction for durability
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for effective leak prevention and long service life
Thread In: 3/4" NPTF | Thread Out: 3/4" NPTF
Nominal Width (NW): 3/4"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 130
Overall Diameter: 1.97" | Overall Length: 5.51" | Height: 1.69"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 130

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 3/4" NPTF

Thread Out: G2 3/4" NPTF

Nominal Width (NW): 3/4"

Wrench Size 1 (SW1): 1.26

Wrench Size 2 (SW2): 1.26

Height (H): 1.69

Length 1 (L1) (overall length) : 5.51

Length 2 (L2): 3.54

Length 3 (L3): 3.35

Diameter (D) (overall diameter): 1.97

Weight: 36 oz

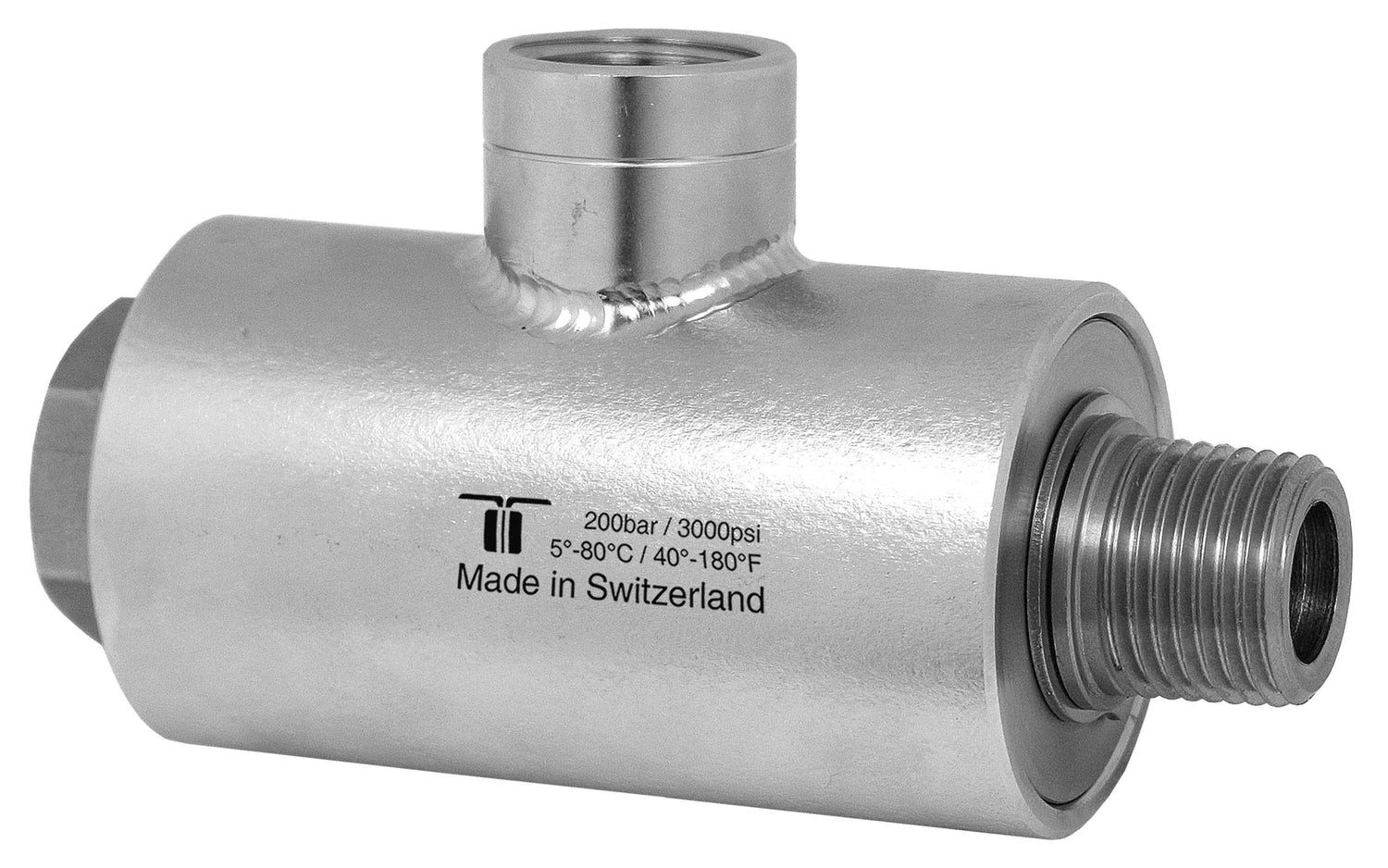

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 2"NPTF G2 2"NPTM 41.661

Mosmatic WDRS Swivel - 41.661 - G1 2" NPTF to G2 2" NPTM

(0)

$1,803.04 USD

The Mosmatic WDRS Swivel 41.661 is a high-performance stainless steel swivel designed for large-diameter, high-pressure applications, including automatic car wash systems, industrial hose reels, and high-flow water or chemical transfer. Engineered for durability and precision, this swivel delivers smooth rotation, high stability, and long-lasting reliability in demanding operating conditions.

Equipped with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.661 ensures consistent, low-friction operation with effective leak prevention. Its rugged stainless steel construction offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.

This model includes a Thread In of 2" NPTF and a Thread Out of 2" NPTM, with a nominal width of 2", an overall diameter of 3.54", and an overall length of 7.09". Rated for up to 3000 PSI, it operates at speeds up to 60 RPM and temperatures from 40°F to 180°F. Compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer lines
Pneumatic tool and compressed air connections
Surface cleaning and rotary spray equipment
Commercial cleaning and spraying systems

Features

Heavy-duty stainless steel construction for superior corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth and stable rotation
NBR O-ring seal for reliable leak protection and long service life
Thread In: 2" NPTF | Thread Out: 2" NPTM
Nominal Width (NW): 2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 60
Overall Diameter: 3.54" | Overall Length: 7.09" | Height: 2.76"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 60

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 2" NPTF

Thread Out: G2 2" NPTM

Nominal Width (NW): 2"

Wrench Size 1 (SW1): 2.76

Height (H): 2.76

Length 1 (L1) (overall length) : 7.09

Length 2 (L2): 5.28

Length 3 (L3): 0.87

Length 4 (L4): 3.82

Diameter (D) (overall diameter): 3.54

Weight: 173 oz

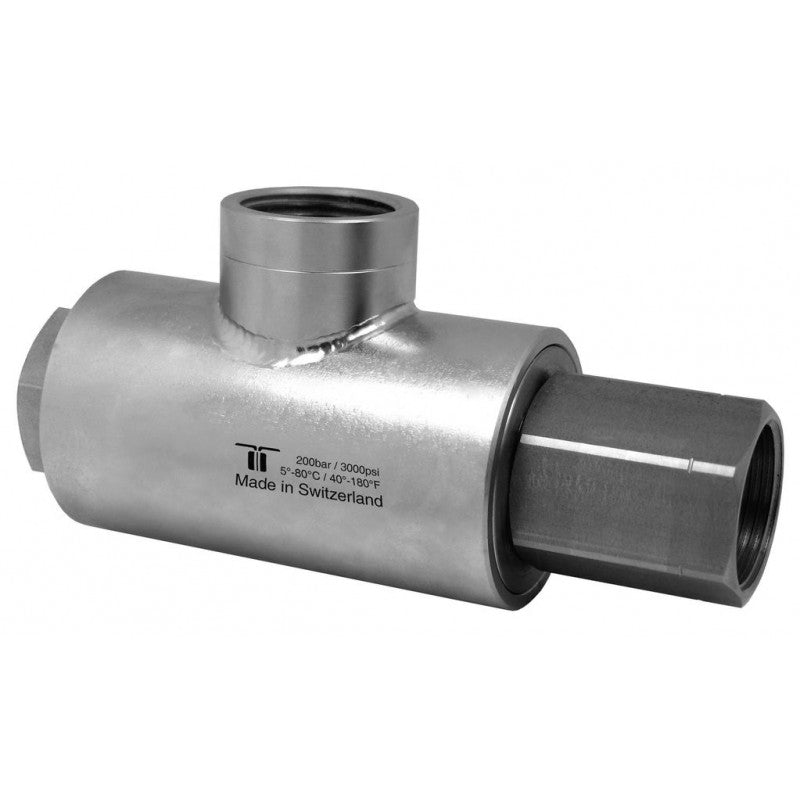

Mosmatic WDRS Swivel - 41.662 - G1 2" NPTF to G2 2" NPTF

(0)

$1,829.10 USD

The Mosmatic WDRS Swivel 41.662 is a heavy-duty stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for long-lasting durability and smooth rotation, this swivel delivers reliable, leak-free operation in demanding environments.

Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.662 ensures low-friction, stable performance while minimizing wear and maintenance. Its robust stainless steel construction offers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air systems.

This swivel is designed with a Thread In of 2" NPTF and a Thread Out of 2" NPTF, with a nominal width (NW) of 2", overall diameter of 3.54", and an overall length of 7.99". Rated for up to 3000 PSI, it operates at speeds up to 60 RPM and withstands temperatures from 40°F to 180°F. The unit is compatible with media in the pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer lines
Pneumatic tool and compressed air connections
Rotary spray equipment and surface cleaners
Commercial cleaning and fluid handling systems

Features

Durable stainless steel construction for superior corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for effective leak prevention and long service life
Thread In: 2" NPTF | Thread Out: 2" NPTF
Nominal Width (NW): 2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 60
Overall Diameter: 3.54" | Overall Length: 7.99" | Height: 2.76"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 60

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 2" NPTF

Thread Out: G2 2" NPTF

Nominal Width (NW): 2"

Wrench Size 1 (SW1): 2.76

Wrench Size 2 (SW2): 2.76

Height (H): 2.76

Length 1 (L1) (overall length) : 7.99

Length 2 (L2): 5.28

Length 3 (L3): 4.10

Diameter (D) (overall diameter): 3.54

Weight: 190 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 1/2"NPTF G2 1/2"NPTF 41.262

Mosmatic WDRS Swivel - 41.262 - G1 1/2" NPTF to G2 1/2" NPTF

(0)

$579.48 USD

The Mosmatic WDRS Swivel 41.262 is a high-quality stainless steel swivel coupling engineered for automatic car wash systems, industrial high-pressure hose reels, and high-flow applications. Designed for smooth rotation and reliable sealing, this swivel delivers long-lasting performance in demanding environments where efficiency and durability are essential.

Built with a dual bearing system featuring 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.262 ensures low-friction operation, reduced wear, and superior leak resistance. Its corrosion-resistant stainless steel construction makes it ideal for use with water, chemicals, and compressed air, even in harsh conditions.

This model includes a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTF, with a nominal width of 1/2", overall diameter of 1.77", and an overall length of 3.62". Designed to handle pressures up to 3000 PSI, the swivel supports speeds up to 150 RPM and operates efficiently at temperatures from 40°F to 180°F. It is compatible with pH 3–12 media and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer lines
Pneumatic and compressed air tool connections
Rotary spray tools and surface cleaners
Commercial cleaning and fluid handling systems

Features

High-strength stainless steel construction for corrosion resistance and durability
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for effective leak prevention and extended service life
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTF
Nominal Width (NW): 1/2"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 150
Overall Diameter: 1.77" | Overall Length: 3.62" | Height: 1.57"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 150

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1/2" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 1.06

Height (H): 1.57

Length 1 (L1) (overall length) : 3.62

Length 2 (L2): 3.15

Length 3 (L3): 1.69

Diameter (D) (overall diameter): 1.77

Weight: 28 oz

Mosmatic rotary unions WDRS swivel no front to back forces allowed G1 1 1/2"NPTF G2 1 1/2"NPTM 41.561

Mosmatic WDRS Swivel - 41.561 - G1 1 ½" NPTF to G2 1 ½" NPTM

(0)

$1,672.96 USD

The Mosmatic WDRS Swivel 41.561 is a heavy-duty stainless steel swivel coupling designed for high-flow, high-pressure applications including automatic car wash systems, industrial hose reels, and commercial cleaning equipment. Engineered for durability and reliable performance, this swivel ensures smooth rotation and effective sealing even under demanding operating conditions.

Featuring a robust dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.561 delivers consistent, low-friction operation while minimizing wear and maintenance. Its stainless steel construction provides excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air.

This model is equipped with a Thread In of 1 ½" NPTF and a Thread Out of 1 ½" NPTM, with a nominal width of 1 ½". It handles up to 3000 PSI, operates at a maximum speed of 76 RPM, and is rated for temperatures between 40°F and 180°F. Compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI, the 41.561 is built for dependable, long-term performance.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer applications
Pneumatic tool and compressed air line connections
Surface cleaners and rotary spray equipment
Commercial cleaning and spraying systems

Features

Heavy-duty stainless steel construction for superior corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for reliable leak prevention and long-lasting durability
Thread In: 1 ½" NPTF | Thread Out: 1 ½" NPTM
Nominal Width (NW): 1 ½"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 76
Overall Diameter: 2.80" | Overall Length: 5.91" | Height: 2.36"
Supports pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 76

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1 ½" NPTF

Thread Out: G2 1 ½" NPTM

Nominal Width (NW): 1 ½"

Wrench Size 1 (SW1): 2.17

Height (H): 2.36

Length 1 (L1) (overall length) : 5.91

Length 2 (L2): 4.33

Length 3 (L3): 0.79

Length 4 (L4): 3.27

Diameter (D) (overall diameter): 2.80

Weight: 95 oz

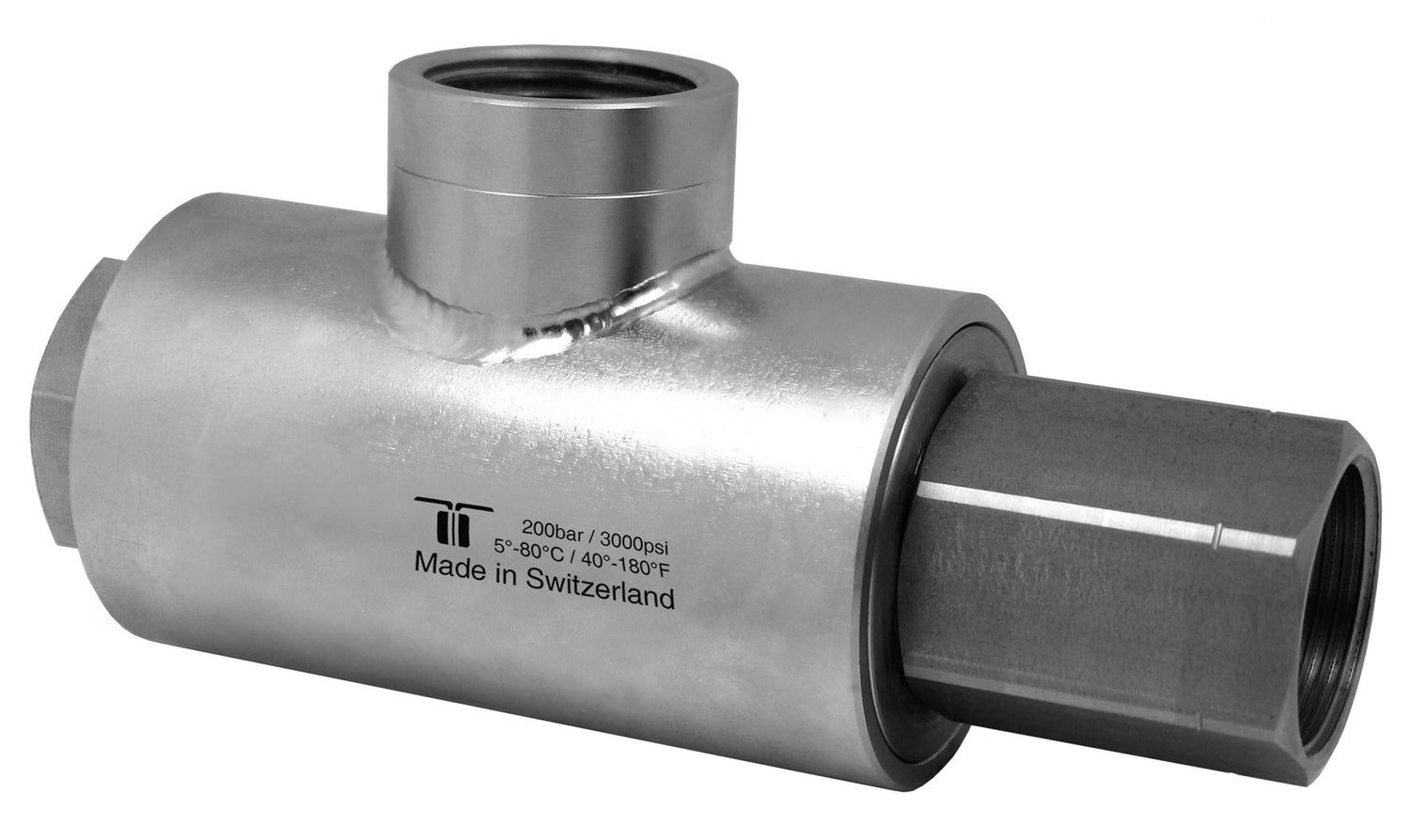

Mosmatic WDRS Swivel - 41.562 - G1 1 1/2" NPTF to G2 1 1/2" NPTF

(0)

$1,698.34 USD

The Mosmatic WDRS Swivel 41.562 is a high-performance stainless steel swivel coupling designed for automatic car wash systems, industrial hose reels, and high-flow pressure applications. Engineered for smooth, reliable operation, this swivel ensures stable rotation and effective sealing under tough working conditions.

Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.562 provides consistent low-friction performance, minimizes wear, and extends operational life. Its robust stainless steel construction delivers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air.

This model includes a Thread In of 1 ½" NPTF and a Thread Out of 1 ½" NPTF, with a nominal width (NW) of 1 ½", an overall diameter of 2.80", and an overall length of 6.77". Rated for pressures up to 3000 PSI, it operates at a maximum speed of 76 RPM and withstands temperatures from 40°F to 180°F. The swivel supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.

Applications

Automatic car wash systems
Industrial high-pressure hose reels
High-flow water and chemical transfer systems
Pneumatic tool and compressed air connections
Rotary spray tools and surface cleaners
Commercial cleaning and fluid handling systems

Features

Stainless steel construction for superior durability and corrosion resistance
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
NBR O-ring seal for reliable leak prevention and extended service life
Thread In: 1 ½" NPTF | Thread Out: 1 ½" NPTF
Nominal Width (NW): 1 ½"
Max Pressure: 3000 PSI
Max Temperature Range: 40°F to 180°F
Max RPM: 76
Overall Diameter: 2.80" | Overall Length: 6.77" | Height: 2.36"
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)

Specs

Pressure: 3000 psi

Temperature: 40°F - 180°F

RPM: max 76

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 1 1/2" NPTF

Thread Out: G2 1 1/2" NPTF

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.17

Wrench Size 2 (SW2): 2.17

Height (H): 2.36

Length 1 (L1) (overall length) : 6.77

Length 2 (L2): 4.33

Length 3 (L3): 3.90

Diameter (D) (overall diameter): 2.80

Weight: 101 oz

View all posts

News

How To Clean Your Deck With A Surface Cleaner

by Andy Madwire on Jul 24 2017

If you’re looking for an effective way to clean your home’s deck, consider investing in a surface cleaner or pressure washer. Surface cleaners offer an environmentally friendly way to wash your deck, and with the large variety of pressure washers available, it’s easy to find one that suits your needs. In this article, we’ll look at the steps involved in pressure washing your deck, so you can have a beautiful deck for years to come. At Mosmatic Professional, we understand how intimidating it can be to shop for surface cleaners. That’s why we’re dedicated to selling the best, most innovative pressure washers available. Whether you’re looking for a pressure washer to clean your deck or car, you’re sure to find a pressure washer for your needs on our website. Browse our pressure washers today! Surface Cleaning Your Deck High-pressure surface cleaners can easily remove dirt and debris from the surface layer of your deck. Power washing is one of the fastest ways to clean a wood deck, but it’s important to be careful, as you can ruin your deck without taking the proper precautions. Before you start pressure washing, remove all of the items on your deck, including furniture, plants, and grills. Take some time to sweep away leaves and other loose debris, this will help to reveal tough stains that have been left by mildew and tree sap. Setting Up Your Surface Cleaner Whether you plan on using an electric or gasoline-powered surface cleaner, you’ll want to hook it up to a garden hose and turn the water on before you start it up. Make sure that the water is cold, as hot water can raise the wood grain on your porch and cause damage. If you plan on using a cleaning solution of some sort, make sure you take the time to read the manufacturer’s label, to ensure your deck can handle the cleaning agents and chemicals. Surface Cleaning Technique Your surface cleaning technique is very important to the overall aesthetic of your deck. In order to avoid causing damage to the wood, keep the tip of your pressure washer between four to eight inches away from the wood at all times. With enough practice, you’ll eventually find the optimal distance to hold the pressure washer. You should be able to see the wood change color as you wash. If your deck is in the sun and your wood has dried out or turned gray, there are several different sealers you can use to prolong it’s life. Your deck will have roughly two full days to dry after you wash it and before you apply the sealer. While you can apply the sealer with a regular paintbrush, a roller or sprayer will take less time. High Quality Pressure Washers from Mosmatic Professional If you’ve been searching for the perfect pressure washer for your home, browse Mosmatic Professional’s large array of surface cleaners online. We offer quality pressure washers for a variety of applications. If you have any questions about our products, contact us today!

News

The Consumer’s Guide To Pressure Washers

by Andy Madwire on Jul 06 2017

Pressure washers are one of the most helpful tools you can have as a homeowner. From cleaning your outdoor patio to making your car sparkle, pressure washers can be used to clean several items in and around your home. At Mosmatic Professional, we’re proud to be a leading provider of pressure washers and surface cleaners online, and we take great pride in providing our customers with the perfect pressure washer for their needs. In this article, we’ll dive deeper into the details of pressure washers so you can be well-prepared when it comes time to make a purchase. The Types of Pressure Washers With the large variety of pressure washers available on the market today, it can be difficult trying to decide which pressure washer will meet your unique needs. While all pressure washers share very similar functionality, it’s important to remember that all washers are not created equal. Let’s take a look at the two most common types of pressure washers below. Electric Pressure Washers Electric pressure washers are excellent tools for small, light projects like cleaning your patio furniture and washing your car. These washers can be extremely powerful, and some machines can deliver pressure up to 200 PSI. Many people prefer this type of pressure washer because they are very low maintenance machines and they remain very quiet during operation. Gas Powered Pressure Washers Gas powered pressure washers tend to be more powerful than their electric counterparts. These washers can reach pressure levels of up to 4,000 PSI and they can last for many years with the appropriate maintenance and upkeep. While these pressure washers lean on the heavier side, they often have wheels that can help with portability. What Is PSI? The pressure output in pounds per square inch, also known as PSI, is a the main factor in determining the types of jobs a pressure washer can handle. Below is a list of the four most common PSI ratings. Light Duty Pressure Washers - These washers are rated to have a PSI below 2,000. They work great for cleaning trucks, boats, cars, and outdoor furniture. These washers can also be used to pressure wash sidewalks, decks, driveways, and patios. Medium Duty Pressure Washers - These washers generate between 2,000 and 2,800 PSI. In addition the the light duty jobs, these washers can be used to pressure wash the siding of your home and fences as well. Heavy Duty Pressure Washers - Heavy duty pressure washers generate between 2,900 and 3,300 PSI. These models work very well for cleaning jobs when it comes to sidewalks and driveways. They can also help prepare surfaces for a new coat of paint. Extra Heavy Duty Pressure Washers - These are the most professional-duty pressure washers available, offering a PSI of 3,300 and up. Often used for paint preparation and extreme cleanings, many commercial businesses utilize these models. Pressure Washer Tools & Accessories Many pressure washer models come with a variety of tools and accessories that can help you clean more quickly and efficiently. Some popular accessories include: Brushes - These help you apply scrubbing power to your cleaning projects. Extension Wands - These attachments can be significantly helpful when it comes to power washing your home’s exterior. Angled Wands - Special angled wands are great attachments to consider if you plan on cleaning your home’s gutters. Surface Cleaners - Most surface cleaners offer spinning jets that can be tremendously helpful when it comes to cleaning your home’s driveway or sidewalk. Pressure Washer Chemicals - There are many different types of pressure washer chemicals to assist with your cleaning goals. It’s recommended to refer to your pressure washer’s manual to see if the manufacturer has specific chemicals they recommend for their equipment. At Mosmatic Professional we understand how challenging it can be to find the best pressure washer for you. That’s why we’re proud to be a leading provider of pressure washers and accessories online. From our website, you have the unique ability to customize your pressure washer to meet your unique needs. Build your own nozzle, customize your foam brush or wand, or convert your surface cleaner to a Mosmatic model today. All of our products are manufactured in the United States and our Mosmatic brand is built to last!

Swivel by Name

Related blog posts
