The Mosmatic DGE Swivel - 34.765 is a rugged, high-flow stainless steel swivel designed for high-pressure applications where thrust and radial forces must be managed reliably. Equipped with 1x thrust ball bearing and 2x sliding bearings, this swivel delivers stable, low-RPM rotation and long-term durability. Its corrosion-resistant stainless steel construction makes it ideal for demanding environments such as pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial fluid handling.
Applications:
-
Food and beverage cleaning and transfer systems
-
Pharmaceutical production and CIP processes
-
Rotary spray arms in car wash systems
-
Industrial chemical handling and washdown
Key Features:
-
Corrosion-resistant stainless steel housing
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads under high pressure
-
High-flow design with smooth low-RPM operation
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTF
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 3.54"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTF
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.42
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 3.54"
Length 2 (L2): 2.56
Weight: 44oz
The Mosmatic DGE Swivel - 34.753 is a precision-engineered stainless steel swivel built for high-pressure, high-flow applications in demanding environments. Designed to manage thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for long-lasting, stable performance. Ideal for pharmaceutical, food processing, industrial cleaning, and automatic car wash systems, it offers a corrosion-resistant design, a 5000 PSI pressure rating, and heat resistance up to 250°F.
Applications:
-
Pharmaceutical manufacturing and clean-in-place systems
-
Food and beverage processing and sanitation lines
-
Automatic car wash sprayers and rinsing systems
-
Industrial washdown and fluid transfer systems
Key Features:
-
Durable stainless steel body for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow design supports efficient liquid transfer
-
Withstands both thrust and radial loads
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 2.17"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65
Length 1 (L1) (overall length): 2.17"
Length 2 (L2): 2.17
Length 3 (L3): 0.59
Weight: 18.9oz
The Mosmatic DGE Swivel - 34.783 is a high-quality stainless steel swivel designed for high-pressure fluid systems that demand durability and precision. Engineered to handle both thrust and radial forces, this swivel features a robust bearing system with 1x thrust ball bearing and 2x sliding bearings for smooth, long-lasting performance. With a pressure rating of 5000 PSI and a temperature tolerance up to 250°F, it's perfectly suited for continuous operation in pharmaceutical, food service, industrial, and automatic car wash applications.
Applications:
-
Pharmaceutical clean-in-place (CIP) systems
-
Food and beverage processing and sanitation
-
Industrial high-pressure washdown and chemical delivery
-
Rotary spray systems in car washes
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Built to handle both thrust and radial loads
-
High-flow, low-RPM design optimized for long service life
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.82"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW1): 1.06
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.82"
Length 2 (L2): 2.09
Length 4 (L4): 0.63
Length 5 (L5): 0.63
Weight: 22.8oz
The Mosmatic DGE Swivel - 34.754 is a high-performance stainless steel swivel engineered for high-pressure, high-flow operations across a variety of demanding environments. Designed to support both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for smooth, reliable operation. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, it’s perfect for applications in pharmaceutical manufacturing, food processing, industrial cleaning, and automatic car wash systems.
Applications:
-
Pharmaceutical fluid handling and CIP systems
-
Food and beverage sanitation and spray lines
-
Car wash sprayers and rotary connections
-
Industrial washdown and chemical systems
Key Features:
-
Rugged stainless steel construction for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow capacity for demanding applications
-
Supports both radial and thrust forces at low RPM
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 3.66"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTM
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.58
Diameter (D1): 1.97"
Length 1 (L1) (overall length): 3.66"
Length 2 (L2): 2.58
Length 3 (L3): 0.63
Weight: 27.8oz
The Mosmatic DGE Swivel - 34.763 is a precision-engineered stainless steel swivel designed to handle thrust and radial forces in high-pressure and high-flow applications. Featuring 1x thrust ball bearing and 2x sliding bearings, this swivel ensures smooth, reliable performance in continuous-use systems. With a robust pressure rating of 5000 PSI and resistance to temperatures up to 250°F, it's ideal for demanding operations in pharmaceutical, food processing, automatic car wash, and industrial fluid handling systems.
Applications:
-
Pharmaceutical clean-in-place (CIP) systems
-
Food and beverage production and sanitation
-
High-pressure spray systems in car washes
-
Industrial cleaning and chemical distribution
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed for high-flow, low-RPM, high-pressure environments
-
Supports both radial and thrust load applications
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.15"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTF
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65"
Length 1 (L1) (overall length): 3.15"
Length 2 (L2): 2.58
Weight: 22.0oz
The Mosmatic DGE Swivel - 34.757 is a high-quality stainless steel swivel engineered for high-pressure, high-flow systems requiring reliable performance under thrust and radial loads. Designed for use in pharmaceutical processing, food and beverage sanitation, industrial washdown, and automatic car wash systems, this swivel is built to withstand demanding environments. It features 1x thrust ball bearing and 2x sliding bearings to ensure smooth, long-lasting operation. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel provides both durability and efficiency.
Applications:
-
Food and beverage processing and cleaning lines
-
Pharmaceutical clean-in-place (CIP) systems
-
Automatic car wash rotary spray assemblies
-
Industrial chemical and fluid handling systems
Key Features:
-
Durable stainless steel body for corrosion and chemical resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Supports both thrust and radial force applications
-
High-flow performance for low-RPM, high-pressure use
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.33"
-
Overall Length: 4.61"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTM
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 1.97
Wrench Size 2 (SW2): 2.76
Diameter (D1): 3.33"
Length 1 (L1) (overall length): 4.61"
Length 2 (L2): 3.07
Length 3 (L3): 0.79
Weight: 95.3oz
The Mosmatic DGE Swivel - 34.782 is a premium stainless steel swivel designed for high-pressure applications where superior handling of thrust and radial forces is critical. Featuring a robust bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, reliable operation even under continuous heavy-duty use. Built to withstand up to 5000 PSI and temperatures reaching 250°F, it’s an ideal choice for pharmaceutical, food service, industrial washdown, and automatic car wash systems.
Applications:
-
Food and beverage sanitation and high-pressure fluid systems
-
Pharmaceutical processing and clean-in-place (CIP) operations
-
Industrial chemical handling and washdown stations
-
Rotary connections in automatic car wash equipment
Key Features:
-
Corrosion-resistant stainless steel construction for durability
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial force applications efficiently
-
High-flow capacity with low-RPM, high-pressure operation
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF
-
Nominal Width (NW): 3/8"
-
Diameter: 1.65"
-
Overall Length: 3.39"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTF
Nominal Width (NW): 3/8"
Wrench Size (SW1): 0.87
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.39"
Length 2 (L2): 2.09
Length 4 (L4): 0.67
Length 5 (L5): 0.55
Weight: 23.5oz
The Mosmatic DGE Swivel - 34.773 is a high-performance stainless steel swivel engineered for high-pressure environments that require reliable operation under both thrust and radial loads. Featuring a robust bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, long-lasting performance in continuous-use applications. Rated for 5000 PSI and resistant to temperatures up to 250°F, it's an ideal choice for pharmaceutical, food service, automatic car wash, and industrial cleaning systems.
Applications:
-
Clean-in-place (CIP) systems in pharmaceutical production
-
Food and beverage sanitation and fluid handling
-
Industrial pressure cleaning and washdown lines
-
Rotary arms and sprayers in automatic car wash systems
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial forces
-
High-flow performance with smooth rotation at low RPM
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.82"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW1): 0.87
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.82"
Length 2 (L2): 2.09
Length 3 (L3): 0.59
Length 4 (L4): 0.63
Length 5 (L5): 0.75
Weight: 23.2oz
The Mosmatic DGE Swivel - 34.752 is a premium-grade stainless steel swivel designed to withstand thrust and radial forces in high-pressure and high-flow applications. Engineered for use in pharmaceutical, food service, automatic car wash, and industrial environments, this swivel delivers excellent performance and reliability. It features 1x thrust ball bearing and 2x sliding bearings for stable, smooth operation. Built with corrosion-resistant materials and rated for up to 5000 PSI and 250°F, it's ideal for demanding, continuous-use systems.
Applications:
-
Pharmaceutical production and processing
-
Food and beverage sanitation systems
-
Automatic car wash and rinse equipment
-
Industrial washdown and fluid transfer
Key Features:
-
Heavy-duty stainless steel construction for superior corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow design for efficient pressure handling
-
Supports both thrust and radial loads
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM
-
Nominal Width (NW): 3/8"
-
Diameter: 1.65"
-
Overall Length: 2.87"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTM
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65"
Length 1 (L1) (overall length): 2.87"
Length 2 (L2): 2.05
Length 3 (L3): 0.43
Weight: 18.9oz

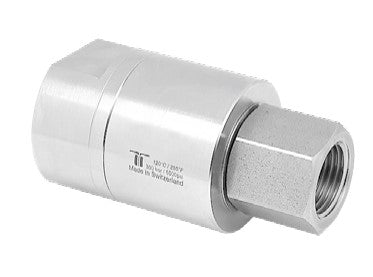

The Mosmatic DGE Swivel - 34.762 is a high-quality stainless steel swivel engineered to handle both thrust and radial forces in high-pressure, high-flow systems. Featuring 1x thrust ball bearing and 2x sliding bearings, this swivel delivers smooth, stable rotation under continuous use. Its corrosion-resistant design and sanitary-grade construction make it ideal for pharmaceutical, food service, industrial cleaning, and automatic car wash applications. Rated for up to 5000 PSI and temperatures up to 250°F, it's built to perform in demanding environments.
Applications:
-
Food and beverage processing and washdown systems
-
Pharmaceutical production and CIP (clean-in-place) systems
-
Industrial high-pressure wash and chemical delivery
-
Automatic car wash spray arms and rotary joints
Key Features:
-
Heavy-duty stainless steel construction for maximum corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed to manage both thrust and radial loads
-
Supports high-flow, low-RPM applications
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF
-
Nominal Width (NW): 3/8"
-
Diameter: 1.65"
-
Overall Length: 2.80"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTF
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65"
Length 1 (L1) (overall length): 2.80"
Length 2 (L2): 2.05
Weight: 10.4oz
The Mosmatic DGE Swivel - 34.764 is a high-performance stainless steel swivel engineered for use in high-pressure applications that demand durability, hygiene, and flow efficiency. Built to handle both thrust and radial forces, this swivel features a robust bearing system with 1x thrust ball bearing and 2x sliding bearings. Its corrosion-resistant stainless steel design makes it ideal for pharmaceutical, food processing, automatic car wash, and industrial fluid systems. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, this swivel ensures long-lasting, smooth operation.
Applications:
-
Food and beverage sanitation and fluid transfer
-
Pharmaceutical processing and CIP systems
-
Industrial washdown and chemical spraying
-
Rotary sprayers in automatic car wash systems
Key Features:
-
Heavy-duty stainless steel body for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads efficiently
-
High-flow capacity with low-RPM stability
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 3.66"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTF
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.26
Wrench Size 2 (SW2): 1.58
Diameter (D1): 1.97"
Length 1 (L1) (overall length): 3.66"
Length 2 (L2): 2.58
Weight: 31.8oz

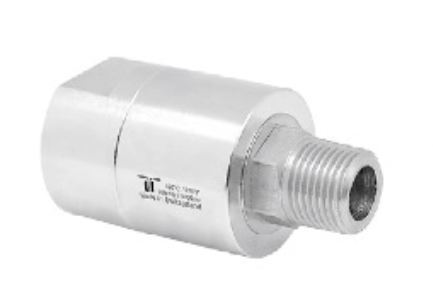

The Mosmatic DGE Swivel - 34.755 is a precision-engineered stainless steel swivel built for high-pressure and high-flow applications. Designed to handle both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings, delivering smooth, reliable rotation even in demanding conditions. Corrosion-resistant and rated for 2900 PSI, this swivel is ideal for use in pharmaceutical, food service, automatic car wash, and industrial fluid systems where hygiene, performance, and durability are essential.
Applications:
-
Food and beverage sanitation systems
-
Pharmaceutical processing and CIP systems
-
Industrial washdown and high-pressure cleaning
-
Automatic car wash rotary spray systems
Key Features:
-
Heavy-duty stainless steel construction for superior corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial forces in low-RPM environments
-
High-flow capability with consistent performance
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTM
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 3.74"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTM
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.42
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 3.74"
Length 2 (L2): 2.56
Length 3 (L3): 0.71
Weight: 40.3oz

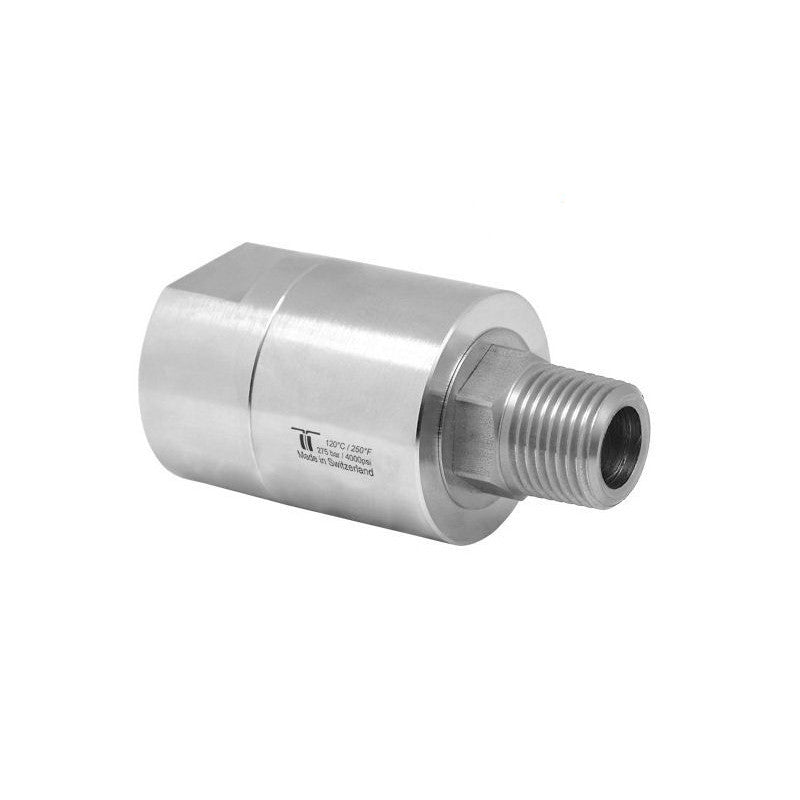

The Mosmatic DGE Swivel - 34.756 is a high-performance stainless steel swivel engineered for high-pressure applications involving both thrust and radial forces. Its durable construction and smooth, low-RPM rotation make it ideal for use in pharmaceutical processing, food service sanitation, automatic car washes, and industrial cleaning systems. This swivel includes 1x thrust ball bearing and 2x sliding bearings for maximum stability and reliability. Rated for up to 2900 PSI and temperatures up to 250°F, it delivers efficient high-flow operation in demanding environments.
Applications:
-
Food and beverage washdown and fluid transfer
-
Pharmaceutical clean-in-place (CIP) systems
-
Industrial high-pressure cleaning systems
-
Rotary joints in automatic car wash spray arms
Key Features:
-
Corrosion-resistant stainless steel body for hygienic applications
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads with consistent performance
-
Designed for high-flow, low-RPM operation
-
Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTM
-
Nominal Width (NW): 1 1/4"
-
Diameter: 2.35"
-
Overall Length: 4.51"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/4"NPTF
Thread Out: G2 1 1/4"NPTM
Nominal Width (NW): 1 1/4"
Wrench Size 1 (SW1): 1.47
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 4.51"
Length 2 (L2): 2.99
Length 3 (L3): 0.79
Weight: 47.8oz
The Mosmatic DGE Swivel - 34.765 is a rugged, high-flow stainless steel swivel designed for high-pressure applications where thrust and radial forces must be managed reliably. Equipped 1x thrust ball bearing and 2x sliding bearings, this swivel delivers stable, low-RPM rotation and long-term durability. Its corrosion-resistant stainless steel construction makes it ideal for demanding environments such as pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial fluid handling.
Applications:
-
Food and beverage cleaning and transfer systems
-
Pharmaceutical production and CIP processes
-
Rotary spray arms in car wash systems
-
Industrial chemical handling and washdown
Key Features:
-
Corrosion-resistant stainless steel housing
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads under high pressure
-
High-flow design with smooth low-RPM operation
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTF
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 3.54"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/4"NPTF
Thread Out: G2 1 1/4"NPTF
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.97
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 3.54"
Length 2 (L2): 2.99
Weight: 50.0oz

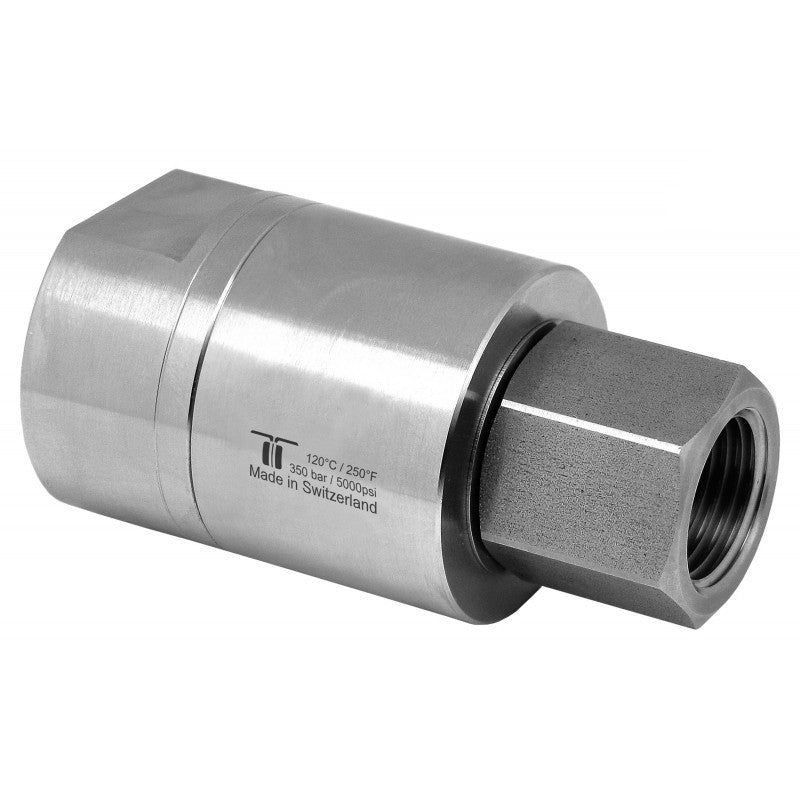

The Mosmatic DGE Swivel - 34.767 is a heavy-duty stainless steel swivel designed for high-pressure fluid systems that require reliable management of thrust and radial forces. Ideal for use in pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial washdown operations, this swivel delivers smooth and stable performance through a robust bearing system featuring 1x thrust ball bearing and 2x sliding bearings. With a 2900 PSI pressure rating and temperature resistance up to 250°F, it's built for durability and continuous operation in demanding applications.
Applications:
-
Sanitary food and beverage fluid systems
-
Clean-in-place (CIP) pharmaceutical lines
-
Industrial high-pressure washdown and rinse stations
-
Automatic car wash rotary sprayers and booms
Key Features:
-
High-grade stainless steel body for corrosion and chemical resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Supports high-flow, low-RPM performance
-
Handles both thrust and radial loads efficiently
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTF
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.33"
-
Overall Length: 4.35"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTF
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 2.13
Wrench Size 2 (SW2): 2.76
Diameter (D1): 3.33"
Length 1 (L1) (overall length): 4.35"
Length 2 (L2): 3.33
Weight: 93.9oz
Showing 15/24
Next
