The Mosmatic WDB Swivel 43.252 is a compact, heavy-duty swivel engineered for high-pressure cleaning applications. Built from nickel-plated brass, this swivel resists corrosion and ensures long-term performance in industrial environments. It features a sliding bearing for smooth, low-friction rotation and is sealed with an O-ring NBR for secure, leak-resistant operation. With 3/8" NPTF (inlet) to 3/8" NPTM (outlet) threading, this swivel is capable of handling up to 4000 psi, 30 RPM, and 250°F, making it an ideal component for compact, high-pressure hose systems.

Applications

• High-pressure hose reels in wash bays and mobile cleaning

• Ceiling boom systems for garages and industrial cleaning

• High-pressure washer setups

• Car wash systems and detailing bays

• Equipment requiring low-speed, high-durability swivel movement

Key Features

• Rugged brass construction with nickel plating for enhanced durability

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Sliding bearing for smooth rotational performance

• O-ring NBR seal ensures reliable leak protection

• Compact form factor: Height – 1.06" | Overall Length – 1.93"

• Nominal Width (NW): ⅜"

• Rated for up to 4000 psi working pressure

• Supports operating temperatures up to 250°F

• Max rotational speed of 30 RPM

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 1.93

Length 3 (L3): 1.14

Length 4 (L4): 1.14

Length 5 (L5): 0.43

Weight: 9.2 oz

The Mosmatic DGG Swivel 33.163 is a high-quality, nickel-plated brass swivel engineered for demanding high-pressure and self-rotating cleaning applications. Designed with precision and durability in mind, it features a triple bearing system (2x radial ball bearings and 1x thrust bearing) for optimized rotational performance and longevity.

This swivel includes a reliable O-ring NBR seal system, with optional upgrades to EPDM or FKM seals for enhanced chemical resistance. Built to be corrosion-resistant and maintenance-free, the DGG 33.163 is ideal for both stationary and rotating systems.

Applications:

• High-pressure cleaning equipment

• Self-rotating surface cleaners

• Parts washers

• Tire and underbody cleaning systems

• Industrial wash systems

Key Features:

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple system – 2x radial, 1x thrust

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): G3/8" M

• Overall Diameter: 1.34"

• Overall Length: 2.59"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Operation: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.39"

Weight: 8.4 oz

The Mosmatic 58.163 DYF is a high-pressure brass swivel featuring a 3/8" NPTF inlet and a G3/8" BSPP (male) outlet—making it ideal for connecting NPT-threaded lines to BSP-threaded tools or accessories.

This 360° maintenance-free swivel supports up to 4000 psi and includes a carbide seal, sealed bearing system, and weep holes for early detection of seal wear. Its nickel-plated brass housing ensures excellent corrosion resistance in demanding cleaning environments.

Applications

• Pressure washers with BSPP connections

• Surface cleaners and wash booms

• Car wash arms and rotating nozzles

• Industrial fluid systems needing NPT-to-G thread

Features

• 360° full rotation

• Carbide seal with weep hole alert

• Nickel-plated brass body for corrosion resistance

• Maintenance-free, sealed bearing system

• Rated up to 4000 psi

• Ideal for NPT-to-BSPP transitions

Specs

Product Type: High-pressure swivel – DYF
Part Number: 58.163
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 3/8" NPTF
Thread Out (G2): G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Diameter (D): 2.36"
Length 1 (L1): 1.49"
Length 2 (L2): 0.39"
Weight: 13.2 oz

The Mosmatic DGL Swivel 31.163 is a high-performance brass, nickel-plated swivel designed to withstand radial and thrust forces in high-pressure, high-flow environments. Ideal for automatic car wash systems and high-pressure hose reels, this swivel combines precision engineering with long-term durability.

Equipped with a triple bearing system—two radial ball bearings and one thrust bearing—this model ensures smooth operation and high load capacity. It features an O-ring NBR seal system, with optional EPDM or FKM seals for extended chemical compatibility. With corrosion-resistant construction and bulkhead mounting, the DGL 31.163 is maintenance-free and engineered for maximum performance.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Commercial vehicle wash bays

• Industrial pressure washing

• Rotating equipment in cleaning systems

Key Features

• Model: Mosmatic DGL 31.163

• Material: Brass, Nickel-Plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): G3/8" M

• Seal Type: O-ring NBR (Optional: EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting: Bulkhead fitting

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free design

• Overall Diameter: 0.98"

• Overall Length: 2.59"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range:

  • 90°F at 1000 RPM

  • Up to 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGG Swivel 33.051 is a premium brass, nickel-plated swivel designed for high-pressure cleaning applications that demand consistent rotation and durability. With a robust construction and triple bearing system, this swivel ensures smooth, maintenance-free operation in self-rotating equipment, parts washers, and tire cleaning systems.

Engineered for maximum precision, this swivel includes a durable O-ring NBR seal system (optional: EPDM or FKM) for optimal sealing under pressure and rotation. Its compact size, corrosion-resistant finish, and ability to perform at high RPMs make it ideal for integration into commercial or industrial cleaning setups.

Applications:

• High-pressure cleaning technology

• Parts and component washers

• Tire and undercarriage cleaners

• Self-rotating spray systems

• Industrial and OEM equipment

Key Features:

• Material: Brass, nickel-plated for corrosion resistance

• Seal System: O-ring NBR (optional: EPDM or FKM)

• Bearing Design: Triple bearing system (2x radial, 1x thrust)

• Mounting: Bulkhead style for secure installation

• Thread IN: 1/4" NPTF

• Thread OUT: 1/4" NPTM

• Overall Diameter: 1.34"

• Overall Length: 2.71"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

• Performance: High-precision, maintenance-free operation

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.67"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.71"

Length 2 (L2): 0.43"

Weight: 8.5 oz

Ensure long-lasting performance and smooth operation with the Mosmatic Bearing Kit 55.911 - NW 1/4" + 3/8". This premium sealed stainless steel bearing kit is designed for Mosmatic DYT and DYU Swivels with nominal widths of 1/4 inch and 3/8 inch. Built to withstand high pressure, high RPM, and both thrust and radial forces, it is ideal for demanding self-rotating applications such as surface cleaners and parts washers. The sealed stainless steel construction ensures excellent corrosion resistance and reliability in high-performance cleaning environments.

The Mosmatic DGL Swivel 31.153 is a high-performance brass swivel, nickel plated for enhanced corrosion resistance. Engineered to withstand both thrust and radial forces, it is ideal for high-flow applications such as automatic car wash systems and high-pressure hose reels.

Equipped with a triple bearing system—two radial and one thrust ball bearing—this swivel delivers long-lasting performance under high-stress conditions. It features a reliable O-ring NBR seal system, with optional EPDM or FKM materials for improved chemical resistance. Designed for bulkhead mounting, this swivel ensures efficient operation and maintenance-free use even in demanding environments.

Applications

• Automatic and tunnel car wash systems

• High-pressure hose reels

• Industrial cleaning equipment

• Gantry wash systems

• High-flow water supply systems

Key Features

• Model: Mosmatic DGL 31.153

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Corrosion Resistant: Yes

• Mounting Type: Bulkhead

• Overall Diameter: 0.98"

• Overall Length: 2.59"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Temperature Range:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Maintenance: Maintenance-free design

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Diameter (D) (overall diameter): 0.98"

Weight: 5.8 oz

Ensure long-lasting, high-performance operation of your Mosmatic swivel with the Mosmatic Seal Kit 36.905 - NW ¼". This premium carbide seal kit is designed for DYL, DYG, DYF, DYW, DYCI, DYDI, DYT, and DYU Swivels with a nominal width of ¼ inch. Engineered for high-pressure and high-RPM applications, it’s ideal for surface cleaners, wall cleaners, tire cleaners, parts washers, and self-rotating systems. Built to withstand intense operating conditions, this kit ensures leak-free, durable swivel performance in professional cleaning environments.

The Mosmatic DGL Swivel 31.051 is a brass, nickel-plated high-flow swivel engineered for handling thrust and radial forces in automatic car washes, high-pressure hose reels, and industrial cleaning systems. Built to withstand rigorous use, it ensures long-lasting, maintenance-free performance in both fixed and rotating setups.

Featuring a triple bearing system (2x radial and 1x thrust ball bearing), this swivel allows for stable, reliable rotation under high-pressure conditions. The O-ring NBR sealing system provides leak-proof operation and is upgradeable to EPDM or FKM seals for enhanced chemical compatibility. With a bulkhead mounting configuration and corrosion-resistant body, the DGL 31.051 is a trusted solution for demanding cleaning applications.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Robotic wash arms and gantry systems

• Industrial cleaning equipment

• High-flow pressure washing systems

Key Features

• Design: Straight inline swivel

• Material: Brass, nickel plated

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple (2x radial, 1x thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTM

• Overall Diameter: 0.98"

• Overall Length: 2.55"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Type: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.62"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.43"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

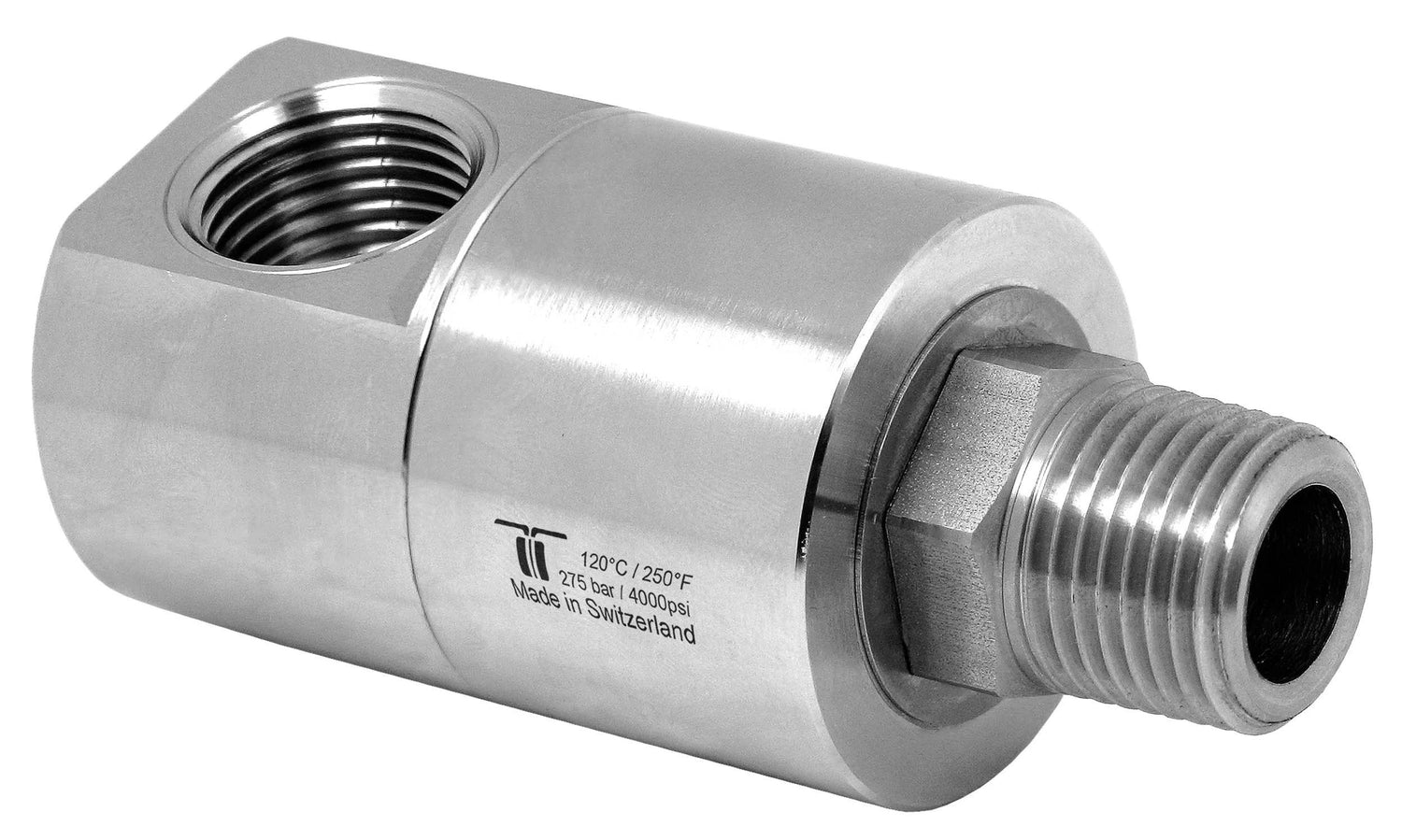

The Mosmatic DGE Swivel - 34.873 is a high-performance swivel designed to withstand thrust and radial forces in demanding high-pressure applications. Crafted from nickel-plated brass with a stainless steel interior, it offers excellent corrosion resistance and durability for both industrial and food-grade use. Including one thrust ball bearing, ensures smooth and stable operation in high-flow systems. With a 4000 PSI pressure rating and temperature resistance up to 250°F, this swivel is built for reliable performance in continuous-use environments.

Applications:

• High-pressure cleaning and fluid handling systems

• Food and beverage sanitation and processing lines

• Chemical and washdown systems

• Industrial hose reels and rotary equipment

Key Features:

• Nickel-plated brass housing with stainless steel internal components

• With 1x thrust ball bearing

• Designed to support both thrust and radial loads

• Corrosion resistant and ideal for sanitary environments

• High-flow capacity with low-RPM stability

• Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM

• Nominal Width (NW): 1/2"

• Diameter: 1.64"

• Overall Length: 3.81"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2"NPTF

Thread Out: G2 1/2"NPTM

Nominal Width (NW): 1/2"

Wrench Size 1 (SW1): 0.87

Diameter (D1): 1.64"

Diameter 2 (D2): 1.64

Length 1 (L1) (overall length): 3.81"

Length 2 (L2): 2.09

Length 3 (L3): 0.59

Length 4 (L4): 0.63

Length 5 (L5): 0.75

Weight: 23.2oz

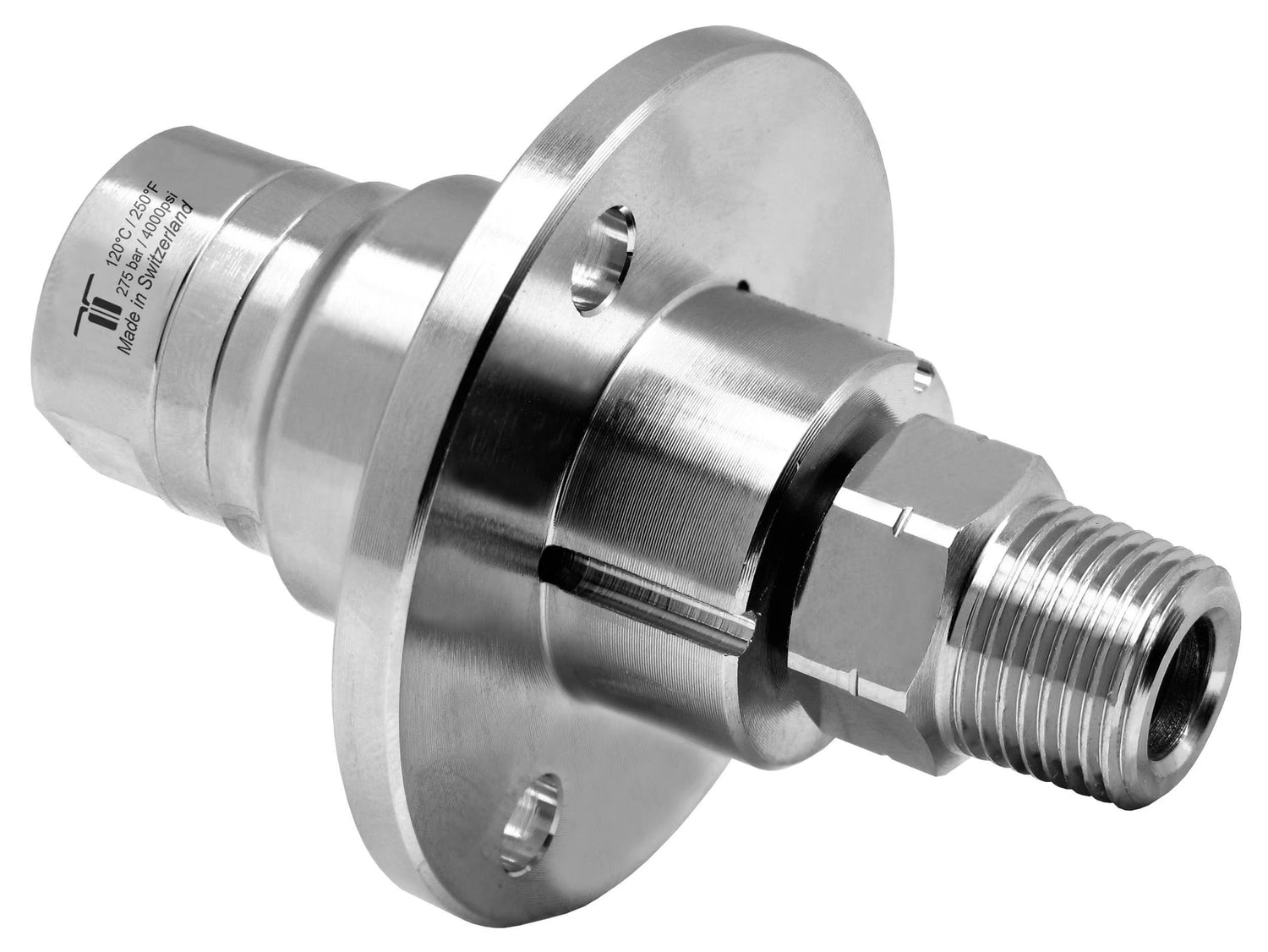

The Mosmatic 58.051 DYF Swivel is a high-performance rotary union designed for high-pressure cleaning systems and self-rotating applications. Featuring a 1/4" NPTF inlet and 1/4" NPTM outlet, this swivel allows smooth 360° rotation to prevent hose twisting and extend equipment lifespan.

Constructed from nickel-plated brass, it includes a carbide seal system, maintenance-free bearing assembly, and weep hole design for early seal failure detection. With a pressure rating of 4000 psi, it’s ideal for professional cleaning, surface washing, and industrial spray systems.

Applications

• Surface cleaners

• Car and truck wash booms

• Self-rotating nozzles

• Industrial fluid rotation

• Tire and underbody cleaners

Features

• Maintenance-free swivel body

• Flange mount for secure installation

• Carbide seal system for durability

• Pressure rated to 4000 psi

• Visual seal failure indicator via weep holes

• Brass body with nickel plating for corrosion protection

Specs

Product Type: High-pressure swivel – DYF
Part Number: 58.051
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type (Body): Brass, nickel plated
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 1/4" NPTF
Thread Out (G2): 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.67"
Diameter (D): 2.36"
Length 1 (L1): 1.45"
Length 2 (L2): 0.43"
Weight: 10.4 oz

The Mosmatic DYG Swivel 57.163 is a premium, maintenance-free swivel designed for high-pressure, self-rotating cleaning equipment. Constructed from durable brass with a corrosion-resistant nickel-plated finish, this swivel offers maximum reliability and performance in tough industrial environments. The advanced triple bearing system—featuring two radial ball bearings and one thrust bearing—ensures smooth rotation under load. Its carbide seal system delivers exceptional sealing capabilities, and the bulkhead fitting allows for secure mounting in fixed applications.

Applications

• Surface cleaners

• Parts washers

• Tire and wheel cleaning systems

• High-pressure rotating equipment

• Industrial and commercial cleaning solutions

Key Features

• High-quality brass construction with nickel-plated finish

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Carbide seal system for superior durability and leak prevention

• Maintenance-free design

• Corrosion-resistant materials for long service life

• Bulkhead fitting for secure mounting

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" M

• Max Pressure: 4000 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Overall Diameter: 1.34"

• Overall Length: 3.14"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: max 2,000 rpm

Material Type:

Inner Part: Stainless steel

Seal: Carbide

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

 Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.14

Length 2 (L2): 0.39

Weight: 10.2 oz

The Mosmatic DGL Swivel 31.154 is a brass, nickel-plated swivel designed to handle thrust and radial forces in high-pressure, high-flow cleaning systems. Engineered for efficiency and reliability, it’s ideal for automatic car wash setups, hose reels, and other demanding cleaning environments.

Featuring a triple bearing system (2 radial and 1 thrust bearing) and an O-ring NBR seal system with optional EPDM or FKM upgrades, this swivel ensures long-lasting, low-maintenance performance. Its corrosion-resistant nickel-plated finish offers added durability in tough conditions.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Vehicle wash bays

• Industrial cleaning systems

• Water recovery and undercarriage cleaning

Key Features

• Model: Mosmatic DGL 31.154

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting Type: Bulkhead

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98"

• Overall Length: 2.87"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Diameter (D) (overall diameter): 0.98"

Weight: 6.5 oz

The Mosmatic DGE Swivel - 34.877 is a robust, high-flow swivel engineered for demanding high-pressure fluid systems where both thrust and radial forces are present. Constructed from nickel-plated brass with a stainless steel interior, it offers superior corrosion resistance and long-lasting durability in industrial and sanitary environments. Featuring one thrust ball bearing ensures smooth, stable operation under continuous use. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel is ideal for heavy-duty applications.

Applications:

• Industrial high-pressure washdown and fluid transfer

• Food and beverage processing systems

• Sanitary chemical delivery and cleaning lines

• High-volume rotary fluid connections

Key Features:

• Nickel-plated brass housing with stainless steel internal components

• With 1x thrust ball bearing

• Corrosion-resistant and built for sanitary or industrial use

• High-flow performance with support for radial and thrust loads

• Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM

• Nominal Width (NW): 1 1/2"

• Diameter: 3.35"

• Overall Length: 5.71"

• Max Pressure: 2900 PSI

• Max RPM: 30

• Max Operating Temperature: 250°F

Specs

Pressure: 2900 psi

Temperature: 250°F

RPM: Max. 30

Material Type: Brass, Nickel Plated

Inner Part: Stainless Steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1 1/2"NPTF

Thread Out: G2 1 1/2"NPTM

Nominal Width (NW): 1 1/2"

Wrench Size 1 (SW1): 2.05

Diameter (D1): 3.35"

Diameter 2 (D2): 3.98

Length 1 (L1) (overall length): 5.71"

Length 2 (L2): 2.99

Length 3 (L3): 0.79

Length 4 (L4): 1.66

Length 5 (L5): 1.18

Weight: 175.4oz

The Mosmatic WDB Swivel 43.905 is a compact, precision-engineered swivel crafted for high-pressure applications in commercial and industrial settings. Built from nickel-plated brass for exceptional corrosion resistance and longevity, this swivel features a sliding bearing for smooth operation under load. The integrated O-ring NBR seal ensures dependable leak prevention. Designed with ⅛" NPTF inlet and outlet ports, it delivers reliable performance in tight spaces, supporting up to 4000 psi, 30 RPM, and 250°F, making it a go-to component for smaller high-pressure systems.

Applications

• Compact high-pressure hose reels

• Ceiling booms in detailing bays or garages

• Pressure washing equipment

• Small-scale car wash and industrial cleaning systems

• OEM applications requiring tight-space swivel integration

Key Features

• Nickel-plated brass construction for durability and corrosion resistance

• Sliding bearing for controlled, smooth rotational movement

• Thread IN: 1/8" NPTF | Thread OUT: 1/8" NPTF

• Compact profile: Height – 1.06" | Overall Length – 0.87"

• Nominal Width (NW): 1/4"

• Handles working pressures up to 4000 psi

• Temperature tolerance up to 250°F

• Supports rotational speeds up to 30 RPM

• Equipped with a reliable O-ring NBR seal for leak-free performance

Specs

Pressure: 4000 psi

Temperature: 250°

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/8" NPTF

Thread Out: G2 1/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size  (SW): 0.87

Height (H): 1.06

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 0.87

Length 3 (L3): 1.14

Length 4 (L4): 0.62

Weight:10.0 oz
