Tunnel Wash System Swivels
Sort by:
The Mosmatic 55.253 DYCI Swivel is a high-flow, high-pressure stainless steel swivel built for self-rotating applications like surface cleaners and parts washers. Designed for intense industrial and commercial cleaning environments, this swivel provides reliable, smooth rotation and long service life.
Featuring a triple bearing system - with two radial ball bearings and one thrust ball bearing - the swivel offers exceptional rotational stability and efficiency. Its carbide seal system ensures high durability and leak prevention under demanding use. Integrated weep holes provide a clear indication of seal failure, allowing for proactive maintenance. Rated for 5000 PSI, 2000 RPM, and 250°F, this swivel is a top-tier component for high-performance cleaning tools.
Applications
-
Commercial surface cleaners
-
High-pressure parts washers
-
Self-rotating nozzles and spray arms
-
Industrial cleaning and automation systems
-
Robotic and rotary pressure washing tools
Key Features
-
Thread In: M22x1.5 Male
-
Thread Out: G3/8" Male
-
Material: 100% stainless steel construction
-
Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation
-
Seal Type: Carbide seal for high durability under pressure
-
Weep Holes: Provide early warning for seal failure
-
Pressure Capacity: Up to 5000 PSI
-
High-Speed Capability: Up to 2000 RPM
-
Temperature Resistance: Up to 250°F
-
Compact & Durable: Engineered for consistent, long-term use
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M22x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.79"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic 55.163 DYCI Swivel is a premium stainless steel swivel built for high-flow, high-pressure, self-rotating applications such as surface cleaners and parts washers. Precision-engineered for performance and durability, this swivel is ideal for use in commercial and industrial cleaning systems.
It features a triple bearing system - comprising two radial ball bearings and one thrust ball bearing - for stable, smooth rotation. A carbide seal system ensures long-lasting sealing performance, while integrated weep holes provide early warning in the event of seal failure. With a pressure capacity of 5000 PSI, it’s designed to operate efficiently at up to 2000 RPM and 250°F, delivering consistent, high-performance rotation.
Applications
-
High-pressure surface cleaners
-
Self-rotating cleaning nozzles and tools
-
Industrial parts washers
-
Automated or robotic cleaning systems
-
Commercial pressure washing setups
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: G3/8" Male
-
Material: Full stainless steel construction
-
Triple Bearing System: Includes 2 radial and 1 thrust bearing
-
Seal System: Durable carbide seal for high-pressure performance
-
Weep Holes: Built-in for early seal failure detection
-
High Pressure & Speed Rated: 5000 PSI / 2000 RPM
-
Temperature Resistant: Up to 250°F
-
Compact & Reliable: Efficient form factor with dual wrench flats
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic DGE Swivel - 34.873 is a high-performance swivel designed to withstand thrust and radial forces in demanding high-pressure applications. Crafted from nickel-plated brass with a stainless steel interior, it offers excellent corrosion resistance and durability for both industrial and food-grade use. Including one thrust ball bearing, ensures smooth and stable operation in high-flow systems. With a 4000 PSI pressure rating and temperature resistance up to 250°F, this swivel is built for reliable performance in continuous-use environments.
Applications:
-
High-pressure cleaning and fluid handling systems
-
Food and beverage sanitation and processing lines
-
Chemical and washdown systems
-
Industrial hose reels and rotary equipment
Key Features:
-
Nickel-plated brass housing with stainless steel internal components
-
With 1x thrust ball bearing
-
Designed to support both thrust and radial loads
-
Corrosion resistant and ideal for sanitary environments
-
High-flow capacity with low-RPM stability
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Diameter: 1.64"
-
Overall Length: 3.81"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Brass, Nickel Plated
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.87
Diameter (D1): 1.64"
Diameter 2 (D2): 1.64
Length 1 (L1) (overall length): 3.81"
Length 2 (L2): 2.09
Length 3 (L3): 0.59
Length 4 (L4): 0.63
Length 5 (L5): 0.75
Weight: 23.2oz
The Mosmatic DGE Swivel - 34.877 is a robust, high-flow swivel engineered for demanding high-pressure fluid systems where both thrust and radial forces are present. Constructed from nickel-plated brass with a stainless steel interior, it offers superior corrosion resistance and long-lasting durability in industrial and sanitary environments. Featuring one thrust ball bearing ensures smooth, stable operation under continuous use. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel is ideal for heavy-duty applications.
Applications:
-
Industrial high-pressure washdown and fluid transfer
-
Food and beverage processing systems
-
Sanitary chemical delivery and cleaning lines
-
High-volume rotary fluid connections
Key Features:
-
Nickel-plated brass housing with stainless steel internal components
-
With 1x thrust ball bearing
-
Corrosion-resistant and built for sanitary or industrial use
-
High-flow performance with support for radial and thrust loads
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.35"
-
Overall Length: 5.71"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Brass, Nickel Plated
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTM
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 2.05
Diameter (D1): 3.35"
Diameter 2 (D2): 3.98
Length 1 (L1) (overall length): 5.71"
Length 2 (L2): 2.99
Length 3 (L3): 0.79
Length 4 (L4): 1.66
Length 5 (L5): 1.18
Weight: 175.4oz
The Mosmatic 55.153 DYCI Swivel is a high-performance swivel designed for high-flow, high-pressure, self-rotating applications such as surface cleaners, spray bars, and parts washers. Crafted from stainless steel, it offers exceptional durability, chemical resistance, and smooth rotation in demanding environments.
This swivel features a triple bearing system - including two radial ball bearings and one thrust ball bearing - that ensures consistent rotational performance, even under extreme pressure and speed. A carbide seal system provides long-lasting leak protection, while integrated weep holes offer early seal failure detection, helping you maintain system integrity and avoid downtime.
Applications
-
Commercial and industrial surface cleaners
-
Parts washing equipment
-
Rotating high-pressure cleaning systems
-
Spray bars and automated cleaning tools
-
Equipment operating in corrosive or high-temperature environments
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: 3/8" NPT Male
-
Material: Full stainless steel body and internal components
-
Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation
-
Seal Type: Carbide for high durability
-
Weep Holes: Allow early detection of seal failure
-
Max Pressure: 5000 PSI
-
Temperature Tolerance: Up to 250°F
-
High-Speed Rated: Handles up to 2000 RPM
-
Efficient Design: Compact size and dual wrench flats for easy installation
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.43"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic DGE Swivel - 34.857 is a heavy-duty, high-flow swivel designed for managing thrust and radial forces in high-pressure systems. Constructed with a nickel-plated brass body and a stainless steel interior, this swivel is corrosion resistant and built for durability in industrial and food service environments. This swivel includes a 1x thrust ball bearing, ensuring dependable performance, and smooth, consistent operation. Capable of withstanding pressures up to 2900 PSI and temperatures up to 250°F, it is ideal for demanding cleaning and fluid transfer applications.
Applications:
-
High-pressure fluid transfer systems
-
Food and beverage processing and washdown lines
-
Industrial cleaning equipment
-
Chemical and sanitary fluid systems
Key Features:
-
Corrosion-resistant nickel-plated brass housing with stainless steel internals
-
With 1x thrust ball bearing
-
Handles both thrust and radial loads
-
High-flow design for low-RPM, high-pressure systems
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.35"
-
Overall Length: 4.41"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Brass, Nickel Plated
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTM
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 2.05
Wrench Size 2 (SW2): 2.76
Diameter (D): 3.35"
Length 1 (L1) (overall length): 4.41"
Length 2 (L2): 2.87
Length 3 (L3): 0.79
Weight: 95.3oz
Maintain peak swivel performance with the Mosmatic Seal Kit 36.901 - NW 1/4", designed for DXL, DXG, DXF, and DXTI Swivels. This high-quality replacement kit features a durable ceramic seal specifically engineered for swivels with a nominal width of 1/4 inch. Ideal for high-pressure cleaning systems, high-RPM applications, tire cleaners, parts washers, and self-rotating equipment, this kit delivers excellent resistance to wear in demanding environments. Ensure consistent, leak-free function and extend the life of your swivel with this essential maintenance solution.
The Mosmatic DGE Swivel - 34.765 is a rugged, high-flow stainless steel swivel designed for high-pressure applications where thrust and radial forces must be managed reliably. Equipped with 1x thrust ball bearing and 2x sliding bearings, this swivel delivers stable, low-RPM rotation and long-term durability. Its corrosion-resistant stainless steel construction makes it ideal for demanding environments such as pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial fluid handling.
Applications:
-
Food and beverage cleaning and transfer systems
-
Pharmaceutical production and CIP processes
-
Rotary spray arms in car wash systems
-
Industrial chemical handling and washdown
Key Features:
-
Corrosion-resistant stainless steel housing
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads under high pressure
-
High-flow design with smooth low-RPM operation
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTF
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 3.54"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTF
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.42
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 3.54"
Length 2 (L2): 2.56
Weight: 44oz

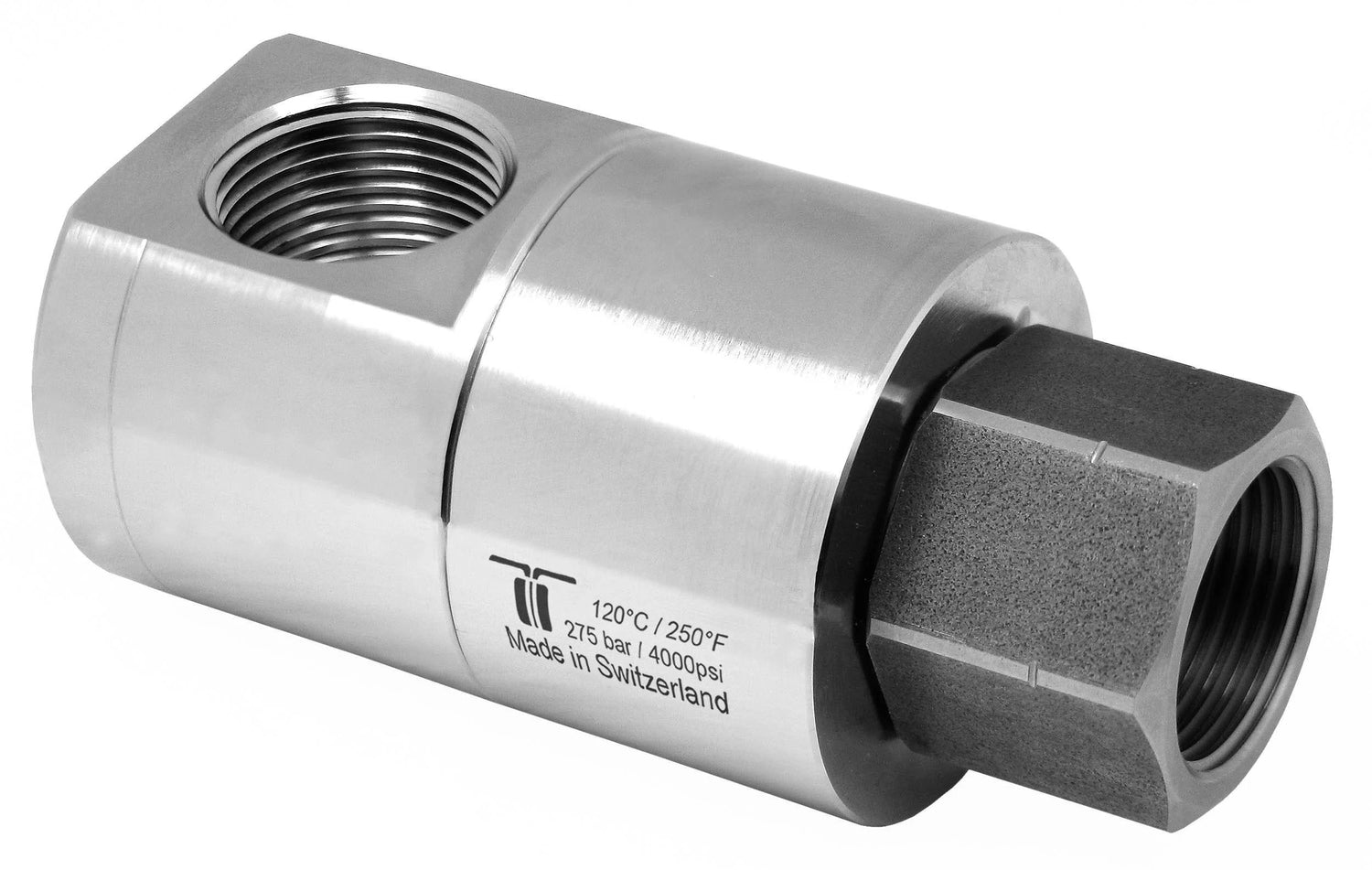

The Mosmatic DGE Swivel - 34.884 is a high-performance, corrosion-resistant swivel designed for high-pressure fluid systems where both thrust and radial forces are present. Constructed with a nickel-plated brass housing and a stainless steel interior, this swivel is ideal for industrial and food-grade applications requiring durability and hygiene. With one thrust ball bearing, offering reliable rotation and smooth operation even under continuous use. Rated for up to 4000 PSI and 250°F, it supports high-flow performance in rigorous environments.
Applications:
-
Industrial high-pressure fluid and washdown systems
-
Food and beverage processing and sanitation lines
-
Chemical transfer and hygienic applications
-
Rotary connections in hose reels and cleaning systems
Key Features:
-
Nickel-plated brass construction with stainless steel internals
-
With 1x thrust ball bearing
-
Engineered for both thrust and radial load stability
-
High-flow capacity and corrosion resistance
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF
-
Nominal Width (NW): 3/4"
-
Diameter: 1.96"
-
Overall Length: 4.29"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Brass, Nickel Plated
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTF
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.26
Diameter (D1): 1.96"
Diameter 2 (D2): 1.96
Length 1 (L1) (overall length): 4.29"
Length 2 (L2): 2.40
Length 4 (L4): 0.75
Length 5 (L5): 0.87
Weight: 36.0oz

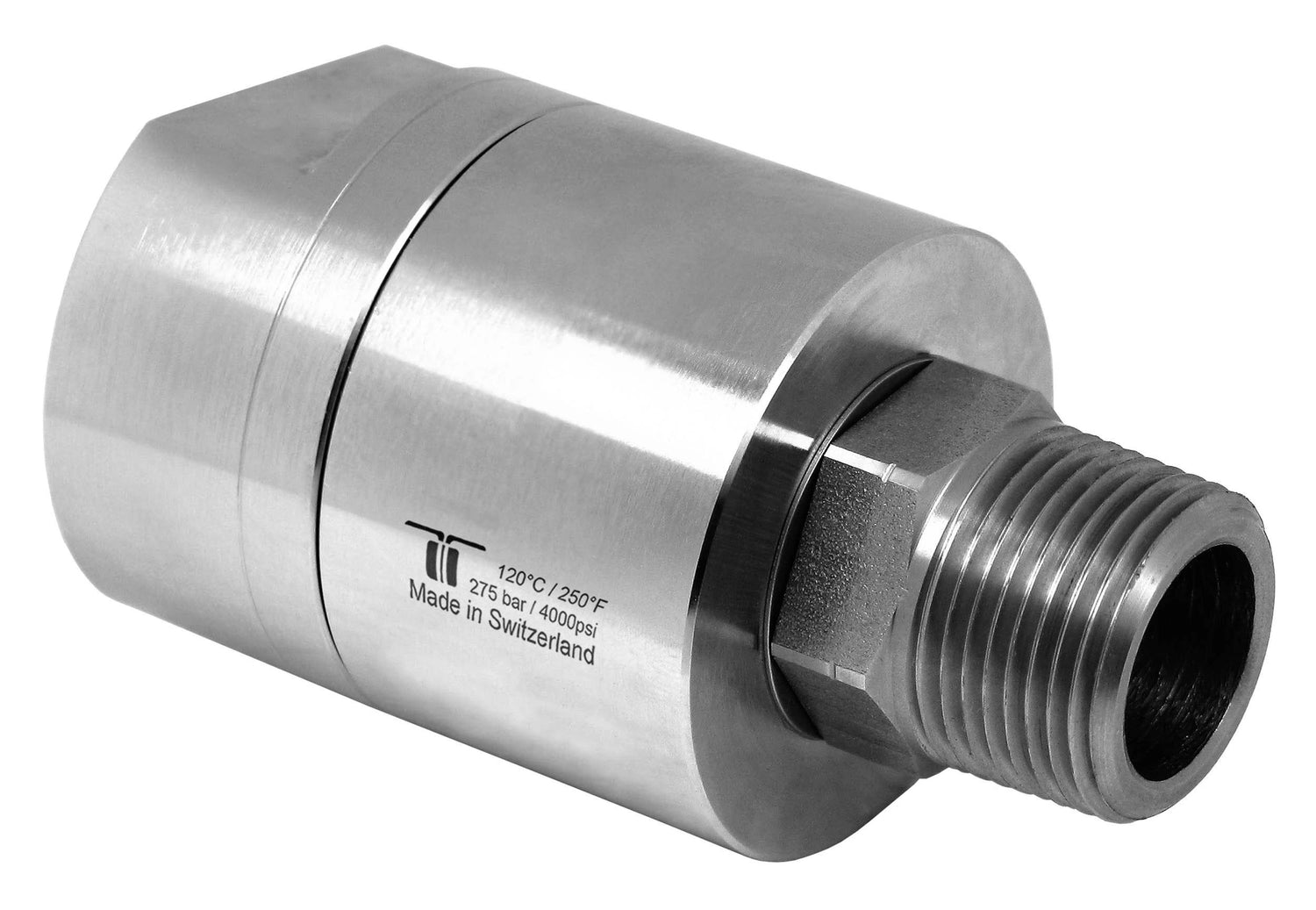

The Mosmatic DGE Swivel - 34.854 is a high-pressure, high-flow swivel designed for industrial and food service applications where both thrust and radial forces must be managed with precision. Constructed from nickel-plated brass with a stainless steel interior, this swivel offers excellent corrosion resistance and durability in demanding environments. The swivel includes a 1x thrust ball bearing, ensuring dependable performance, ideal for fluid transfer systems requiring strength, efficiency, and sanitation compliance.
Applications:
-
Industrial high-pressure fluid and washdown systems
-
Food and beverage processing equipment
-
Chemical handling and sanitation systems
-
Low-speed, high-pressure rotary unions
Key Features:
-
Nickel-plated brass body with stainless steel internal components
-
With 1x thrust ball bearing
-
Designed to withstand both thrust and radial forces
-
High-flow capacity with low maintenance requirements
-
Corrosion-resistant for industrial and sanitary use
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 3.46"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Brass, Nickel Plated
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTM
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.57
Diameter (D): 1.97"
Length 1 (L1) (overall length): 3.46"
Length 2 (L2): 2.38
Length 3 (L3): 0.63
Weight: 27.8oz
The Mosmatic DXG 90° Swivel 37.463 is a high-precision nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning applications. Ideal for surface cleaners, parts washers, and tire cleaning systems, this 90-degree swivel is built to deliver exceptional durability and smooth operation in tough environments. It features a triple bearing system with two radial ball bearings and one thrust ball bearing for consistent, stable rotation. The ceramic seal system ensures extended leak-free performance under high-pressure conditions. With a corrosion-resistant finish, bulkhead fitting for secure mounting, and a maintenance-free design, this swivel is ready for demanding professional use.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning tools
-
High-RPM self-rotating cleaning equipment
-
Commercial and industrial pressure washing
Key Features
-
Nickel-plated brass body for excellent corrosion resistance
-
90-degree configuration for compact or angular setups
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for long-lasting, leak-free performance
-
Designed for high-RPM, self-rotating applications
-
Bulkhead fitting for secure mounting
-
Maintenance-free operation
-
Thread IN: 3/8" NPTF | Thread OUT: G3/8" M
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 1.34"
-
Overall Length: 3.30"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.87"
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Wrench Size 3 (SW3): 1.34"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 3.30
Length 2 (L2): 0.39
Weight: 13.4 oz
The Mosmatic DXG Swivel 37.063 is a high-performance brass swivel with a corrosion-resistant nickel-plated finish, engineered for high-RPM, self-rotating cleaning systems. Designed for surface cleaners, parts washers, and tire cleaning equipment, this swivel delivers smooth operation and long-term reliability. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—paired with a ceramic seal system for superior leak protection. Built for maintenance-free use, the DXG 37.063 also includes a bulkhead fitting for secure and fixed mounting in industrial environments.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning systems
-
Self-rotating high-RPM tools
-
Commercial and industrial cleaning systems
Key Features
-
Brass construction with corrosion-resistant nickel plating
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for leak-free, long-lasting performance
-
Designed for high-RPM, self-rotating equipment
-
Maintenance-free operation
-
Bulkhead fitting for secure, stationary mounting
-
Thread IN: 1/4" NPTF | Thread OUT: G3/8" M
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 1.34"
-
Overall Length: 3.14"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.87"
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Brass, Nicket plated
Inner Part: Stainless Steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Wrench Size 3 (SW3): 1.34"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 3.14
Length 2 (L2): 0.39
Weight: 10.2 oz
The Mosmatic 55.063 DYCI Swivel is a high-flow, high-pressure swivel designed specifically for self-rotating applications such as surface cleaners and parts washers. Precision-crafted from stainless steel, this swivel offers superior corrosion resistance, durability, and performance under demanding conditions.
Engineered with a triple bearing system - including two radial ball bearings and one thrust bearing - it ensures stable rotation, even at high RPMs. It features a carbide seal system for long-lasting sealing and integrated weep holes to provide early warning of seal wear or failure. Built to handle pressures up to 5000 PSI, this swivel is ideal for professional-grade cleaning tools that require smooth rotation and high flow rates.
Applications
-
High-flow rotating surface cleaners
-
Pressure washer part washers
-
Self-rotating spray tools
-
Industrial and commercial cleaning systems
-
Equipment requiring reliable high-speed swivel performance
Key Features
-
Thread In: 1/4" NPT Female
-
Thread Out: G3/8" Male
-
Material: Full stainless steel construction
-
Triple Bearing System: 2 radial + 1 thrust bearing
-
Seal System: Carbide seal for extended life
-
Weep Holes: Built-in for early seal failure detection
-
High Pressure Capability: Up to 5000 PSI
-
Temperature Tolerance: Rated up to 250°F
-
High-Speed Operation: Supports up to 2000 RPM
-
Compact Size: Efficient design for easy installation in tight setups
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/4" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz
The Mosmatic 39.663 DXTI Swivel is a high-precision stainless steel swivel designed for high-RPM, self-rotating applications in modern cleaning systems. Perfect for parts washers, tire cleaners, and other high-pressure cleaning technologies, this swivel offers low torque and smooth operation under continuous use.
Equipped with a quadruple bearing system - 2 radial and 2 thrust ball bearings - the 39.663 delivers stable rotation at speeds up to 2000 RPM. A ceramic seal system ensures maximum durability, even under heat, pressure, and chemical exposure. The side connection enables weep capture, making it ideal for sensitive environments or closed-loop systems.
With a pressure capacity of 2500 PSI, this swivel combines power, precision, and longevity in one compact and rugged design.
Applications
-
High-speed parts washers
-
Self-rotating tire cleaning tools
-
HP cleaning systems and automation
-
Industrial spray arms and rotary nozzles
-
Robotic or enclosed high-performance cleaning systems
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: G3/8" Male
-
Material: Corrosion-resistant stainless steel
-
Seal: Ceramic seal for chemical and heat resistance
-
Bearing System: Quadruple (2 radial + 2 thrust) ball bearings
-
Low Torque: Designed for smooth high-speed operation
-
Side Connection: Integrated weep capture for leak monitoring
-
Max Pressure: 2500 PSI
-
Max Temperature: 250°F
-
Max RPM: 2000
-
Compact & Durable: Ideal for precision cleaning under continuous use
Specs
Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.64"
Length 1 (L1): 2.88"
Length 2 (L2): 4.36"
Length 3 (L3): 0.48"
Length 4 (L4): 0.12"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.77"
Weight: 45.2 oz
The Mosmatic DXG 90° Swivel 37.453 is a high-performance nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning tools. Designed for surface cleaners, tire cleaners, and parts washers, this swivel offers precision performance and outstanding durability. Its triple bearing system—two radial ball bearings and one thrust ball bearing—ensures smooth, reliable rotation under pressure. The ceramic seal system provides excellent leak resistance and longevity, even in demanding high-pressure environments. Featuring a 90-degree design and bulkhead mounting, the DXG 37.453 is corrosion-resistant, maintenance-free, and built for professional use.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning systems
-
High-RPM self-rotating cleaning equipment
-
Commercial and industrial pressure washing tools
Key Features
-
Durable brass body with corrosion-resistant nickel plating
-
90-degree configuration for compact or angled installations
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for superior leak protection
-
Designed for high-RPM, self-rotating equipment
-
Bulkhead fitting for stable and secure mounting
-
Maintenance-free construction
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 1.34"
-
Overall Length: 3.30"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.87"
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Wrench Size 3 (SW3): 1.34"
Diameter (D) (overall diameter): 1.34"
Length 1 (L1) (overall length) : 3.30"
Length 2 (L2): 0.47
Weight: 13.6 oz
Showing 15/148
Next
