DGV Rotary Union/Swivel

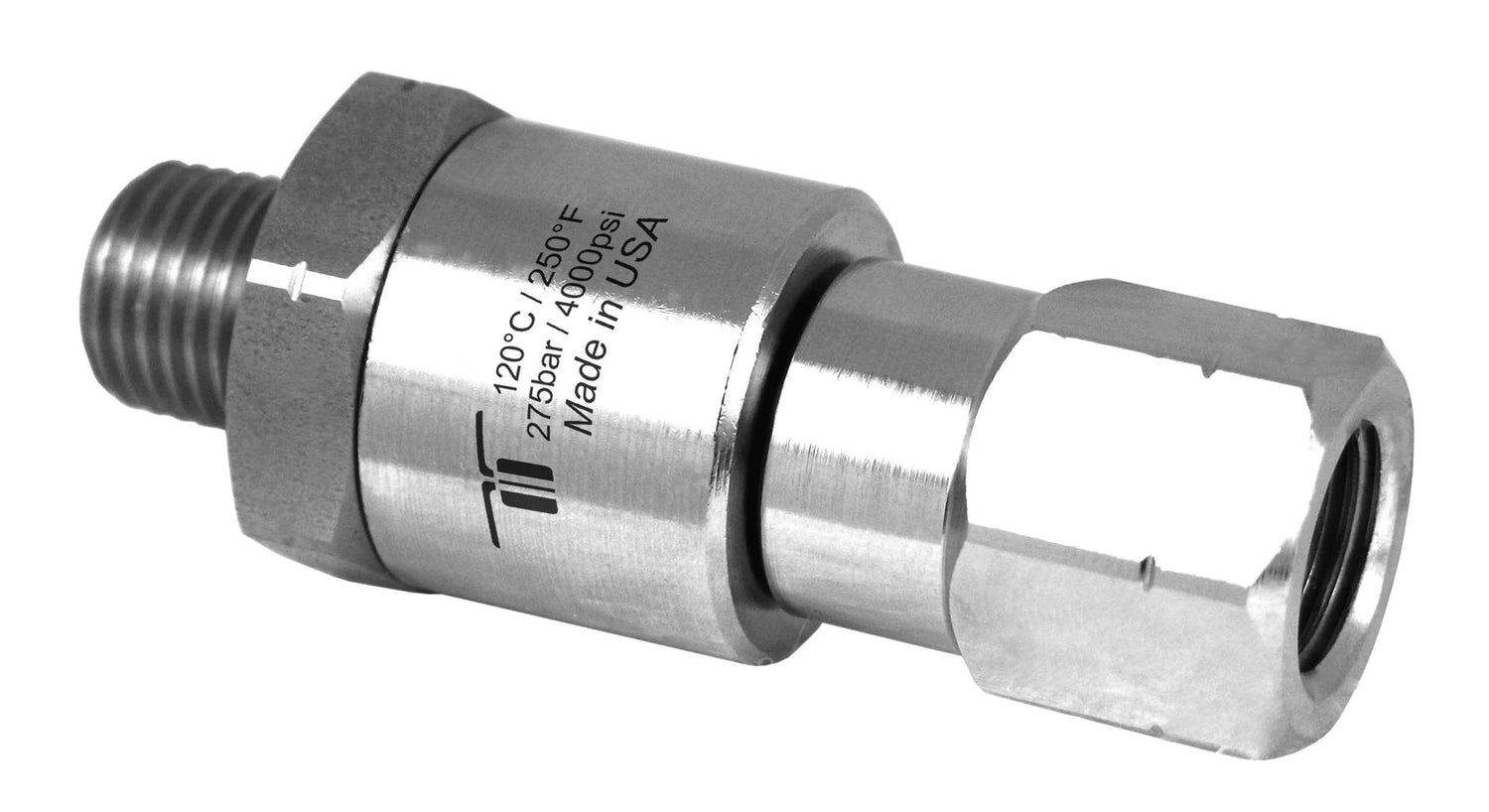

The Mosmatic DGV Swivel 32.552 is a brass, nickel-plated high-pressure swivel engineered for HP-Guns, hose connections, and hydraulic systems. Designed for tangle-free operation and durability, it supports live rotation at full pressure. With a compact design, it features a single thrust ball bearing and O-ring NBR seal system (EBDM and FKM options available). Ideal for demanding industrial environments, it is corrosion resistant, maintenance free, and built to last.

Applications

• High-pressure HP-Guns

• Hydraulic and pneumatic hose systems

• Hose reel and rotary joint systems

• Industrial and commercial cleaning tools

Features

• Material: Brass, nickel-plated

• Thread Type: 1/4" NPTM inlet x 1/4" NPTF outlet

• Overall Length: 2.60"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal: O-ring NBR (optional EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Features: Compact, corrosion resistant, and maintenance free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.60"

Length 2 (L2): 0.39"

Weight: 5.2 oz

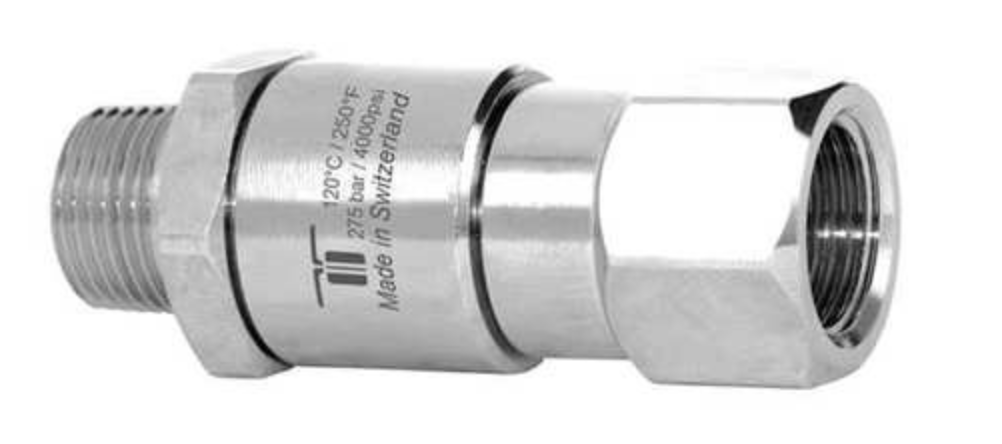

The Mosmatic DGV Swivel 32.564 is a high-performance brass, nickel-plated swivel engineered for HP-Guns, hydraulic systems, and hose connections requiring full rotation under pressure. Featuring a single thrust ball bearing and a durable O-ring NBR seal system (optional EBDM or FKM), this swivel ensures live rotation, excellent resistance to corrosion, and low-maintenance operation even in high-stress environments.

Applications

• High-pressure spray guns

• Hydraulic connections

• Hose reel assemblies

• Pressure cleaning tools

• Pneumatic and tangle-free setups

Features

• Material: Brass with nickel plating

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 2.75"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (upgradeable to EBDM or FKM)

• Bearing Configuration: 1x thrust ball bearing

• Advantages: Compact, corrosion resistant, live rotation, no maintenance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.75"

Length 2 (L2): 0.43"

Weight: 6.2 oz

The Mosmatic DGV Swivel 32.864 is a high-quality brass, nickel-plated swivel engineered for high-pressure guns, hose connections, and hydraulic applications requiring smooth, tangle-free operation. Designed for live rotation at maximum pressure, this swivel features a thrust ball bearing and a reliable O-ring NBR seal system, with optional EBDM or FKM material upgrades. Its corrosion-resistant construction, compact size, and maintenance-free performance make it ideal for heavy-duty industrial and commercial use.

Applications

• High-pressure spray guns

• Hydraulic hose connections

• High-pressure hose reels

• Tangle-free cleaning systems

• Industrial fluid transfer

Features

• Material: Brass, nickel plated

• Thread IN (G1): 1/2" NPTM

• Thread OUT (G2): 1/2" NPTF

• Overall Length: 3.01"

• Nominal Width (NW): 3/8"

• Wrench Size (SW): 1.06"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal: O-ring NBR (optional: EBDM or FKM)

• Bearing: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, and maintenance free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 3.03"

Length 2 (L2): 0.59"

Weight: 8.7 oz

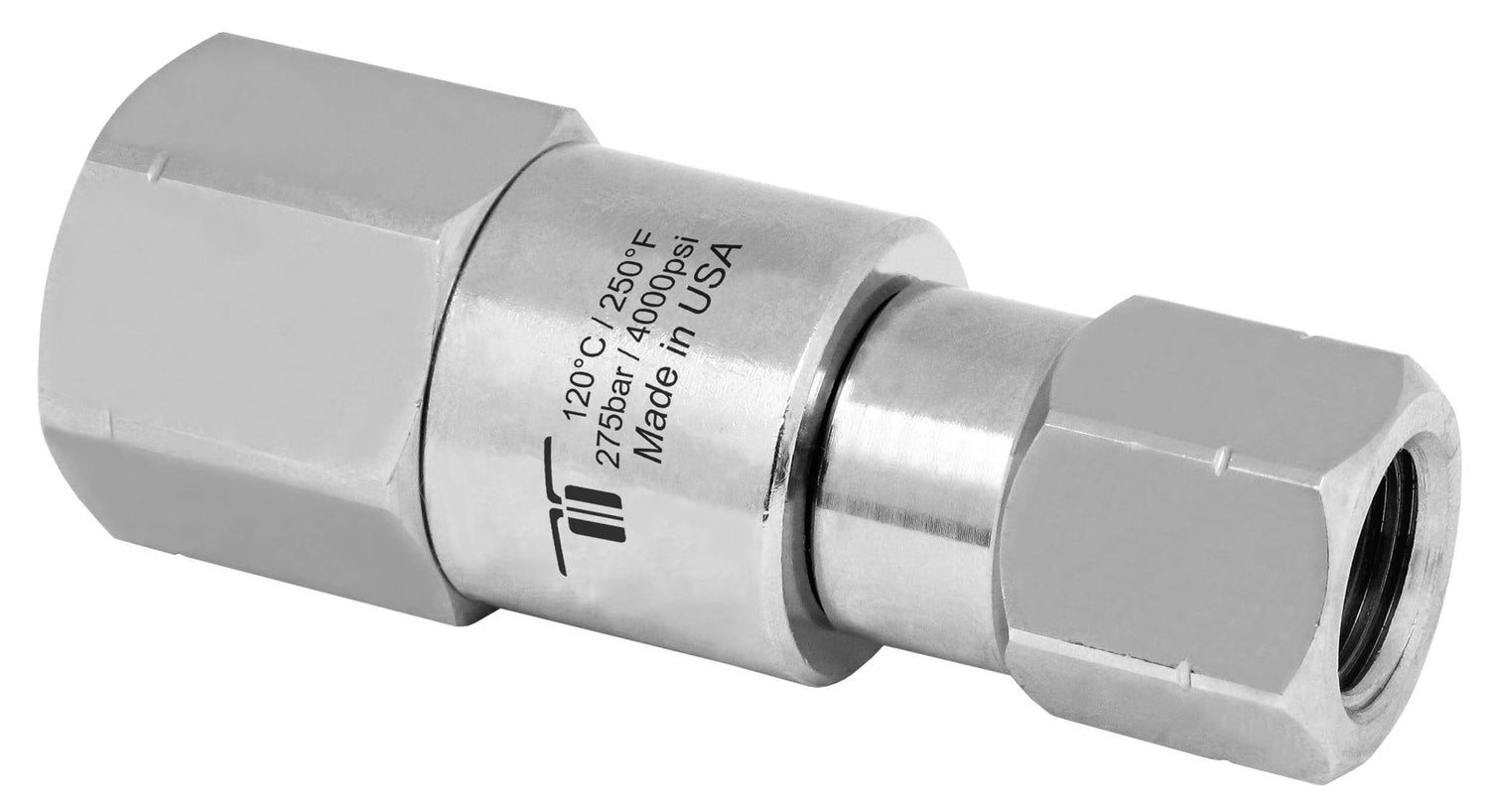

The Mosmatic DGV Swivel 32.557 is a high-performance brass, nickel-plated swivel built for high-pressure guns, hydraulic hoses, and other tangle-free connection applications. Engineered for live rotation under full pressure, it features a single thrust ball bearing and O-ring NBR seal system (optional upgrades to EBDM or FKM). This swivel offers smooth performance, corrosion resistance, and zero-maintenance durability, ideal for demanding industrial setups.

Applications

• High-pressure spray guns

• Hydraulic hose connections

• Hose reels in commercial and industrial use

• Tangle-free cleaning equipment

• Power washing systems

Features

• Material: Brass, nickel plated

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 2.72"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal: O-ring NBR (upgradeable to EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Performance: Maintenance-free, corrosion resistant, smooth rotation

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.72"

Weight: 6.5 oz

The Mosmatic DGV Swivel 32.861 is a brass, nickel-plated high-pressure swivel engineered for hose connections, hydraulics, and HP-gun applications. Designed for live rotation under maximum pressure, this swivel offers durable corrosion resistance, a compact profile, and smooth operation thanks to its single thrust ball bearing and NBR O-ring seal system (also available in EBDM or FKM). Built to last in high-demand environments, it’s maintenance-free and reliable for consistent performance.

Applications

• High-pressure HP-Guns

• Hydraulic and pneumatic hose systems

• Tangle-free hose reel configurations

• Industrial cleaning tools and machines

Features

• Material: Brass, nickel-plated

• Thread Type: 1/2" NPTM inlet x 1/2" NPTM outlet

• Overall Length: 2.91"

• Nominal Width: 3/8"

• Wrench Size: 1.06"

• Maximum Pressure: 4000 PSI

• Max RPM: 30

• Temperature Range: Up to 250°F

• Seal System: O-ring NBR (EBDM/FKM optional)

• Bearing: 1x thrust ball bearing

• Corrosion Resistant and Maintenance Free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 2.91"

Length 2 (L2): 0.59"

Length 3 (L3): 0.59"

Weight: 8.2 oz

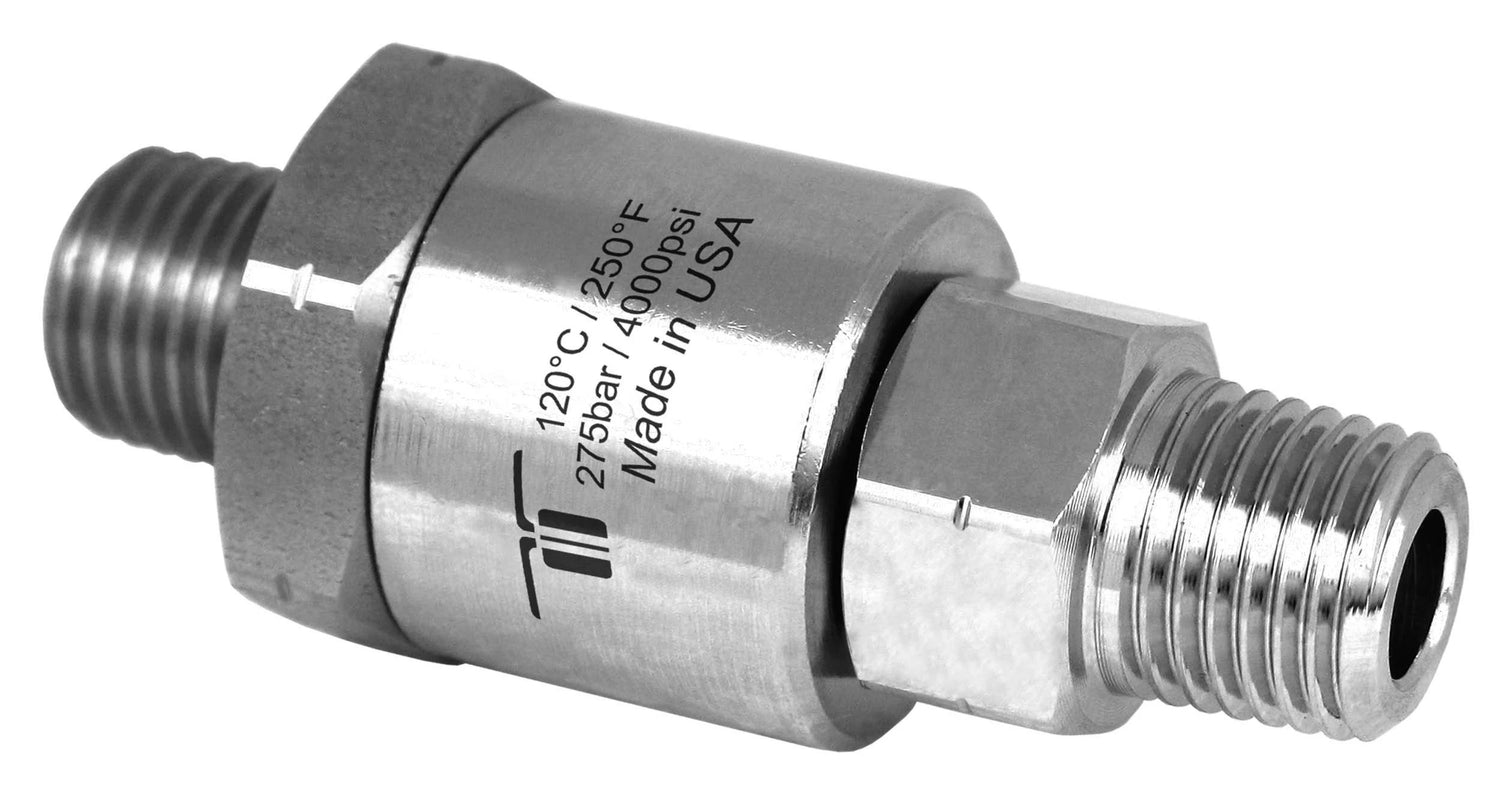

The Mosmatic DGV Swivel 32.551 is a precision-engineered brass, nickel-plated swivel designed for high-pressure guns, hose connections, and hydraulic systems. Built to support tangle-free applications and ensure smooth operation, it features a thrust ball bearing and an O-ring NBR seal system (with optional EBDM or FKM upgrades). Its corrosion-resistant build and maintenance-free design make it ideal for continuous, high-demand use. Supports live rotation at maximum pressure for increased efficiency and control.

Applications

• High-pressure spray guns

• Hose reel and hose-end connections

• Hydraulic equipment

• Tangle-free cleaning and spray setups

• Car wash systems

Features

• Material: Brass, nickel plated

• Thread: 1/4" NPTM to 1/4" NPTM

• Pressure Rating: Up to 4000 PSI

• Max RPM: 30

• Max Temp: 250°F

• Seal: O-ring NBR (optional: EBDM or FKM)

• Bearing System: Single thrust ball bearing

• Corrosion Resistant: Built for rugged environments

• Maintenance Free: No lubrication required

• Compact Length: 2.40" for space-efficient setups

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.40"

Length 2 (L2): 0.39"

Length 3 (L3): 0.43"

Weight: 4.2 oz

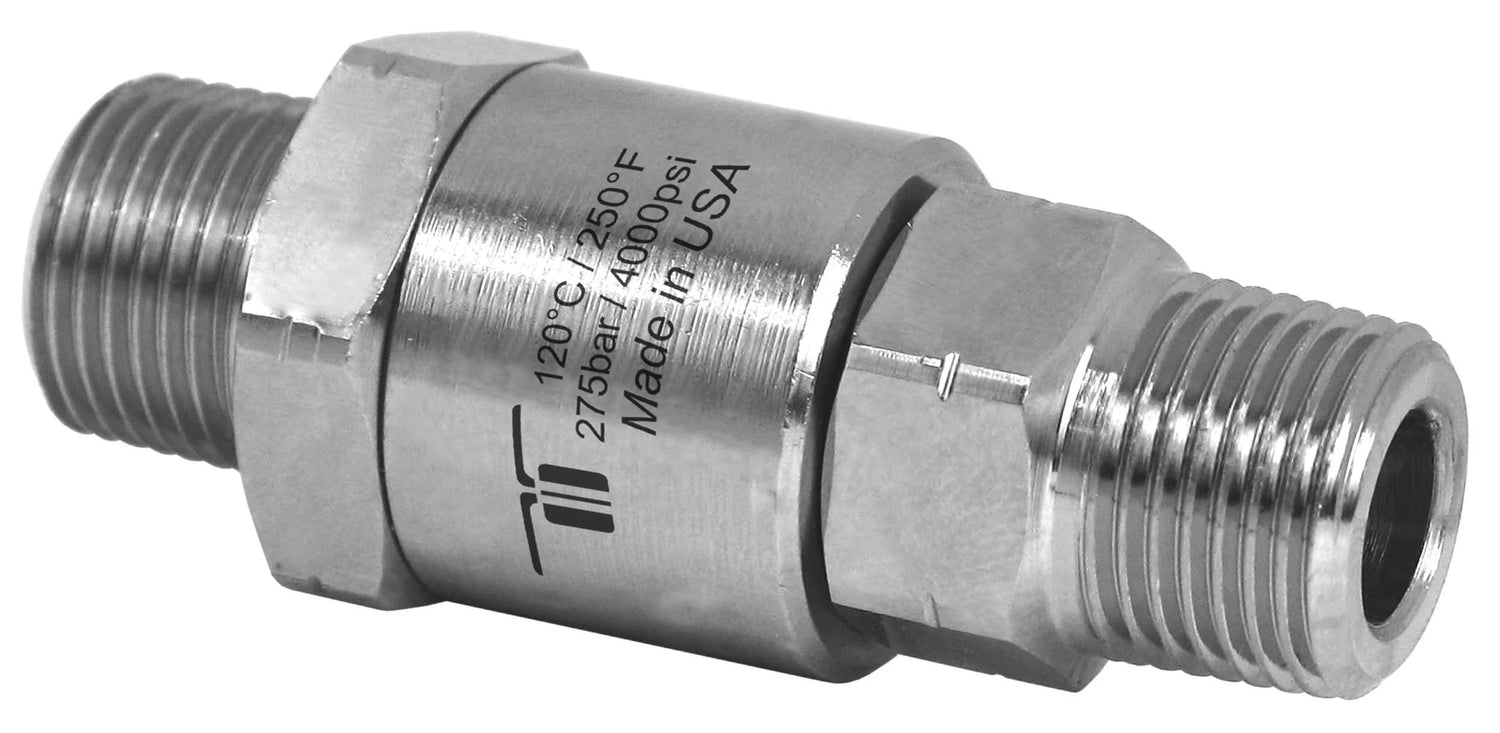

The Mosmatic DGV Swivel 32.563 is a brass, nickel-plated high-pressure swivel engineered for demanding applications such as HP-guns, hose connections, and hydraulic systems. Built with a single thrust ball bearing and an NBR O-ring seal (also available in EBDM or FKM), this swivel delivers live rotation under maximum pressure, ensuring smooth and tangle-free operation. Its durable corrosion-resistant finish and maintenance-free design make it a dependable choice for both industrial and commercial use.

Applications

• High-pressure cleaning guns

• Hydraulic hose connections

• Tangle-free hose reel systems

• Industrial and commercial cleaning equipment

Features

• Material: Brass with nickel plating

• Thread Type: 3/8" NPTM inlet and outlet

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal Type: O-ring NBR (optional EBDM or FKM)

• Bearing: 1x thrust ball bearing

• Corrosion Resistant: Suitable for tough environments

• Maintenance Free: Long service life

• Compact Design: Length 2.48", Wrench Size 0.94", Nominal Width 1/4"

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.48"

Length 2 (L2): 0.43"

Length 3 (L3): 0.47"

Weight: 5.4 oz

The Mosmatic DGV Swivel 32.861 is a high-performance brass swivel designed for high-pressure applications such as hose connections, hydraulics, and HP-guns. Featuring nickel plating for enhanced corrosion resistance, this swivel includes a single thrust ball bearing and a durable NBR O-ring seal system (with optional EBDM or FKM upgrades). Its live rotation under full pressure ensures maximum flexibility and minimal hose wear. Built to Mosmatic’s exacting standards, this swivel is maintenance-free and built for longevity in tough environments.

Applications

• High-pressure HP-guns

• Hydraulic hose and line connections

• Industrial and commercial cleaning equipment

• Tangle-free hose reel systems

Features

• Material: Brass, nickel plated

• Thread Type: 1/2" NPTM inlet x 3/8" NPTM outlet

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal Type: NBR O-ring (optional EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Corrosion Resistant: Suitable for harsh conditions

• Maintenance Free: No lubrication required

• Compact Size: Overall length 2.76", NW 3/8", SW 1.06"

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.76"

Length 2 (L2): 0.59"

Length 3 (L3): 0.47"

Weight: 7.5 oz

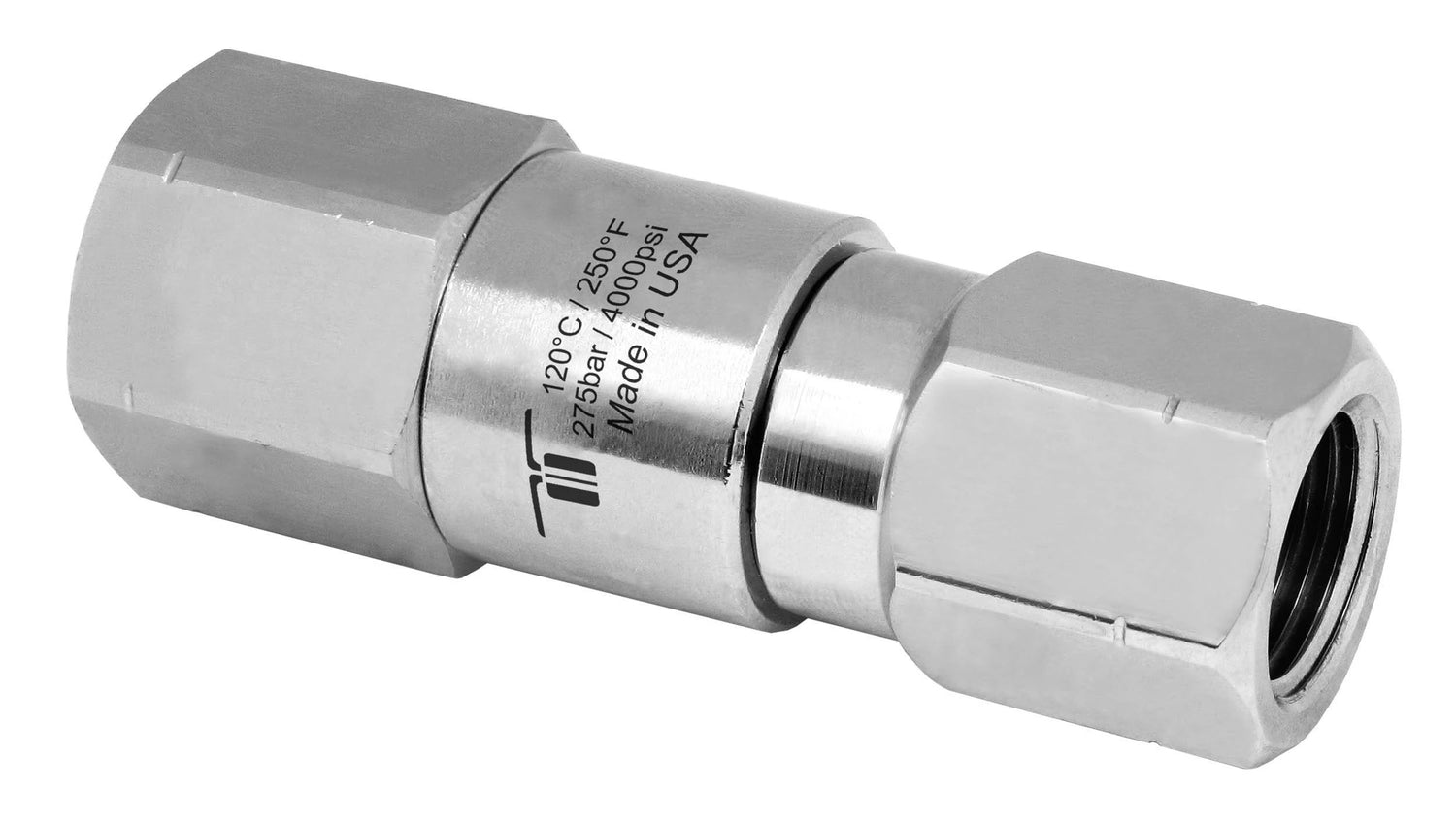

The Mosmatic DGV Swivel 32.569 is a brass, nickel-plated swivel built for superior performance in high-pressure systems. Designed for HP-Guns, hydraulic applications, and hose connections, it provides smooth and reliable rotation under pressure. The single thrust ball bearing and O-ring NBR seal (with optional EBDM or FKM upgrades) offer leak-free operation and extended service life. This swivel is ideal for keeping hoses tangle-free while ensuring optimal flow and control, all in a compact, corrosion-resistant, and maintenance-free design.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose connections

• Industrial fluid handling

• Hose reels and car wash systems

• Anti-kink swivel joints

Features

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 2.87"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional: EBDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Design Benefits: Compact, corrosion-resistant, tangle-free, maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Weight: 7.1 oz

The Mosmatic DGV Swivel 32.562 is a brass, nickel-plated swivel built for high-pressure cleaning systems and hydraulic hose connections. It enables live rotation under full pressure, improving equipment performance and operator handling. Engineered with a single thrust ball bearing and a reliable O-ring NBR seal system (optional EBDM or FKM), this swivel is corrosion resistant, maintenance free, and supports consistent operation in demanding applications.

Applications

• High-pressure HP-Guns

• Hydraulic and pneumatic systems

• Tangle-free hose connections

• Pressure cleaning tools

Features

• Material: Brass, nickel-plated

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 2.63"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional EBDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Key Benefits: Maintenance free, corrosion resistant, compact form factor

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.63"

Length 2 (L2): 0.43"

Weight: 5.7 oz

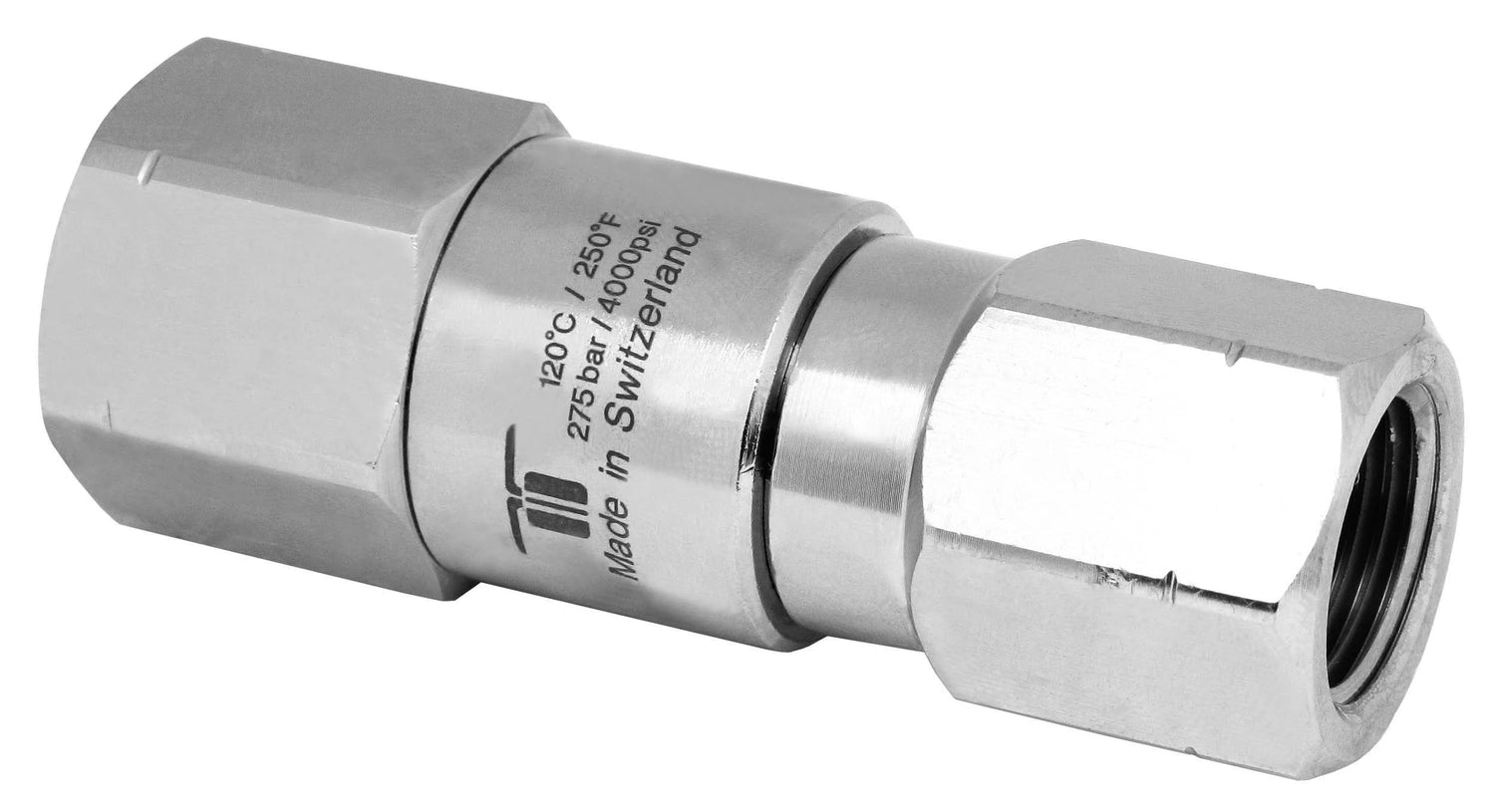

The Mosmatic DGV Swivel 32.559 is a high-quality nickel-plated brass swivel engineered for high-pressure guns, hydraulic systems, and hose connections in tangle-free, high-demand environments. Designed for live rotation at maximum pressure, this swivel features a single thrust ball bearing and a durable O-ring NBR seal system (with optional EBDM or FKM upgrades). With precision construction, it delivers reliable performance, corrosion resistance, and is completely maintenance-free.

Applications

• High-pressure spray guns

• Hydraulic hose connections

• Pressure washer accessories

• Industrial cleaning systems

• Hose reels and tangle-free setups

Features

• Material: Brass, nickel plated

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 2.83"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal: O-ring NBR (optional: EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Performance: Maintenance-free, corrosion resistant, smooth rotation

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.83"

Weight: 6.6 oz

The Mosmatic DGV Swivel 32.553 is a nickel-plated brass swivel designed for high-performance applications including HP-guns, hydraulic systems, and hose connections. With a single thrust ball bearing and O-ring NBR seal system (optional EBDM or FKM), this swivel ensures live rotation at maximum pressure, delivering reliable performance in demanding, tangle-free environments. Its corrosion-resistant, maintenance-free design enhances operational longevity and reduces downtime.

Applications

• High-pressure spray guns

• Hydraulic line connections

• Hose reel systems

• Car wash and industrial cleaning setups

• Tangle-free hose management

Features

• Material: Brass with nickel plating

• Thread Configuration: 3/8" NPTM (inlet) to 1/4" NPTM (outlet)

• Operating Pressure: Up to 4000 PSI

• Max Rotation Speed: 30 RPM

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional EBDM/FKM)

• Bearing: 1x thrust ball bearing

• Corrosion Resistant: Suitable for harsh environments

• Maintenance Free: Designed for long-lasting use

• Compact Design: Overall length 2.44", Wrench Size 0.94", NW 1/4"

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.44"

Length 2 (L2): 0.43"

Length 3 (L3): 0.43"

Weight: 4.9 oz

HP-Guns, hose connections, hydraulics, tangle-free applications.

• Live rotation under maximum pressure
• Single bearing system
• Stainless steel internal parts
• Corrosion resistant
• Reinforced inner shaft
• Maintenance free

G1 (M) 3/8"NPTM, G2 1/2"NPTM, NW 1/4", SW1 0.94, SW2 1.06, L1 2.91, L2 0.43, Weight 7.5oz

Technical data

• Pressure: 4000 psi (27.5 MPa)
• Temperature: 250°F
• RPM max. 30 rpm
• Body: stainless steel, brass, nickel plated
• Inner part: Stainless steel
• Seal: O-ring NBR (optional: EPDM or FKM
• Throughput: 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 microns, compressed air (290 psi)

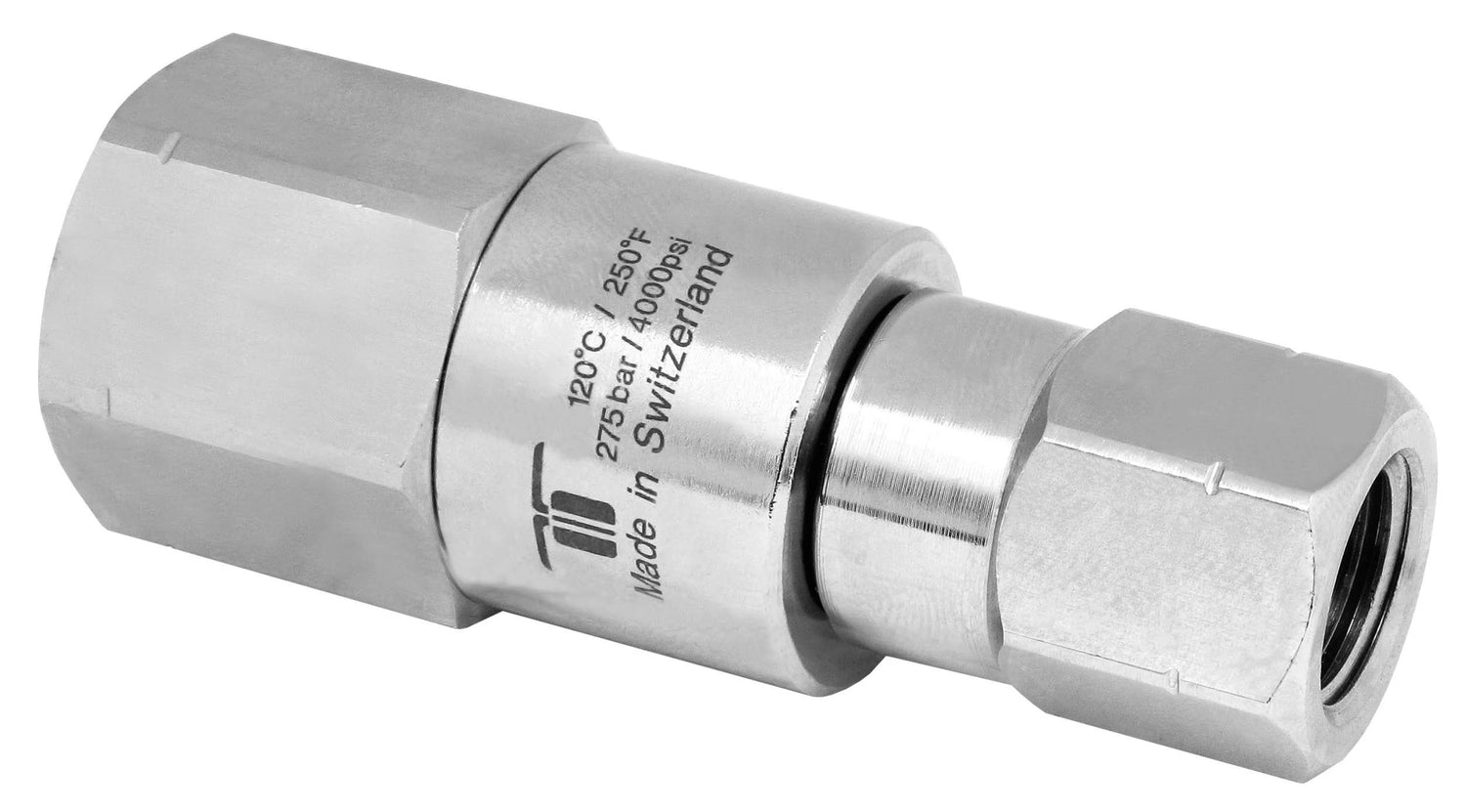

The Mosmatic DGV Swivel 32.567 is a high-performance nickel-plated brass swivel designed for high-pressure guns, hose connections, and hydraulic systems. This swivel offers live rotation under maximum pressure, thanks to its precision thrust ball bearing and O-ring NBR seal system (with EBDM or FKM available). Its robust, compact design ensures tangle-free operation, corrosion resistance, and maintenance-free use, making it ideal for demanding industrial environments.

Applications

• High-pressure cleaning systems

• Pressure washer accessories

• Hydraulic line fittings

• Hose reels and couplings

• Commercial and industrial spray systems

Features

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 2.76"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional: EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Performance: Live rotation, corrosion resistant, maintenance free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.76"

Weight: 6.6 oz

The Mosmatic DGV Swivel 32.854 is a robust brass, nickel-plated swivel designed for high-pressure guns, hydraulic systems, and hose connections requiring smooth, tangle-free performance. It features a single thrust ball bearing and a durable O-ring NBR seal system (with optional EBDM or FKM upgrade) to support live rotation at maximum pressure. Built for durability and efficiency, this swivel offers maintenance-free operation, excellent corrosion resistance, and is ideal for both industrial and commercial setups.

Applications

• High-pressure spray guns

• Hydraulic systems and hose lines

• Industrial hose reels

• Tangle-free rotating hose connections

• Fluid transfer and cleaning applications

Features

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 1/2" NPTF

• Overall Length: 2.87"

• Nominal Width (NW): 3/8"

• Wrench Size (SW): 1.06"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional: EBDM or FKM)

• Bearing: 1x thrust ball bearing

• Design Highlights: Corrosion resistant, compact build, low maintenance, reliable performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 2.87"

Length 2 (L2): 0.43"

Weight: 7.1 oz
