Undercarriage

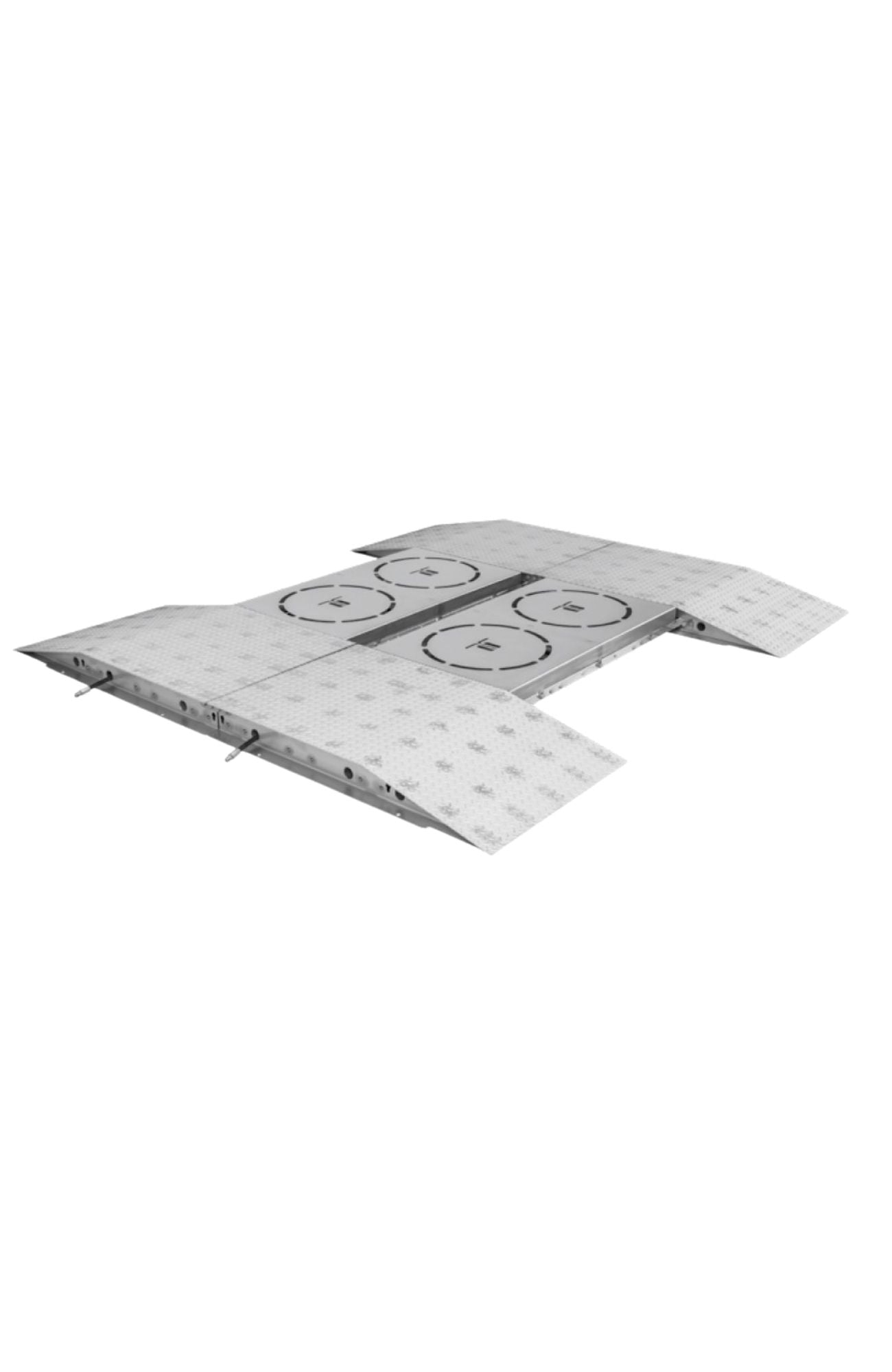

Mosmatic Undercarriage Cleaner Double Ramp Only - 80.518

(0)

$28,729.57 USD

The Undercarriage Cleaner – Dual Ramp (80.518) is a heavy-duty stainless steel ramp system designed for use with Mosmatic undercarriage cleaning units. This configuration includes the dual ramp assembly and two center ramp sections only, providing a stable, precision-aligned platform for dual undercarriage cleaner installations.

Engineered for demanding commercial and industrial wash environments, the dual ramp system supports high-performance cleaning with a pressure rating of up to 4000 PSI and temperature tolerance up to 250°F. It features two 3/8" NPT water inlets and accommodates eight 1/8" NPT nozzle connections, allowing efficient water distribution across dual cleaning units. The system is compatible with cleaning solutions in a pH range of 3–12, making it suitable for a wide range of detergents and wash chemicals.

Constructed from corrosion-resistant stainless steel, the dual ramp is built for long-term durability, structural stability, and consistent performance. It is intended for permanent installation and must be securely anchored to the ground using appropriate fastening hardware (not included). This ramp system is ideal for facilities requiring increased undercarriage wash coverage, higher throughput, or dual-rotor cleaning configurations.

Applications

Dual undercarriage cleaner installations
Commercial vehicle and fleet wash systems
Industrial wash bays and service facilities
High-pressure underbody cleaning operations
Fixed wash stations using pH-balanced or mildly acidic/alkaline solutions

Features

Configuration: Dual ramp system with two center ramp sections (ramp only)
Material: Corrosion-resistant stainless steel construction
Water Connections: 2 × 3/8" NPT inlet
Nozzle Connections: 8 × 1/8" NPT
Pressure Rating: Supports up to 4000 PSI (27.5 MPa)
Temperature Tolerance: Up to 250°F
Chemical Compatibility: pH 3–12
RPM Rating: Max. 2000 RPM (system-rated)
Installation: Designed for fixed mounting; anchoring hardware not included
Durability: Built for continuous commercial and industrial use

Video

Specs

Material Type: Stainless steel

Pressure: 1000 PSI

Temperature: 250°F

Thread In (Water connection for ramp) : 3/8 NPTM

Min Ground Clearance: 4.8"

Throughput medium: ph 3-12

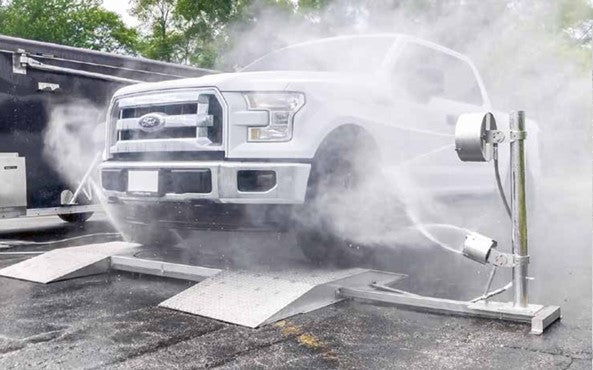

Mosmatic Undercarriage Cleaner with Ramp Set Up - 80.506

(0)

From $289.27 USD

The Mosmatic Undercarriage Cleaner with Ramp – 80.506 is a premium stainless steel vehicle wash system designed for efficient and thorough underbody cleaning. Built for professional and commercial use, this system includes essential components such as the ramp, rigger, Low Volume WBP140 and WBP250 units, and stand. It is engineered to deliver consistent performance at pressures up to 1000 PSI and temperatures up to 250°F.

With compatibility across a wide pH range (3–12), it accommodates various cleaning agents while maintaining durability and corrosion resistance. A minimum ground clearance of 4.8" is required for operation, and the system spans 4' 9.6" in length, offering wide coverage for vehicles of all sizes. Accessories such as the extension, collision protection, high-performance pump, and hose kit can be added for expanded functionality. Nozzles are not included.

Note: Always consult local regulations regarding wastewater runoff compliance.

For optimal performance, it is recommended to operate at no less than 24 GPM at 8–1000 PSI, as the unit is equipped with six precision-engineered spray heads.

Applications

Fleet maintenance and vehicle wash bays
Commercial undercarriage cleaning systems
Industrial cleaning requiring chemical compatibility
High-pressure vehicle wash stations
Car wash facilities focused on detailed chassis cleaning

Features

Includes: 1x Ramp, 2x Rigger, 2x Low Volume WBP140 & 2x WBP250, 2x Stand
Compatible Accessories: Extension, Collision Protection, Pump, Hose Kit
Material: Heavy-duty stainless steel construction
Pressure Rating: Up to 1000 PSI
Temperature Tolerance: Operates up to 250°F
Chemical Compatibility: pH 3–12 for a wide range of cleaners
Length: 4' 9.6" for full vehicle width coverage
Minimum Clearance: Requires 4.8" for effective use
Modular System: Designed for easy upgrades and part replacement

Video

Included

Optional Items:

High Performance Pump

Hose Kit

Specs

Material Type: Stainless steel

Pressure: 1000 PSI

Temperature: 250°F

RPM:

Thread In (Water connection for ramp) : ⅜" NPTM

Thread In (Water connection for WBP (Wheel Blaster Pro)): 4x 3/8" NPTF

Length: 4' 9.6"

Width: 16' 5.6"

Height : 4.73"

Min Ground Clearance: (if applicable): 4.8"

Throughput medium: ph 3-12

Weight: 512 lbs

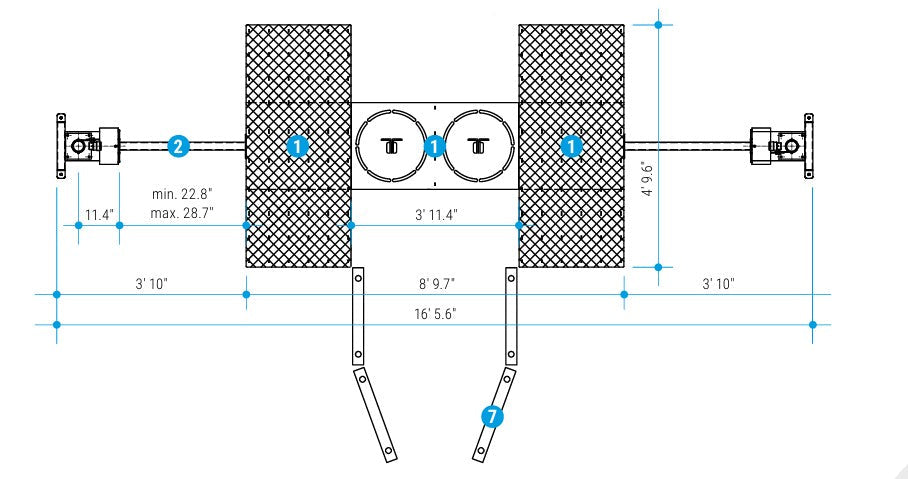

Mosmatic Undercarriage Cleaner with Ramp - Ramp - 80.508

(0)

$15,439.03 USD

Mosmatic Undercarriage Cleaner with Ramp - Rigger - 80.550

(0)

$1,205.33 USD

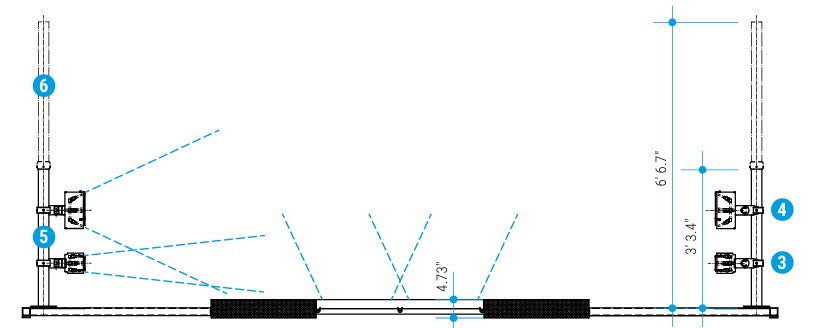

Mosmatic Undercarriage Cleaner with Ramp - Low Volume WBP140 - 84.589

(0)

$1,316.69 USD

Mosmatic Undercarriage Cleaner with Ramp - Low Volume WBP250 - 84.599

(0)

$1,434.50 USD

Mosmatic Undercarriage Cleaner with Ramp - Extension - 84.907

(0)

$459.08 USD

Mosmatic Undercarriage Cleaner with Ramp - Collision Protection - 905.884

(0)

$289.27 USD

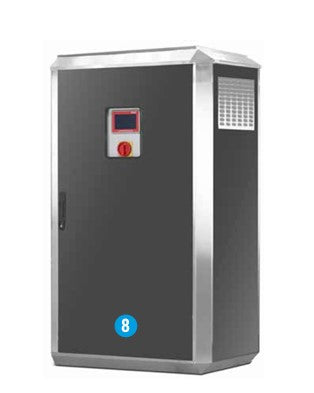

Mosmatic Undercarriage Cleaner with Ramp - High Performance Pump - 80.561

(0)

$36,158.51 USD

Mosmatic Undercarriage Cleaner with Ramp - Hose Kit - 80.560

(0)

$2,082.73 USD

Mosmatic Undercarriage Cleaner with Ramp - Stand - 903.986

(0)

$362.01 USD

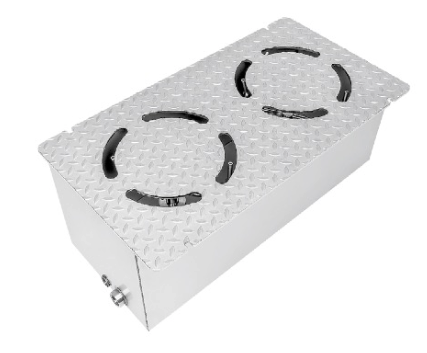

Mosmatic Undercarriage Cleaner Stationary TUWs - 80.640

(0)

$3,460.18 USD

The Mosmatic Stationary Undercarriage Cleaner TUWs – 80.640 is a heavy-duty, industrial-grade solution for permanent vehicle wash installations, including fixed ramp-over and sub-floor wash systems. Constructed with high-quality stainless steel plates and boxes, this unit features quad bearing swivels and precision-welded, balanced rotor arms for consistent, vibration-free operation.

Its high-lift wash design effectively removes heavy debris while safely cleaning the vehicle’s undercarriage without causing damage. Designed for high-volume applications, the TUWs 80.640 operates at pressures up to 4000 PSI, temperatures up to 250°F, and is compatible with cleaning agents in the pH 3–12 range. The system includes a modular design and compact footprint, and it must be equipped with 4 EG-style nozzles (not included), specified based on your pump setup.

Note: Always verify local wastewater runoff regulations before installation.

Applications

Permanent undercarriage cleaning systems in wash bays
Fleet maintenance and commercial vehicle facilities
High-volume car wash operations
Ramp-over or in-ground wash platforms
Heavy-duty wash stations requiring high pressure and flow

Features

High-Lift Design: Removes heavy dirt without damaging vehicle underbodies
Material: Industrial-grade stainless steel for durability and corrosion resistance
Quad Bearing Swivels: Smooth rotation and long service life
Balanced Rotor Arms: Welded for consistent cleaning performance
Modular & Compact: 29.5" x 11.8" x 10.8" body for easy integration
Stabilizer Nozzles: For steady spray and cleaning precision
Water Connection: 3/4" NPTF inlet, 2" water drain
Performance Specs: Up to 4000 PSI, 250°F, 2000 RPM
Cleaning Surface:
- 4" ground clearance = 13" surface
- 8" ground clearance = 16" surface
- 12" ground clearance = 18" surface
Chemical Compatibility: pH 3–12 cleaning media

Included

Swivels : 2x DYT

Rotor arms : 8"/10"

Stabilizer nozzles : 4x 14.901

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: 2000 RPM

Thread In (Water connection for ramp) : 3/4" NPTF

Length: 29.5"

Width: 11.8"

Height: 10.8"

Throughput medium: ph 3-12

Weight: 70.5 lbs
