DXTI Rotary Union/Swivel

Mosmatic DXL/DXG/DXF/DXTI Swivel Seal Kit - 36.901 - NW 1/4"

(0)

$67.03 USD

Mosmatic rotary unions DXTI swivel G1 3/8"NPTF G2 G3/8"M 39.663

Mosmatic DXTI Swivel - 39.663 - 3/8"NPTF to G3/8"M

(0)

$658.07 USD

Mosmatic rotary unions DXTI swivel G1 1"NPTF G2 G1/2"M 39.905

Mosmatic DXTI Swivel - 39.905 - 1"NPTF to G1/2"M

(0)

$986.01 USD

The Mosmatic 39.905 DXTI Swivel is a precision-engineered stainless steel swivel designed for high-RPM, self-rotating cleaning systems that require exceptional reliability and durability. Built to perform in parts washers, tire cleaners, and HP cleaning technology, this swivel delivers smooth rotation with very low torque, making it ideal for continuous high-speed operation.

A quadruple bearing system - with 2 radial ball bearings and 2 thrust ball bearings - ensures long-lasting, stable performance. The ceramic seal system offers excellent resistance to heat and chemicals. For added functionality, a side weep connection allows fluid capture and alerts for seal failure, helping maintain system integrity and reduce downtime.

Rated for 2500 PSI, 2000 RPM, and temperatures up to 250°F, this swivel is a reliable solution for industrial environments demanding high-flow and precision.

Applications

High-speed parts washing equipment
Self-rotating tire cleaning systems
HP industrial and automotive cleaning tools
Rotary spray nozzles and cleaning heads
Robotic or automated pressure washing systems

Key Features

Thread In: 1" NPT Female
Thread Out: G1/2" Male
Material: All stainless steel construction
Seal Type: Durable ceramic seal for heat and chemical resistance
Bearing System: Quadruple bearings (2 radial + 2 thrust)
Low Torque Operation: Optimized for high-speed self-rotation
Weep Capture Port: Integrated side connection for seal failure monitoring
Max Pressure: 2500 PSI
Max Temperature: 250°F
Max RPM: 2000
Compact and Rugged: Ideal for continuous-use cleaning operations

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 55.9 oz

Mosmatic rotary unions DXTI swivel G1 1/2"NPTF G2 G1/2"M 39.865

Mosmatic DXTI Swivel - 39.865 - 1/2"NPTF to G1/2"M

(0)

$972.11 USD

The Mosmatic 39.865 DXTI Swivel is a precision-engineered stainless steel swivel designed for high-RPM, self-rotating applications in advanced cleaning systems. Optimized for parts washers, tire cleaners, and high-pressure (HP) cleaning technology, this swivel combines low-torque operation with long-lasting durability and smooth performance.

Built with a quadruple bearing system - including 2 radial ball bearings and 2 thrust ball bearings - it ensures stable, high-speed rotation. The ceramic seal system offers superior resistance to heat, chemicals, and pressure. Additionally, a side port enables weep capture, minimizing mess and enabling more efficient maintenance monitoring.

With a capacity of 2500 PSI, operation up to 2000 RPM, and 250°F heat resistance, the 39.865 swivel is ideal for demanding cleaning applications requiring strength, longevity, and compact design.

Applications

High-speed parts washing systems
Self-rotating tire cleaners
HP cleaning technology in automotive and industrial use
Spray bars and rotary nozzles
Robotics or automated equipment requiring low-torque swivel rotation

Key Features

Thread In: 1/2" NPT Female
Thread Out: G1/2" Male
Material: Stainless steel housing and internal components
Seal Type: Ceramic seal for superior temperature and chemical resistance
Quadruple Bearing System: 2 radial + 2 thrust stainless steel ball bearings
Low Torque Design: Optimized for smooth high-RPM rotation
Side Weep Connection: Allows seal failure warning and fluid capture
Max Pressure: 2500 PSI
Max RPM: 2000
Max Temperature: 250°F
Rugged & Compact: Built for high-load, continuous-duty cleaning operations

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/2" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 59.0 oz

Mosmatic DXTI Swivel - 39.910

(0)

$995.45 USD

Mosmatic DXTI Swivel Seal Kit - 36.915 - NW 1/2"

(0)

$156.66 USD

Mosmatic DXTI Swivel Seal Kit - 36.914 - NW 3/8"

(0)

$136.22 USD

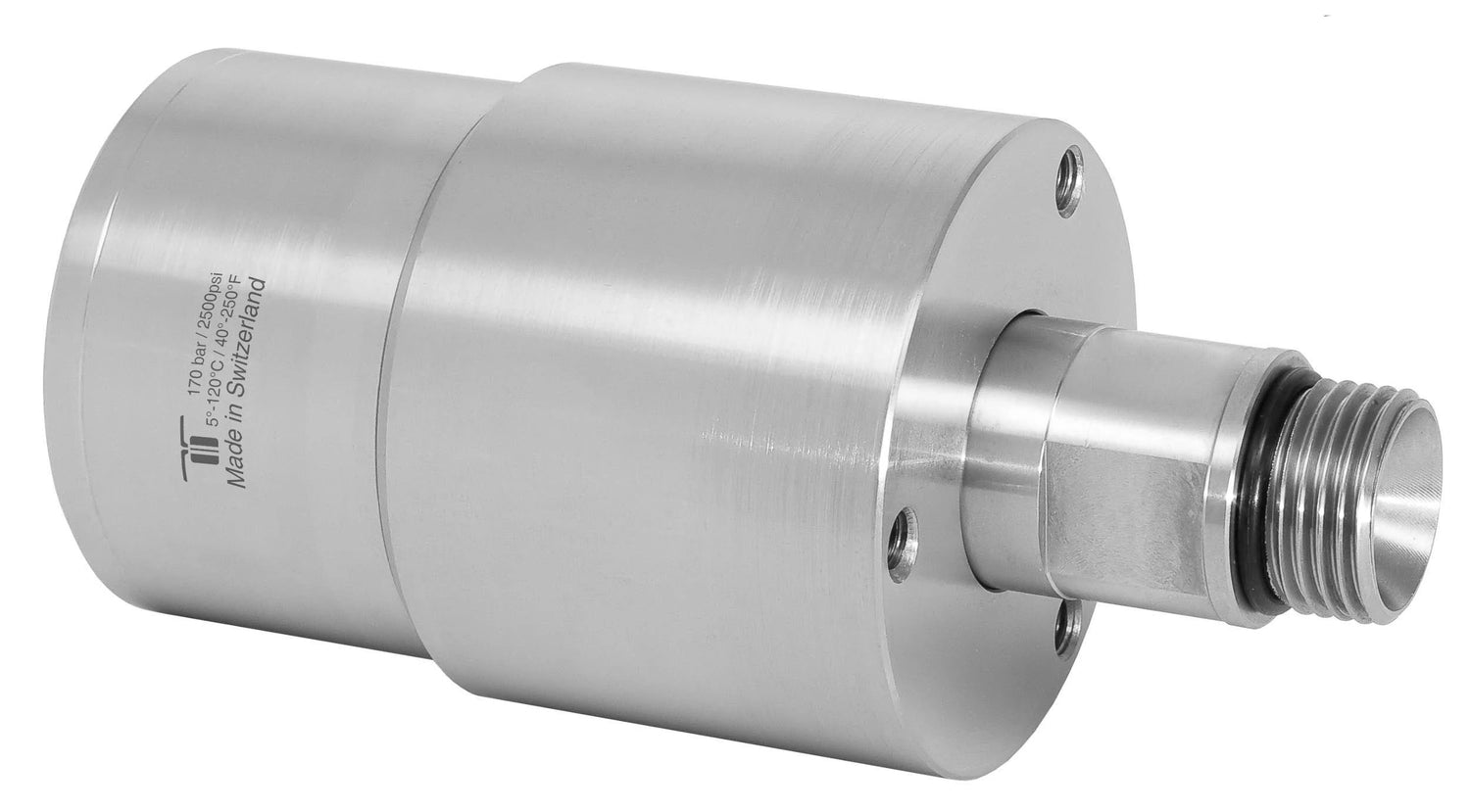

Mosmatic rotary unions DXTI swivel G1 3/4"NPTF G2 G1/2"M 39.907

Mosmatic DXTI Swivel - 39.907 - 3/4"NPTF to G1/2"M

(0)

$979.06 USD

The Mosmatic 39.907 DXTI Swivel is a high-speed, high-performance stainless steel swivel built for self-rotating cleaning systems where low torque, high RPMs, and reliability are essential. Designed for parts washers, tire cleaners, and high-pressure (HP) cleaning technology, this swivel combines precision engineering with rugged durability.

This model features a quadruple bearing system - 2 radial and 2 thrust ball bearings - for enhanced stability under rotation. Its ceramic seal system resists wear, heat, and chemicals, making it ideal for demanding industrial use. A side weep connection allows for easy monitoring and capture of fluid discharge, protecting surrounding components and systems.

With support for 2500 PSI, 2000 RPM, and 250°F, the 39.907 DXTI swivel is built to deliver long-lasting, smooth rotation in even the most intensive cleaning applications.

Applications

Self-rotating parts washer systems
Tire cleaning equipment
High-pressure (HP) industrial cleaning systems
Spray arms and rotating nozzles
Robotic or automated cleaning tools requiring high speed and low torque

Key Features

Thread In: 3/4" NPT Female
Thread Out: G1/2" Male
Material: Stainless steel construction
Seal Type: High-performance ceramic seal for heat and chemical resistance
Quadruple Bearing System: 2 radial + 2 thrust stainless steel ball bearings
Low Torque Design: Ideal for high-speed rotary cleaning
Side Weep Connection: Allows fluid capture and seal failure monitoring
Max Pressure: 2500 PSI
Max RPM: 2000
Max Temperature: 250°F
Built for Demanding Use: Engineered for heavy-duty and continuous operation

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/4" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 57.9 oz

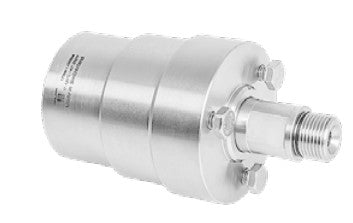

Mosmatic DXTI Swivel - 39.063 - 1/4"NPTF to G3/8"M

(0)

$602.69 USD

The Mosmatic 39.063 DXTI Swivel is a high-speed stainless steel swivel engineered for self-rotating cleaning applications where low torque and high RPM performance are essential. Designed for parts washers, tire cleaning systems, and advanced HP cleaning technology, this swivel offers smooth operation, long-term reliability, and precise performance.

Built with a quadruple bearing system - including 2 radial ball bearings and 2 thrust ball bearings - the DXTI swivel ensures consistent and balanced rotation. The integrated ceramic seal system provides excellent resistance to wear, chemicals, and heat, while a side connection allows for weep capture, offering an efficient method of managing fluid discharge in sensitive environments.

Rated for 2500 PSI, 2000 RPM, and 250°F, this swivel is compact, powerful, and ideal for high-speed rotary applications that require premium materials and exceptional engineering.

Applications

Parts washing systems
Tire cleaning equipment
Self-rotating high-speed cleaning tools
HP cleaning systems in automotive or industrial settings
Robotic or automated cleaning applications with low torque requirements

Key Features

Thread In: 1/4" NPT Female
Thread Out: G3/8" Male
Material: Corrosion-resistant stainless steel
Seal Type: Durable ceramic seal for high-temperature and chemical exposure
Bearing System: Quadruple bearing with 2 radial + 2 thrust ball bearings
Side Weep Capture Port: For improved maintenance and fluid management
Low Torque Design: Optimized for high RPM rotary applications
Max Pressure: 2500 PSI
Max Temperature: 250°F
Max RPM: 2000
Compact & Reliable: Precision-engineered for performance and longevity

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/4" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.64"
Length 1 (L1): 2.76"
Length 2 (L2): 4.28"
Length 3 (L3): 0.48"
Length 4 (L4): 0.12"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.77"
Weight: 45.5 oz
