DGS Rotary/Union Swivel
Sort by:
The Mosmatic DGS Swivel 30.654 is a high-quality brass, nickel-plated swivel engineered for high and low-pressure cleaning, hydraulic hose connections, ceiling booms, and other industrial applications. Designed for smooth performance under pressure, it features very low torque, sealed stainless steel bearings, and maintenance-free operation.
With a robust design including 1x thrust and 1x radial ball bearing, and an O-ring NBR seal system (upgradeable to EPDM or FKM), this swivel ensures reliable rotation at high PSI, making it an ideal solution for demanding environments.
Applications
-
Pressure washers and cleaning systems
-
Hydraulic and pneumatic hose assemblies
-
Ceiling booms and rotary arms
-
Car wash equipment
-
Hose reels and industrial setups
Key Features
-
Model: Mosmatic DGS 30.654
-
Material: Brass, nickel plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust, 1x radial ball bearing
-
Low Torque Operation: Smooth rotation at high pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.98"
-
Overall Length: 2.71"
-
Nominal Width (NW): 3/8"
-
Wrench Size (SW): 0.87"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.71"
Diameter (D) (overall diameter): 0.98"
Weight: 5.6 oz
The Mosmatic DGS Swivel 30.051 is a brass, nickel-plated swivel designed for high and low-pressure cleaning applications. Ideal for hose connections, ceiling booms, and hydraulic setups, this compact swivel ensures easy rotation under full pressure thanks to its sealed stainless steel bearings and low-torque operation.
Equipped with a dual bearing system—including one thrust and one radial ball bearing—it offers durability and smooth performance even under demanding conditions. The O-ring NBR seal system (with optional EPDM or FKM) enhances sealing reliability and chemical resistance. Built for maintenance-free operation, this swivel is engineered for long life and consistent precision.
Applications
-
Hose reels and hose connections
-
Ceiling booms and wall booms
-
Hydraulic fluid systems
-
Low and high-pressure cleaning systems
-
Mobile wash and car wash setups
Key Features
-
Model: Mosmatic DGS 30.051
-
Material: Brass, nickel-plated
-
Thread IN (G1): 1/4" NPTF
-
Thread OUT (G2): 1/4" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearing System: 1x thrust + 1x radial ball bearing
-
Very Low Torque: Smooth, easy rotation
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.86"
-
Overall Length: 2.32"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.75"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.67"
Length 1 (L1) (overall length) : 2.32"
Length 2 (L2): 0.42"
Diameter (D) (overall diameter): 0.86"
Weight: 4.1 oz

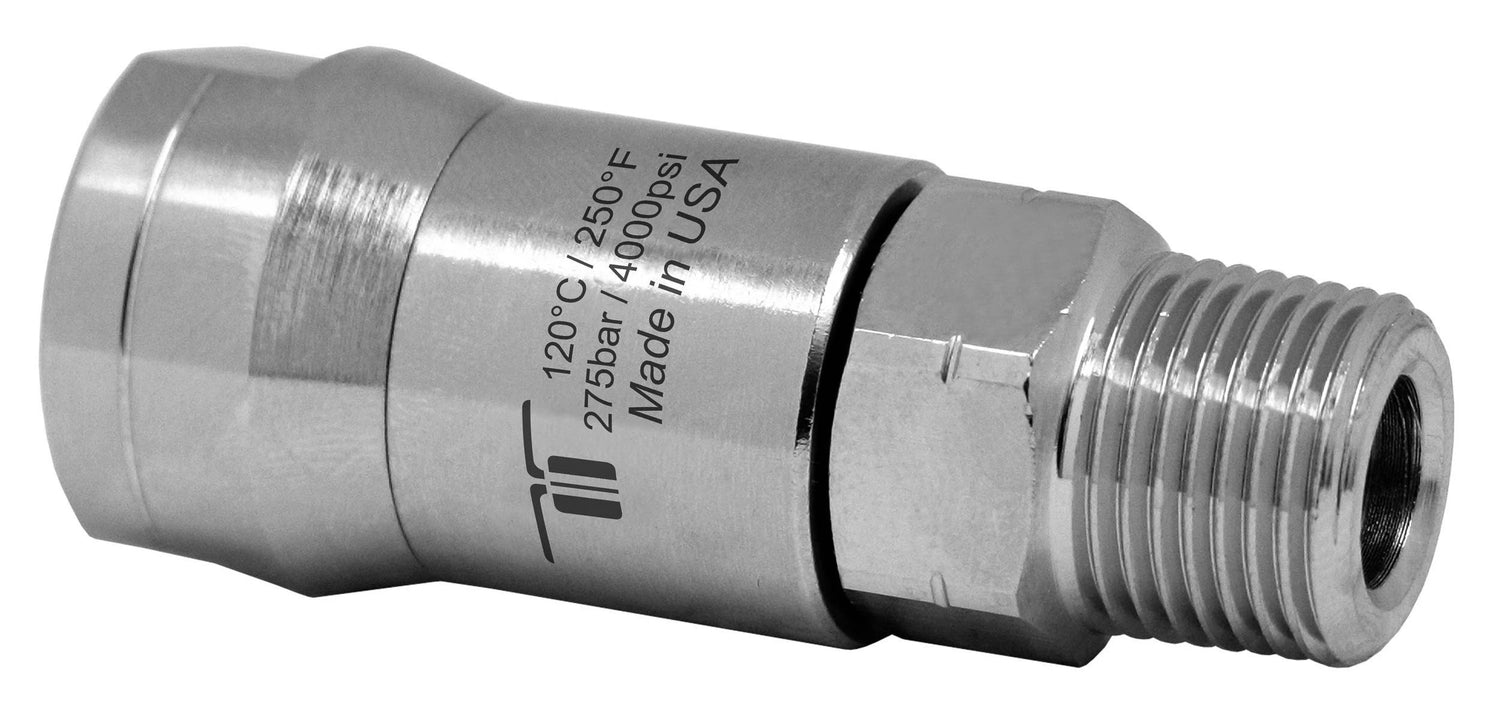

The Mosmatic DGS Swivel 30.153 is a premium brass, nickel-plated swivel designed for high and low pressure cleaning systems, hose connections, and hydraulic applications. Built for durability and smooth operation, this swivel ensures low torque performance under full pressure, ideal for commercial and industrial setups.
Engineered with sealed stainless steel bearings—including one thrust and one radial ball bearing—this swivel offers exceptional rotational efficiency and longevity. The integrated O-ring NBR sealing system (with optional EPDM or FKM materials) ensures tight sealing even in challenging environments.
Applications
-
High and low-pressure hose connections
-
Ceiling and wall-mounted booms
-
Hydraulic equipment
-
Commercial and industrial cleaning
-
Automatic car washes
-
Hose reels and rotating arms
Key Features
-
Model: Mosmatic DGS 30.153
-
Material: Brass, nickel-plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust + 1x radial ball bearing
-
Low Torque: Smooth rotation at full pressure
-
Maintenance-Free: Sealed stainless steel bearing system
-
Overall Diameter: 0.98"
-
Overall Length: 2.36"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.87"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.36"
Length 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.98"
Weight: 4.6 oz
The Mosmatic DGS Swivel 30.014 is a brass, nickel-plated swivel built for performance in high and low-pressure cleaning systems, hose connections, hydraulic applications, and ceiling booms. Designed for reliability under demanding conditions, this swivel offers smooth, low-torque rotation, even at maximum pressure.
Equipped with sealed stainless steel bearings—1x thrust and 1x radial—and an O-ring NBR seal system (optional EPDM or FKM), the DGS 30.014 is fully maintenance-free, providing long-lasting operation and corrosion resistance in tough environments.
Applications
-
High and low-pressure hose connections
-
Ceiling booms and wall booms
-
Hydraulic rotary joints
-
Industrial and commercial cleaning equipment
-
Hose reel swivel assemblies
Key Features
-
Model: Mosmatic DGS 30.014
-
Material: Brass, nickel-plated
-
Thread IN (G1): G1/4" Female
-
Thread OUT (G2): 3/8" NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust ball bearing, 1x radial ball bearing
-
Low Torque: Easy rotation at max pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.86"
-
Overall Length: 2.63"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.75"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 G1/4" F
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.63"
Diameter (D) (overall diameter): 0.86"
Weight: 5.5 oz
The Mosmatic DGS Swivel 30.154 is a precision-engineered brass, nickel-plated swivel designed for high and low-pressure cleaning systems, hydraulic hose connections, ceiling booms, and other demanding industrial applications. Built for durability and ease of use, this swivel features sealed stainless steel bearings and a low torque design to ensure effortless rotation under maximum pressure.
A dual bearing configuration—1x thrust and 1x radial ball bearing—combined with an O-ring NBR seal system (optional EPDM or FKM), makes it an ideal maintenance-free solution for continuous use in tough environments.
Applications
-
High and low pressure cleaning systems
-
Hydraulic and pneumatic hose connections
-
Ceiling boom installations
-
Industrial and commercial wash systems
-
Hose reels and fluid transfer systems
Key Features
-
Model: Mosmatic DGS 30.154
-
Material: Brass, nickel plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTF
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust, 1x radial ball bearing
-
Very Low Torque: Ensures smooth operation
-
Stainless Steel Bearings: Sealed, corrosion-resistant
-
Overall Diameter: 0.98"
-
Overall Length: 2.63"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.87"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.63"
Diameter (D) (overall diameter): 0.98"
Weight: 5.6 oz
The Mosmatic DGS Swivel 30.653 is a high-performance brass, nickel-plated swivel engineered for high and low pressure cleaning systems, hose connections, ceiling booms, and hydraulic applications. Designed for durability and smooth, low-torque rotation, this swivel is an ideal solution for heavy-duty cleaning and fluid handling setups.
Built with sealed stainless steel bearings—including one thrust and one radial ball bearing—the DGS 30.653 delivers reliable, maintenance-free operation. Its O-ring NBR seal system ensures consistent sealing under pressure, with optional EPDM or FKM seals available for specialized applications.
Applications
-
Pressure washing and hose connections
-
Ceiling and wall-mounted boom systems
-
Hydraulic rotary applications
-
Car wash equipment
-
Hose reels and swiveling assemblies
Key Features
-
Model: Mosmatic DGS 30.653
-
Material: Brass, nickel-plated
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust and 1x radial ball bearing
-
Low Torque: Easy rotation at high pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.98"
-
Overall Length: 2.43"
-
Nominal Width (NW): 3/8"
-
Wrench Size (SW): 0.87"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.43"
Length 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.98"
Weight: 6.0 oz
The Mosmatic DGS Swivel 30.052 is a brass, nickel-plated swivel engineered for performance in high and low pressure cleaning systems, hydraulic hose connections, and ceiling boom setups. With a compact and durable design, it ensures smooth rotation under high pressure, thanks to its low-torque, sealed stainless steel bearing system.
This swivel includes 1x radial ball bearing and 1x thrust ball bearing, supported by a reliable O-ring NBR seal system (with optional EPDM or FKM for customized sealing). Built for easy integration and long-term reliability, it offers maintenance-free operation and superior corrosion resistance.
Applications
-
Pressure washing systems
-
Hydraulic hose assemblies
-
Ceiling and wall-mounted boom arms
-
Industrial and commercial hose connections
-
Water and chemical transfer lines
Key Features
-
Model: Mosmatic DGS 30.052
-
Material: Brass, nickel-plated
-
Thread IN (G1): 1/4" NPTF
-
Thread OUT (G2): 1/4" NPTF
-
Seal System: O-ring NBR (Optional: EPDM or FKM)
-
Bearings: 1x thrust and 1x radial ball bearing
-
Low Torque Design: Smooth rotation at max pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Corrosion Resistant: Built for harsh environments
-
Overall Diameter: 0.86"
-
Overall Length: 2.52"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.75"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.52"
Diameter (D) (overall diameter): 0.86"
Weight: 4.9 oz

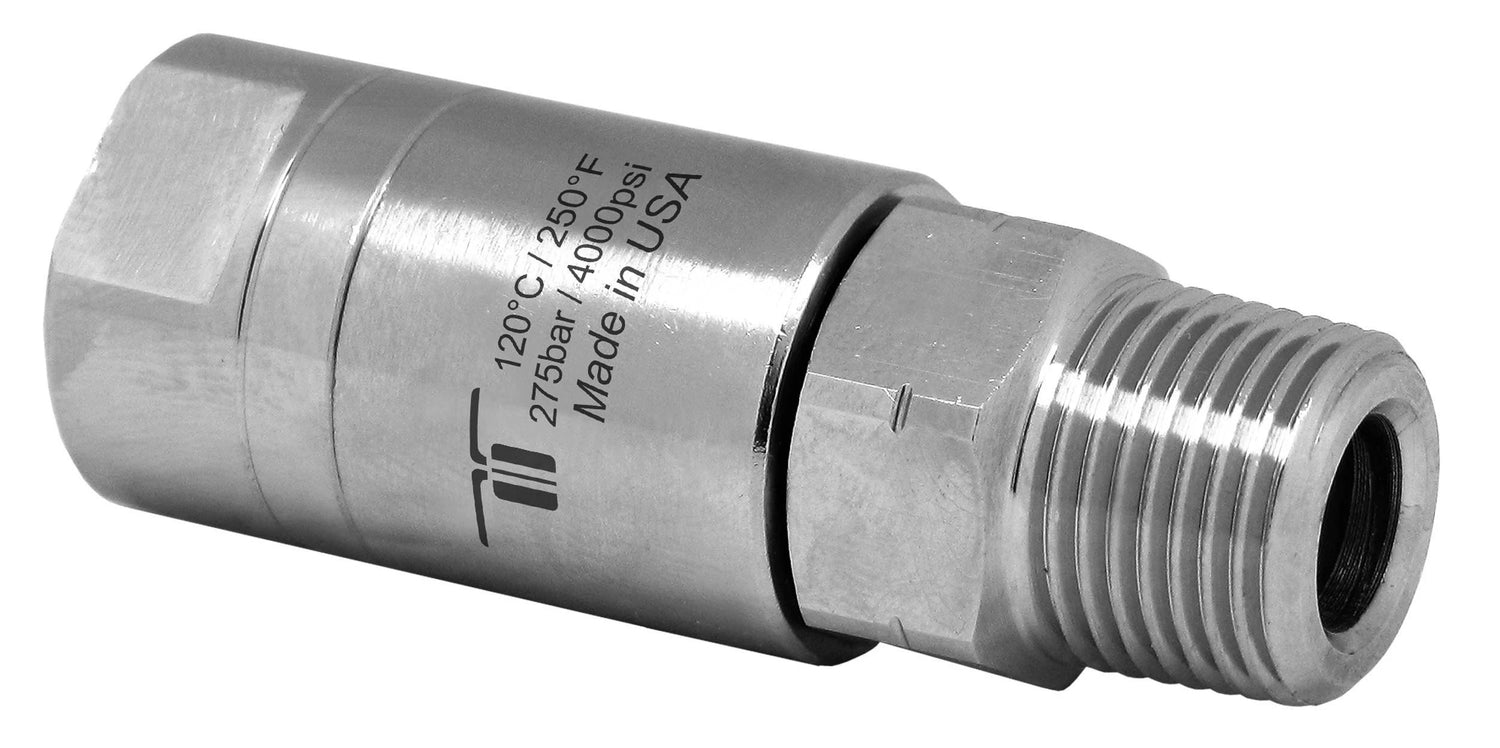

The Mosmatic DGS Swivel 30.053 is a durable brass, nickel-plated swivel engineered for high and low-pressure cleaning systems, hydraulic applications, and hose reel connections. This precision swivel ensures low-torque rotation under full pressure, making it ideal for both stationary and mobile cleaning setups.
Featuring a dual-bearing system—including one radial and one thrust ball bearing—it offers smooth rotation, extended service life, and sealed stainless steel components that require no maintenance. The integrated O-ring NBR seal system (with optional EPDM or FKM upgrades) delivers superior sealing performance, even in harsh environments.
Applications
-
Pressure washer hose connections
-
Ceiling and wall booms
-
Hydraulic and fluid transfer systems
-
Car wash and commercial cleaning equipment
-
High-pressure hose reels
Key Features
-
Model: Mosmatic DGS 30.053
-
Material: Brass, nickel-plated
-
Thread IN (G1): 1/4" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Bearings: 1x thrust + 1x radial ball bearing
-
Low Torque: Smooth and efficient under pressure
-
Maintenance-Free: Sealed stainless steel bearings
-
Overall Diameter: 0.86"
-
Overall Length: 2.36"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.75"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.36"
Length 2 (L2): 0.47"
Diameter (D) (overall diameter): 0.86"
Weight: 4.6 oz

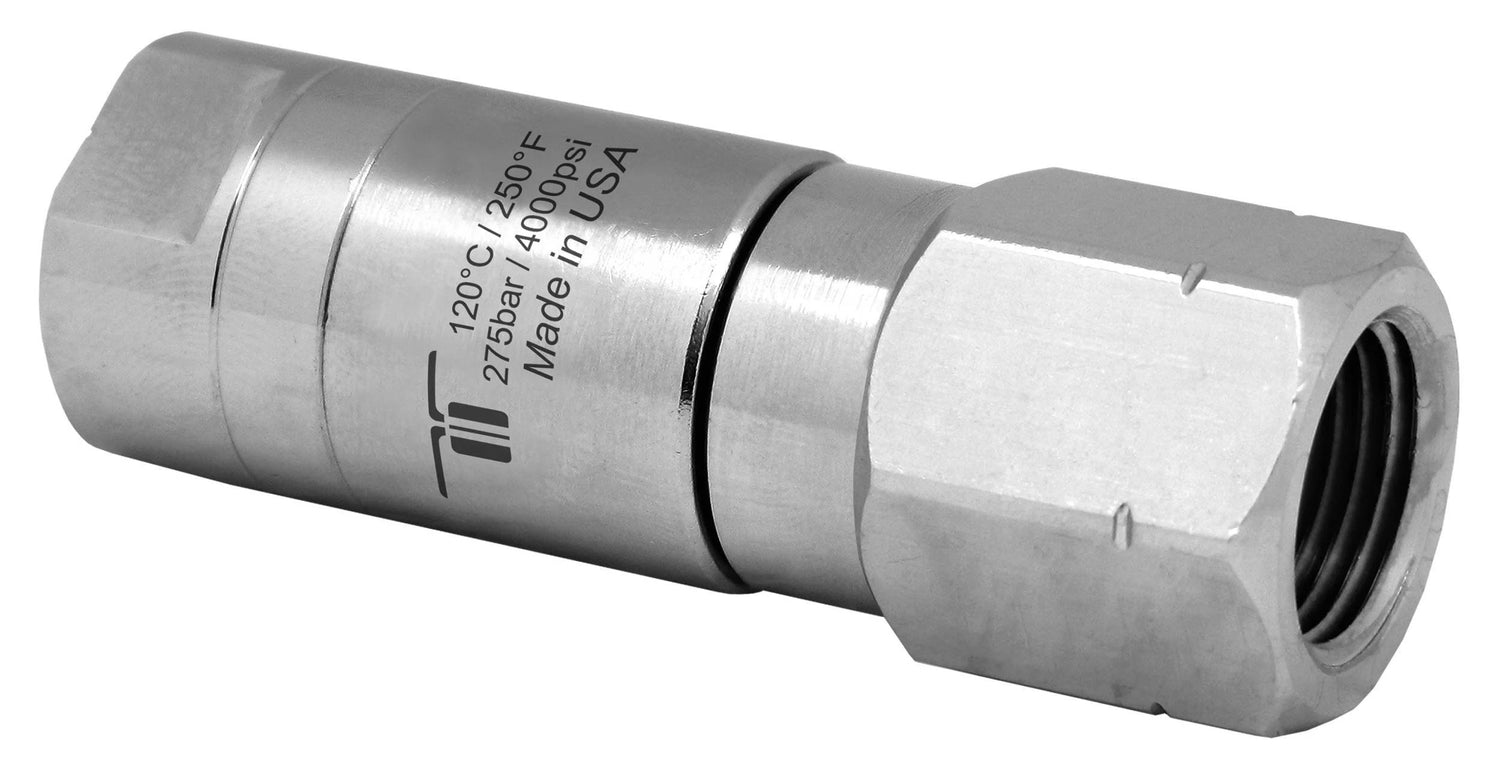

The Mosmatic DGS Swivel 30.054 is a high-performance brass, nickel-plated swivel engineered for high and low pressure cleaning, hydraulic systems, and hose reel setups. Designed for seamless operation, it ensures low torque rotation even at maximum pressure, supported by sealed stainless steel bearings for maintenance-free reliability.
With a robust O-ring NBR seal system (optional EPDM or FKM) and dual bearing setup—1x thrust and 1x radial bearing—this swivel is built to endure heavy-duty industrial applications. Its compact profile and durable construction make it ideal for confined installations and long-term use.
Applications
-
High and low-pressure cleaning systems
-
Hydraulic hose connections
-
Ceiling boom installations
-
Industrial wash bays
-
Mobile and stationary hose reel systems
Key Features
-
Model: Mosmatic DGS 30.054
-
Material: Brass, nickel plated
-
Thread IN (G1): 1/4" NPTF
-
Thread OUT (G2): 3/8" NPTF
-
Seal Type: O-ring NBR (Optional EPDM or FKM)
-
Bearings: 1x radial, 1x thrust ball bearing
-
Very Low Torque: Smooth operation under pressure
-
Stainless Steel Bearings: Sealed and maintenance-free
-
Corrosion Resistant: Long service life
-
Overall Diameter: 0.86"
-
Overall Length: 2.63"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.75"
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.63"
Diameter (D) (overall diameter): 0.86"
Weight: 5.6 oz
