Container Wash Swivels

The Mosmatic 55.253 DYCI Swivel is a high-flow, high-pressure stainless steel swivel built for self-rotating applications like surface cleaners and parts washers. Designed for intense industrial and commercial cleaning environments, this swivel provides reliable, smooth rotation and long service life.

Featuring a triple bearing system - with two radial ball bearings and one thrust ball bearing - the swivel offers exceptional rotational stability and efficiency. Its carbide seal system ensures high durability and leak prevention under demanding use. Integrated weep holes provide a clear indication of seal failure, allowing for proactive maintenance. Rated for 5000 PSI, 2000 RPM, and 250°F, this swivel is a top-tier component for high-performance cleaning tools.

Applications

• Commercial surface cleaners

• High-pressure parts washers

• Self-rotating nozzles and spray arms

• Industrial cleaning and automation systems

• Robotic and rotary pressure washing tools

Key Features

• Thread In: M22x1.5 Male

• Thread Out: G3/8" Male

• Material: 100% stainless steel construction

• Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation

• Seal Type: Carbide seal for high durability under pressure

• Weep Holes: Provide early warning for seal failure

• Pressure Capacity: Up to 5000 PSI

• High-Speed Capability: Up to 2000 RPM

• Temperature Resistance: Up to 250°F

• Compact & Durable: Engineered for consistent, long-term use

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M22x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.79"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 55.163 DYCI Swivel is a premium stainless steel swivel built for high-flow, high-pressure, self-rotating applications such as surface cleaners and parts washers. Precision-engineered for performance and durability, this swivel is ideal for use in commercial and industrial cleaning systems.

It features a triple bearing system - comprising two radial ball bearings and one thrust ball bearing - for stable, smooth rotation. A carbide seal system ensures long-lasting sealing performance, while integrated weep holes provide early warning in the event of seal failure. With a pressure capacity of 5000 PSI, it’s designed to operate efficiently at up to 2000 RPM and 250°F, delivering consistent, high-performance rotation.

Applications

• High-pressure surface cleaners

• Self-rotating cleaning nozzles and tools

• Industrial parts washers

• Automated or robotic cleaning systems

• Commercial pressure washing setups

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: Full stainless steel construction

• Triple Bearing System: Includes 2 radial and 1 thrust bearing

• Seal System: Durable carbide seal for high-pressure performance

• Weep Holes: Built-in for early seal failure detection

• High Pressure & Speed Rated: 5000 PSI / 2000 RPM

• Temperature Resistant: Up to 250°F

• Compact & Reliable: Efficient form factor with dual wrench flats

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

Ensure long-lasting performance and smooth operation with the Mosmatic Bearing Kit 55.911 - NW 1/4" + 3/8". This premium sealed stainless steel bearing kit is designed for Mosmatic DYT and DYU Swivels with nominal widths of 1/4 inch and 3/8 inch. Built to withstand high pressure, high RPM, and both thrust and radial forces, it is ideal for demanding self-rotating applications such as surface cleaners and parts washers. The sealed stainless steel construction ensures excellent corrosion resistance and reliability in high-performance cleaning environments.

Ensure long-lasting, high-performance operation of your Mosmatic swivel with the Mosmatic Seal Kit 36.905 - NW ¼". This premium carbide seal kit is designed for DYL, DYG, DYF, DYW, DYCI, DYDI, DYT, and DYU Swivels with a nominal width of ¼ inch. Engineered for high-pressure and high-RPM applications, it’s ideal for surface cleaners, wall cleaners, tire cleaners, parts washers, and self-rotating systems. Built to withstand intense operating conditions, this kit ensures leak-free, durable swivel performance in professional cleaning environments.

The Mosmatic 55.153 DYCI Swivel is a high-performance swivel designed for high-flow, high-pressure, self-rotating applications such as surface cleaners, spray bars, and parts washers. Crafted from stainless steel, it offers exceptional durability, chemical resistance, and smooth rotation in demanding environments.

This swivel features a triple bearing system - including two radial ball bearings and one thrust ball bearing - that ensures consistent rotational performance, even under extreme pressure and speed. A carbide seal system provides long-lasting leak protection, while integrated weep holes offer early seal failure detection, helping you maintain system integrity and avoid downtime.

Applications

• Commercial and industrial surface cleaners

• Parts washing equipment

• Rotating high-pressure cleaning systems

• Spray bars and automated cleaning tools

• Equipment operating in corrosive or high-temperature environments

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: 3/8" NPT Male

• Material: Full stainless steel body and internal components

• Triple Bearing System: 2 radial + 1 thrust bearing for smooth rotation

• Seal Type: Carbide for high durability

• Weep Holes: Allow early detection of seal failure

• Max Pressure: 5000 PSI

• Temperature Tolerance: Up to 250°F

• High-Speed Rated: Handles up to 2000 RPM

• Efficient Design: Compact size and dual wrench flats for easy installation

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.43"
Length 4 (L4): 0.12"
Weight: 23.0 oz

Maintain peak swivel performance with the Mosmatic Seal Kit 36.901 - NW 1/4", designed for DXL, DXG, DXF, and DXTI Swivels. This high-quality replacement kit features a durable ceramic seal specifically engineered for swivels with a nominal width of 1/4 inch. Ideal for high-pressure cleaning systems, high-RPM applications, tire cleaners, parts washers, and self-rotating equipment, this kit delivers excellent resistance to wear in demanding environments. Ensure consistent, leak-free function and extend the life of your swivel with this essential maintenance solution.

The Mosmatic 59.168 DYU Swivel is a high-performance stainless steel swivel built for ultra-high-pressure cleaning applications involving intense thrust and radial force. Designed for surface cleaners, rotary nozzles, and parts washers, it delivers smooth, powerful rotation under the toughest conditions.

Rated for 7300 PSI, this swivel features a quadruple bearing system - with 2 radial ball bearings and 2 thrust ball bearings - to ensure stable operation at high speed and load. A carbide seal system provides superior protection against leaks, while integrated weep holes offer early detection of seal failure, reducing downtime and maintenance costs.

With a temperature tolerance of 250°F, 2000 RPM capacity, and a compact, corrosion-resistant design, the 59.168 DYU Swivel is built for long-lasting performance in professional and industrial cleaning systems.

Applications

• High-pressure surface cleaners

• Industrial parts washing systems

• Self-rotating rotary nozzles and spray bars

• Robotic and automated wash equipment

• Equipment requiring ultra-high pressure and 1/4" flow

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: Stainless steel body and internals

• Quadruple Bearing System: 2 radial + 2 thrust ball bearings

• Seal Type: Carbide for high-pressure, high-heat durability

• Seal Failure Detection: Integrated weep holes

• Max Pressure: 7300 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Designed for Longevity: Ideal for high-cycle, continuous-use systems

Specs

Pressure: 7300 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.43"
Weight: 50.7 oz

The Mosmatic 59.163 DYT Swivel is a premium-grade stainless steel swivel engineered for high-pressure, self-rotating cleaning systems exposed to intense radial and thrust forces. Built for industrial surface cleaners, rotating nozzles, and automated parts washers, it offers smooth, reliable rotation and superior durability under heavy-duty use.

This swivel features a quadruple bearing system with two radial ball bearings and two thrust ball bearings, allowing for stable, high-speed performance. The integrated carbide seal system ensures long-lasting leak protection, while weep holes act as an early warning indicator in case of seal failure. With support for up to 5000 PSI, 2000 RPM, and 250°F, this model is built for maximum performance and extended service life.

Applications

• Commercial and industrial surface cleaners

• High-pressure rotary nozzles and spray arms

• Self-rotating parts washing systems

• Robotic and automated cleaning equipment

• Equipment operating in harsh, high-load environments

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: Stainless steel body and internal components

• Quadruple Bearing System: 2 radial + 2 thrust bearings for optimal support

• Seal Type: High-performance carbide seal

• Weep Holes: Provide early warning of seal wear or failure

• Max Pressure: 5000 PSI

• Max Temperature: 250°F

• High-Speed Rated: Supports up to 2000 RPM

• Compact & Durable: Designed for longevity and consistent performance

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.47"
Weight: 49.9 oz

The Mosmatic 55.063 DYCI Swivel is a high-flow, high-pressure swivel designed specifically for self-rotating applications such as surface cleaners and parts washers. Precision-crafted from stainless steel, this swivel offers superior corrosion resistance, durability, and performance under demanding conditions.

Engineered with a triple bearing system - including two radial ball bearings and one thrust bearing - it ensures stable rotation, even at high RPMs. It features a carbide seal system for long-lasting sealing and integrated weep holes to provide early warning of seal wear or failure. Built to handle pressures up to 5000 PSI, this swivel is ideal for professional-grade cleaning tools that require smooth rotation and high flow rates.

Applications

• High-flow rotating surface cleaners

• Pressure washer part washers

• Self-rotating spray tools

• Industrial and commercial cleaning systems

• Equipment requiring reliable high-speed swivel performance

Key Features

• Thread In: 1/4" NPT Female

• Thread Out: G3/8" Male

• Material: Full stainless steel construction

• Triple Bearing System: 2 radial + 1 thrust bearing

• Seal System: Carbide seal for extended life

• Weep Holes: Built-in for early seal failure detection

• High Pressure Capability: Up to 5000 PSI

• Temperature Tolerance: Rated up to 250°F

• High-Speed Operation: Supports up to 2000 RPM

• Compact Size: Efficient design for easy installation in tight setups

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/4" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.87"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

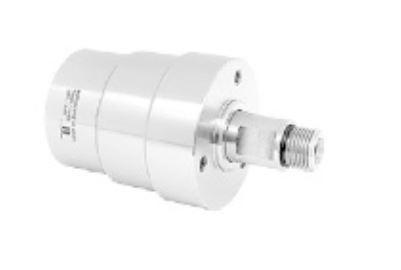

The Mosmatic 39.663 DXTI Swivel is a high-precision stainless steel swivel designed for high-RPM, self-rotating applications in modern cleaning systems. Perfect for parts washers, tire cleaners, and other high-pressure cleaning technologies, this swivel offers low torque and smooth operation under continuous use.

Equipped with a quadruple bearing system - 2 radial and 2 thrust ball bearings - the 39.663 delivers stable rotation at speeds up to 2000 RPM. A ceramic seal system ensures maximum durability, even under heat, pressure, and chemical exposure. The side connection enables weep capture, making it ideal for sensitive environments or closed-loop systems.

With a pressure capacity of 2500 PSI, this swivel combines power, precision, and longevity in one compact and rugged design.

Applications

• High-speed parts washers

• Self-rotating tire cleaning tools

• HP cleaning systems and automation

• Industrial spray arms and rotary nozzles

• Robotic or enclosed high-performance cleaning systems

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: Corrosion-resistant stainless steel

• Seal: Ceramic seal for chemical and heat resistance

• Bearing System: Quadruple (2 radial + 2 thrust) ball bearings

• Low Torque: Designed for smooth high-speed operation

• Side Connection: Integrated weep capture for leak monitoring

• Max Pressure: 2500 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Compact & Durable: Ideal for precision cleaning under continuous use

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.64"
Length 1 (L1): 2.88"
Length 2 (L2): 4.36"
Length 3 (L3): 0.48"
Length 4 (L4): 0.12"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.77"
Weight: 45.2 oz

The Mosmatic 59.663 DYT Swivel is a rugged, stainless steel swivel built for high-pressure, self-rotating cleaning systems that must withstand significant thrust and radial force. Ideal for surface cleaners and heavy-duty parts washers, this swivel ensures long-lasting durability and efficient performance.

Engineered with a quadruple bearing system - featuring two radial ball bearings and two thrust ball bearings - this swivel offers smooth, stable rotation even under heavy loads. The carbide seal system guarantees excellent sealing performance, and integrated weep holes serve as an early warning system for seal failure. Rated for 5000 PSI, 2000 RPM, and temperatures up to 250°F, this swivel is ideal for tough, industrial cleaning environments.

Applications

• Surface cleaners for commercial and industrial pressure washing

• Rotating nozzles and spray bars

• High-pressure parts washers

• Robotic and automated self-rotating tools

• Equipment subject to high-speed and high-load operation

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: G3/8" Male

• Material: 100% stainless steel housing and internals

• Quadruple Bearing System: 2 radial + 2 thrust ball bearings

• Seal Type: Carbide for long-lasting, high-pressure performance

• Seal Failure Warning: Integrated weep holes

• Max Pressure: 5000 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Optimized for Durability: Designed for extended use under extreme conditions

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.88"
Length 2 (L2): 4.36"
Length 3 (L3): 0.48"
Weight: 53.7 oz

The Mosmatic 55.263 DYDI Swivel is a robust, high-pressure stainless steel swivel designed for self-rotating, high-flow cleaning applications such as surface cleaners, spray bars, and parts washers. Built to handle extreme performance requirements, this swivel combines smooth operation, reliability, and durability.

Equipped with a triple bearing system - featuring two radial ball bearings and one thrust ball bearing - the DYDI swivel delivers stable and consistent rotation, even under high loads. The carbide seal system provides exceptional sealing against wear and pressure, while weep holes offer early detection of seal failure. With a pressure capacity of 7300 PSI, this swivel is ideal for industrial-grade cleaning systems operating at high temperatures and RPMs.

Applications

• Industrial and commercial surface cleaners

• High-pressure parts washing systems

• Self-rotating cleaning tools and nozzles

• Rotary spray bars for automated cleaning

• Robotic and high-performance wash systems

Key Features

• Thread In: M22x1.5 Male

• Thread Out: G3/8" Male

• Triple Bearing System: 2 radial + 1 thrust bearing for smooth, stable rotation

• Seal Type: Durable carbide seal for high-pressure applications

• Weep Holes: Built-in alert for seal failure

• High Pressure: Rated up to 7300 PSI

• High-Speed Capability: Operates at up to 2000 RPM

• Heat Resistant: Withstands temperatures up to 250°F

• Material: Full stainless steel for corrosion resistance and long service life

• Compact Form: Ideal for integration in tight or mobile setups

Specs

Pressure: 7300 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: M22x1.5M
Thread Out: G3/8" M
Nominal Width (NW): 1/4"
Wrench Size (SW1): 0.79"
Wrench Size (SW2): 0.63"
Diameter (D1): 2.36"
Diameter (D2): 1.10"
Length 1 (L1): 2.28"
Length 2 (L2): 1.46"
Length 3 (L3): 0.47"
Length 4 (L4): 0.12"
Weight: 23.0 oz

The Mosmatic 39.905 DXTI Swivel is a precision-engineered stainless steel swivel designed for high-RPM, self-rotating cleaning systems that require exceptional reliability and durability. Built to perform in parts washers, tire cleaners, and HP cleaning technology, this swivel delivers smooth rotation with very low torque, making it ideal for continuous high-speed operation.

A quadruple bearing system - with 2 radial ball bearings and 2 thrust ball bearings - ensures long-lasting, stable performance. The ceramic seal system offers excellent resistance to heat and chemicals. For added functionality, a side weep connection allows fluid capture and alerts for seal failure, helping maintain system integrity and reduce downtime.

Rated for 2500 PSI, 2000 RPM, and temperatures up to 250°F, this swivel is a reliable solution for industrial environments demanding high-flow and precision.

Applications

• High-speed parts washing equipment

• Self-rotating tire cleaning systems

• HP industrial and automotive cleaning tools

• Rotary spray nozzles and cleaning heads

• Robotic or automated pressure washing systems

Key Features

• Thread In: 1" NPT Female

• Thread Out: G1/2" Male

• Material: All stainless steel construction

• Seal Type: Durable ceramic seal for heat and chemical resistance

• Bearing System: Quadruple bearings (2 radial + 2 thrust)

• Low Torque Operation: Optimized for high-speed self-rotation

• Weep Capture Port: Integrated side connection for seal failure monitoring

• Max Pressure: 2500 PSI

• Max Temperature: 250°F

• Max RPM: 2000

• Compact and Rugged: Ideal for continuous-use cleaning operations

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 55.9 oz

The Mosmatic 39.865 DXTI Swivel is a precision-engineered stainless steel swivel designed for high-RPM, self-rotating applications in advanced cleaning systems. Optimized for parts washers, tire cleaners, and high-pressure (HP) cleaning technology, this swivel combines low-torque operation with long-lasting durability and smooth performance.

Built with a quadruple bearing system - including 2 radial ball bearings and 2 thrust ball bearings - it ensures stable, high-speed rotation. The ceramic seal system offers superior resistance to heat, chemicals, and pressure. Additionally, a side port enables weep capture, minimizing mess and enabling more efficient maintenance monitoring.

With a capacity of 2500 PSI, operation up to 2000 RPM, and 250°F heat resistance, the 39.865 swivel is ideal for demanding cleaning applications requiring strength, longevity, and compact design.

Applications

• High-speed parts washing systems

• Self-rotating tire cleaners

• HP cleaning technology in automotive and industrial use

• Spray bars and rotary nozzles

• Robotics or automated equipment requiring low-torque swivel rotation

Key Features

• Thread In: 1/2" NPT Female

• Thread Out: G1/2" Male

• Material: Stainless steel housing and internal components

• Seal Type: Ceramic seal for superior temperature and chemical resistance

• Quadruple Bearing System: 2 radial + 2 thrust stainless steel ball bearings

• Low Torque Design: Optimized for smooth high-RPM rotation

• Side Weep Connection: Allows seal failure warning and fluid capture

• Max Pressure: 2500 PSI

• Max RPM: 2000

• Max Temperature: 250°F

• Rugged & Compact: Built for high-load, continuous-duty cleaning operations

Specs

Pressure: 2500 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/2" NPTF
Thread Out: G1/2" M
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.84"
Length 1 (L1): 3.44"
Length 2 (L2): 4.92"
Length 3 (L3): 0.48"
Diameter (D1): 2.40"
Diameter (D2): 1.12"
TK: 1.97"
Weight: 59.0 oz

The Mosmatic 59.653 DYT Swivel is a robust, stainless steel swivel designed for high-pressure, self-rotating cleaning applications where both thrust and radial forces are present. Ideal for surface cleaners and industrial parts washers, this swivel offers superior performance, longevity, and reliability.

Built with a quadruple bearing system - including two radial ball bearings and two thrust ball bearings - this model ensures smooth and stable rotation even at high RPMs and heavy loads. The carbide seal system provides extended life and leak protection, while integrated weep holes serve as an early warning for seal wear or failure. With a pressure rating of 5000 PSI, a max speed of 2000 RPM, and a temperature limit of 250°F, it’s designed to withstand the rigors of professional cleaning operations.

Applications

• High-pressure surface cleaners

• Industrial and commercial parts washers

• Rotary nozzles and spray bar systems

• Self-rotating robotic cleaning tools

• Automated pressure washing equipment

Key Features

• Thread In: 3/8" NPT Female

• Thread Out: 3/8" NPT Male

• Material: Full stainless steel construction for corrosion resistance

• Quadruple Bearing System: 2 radial + 2 thrust ball bearings

• Seal Type: Durable carbide seal for extended life

• Seal Failure Detection: Built-in weep holes for early alert

• Max Pressure: 5000 PSI

• Max Temperature: 250°F

• RPM Rating: Up to 2,000

• Compact, High-Strength Design: Perfect for demanding, high-load environments

Specs

Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.43"
Weight: 53.7 oz
