DGK Rotary Union/Swivel

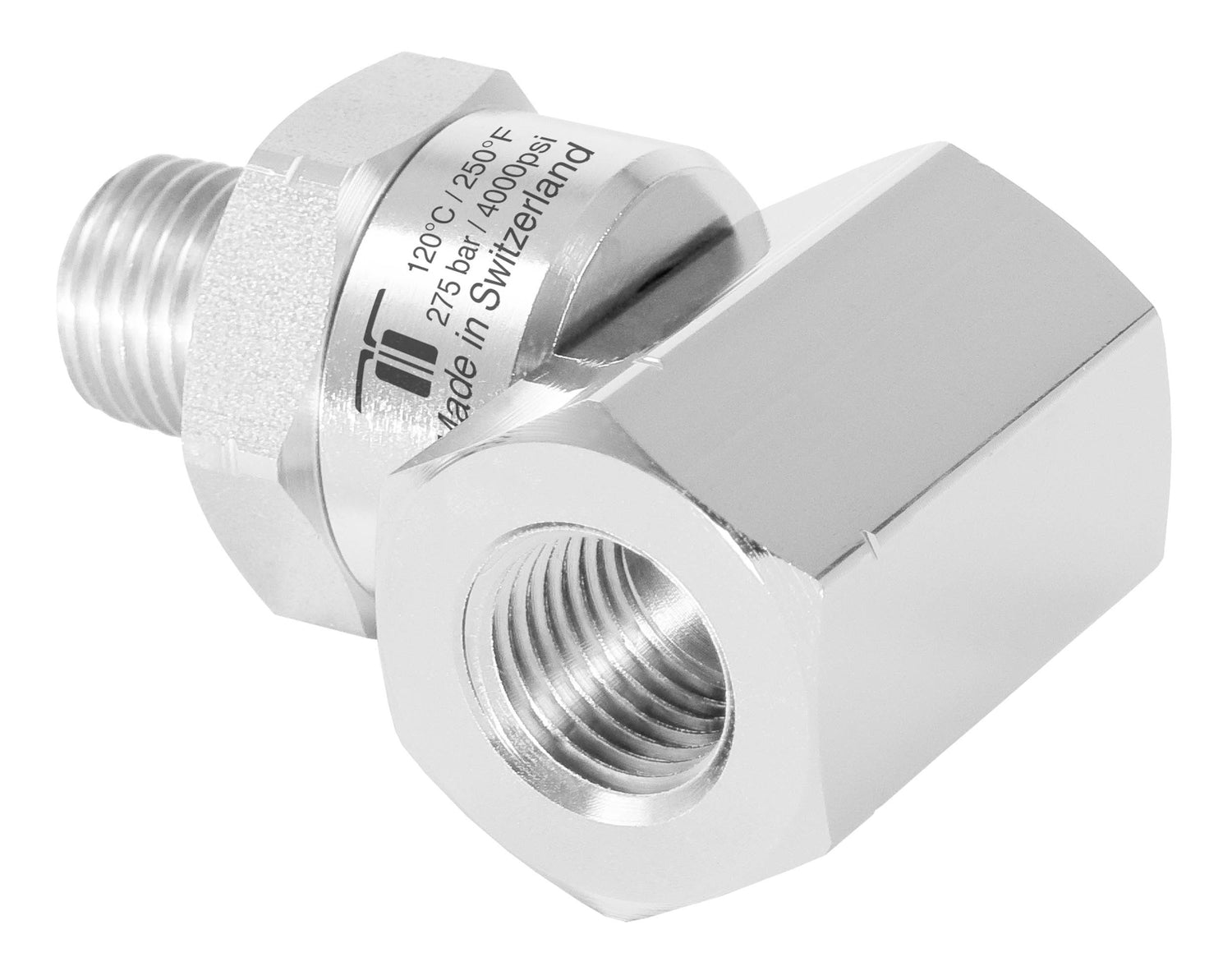

The Mosmatic DGK Swivel 32.549 – 90 Degrees is designed for high-performance pressure cleaning, hydraulic systems, and hose connections. Built with a durable stainless steel/brass body and nickel-plated finish, this swivel delivers exceptional corrosion resistance and longevity in industrial environments.

Featuring a thrust ball bearing and a reliable O-ring NBR seal system (optional EPDM or FKM), this swivel supports live rotation under full pressure with minimal torque. Its 90-degree compact design ensures easy integration into tight setups while keeping hoses tangle-free.

Applications

• High-pressure spray guns

• Hydraulic hose assemblies

• Wash bays and ceiling booms

• Tangle-free hose connection systems

• Industrial pressure cleaning tools

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 1.06"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Maximum Pressure: 4000 PSI

• Maximum RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (EPDM or FKM optional)

• Bearing System: 1x thrust ball bearing

• Design: 90° swivel for optimized directional flow

• Performance: Maintenance free, low torque, high durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.06"

Length 2 (L2): 0.39"

Weight: 5.8 oz

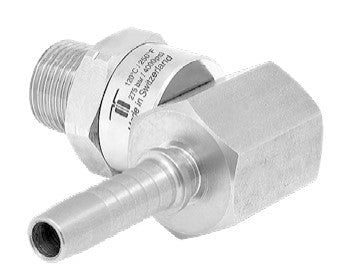

The Mosmatic DGK Swivel 32.543 – 90 Degrees is a compact, high-precision swivel ideal for high-pressure guns, hose connections, and hydraulic systems where smooth, tangle-free operation is critical. Constructed with a stainless steel/brass body and protected by nickel plating, this 90° swivel delivers live rotation under full pressure and long-lasting durability.

Featuring a low-torque thrust ball bearing and a dependable O-ring NBR seal system (optional upgrades: EPDM or FKM), this swivel is maintenance-free and engineered to perform consistently in demanding environments.

Applications

• High-pressure gun swivels

• Hose and hydraulic connections

• Industrial tangle-free setups

• Cleaning equipment & car washes

• Spray tools and mobile wash systems

Features

• Material: Stainless steel/brass, nickel plated

• Thread IN (G1): 1/4" NPTM

• Thread OUT (G2): 1/4" NPTF

• Design: 90-degree compact swivel

• Overall Length: 0.94"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM available)

• Performance: Low torque, live rotation, corrosion resistant

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 0.94"

Length 2 (L2): 0.39"

Weight: 5.6 oz

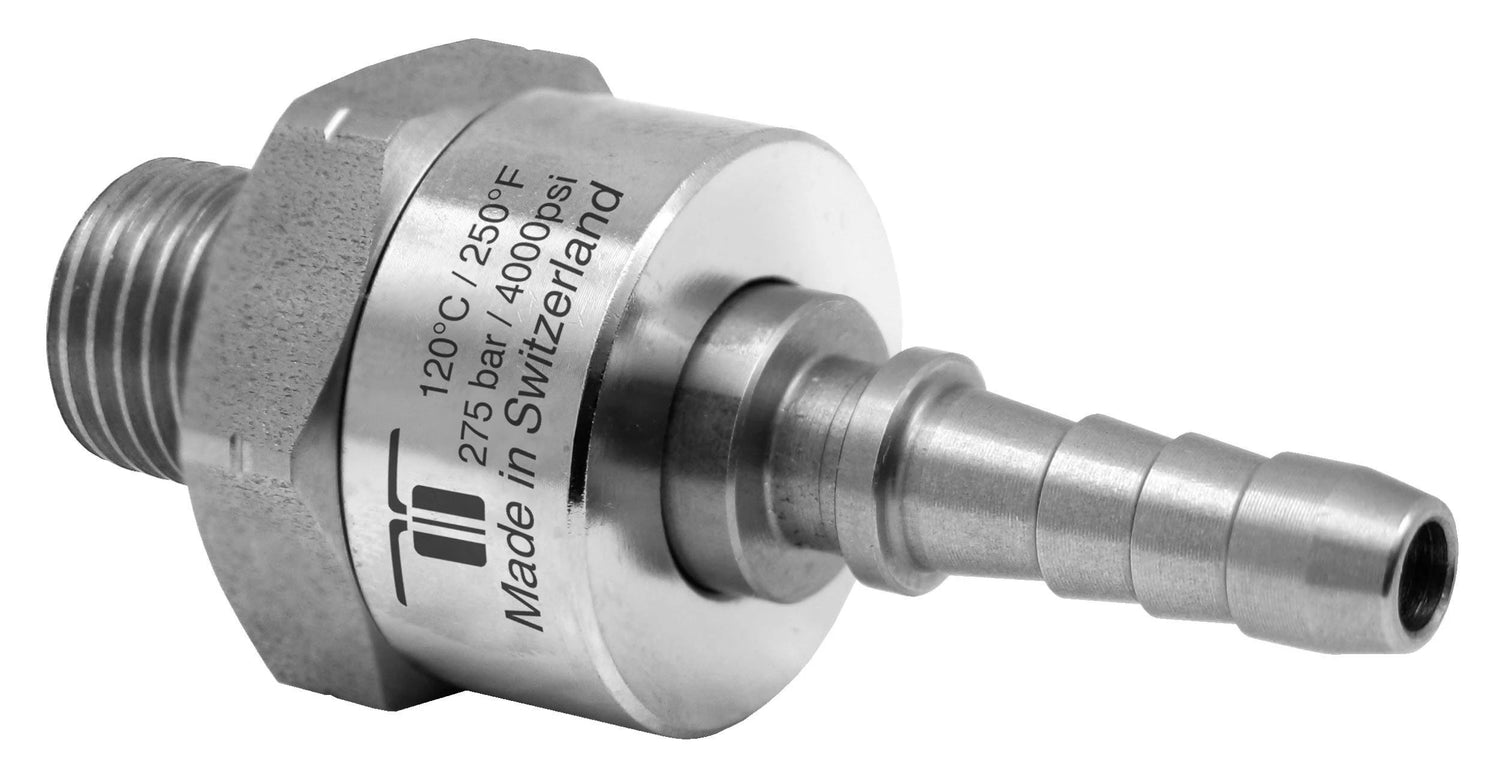

The Mosmatic DGK Swivel 32.081 is a high-performance nickel-plated brass and stainless steel swivel engineered for hose connections, HP guns, hydraulics, and tangle-free operations. Its compact design offers live rotation at full pressure, reducing torque and enhancing maneuverability in demanding cleaning and industrial environments.

Designed for durability and minimal maintenance, the swivel features a stainless steel thrust ball bearing and a reliable O-ring NBR seal system, with optional upgrades to EPDM or FKM. Perfect for high and low-pressure applications, the DGK 32.081 ensures smooth, low-resistance rotation for optimal performance.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose assemblies

• Ceiling booms and hose reels

• Compact cleaning tools

• Tangle-free hose management

Key Features

• Model: Mosmatic DGK 32.081

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 1/4" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Compact & Lightweight: Ideal for space-limited tools

• Maintenance-Free: Sealed, long-lasting performance

• Live Rotation: Smooth, low-torque operation at high pressure

• Diameter: 0.27"

• Overall Length: 2.55"

• Nominal Width (NW): 1/8"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

S1: 1/4"

Nominal Width (NW): 1/8"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.39"

Diameter 1 (D1): 0.27"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.37"

Weight: 2.8 oz

The Mosmatic DGK Swivel 32.051 is a compact, high-quality swivel designed for high-pressure hose connections, HP-guns, and hydraulic applications where live rotation is essential. Engineered with a nickel-plated brass and stainless steel body, this swivel is built to withstand corrosion and daily use in professional environments.

This model features a 1x thrust ball bearing and a durable O-ring NBR seal system (optional EPDM or FKM), allowing smooth, low-torque rotation under maximum pressure. Its maintenance-free design ensures dependable performance in compact spaces, ideal for reducing hose kinks and improving maneuverability in pressurized systems.

Applications

• High-pressure spray guns

• Hose and hydraulic connections

• Ceiling booms and rotating booms

• Tangle-free hose management

• Pressure washing and industrial cleaning

Key Features

• Model: Mosmatic DGK 32.051

• Material: Brass, nickel-plated with stainless steel components

• Thread IN: 1/4" NPTM

• Thread OUT: 1/4" NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, low-torque

• Live Rotation: At full operating pressure

• Overall Length: 2.05"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread In: G1 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.05"

Length 2 (L2): 0.39"

Length 3 (L3): 0.43"

Weight: 3.5 oz

The Mosmatic DGK Swivel 32.189 is a robust and compact swivel crafted from nickel-plated brass and stainless steel, engineered for smooth and tangle-free operation in high-pressure gun and hydraulic hose systems. This high-performance swivel delivers live rotation under maximum pressure and is maintenance-free, making it perfect for both industrial and commercial applications.

Equipped with a thrust ball bearing and O-ring NBR seal system (upgradeable to EPDM or FKM), this swivel is designed for very low torque operation, providing consistent, easy rotation even at full pressure.

Applications

• High-pressure cleaning guns

• Hose and hydraulic line connections

• Ceiling booms and hose reels

• Tangle-free hose assemblies

• Industrial washdown systems

Key Features

• Model: Mosmatic DGK 32.189

• Material: Stainless steel and nickel-plated brass

• Thread IN (G1): 3/8" NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Rotation: Live rotation under full pressure

• Design: Compact, corrosion-resistant, maintenance-free

• Overall Diameter: 0.40"

• Overall Length: 2.76"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 3/8"

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.76"

Length 2 (L2): 0.43"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 4.8 oz

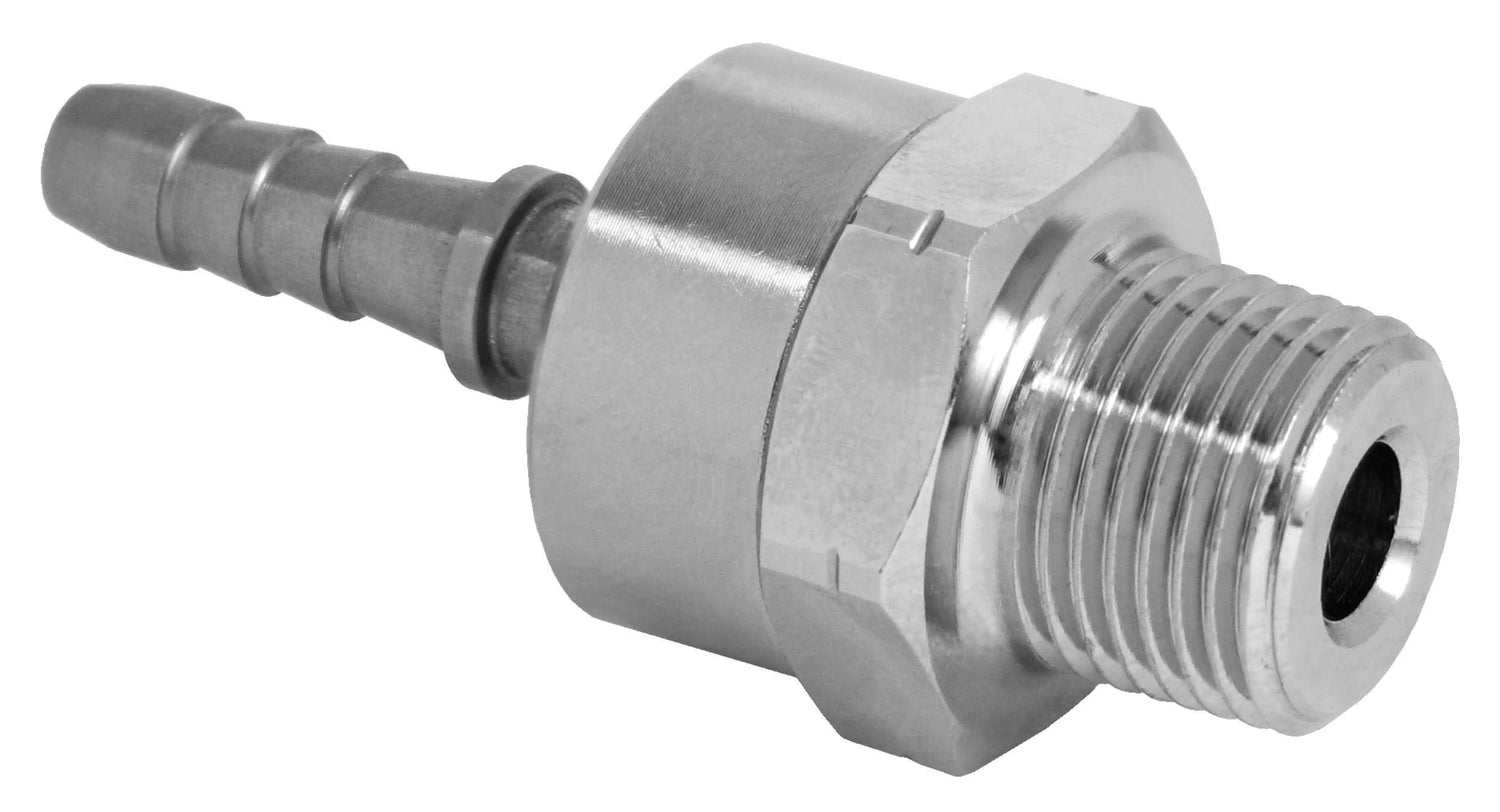

The Mosmatic DGK Swivel 32.181 is a durable and compact stainless steel/brass swivel engineered for high-performance applications in high-pressure guns, hydraulic systems, and hose connections. This nickel-plated swivel allows live rotation at maximum pressure, making it perfect for tangle-free and efficient hose management.

With a robust thrust ball bearing and an O-ring NBR seal system (with optional EPDM or FKM), this swivel is built for reliability and longevity in both industrial and commercial environments. Its maintenance-free design ensures smooth operation under demanding conditions.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose connections

• Hose reels and ceiling booms

• Tangle-free hose setups

• Industrial cleaning and washdown systems

Key Features

• Model: Mosmatic DGK 32.181

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 3/8" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Design: Compact, maintenance-free

• Live Rotation: Operates at max pressure

• Overall Diameter: 0.27"

• Overall Length: 2.59"

• Nominal Width (NW): 1/8"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 1/4"

Nominal Width (NW): 1/8"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.43"

Diameter 1 (D1): 0.27"

Diameter 2 (D2): 0.29"

Diameter 3 (D3): 0.37"

Weight: 3.2 oz

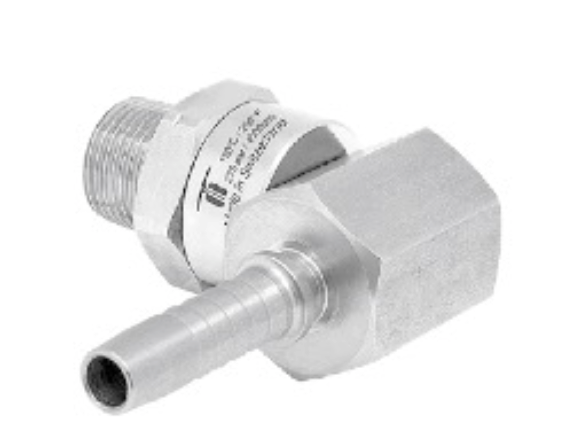

The Mosmatic DGK Swivel 32.544 – 90 Degrees is a premium swivel joint engineered for high-pressure guns, hydraulic hose setups, and tangle-free operations. Built with a durable stainless steel/brass body and nickel-plated finish, it offers maximum corrosion resistance and reliability.

Its compact design incorporates a thrust ball bearing and a robust O-ring NBR seal system (with EPDM or FKM as optional upgrades) to ensure smooth rotation at full pressure, minimal torque, and zero maintenance.

Applications

• High-pressure gun swivels

• Hydraulic hose connections

• Cleaning and spray systems

• Ceiling booms and wash bays

• Industrial hose routing

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): 1/4" NPTM

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 1.06"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM available)

• Design: 90-degree configuration for compact installations

• Performance: Maintenance-free, corrosion-resistant, live rotation under load

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.06"

Length 2 (L2): 0.39"

Weight: 5.5 oz

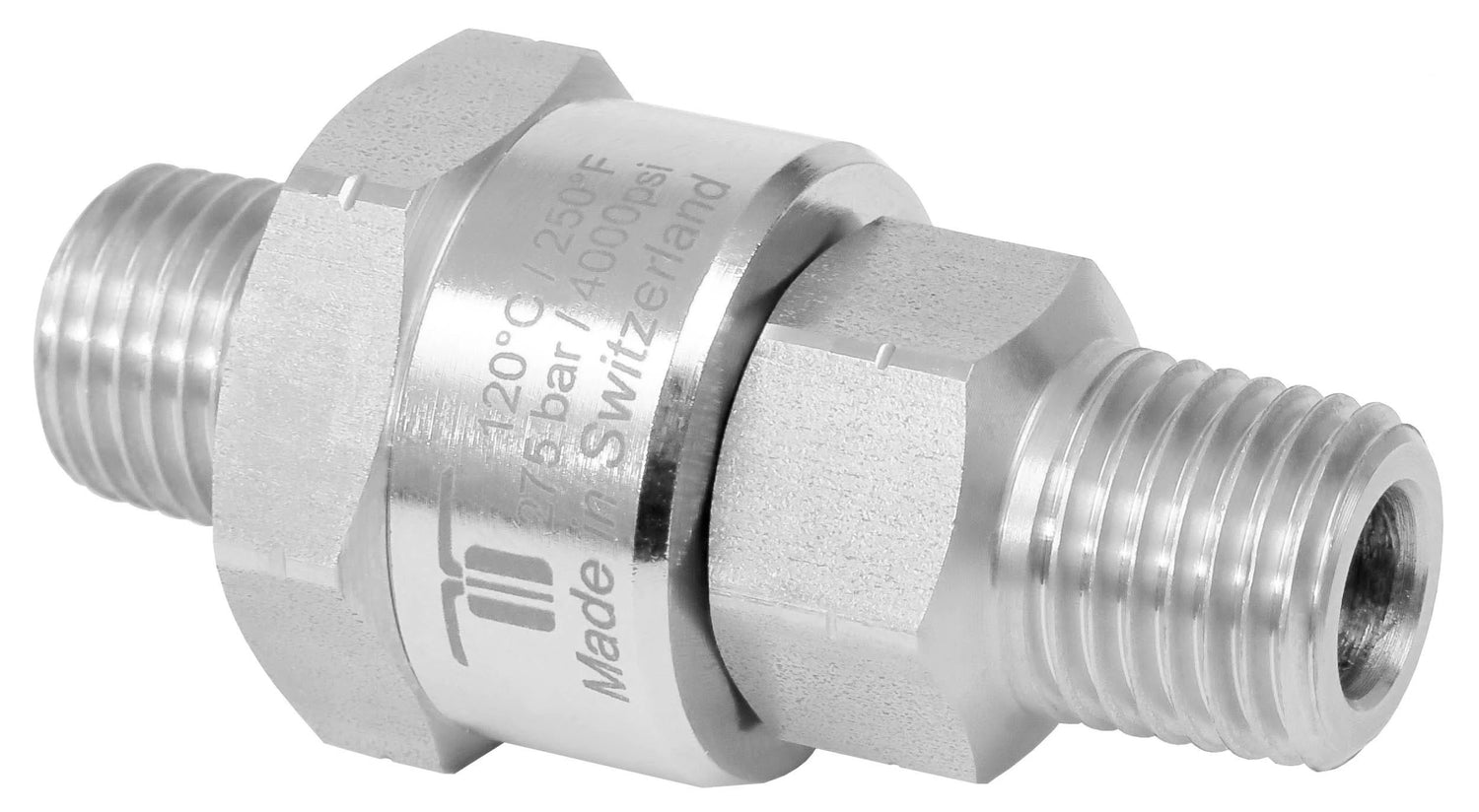

The Mosmatic DGK Swivel 32.153 is a compact, high-performance swivel engineered for high-pressure spray guns, hose connections, hydraulic systems, and tangle-free hose applications. Constructed from nickel-plated brass with stainless steel components, it delivers excellent corrosion resistance and long-term durability.

Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), this swivel enables live rotation at maximum pressure with very low torque. The maintenance-free design ensures reliability and smooth performance in even the most demanding settings.

Applications

• High-pressure spray guns

• Hose connection systems

• Hydraulic line installations

• Ceiling booms and wash bays

• Industrial and automotive cleaning setups

Key Features

• Model: Mosmatic DGK 32.153

• Material: Nickel-plated brass and stainless steel

• Thread IN: 3/8" NPTM

• Thread OUT: 3/8" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, low-torque rotation

• Live Rotation: At full operating pressure

• Overall Length: 2.13"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread In: G1 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.13"

Length 2 (L2): 0.43"

Length 3 (L3): 0.47"

Weight: 4.2 oz

The Mosmatic DGK Swivel 32.053 is a high-performance swivel designed for tangle-free hose connections, high-pressure spray guns, and hydraulic applications. Built from nickel-plated brass and stainless steel, it offers exceptional durability and corrosion resistance in compact and demanding environments.

This swivel includes 1x thrust ball bearing and an O-ring NBR seal system (optional EPDM or FKM), delivering smooth, low-torque rotation under full pressure. With a maintenance-free design, it's ideal for use in high-pressure cleaning systems, industrial hydraulics, and hose management setups requiring reliable swivel action.

Applications

• High-pressure spray guns and cleaning equipment

• Hydraulic systems

• Hose and boom connections

• Tangle-free hose operation

• Industrial wash bays and automotive shops

Key Features

• Model: Mosmatic DGK 32.053

• Material: Nickel-plated brass with stainless steel components

• Thread IN: 1/4" NPTM

• Thread OUT: 3/8" NPTM

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearings: 1x thrust ball bearing

• Design: Compact, corrosion-resistant, low-torque

• Live Rotation: At full operating pressure

• Overall Length: 2.09"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread In: G1 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.09"

Length 2 (L2): 0.39"

Length 3 (L3): 0.39"

Weight: 3.9 oz

The Mosmatic DGK Swivel 32.089 is a compact, high-performance brass and stainless steel swivel designed for high and low-pressure cleaning, hose connections, hydraulic setups, and tangle-free hose applications. Engineered with live rotation under maximum pressure, this swivel offers superior functionality and a long-lasting, maintenance-free design.

The unit features a thrust ball bearing for smooth operation and an O-ring NBR seal system, with optional EPDM or FKM materials for enhanced chemical resistance. Its nickel-plated finish ensures durability and corrosion resistance in demanding environments.

Applications

• High-pressure guns and lances

• Hydraulic and pneumatic hose connections

• Hose reels and ceiling booms

• Industrial cleaning systems

• Tangle-free hose management

Key Features

• Model: Mosmatic DGK 32.089

• Material: Nickel-plated brass and stainless steel

• Thread IN (G1): 1/4" NPTM

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearing: 1x thrust ball bearing

• Rotation: Live under maximum pressure

• Maintenance-Free: Sealed stainless steel bearing

• Overall Diameter: 0.40"

• Overall Length: 2.70"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

S1: 3/8"

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.70"

Length 2 (L2): 0.39"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 2.6 oz

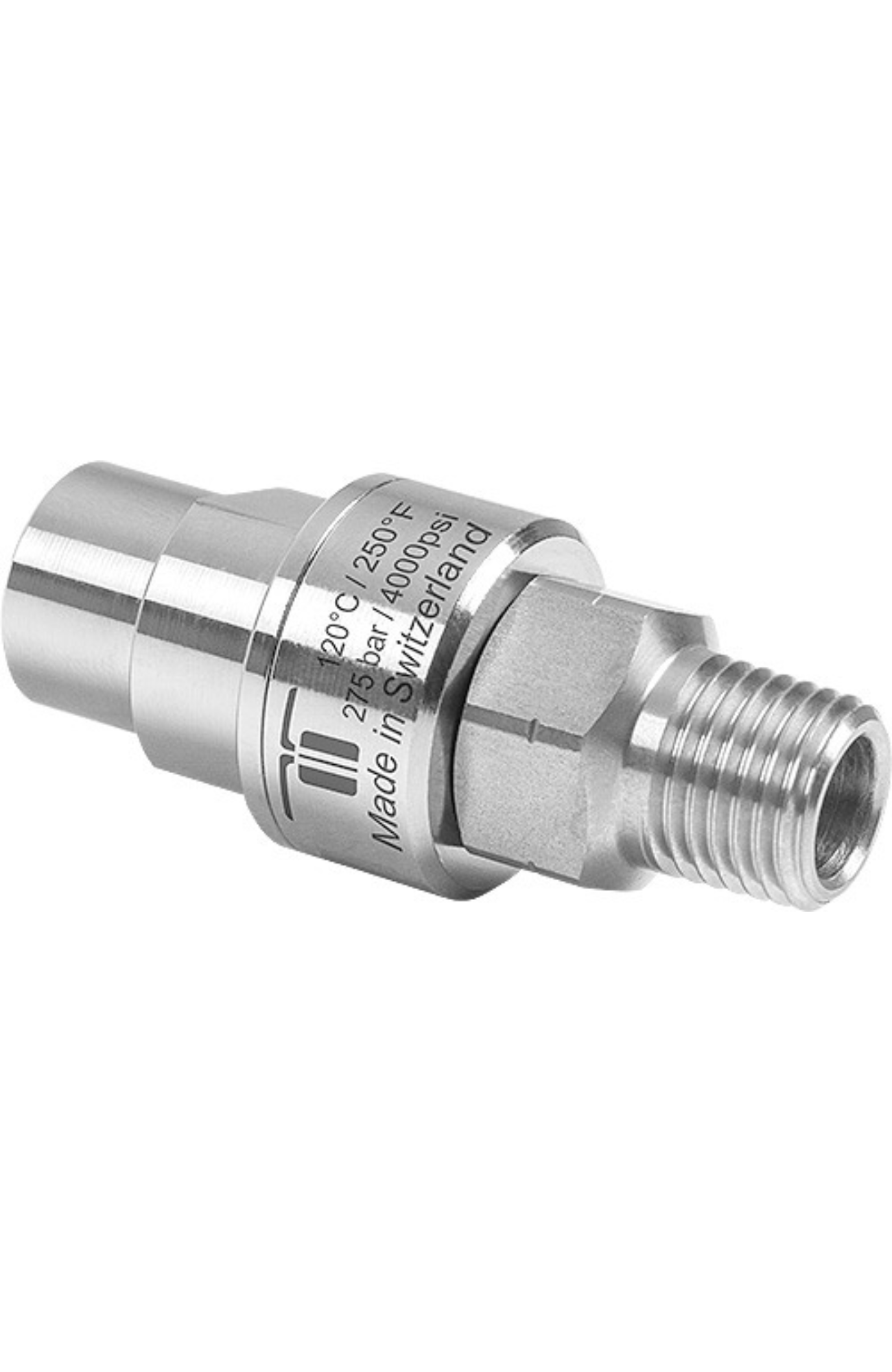

The Mosmatic DGK Swivel 32.985 is a compact, nickel-plated brass swivel engineered for high-pressure, self-rotating systems. Perfect for use in surface cleaners, tire and parts washers, and industrial cleaning tools, this swivel combines durability, precision, and maintenance-free performance.

Designed with a triple bearing system€"featuring 2 radial ball bearings and 1 thrust bearing€"alongside a robust carbide seal, the 32.985 ensures long-term, smooth rotation under heavy load. It includes a G ¼" female inlet and a ¼" NPTM outlet, making it compatible with mixed-thread configurations. Measuring 2.16" in length with a 0.67" wrench size, it supports up to 4000 PSI, 30 RPM, and 250°F operating conditions. Its bulkhead fitting offers secure and stable mounting in demanding environments.

Applications

• Surface cleaners for pressure washers

• Parts washers in industrial cleaning systems

• Tire and wheel cleaning equipment

• Self-rotating wash heads and sprayers

• Commercial and industrial spray cleaning stations

Features

• Nickel-plated brass construction for corrosion resistance and longevity

• Triple bearing system: 2 radial + 1 thrust bearing for smooth, stable rotation

• Carbide seal system for leak prevention and extended life

• G ¼" F inlet to ¼" NPTM outlet thread configuration

• Compact size: 2.16" length, 0.67" wrench size

• Rated for 4000 PSI, 30 RPM, and 250°F max temperature

• Bulkhead mount fitting for fixed, vibration-resistant installation

• Maintenance-free and designed for high-precision cleaning systems

Specs

Pressure: 4000 psi

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 G 1/4 F

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.67"

Wrench Size 2 (SW2): 0.67"

Length 1 (L1) (overall length) : 2.16"

Length 2 (L2): 0.43"

Length 3 (L3): 1.30"

Weight: 3.2 oz

The Mosmatic DGK Swivel 32.986 is engineered to enhance precision and control for compressed air and paint guns. Featuring a nickel-plated brass/stainless steel body, this swivel ensures corrosion resistance and extended service life in professional environments.

Equipped with a thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), the swivel allows for smooth 360° rotation at high pressure. Designed with an ISO-6150 B-profile plug nipple, it supports versatile connections, making it a top-tier choice for industrial-grade spray and air gun applications.

Applications

• Compressed air tools

• Spray and paint guns

• Pneumatic equipment

• Automotive detailing

• Industrial and workshop use

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN (G1): G1/4" Female

• Plug Nipple: ISO-6150 B-profile

• Connection Size (S1): 1/4"

• Overall Length: 2.24"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.67"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Benefits: Easy rotation, plug-and-play design, enhanced mobility

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 G1/4" F

S1: 1/4"

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.67"

Length 1 (L1) (overall length) : 2.24"

Length 2 (L2): 0.94"

Length 3 (L3): 1.30"

Diameter 1 (D1): 0.46"

Diameter 2 (D2): 0.31"

Weight: 2.8 oz

The Mosmatic DGK Swivel 32.548 – 90 Degrees is engineered for reliable performance in high-pressure gun systems, hose connections, and hydraulic setups. Constructed with a stainless steel/brass body and nickel-plated finish, it delivers exceptional corrosion resistance and durability in demanding environments.

This compact swivel features a thrust ball bearing and O-ring NBR seal system (also available in EPDM or FKM) for smooth live rotation under pressure, very low torque, and zero maintenance. Ideal for tangle-free hose handling, it supports efficient performance and compact installation.

Applications

• High-pressure gun swivels

• Hydraulic hose setups

• Wash bays and ceiling booms

• Industrial hose and cleaning systems

• Tangle-free hose reel applications

Features

• Material: Stainless steel/brass, nickel plated

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 0.94"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal: O-ring NBR (EPDM or FKM optional)

• Design: 90° swivel for compact and directional applications

• Performance: Live rotation under full pressure, low torque, maintenance free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 0.94"

Length 2 (L2): 0.39"

Weight: 5.9 oz

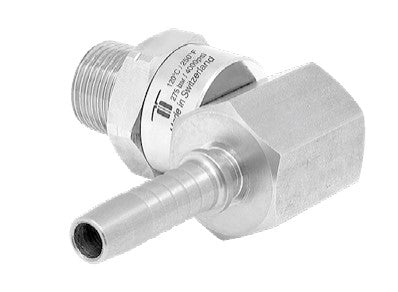

The Mosmatic DGK Swivel 32.489 – 90 Degrees is a robust, precision-engineered swivel designed for high-pressure guns, hose connections, hydraulic setups, and other tangle-free applications. Built with a nickel-plated brass body and stainless steel components, this compact elbow swivel ensures seamless, live rotation under full pressure.

Featuring a single thrust ball bearing and durable O-ring NBR sealing system (with optional EPDM or FKM variants), it’s built for maintenance-free performance, minimal torque, and long service life even in demanding environments.

Applications

• High-pressure cleaning guns

• Hydraulic hose connections

• Industrial hose swivel joints

• Ceiling booms and retractable systems

• Pressure washer and spray tool assemblies

Features

• Material: Stainless steel/brass with nickel plating

• Thread IN: 3/8" NPTM

• Thread S1: 3/8"

• Design: 90-degree compact swivel

• Overall Length: 2.10"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM optional)

• Performance: Low torque, maintenance-free, high durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 3/8"

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 2.10"

Length 2 (L2): 0.43"

Diameter 1 (D1): 0.40"

Diameter 2 (D2): 0.42"

Diameter 3 (D3): 0.54"

Weight: 6.2 oz

The Mosmatic DGK Swivel 32.482 – 90 Degrees is a high-performance swivel designed for HP-guns, hose connections, hydraulic systems, and other tangle-free applications. Engineered with nickel-plated brass and stainless steel, this swivel ensures smooth, reliable rotation at full pressure.

Featuring a single thrust ball bearing and NBR O-ring seal system (with optional EPDM or FKM), the DGK 32.482 is maintenance-free and delivers long-lasting durability in both high and low-pressure systems. Its compact 90-degree elbow design makes it ideal for space-saving setups where flexibility and freedom of movement are critical.

Applications

• High-pressure guns and cleaning systems

• Hose swivel joints and connections

• Hydraulic tools and equipment

• Tangle-free setups for industrial systems

• Ceiling booms and spray bars

Features

• Material: Nickel-plated brass and stainless steel

• Thread IN: 3/8" NPTM

• Thread S1: 5/16"

• Design: 90-degree elbow swivel

• Overall Length: 1.97"

• Nominal Width (NW): 7/32"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing: 1x thrust ball bearing

• Seal System: O-ring NBR (EPDM/FKM optional)

• Maintenance: Maintenance-free, low torque

• Performance: Seamless live rotation under pressure

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel, Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

S1: 5/16"

Nominal Width (NW): 7/32"

Wrench Size 1 (SW1): 0.94"

Length 1 (L1) (overall length) : 1.97"

Length 2 (L2): 0.43"

Diameter 1 (D1): 0.33"

Diameter 2 (D2): 0.34"

Diameter 3 (D3): 0.44"

Weight: 5.7 oz
