Wall Boom

The Mosmatic Wall Boom WAE (68.579) is a durable and efficient wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial facilities where ceiling mounting is not possible. With an extended length of 9 feet, this boom provides exceptional range and 180° smooth rotation, allowing operators to clean with ease and precision. Its built-in wall bracket ensures the boom automatically returns to a designated resting position after use.

This model includes a heavy-duty insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. It supports the use of water, oil, and air across a pH range of 3–12, offering wide compatibility with various cleaning media. With 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE is easy to install and built for long-term, environmentally responsible operation.

Applications

• Outdoor vehicle and fleet wash bays

• Self-service car washes

• Industrial equipment washdown zones

• Agricultural and manufacturing facilities

• Areas without ceiling mount access

Key Features

• 9 ft wall-mounted boom for extended cleaning reach

• 180° smooth rotation with auto return-to-rest bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Eco-friendly and industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 29 lbs

The Mosmatic Wall Boom Extension WSA (60.542) is built for operations that require maximum flexibility and extended reach. With a base length of 9 ft 10 in and a maximum working extension of 9 ft, this extension is ideal for truck wash bays, mining operations, aircraft maintenance, and industrial facilities where full mobility and long reach are essential.

When paired with a Mosmatic DKP ceiling boom (sold separately), the WSA enables a total working radius of up to 39 ft, providing broad coverage while ensuring smooth and controlled movement. Designed for single-medium applications, it includes one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Rated to handle up to 4000 PSI and temperatures up to 250°F, the WSA is compatible with water, oil, and air (pH 3–12). Built for durability, performance, and environmental responsibility.

Applications

• Truck and heavy vehicle wash systems

• Aircraft hangar maintenance operations

• Mining facility washdown

• Industrial cleaning and fluid delivery

• Extended-reach bay installations with ceiling boom compatibility

Key Features

• 9 ft 10 in boom extension, 9 ft max working reach

• Enables 39 ft working radius with DKP ceiling boom (sold separately)

• Single internal pipe design (1 inlet = 1 medium)

• 3/8" NPTF top/side inlets, 3/8" NPTM outlet

• Handles 4000 PSI pressure and 250°F temperatures

• Suitable for water, oil, and air (pH range 3–12)

• Supports environmentally friendly, high-efficiency wash operations

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 9'10"

Max. Length: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 63 lbs

The Mosmatic Wall Boom WAE (68.569) is a high-performance, wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling-mounted options are not feasible. With a length of 8 ft 2 in, this boom offers extended reach and 180° smooth rotation, ensuring full coverage and flexibility during cleaning tasks. The included wall bracket is engineered to return the boom to your preferred resting position automatically.

This model includes a durable insulated high-pressure (HP) hose, and is built to handle up to 4000 PSI and temperatures of 250°F. It supports water, oil, and air within a pH range of 3–12, making it ideal for multiple industrial applications. With 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE boom delivers reliable, environmentally friendly performance for professional cleaning operations.

Applications

• Outdoor self-service car wash bays

• Truck and fleet vehicle wash zones

• Washdown stations in food or chemical industries

• Equipment and machinery cleaning facilities

• Locations where ceiling installation is not an option

Key Features

• 8 ft 2 in wall-mounted boom for long-range coverage

• 180° smooth rotation with return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlet (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly, robust industrial construction

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 8'2"

Throughput/medium: water, oil, air at pH 3-12

Weight: 27 lbs

The Mosmatic Wall Boom WAE (68.519) is a powerful and space-efficient cleaning solution ideal for outdoor wash areas, self-service bays, and industrial applications where ceiling-mounted booms are not practical. With a length of 5 ft 3 in, this wall-mounted boom provides a 180° smooth rotation and features a precision wall bracket that automatically returns the boom to its selected resting position when not in use.

Built for high-pressure systems, the WAE is rated for up to 4000 PSI and 250°F, and is compatible with water, oil, and air within a pH range of 3–12. It includes a durable insulated high-pressure (HP) hose for user safety and efficient operation. The boom is equipped with 3/8" NPTF top and side inlets and a 3/8" outlet, offering flexible installation options. Environmentally conscious and designed for industrial-grade reliability, this boom is perfect for demanding wash environments.

Applications

• Outdoor self-service car wash bays

• Fleet and truck wash stations

• Industrial equipment cleaning zones

• Washdown areas with limited ceiling access

• Food and beverage processing environments

Key Features

• 5 ft 3 in wall-mounted boom

• 180° smooth rotation with return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlet (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly and built for high performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 5'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs

The Mosmatic Wall Boom WAE (68.559) is a heavy-duty, wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling mounting is not an option. With an extended reach of 7 ft 5 in, this boom offers 180° smooth rotation and features a return-to-rest wall bracket, keeping the boom secure and ready for the next use.

Engineered for demanding conditions, this model includes an insulated high-pressure (HP) hose for user safety and system durability. It supports water, oil, and air with a pH range of 3–12, and handles up to 4000 PSI and 250°F. Designed with 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE boom provides flexible installation and is an eco-conscious, high-performance solution for commercial wash setups.

Applications

• Outdoor self-service car wash bays

• Truck and fleet vehicle wash areas

• Equipment cleaning in industrial or agricultural facilities

• Washdown zones with limited ceiling access

• Food processing and chemical wash stations

Key Features

• 7 ft 5 in wall-mounted boom for extended operating range

• 180° smooth rotation with return-to-rest wall bracket

• Comes with insulated high-pressure (HP) hose

• 3/8" NPTF top and side inlets and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Supports water, oil, and air (pH 3–12)

• Environmentally friendly, industrial-grade design

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 26 lbs

The Mosmatic Wall Boom WAE (68.549) is a professional-grade, wall-mounted boom built for use in outdoor wash bays, truck and fleet cleaning stations, and industrial environments where ceiling-mounted options are not feasible. With a length of 6 ft 9 in, this boom provides extended reach and 180° smooth rotation, supported by a return-to-rest wall bracket that keeps the boom securely in place when not in use.

Equipped with an insulated high-pressure (HP) hose, this boom ensures safety and efficiency in high-pressure applications. Rated for up to 4000 PSI and 250°F, it supports water, oil, and air within a pH range of 3–12. Designed with 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE boom is environmentally friendly and ready for immediate, high-volume use.

Applications

• Self-service and commercial car wash bays

• Outdoor truck and fleet wash areas

• Equipment cleaning in industrial zones

• Washdown areas with limited ceiling access

• Food-grade and chemical wash stations

Key Features

• 6 ft 9 in wall-mounted boom for extended coverage

• 180° smooth rotation with return-to-rest bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Environmentally friendly, industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 6'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 25 lbs

The Mosmatic Wall Boom WAE (68.589) is a high-reach, wall-mounted boom engineered for use in outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling-mounted options are not feasible. With a length of 9 ft 10 in, this boom provides superior reach and 180° smooth rotation, supported by a wall-mounted return-to-rest bracket that keeps the boom neatly in place when not in use.

This model includes a heavy-duty insulated high-pressure (HP) hose and supports a throughput medium of water, oil, and air with a pH range of 3–12. Rated for up to 4000 PSI and 250°F, it is built for rigorous cleaning tasks in demanding environments. Featuring 3/8" NPTF inlets (top and side) and a 3/8" outlet, the WAE boom is easy to install and designed for eco-conscious, industrial-grade performance.

Applications

• Outdoor and self-service car wash bays

• Fleet and truck wash stations

• Agricultural and industrial equipment cleaning

• Washdown zones in manufacturing and food processing

• Facilities without ceiling mounting options

Key Features

• 9 ft 10 in wall-mounted boom for maximum operational reach

• 180° smooth rotation with return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlet (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Supports water, oil, and air (pH 3–12)

• Environmentally friendly and industrial-grade build

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 9'10"

Throughput/medium: water, oil, air at pH 3-12

Weight: 31 lbs

The Mosmatic Wall Boom Extension WSA (60.522) is the ideal solution for applications requiring extended reach and maximum flexibility. Designed for demanding environments such as truck wash bays, mining operations, aircraft maintenance, and manufacturing plants, this extension arm enables a working radius of up to 39 feet when paired with a compatible Mosmatic DKP ceiling boom (sold separately).

With a base length of 6 ft 8 in and a maximum extension of 6 ft 3 in, the WSA provides smooth, controlled operation and rugged reliability. Featuring a 3/8" NPTF inlet (top and side) and 3/8" NPTM outlet, it is designed for a single-medium flow through one internal pipe. It handles pressures up to 4000 PSI and temperatures up to 250°F, and supports water, oil, and air within a pH range of 3–12. Built for durability and environmental responsibility, this extension is the go-to choice for extended cleaning reach in industrial settings.

Applications

• Truck and trailer wash bays

• Aircraft maintenance and detailing facilities

• Mining and heavy equipment cleaning

• Manufacturing and industrial washdown stations

• Locations requiring long-range boom configurations

Key Features

• 6 ft 8 in wall boom extension with 6 ft 3 in max reach

• Enables up to 39 ft working radius when paired with DKP ceiling boom

• Single internal pipe = one inlet design

• 3/8" NPTF inlets (top and side) and 3/8" NPTM outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Smooth operation, solid construction, environmentally friendly

• Note: DKP ceiling boom sold separately

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 6'8"

Max. Length: 6'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 53 lbs

The Mosmatic Wall Boom WAE (68.529) is a premium wall-mounted boom designed for use in wash bays, outdoor cleaning zones, and industrial environments where ceiling installation isn’t feasible. With a length of 5 ft 9 in, this boom delivers 180° smooth rotation and features a specialized wall bracket that ensures the boom reliably returns to a preset resting position when not in use.

Built for performance and safety, the boom includes a robust insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. It supports water, oil, and air across a pH range of 3–12, making it highly adaptable to various high-demand applications. Equipped with 3/8" NPTF top and side inlets and a 3/8" outlet, this environmentally friendly boom is ready for industrial-grade use and effortless integration.

Applications

• Outdoor self-service car wash bays

• Fleet wash and truck wash stations

• Washdown areas in food and industrial plants

• Equipment cleaning where ceiling mounting isn't an option

• Commercial cleaning facilities

Key Features

• 5 ft 9 in wall-mounted boom

• 180° smooth swivel with auto return-to-rest bracket

• Comes with insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Eco-conscious construction, built for heavy-duty use

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 5'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs

The Mosmatic 1/2" Wall Boom with INOX-Pipe (WAE – 7’5") is a high-performance, stainless steel boom arm engineered for industrial durability and smooth operation. Ideal for a range of demanding environments—including truck washes, food processing plants, mining operations, and manufacturing facilities—this versatile wall boom is a trusted solution where liquids, air, or gas distribution is required.

Constructed with corrosion-resistant polished stainless steel, this boom features a sealed bearing design for long-term, maintenance-free performance. Its 180º/360º smooth rotation and high-flow capacity offer unmatched flexibility and efficiency in dynamic workspaces.

Key Features:

• 180°/360° free-moving rotation for optimal reach

• High-flow design with 1/2" nominal width

• Durable INOX-pipe construction (polished stainless steel)

• Sealed bearings for smooth, low-maintenance operation

• Handles up to 2200 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Inlet: 1/2" NPTF | Outlet: 1/2" NPTF

• Length: 7 feet 5 inches

Whether you’re optimizing a wash bay or industrial line, the Mosmatic WAE 1/2" Wall Boom offers precision, performance, and durability.

Specs

Pressure: 2200 psi

Temperature:  250°F

Thread In: 1/2 NPTF

Thread Out: 1/2 NPTF

Length: 7’ 5"

Throughput medium: water, oil, and air at ph 3-12.

Weight: 28 lbs

The Mosmatic WSA Wall Boom Extension is engineered for industrial applications requiring extended reach and superior flexibility. Ideal for truck wash bays, aircraft hangars, mining facilities, and manufacturing plants, this extension provides an extended work radius—up to 39 feet when paired with a DKP ceiling boom—allowing users to maneuver equipment effortlessly in large wash zones.

Built with Mosmatic's signature durability and precision, the WSA features a smooth-operating telescopic boom arm constructed for high-pressure environments. Designed to deliver outstanding performance, this extension boom integrates seamlessly into your existing setup and ensures maximum efficiency without compromising on quality or safety.

Applications

• Truck and fleet wash bays

• Aircraft and helicopter cleaning stations

• Mining and construction equipment maintenance

• Industrial and manufacturing facility cleaning

Key Features

• Extended boom length: 14'9" for large-area coverage

• Telescopic action with solid build for long-lasting use

• Inlet (bottom): 3/8" NPTF | Outlet: 3/8" NPTF

• Boom length: 14'9" | Maximum extension: 9'10"

• Compatible with DKP ceiling boom for 39' work radius

• Max pressure: 4000 psi | Max temperature: 250°F

• Supports water, oil, air (pH 3–12)

• Smooth and comfortable operation

• Delivered ready to install

Upgrade your industrial wash system with the Mosmatic WSA Wall Boom Extension 60.9004—where power meets reach.

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 14'9"

Max. Length: 9'10"

Throughput/medium: water, oil, air at pH 3-12

Weight: 196 lbs

The Mosmatic Wall Boom WAD (61.459) is a dual-arm, wall-mounted boom built for demanding cleaning environments such as outdoor wash bays, fleet wash stations, and industrial facilities where ceiling-mounted systems aren’t suitable. With extended boom lengths of 8 ft 2 in and 7 ft 5 in, this system offers exceptional reach and flexibility, featuring 180° smooth rotation on both arms.

The included return-to-rest wall bracket ensures clean and organized stowing when not in use. Designed for dual-pressure cleaning, the upper boom is ideal for low-pressure tools such as foam brushes, while the lower boom supports high-pressure applications. The unit comes equipped with an insulated high-pressure (HP) hose, supports up to 4000 PSI and 250°F, and handles water, oil, and air across a pH range of 3–12. It features 3/8" NPTF inlets (top and side) and a 3/8" outlet, ensuring easy installation and integration.

Applications

• Outdoor self-service car wash bays

• Truck and fleet wash stations

• Dual-pressure systems (rinse + foam)

• Agricultural and industrial washdown areas

• Locations without ceiling-mount capability

Key Features

• Dual boom arms: 8 ft 2 in + 7 ft 5 in

• 180° rotation on both booms with return-to-rest wall bracket

• Ideal for dual-pressure setups (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Handles up to 4000 PSI and 250°F

• Suitable for water, oil, and air (pH 3–12)

• Environmentally friendly and built for industrial durability

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 8'2"

Length 2: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 48 lbs

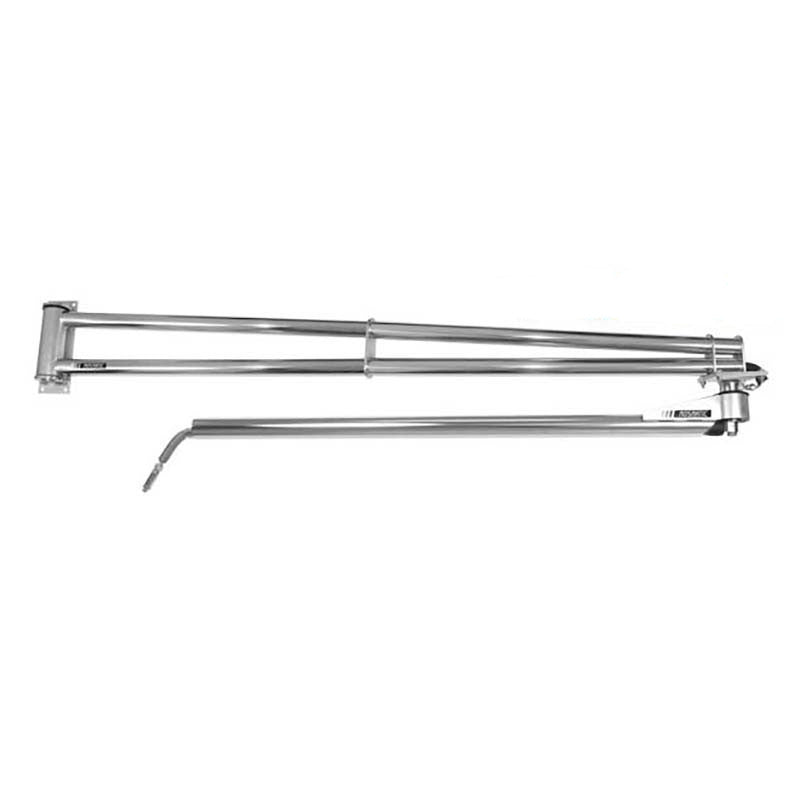

The Mosmatic Wall Boom Extension WSA (60.532) is engineered to deliver maximum flexibility and extended reach for demanding wash environments. With a base length of 8 ft 2 in and a maximum reach of 7 ft 5 in, this extension arm is ideal for truck wash bays, aircraft hangars, mining operations, and industrial manufacturing plants.

When paired with the Mosmatic DKP ceiling boom (sold separately), this unit enables a working radius of up to 39 feet, offering operators exceptional coverage and smooth, reliable motion. Designed for single-medium flow, it features one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Built to handle up to 4000 PSI and 250°F, the WSA extension is compatible with water, oil, and air (pH 3–12). Durable, environmentally conscious, and easy to integrate, it's a top-tier solution for expanding your operational range.

Applications

• Truck and fleet vehicle wash bays

• Aircraft maintenance and service areas

• Mining and heavy-duty equipment washdown

• Industrial manufacturing and processing plants

• Extended-reach wash applications with ceiling boom integration

Key Features

• 8 ft 2 in wall boom extension, 7 ft 5 in max reach

• Enables up to 39 ft working radius with DKP ceiling boom (sold separately)

• Single pipe = one inlet system for controlled medium flow

• 3/8" NPTF inlets (top and side) and 3/8" NPTM outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Built for smooth operation, solid durability, and environmental efficiency

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 8'2"

Max. Length: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 56 lbs

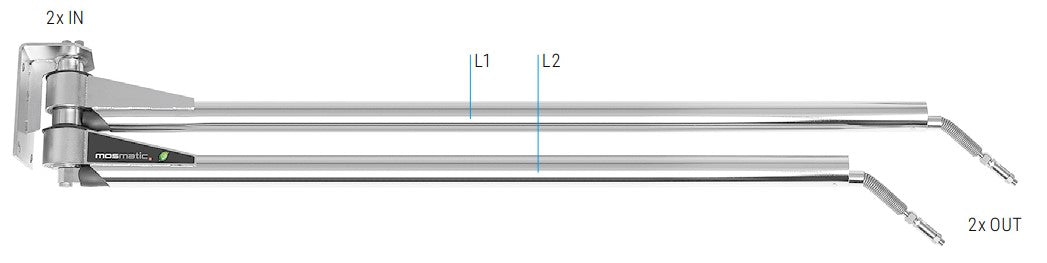

The Mosmatic Wall Boom WAD (61.419) is a dual-arm wall-mounted boom system designed for outdoor wash bays, fleet maintenance areas, and industrial cleaning environments where ceiling installations are not feasible. With two independently rotating arms—5 ft 9 in (lower) and 5 ft 3 in (upper)—this unit provides extended reach and efficient dual-medium functionality. Each arm offers 180° smooth rotation and is supported by a return-to-rest wall bracket for clean, consistent storage.

Ideal for systems using both high and low pressure, the upper boom is recommended for low-pressure applications, such as foam brushes, while the lower boom supports high-pressure spray equipment. The unit is equipped with an insulated high-pressure (HP) hose, handles up to 4000 PSI, and supports operating temperatures up to 250°F. It is compatible with water, oil, and air (pH 3–12) and includes 3/8" NPTF inlets (top and side) with a 3/8" outlet, delivering environmentally friendly, high-performance operation.

Applications

• Outdoor and self-service car wash bays

• Truck, bus, and fleet wash stations

• Washdown areas in industrial or agricultural operations

• Cleaning systems requiring separate high and low pressure lines

• Locations with no ceiling mounting access

Key Features

• Dual-arm boom: 5 ft 9 in + 5 ft 3 in

• 180° smooth rotation on both booms with return-to-rest bracket

• Designed for dual-pressure operation (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF top and side inlets and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly and built for industrial performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 5'9"

Length 2: 5'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 43 lbs

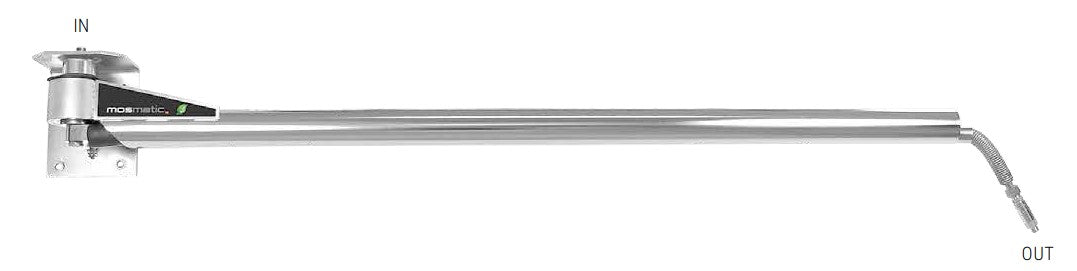

The Mosmatic Wall Boom WAE (68.539) is a heavy-duty wall-mounted boom engineered for maximum flexibility in outdoor wash bays, industrial cleaning stations, and commercial wash environments where ceiling-mounted systems aren’t practical. Measuring 6 ft 3 in in length, this boom offers a 180° smooth rotation and includes a return-to-rest wall bracket for consistent storage positioning.

Built to perform under pressure, the WAE model includes an insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. It supports water, oil, and air with a pH range of 3–12. Designed for long-lasting reliability, it features 3/8" NPTF inlets (top and side) and a 3/8" outlet, making installation simple and adaptable. This boom is an eco-conscious, ready-to-use solution for high-volume cleaning applications.

Applications

• Self-service and automated car wash bays

• Truck and fleet washing stations

• Outdoor industrial washdown areas

• Food processing and manufacturing environments

• Commercial cleaning setups with limited ceiling access

Key Features

• 6 ft 3 in wall-mounted boom with extended reach

• 180° smooth rotation and return-to-rest wall bracket

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly and built for industrial use

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 6'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 24 lbs
