DGR Rotary Union/Swivel
Sort by:

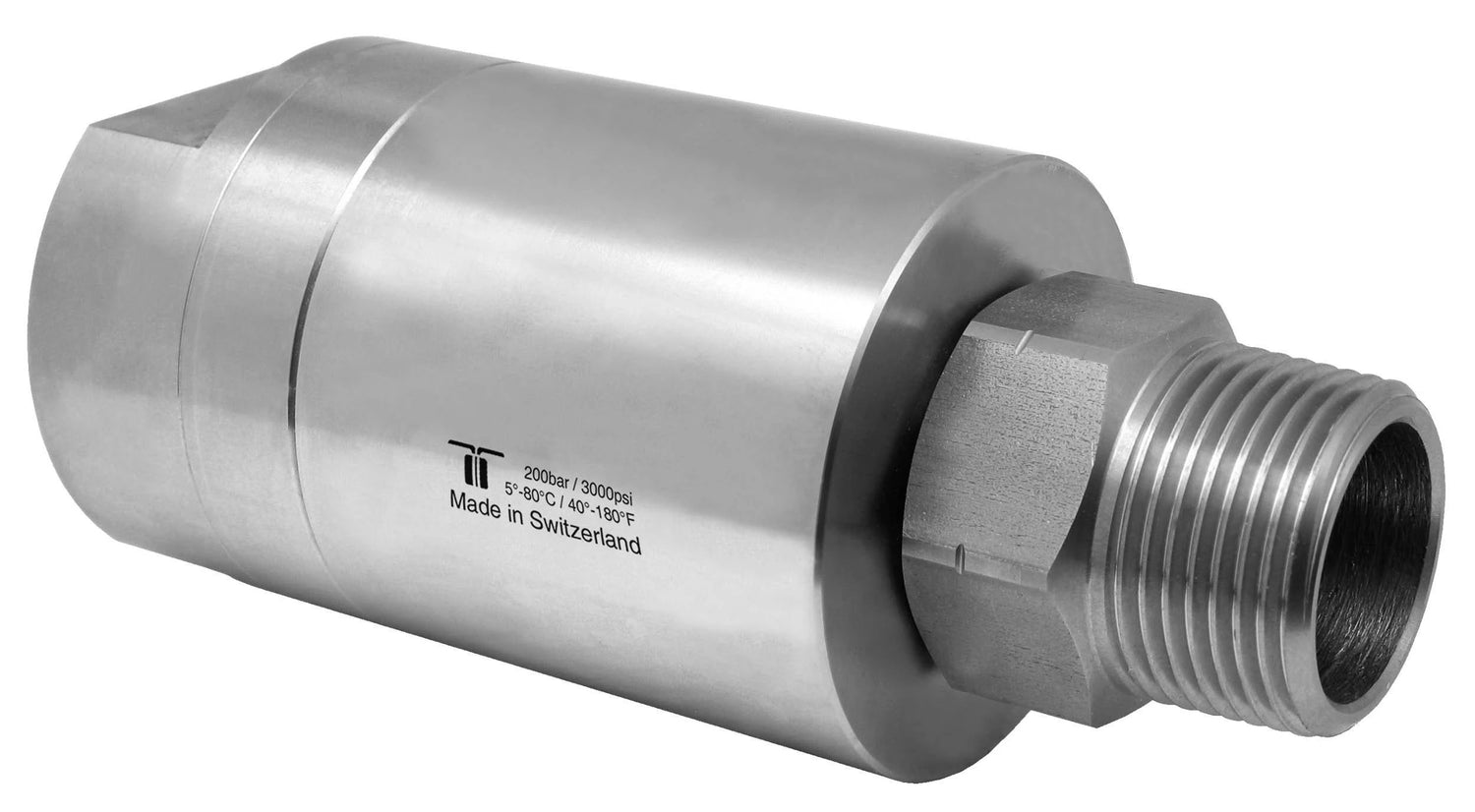

The Mosmatic DGR Swivel - 34.411 is a high-performance stainless steel swivel engineered for use in high-pressure systems where both thrust and radial forces are present. Ideal for industrial and food service applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for optimal load distribution and smooth rotation. Built for high-flow applications, its stainless steel body provides excellent corrosion resistance in harsh environments, ensuring long-lasting durability and consistent performance.
Applications:
-
Industrial high-pressure fluid systems
-
Food processing and sanitary washdown equipment
-
Chemical handling and transfer systems
-
High-flow rotary joints in automated processes
Key Features:
-
Corrosion-resistant stainless steel construction
-
Quadruple bearing system: 2x radial + 2x thrust ball bearings
-
Designed to handle both thrust and radial loads
-
High-flow capability for efficient performance
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTM
-
Nominal Width (NW): 1"
-
Diameter: 2.36"
-
Overall Length: 5.31"
-
Max Pressure: 3000 PSI
-
Max RPM: 130
-
Operating Temperature Range: 40°F to 180°F
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: 130
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTM
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.81
Wrench Size 2 (SW2): 1.42
Diameter (D): 2.36"
Length 1 (L1) (overall length): 5.31"
Length 2 (L2): 3.78
Length 3 (L3): 0.71
Weight: 59oz
The Mosmatic DGR Swivel - 34.312 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-pressure environments. Perfect for industrial and food service applications, this swivel features a quadruple bearing system with two radial ball bearings and two thrust ball bearings, ensuring smooth, stable operation under heavy load. Its corrosion-resistant stainless steel construction makes it suitable for harsh, high-moisture, or chemical environments, while the high-flow design enhances system efficiency.
Applications:
-
Industrial high-pressure cleaning systems
-
Food and beverage processing equipment
-
Sanitation and washdown systems
-
Chemical transfer and fluid handling
Key Features:
-
Corrosion-resistant stainless steel body
-
Quadruple bearing system: 2x radial + 2x thrust ball bearings
-
Supports both radial and thrust load applications
-
High-flow performance for continuous-duty systems
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF
-
Nominal Width (NW): 3/4"
-
Diameter: 2.17"
-
Overall Length: 5.55"
-
Max Pressure: 3000 PSI
-
Max RPM: 150
-
Operating Temperature Range: 40°F to 180°F
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: 150
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTF
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.65
Wrench Size 2 (SW2): 1.26
Diameter (D): 2.17"
Length 1 (L1) (overall length): 5.55"
Length 2 (L2): 3.66
Weight: 53 oz

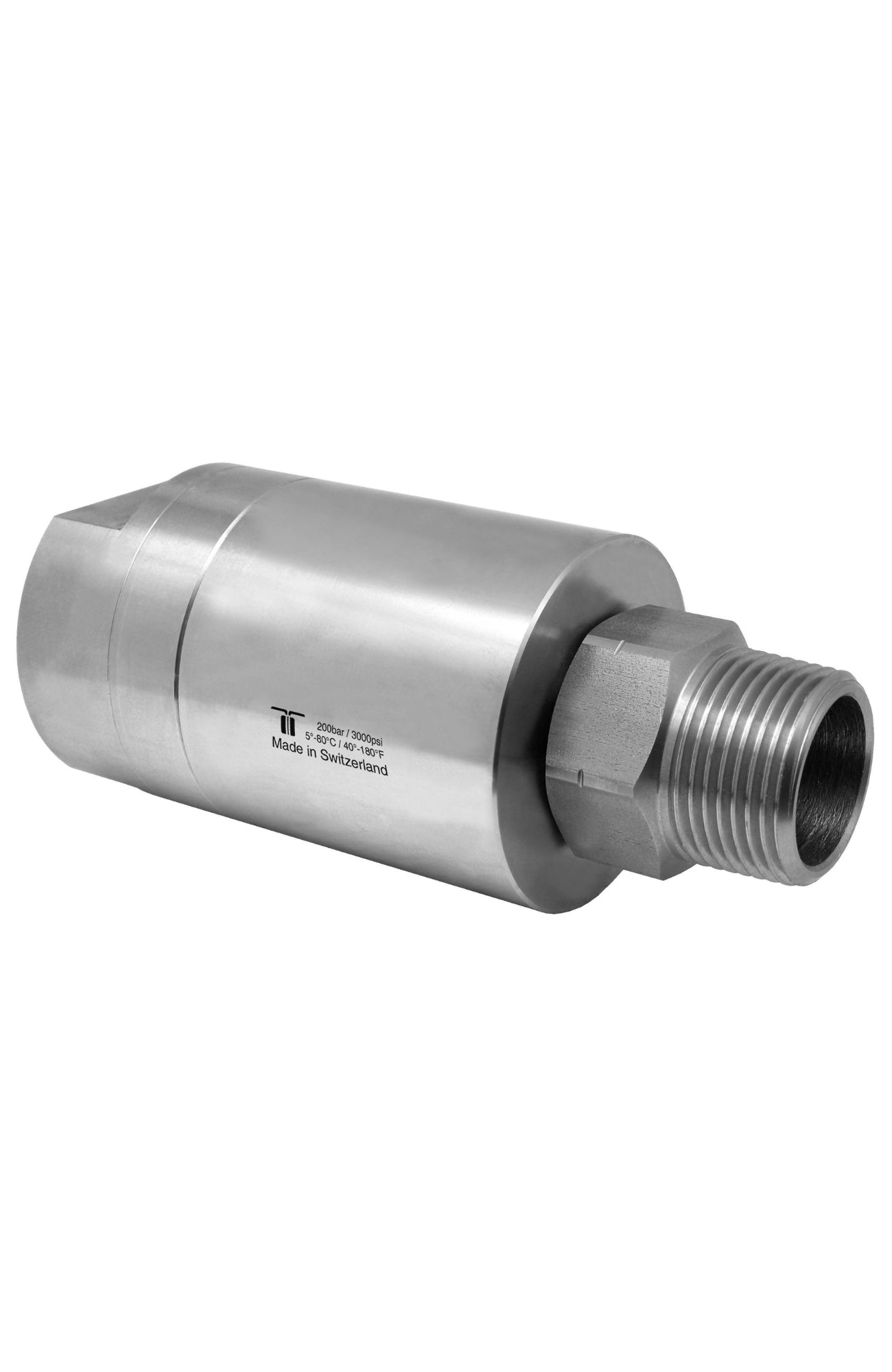

The Mosmatic DGR Swivel 34.646 is a high-performance, stainless steel swivel engineered to manage both thrust and radial forces in demanding high-pressure environments. Designed for industrial and food service applications, this swivel is built with a robust quadruple bearing system€"featuring 2 radial ball bearings and 2 thrust ball bearings€"to deliver smooth rotation and extended durability under continuous use.
With a 2½" NPTF IN thread and 2½" NPTM OUT thread, the swivel integrates easily into large-diameter, high-flow systems. It measures 6.30" in diameter with a total length of 10.9", and handles pressures up to 290 PSI, a maximum temperature range of 40°F to 180°F, and up to 50 RPM. Its corrosion-resistant stainless steel construction ensures reliable performance in harsh and hygienic environments alike.
Applications
-
Industrial high-pressure cleaning systems
-
Food and beverage processing equipment
-
Rotating arms and reels in wash stations
-
Tank cleaning and spray bars
-
High-volume fluid transfer systems
Features
-
Built from corrosion-resistant stainless steel for long-lasting durability
-
Quadruple bearing system: 2 radial & 2 thrust bearings for enhanced load handling
-
High-flow design with 2½" NPTF IN / 2½" NPTM OUT threading
-
Dimensions: 6.30" diameter, 10.9" length
-
Operates up to 290 PSI and 50 RPM
-
Suitable for temperatures between 40°F and 180°F
-
Engineered for thrust and radial force applications in demanding environments
Specs
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 2 ½" NPTF
Thread Out: G2 2 ½" NPTM
Nominal Width (NW): 2 ½"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Diameter (D): 6.30
Length 1 (L1) (overall length): 10.9
Length 2 (L2) : 8.53
Length 3 (L3) : 1.14
Weight: 713 oz

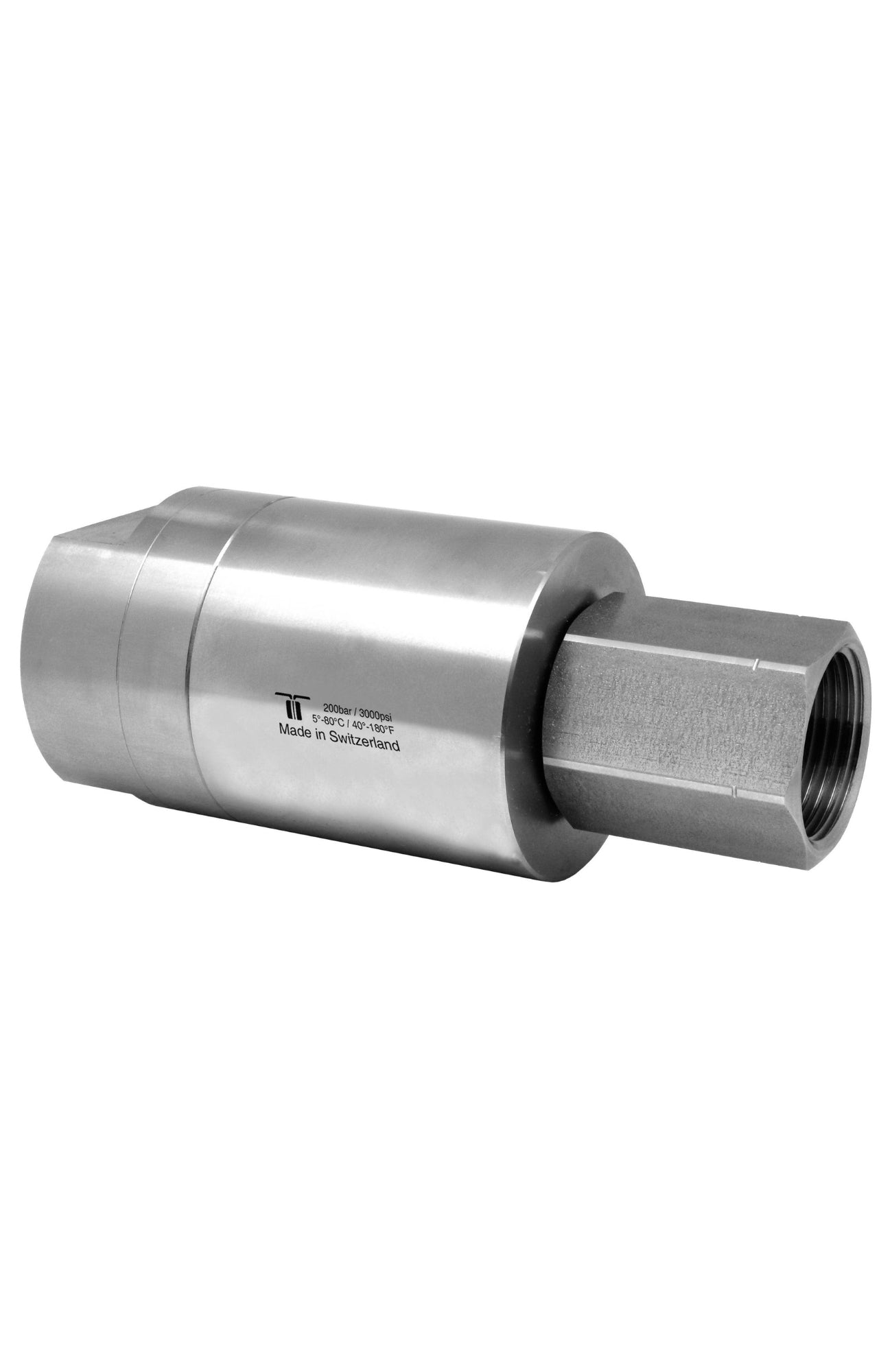

The Mosmatic DGR Swivel 34.647 is a precision-crafted stainless steel swivel engineered to manage both thrust and radial forces in high-volume, low-to-moderate pressure systems. Designed for industrial and food service environments, this swivel provides durable, efficient rotation for fluid transfer and cleaning operations.
Outfitted with a quadruple bearing system€"including 2 radial ball bearings and 2 thrust ball bearings€"it ensures smooth, stable performance even in continuous-use conditions. With 2½" NPTF IN and OUT threads, a 6.30" diameter, and 10.7" length, the 34.647 model is optimized for high-flow capacity, while maintaining a max pressure of 290 PSI, operating temperature range of 40°F to 180°F, and max RPM of 50. Its corrosion-resistant stainless steel construction offers long-term reliability in both hygienic and harsh environments.
Applications
-
Food processing and sanitation systems
-
Industrial high-flow cleaning systems
-
Rotating machinery in wash bays and spray bars
-
Tank washing and CIP (Clean-in-Place) systems
-
Bulk fluid transfer in commercial operations
Features
-
Made from corrosion-resistant stainless steel for durability and hygiene
-
Quad bearing system: 2 radial + 2 thrust ball bearings for smooth load handling
-
2½" NPTF IN/OUT threading for easy integration
-
Dimensions: 6.30" diameter, 10.7" overall length
-
Operates at up to 290 PSI and 50 RPM
-
Handles temperatures from 40°F to 180°F
-
Designed for thrust and radial force in high-flow applications
Specs
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 2 ½" NPTF
Thread Out: G2 2 ½" NPTF
Nominal Width (NW): 2 ½"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Diameter (D): 6.30
Length 1 (L1) (overall length): 10.7
Length 2 (L2) : 8.53
Weight: 713 oz
Restore optimal performance to your Mosmatic DGR Swivel with the Mosmatic Repair Kit 34.951 - NW 2 1/2". This high-quality replacement kit includes a durable O-ring NBR seal and precision bearing set, specifically designed for DGR Swivels with a nominal width of 2 1/2 inches. Built to withstand thrust and radial forces, this kit is ideal for high-pressure applications in industrial and food service environments. Ensure smooth, leak-free operation and extend the lifespan of your swivel system with this reliable repair solution.
Ensure long-lasting performance of your Mosmatic DGR Swivel with the Seal Kit 34.950 - NW 2 1/2". This high-quality replacement kit includes a durable O-ring NBR seal, engineered for DGR Swivels with a nominal width of 2 1/2 inches. Designed to withstand thrust and radial forces, it€™s ideal for high-pressure applications in industrial and food service environments. This seal kit helps maintain leak-free operation and reliable swivel performance under continuous, demanding use.
Optimize the performance and longevity of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Seal Kit 34.943 - NW 1 1/4". This precision-engineered replacement kit features durable NBR (Nitrile Butadiene Rubber) seals, specifically designed for DGR Swivels with a nominal width of 1 ¼ inches. Ideal for high-pressure environments, it supports reliable operation in both industrial and food service applications. Keep your equipment running smoothly with this essential replacement seal kit.
Restore the performance and extend the life of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Repair Kit 34.924 - NW 2". This complete repair kit includes a high-quality NBR seal and precision bearing set, specifically designed for DGR Swivels with a nominal width of 2 inches. Ideal for high-pressure industrial and food service applications, it ensures smooth, reliable, and leak-free swivel operation. Keep your equipment running efficiently with this essential replacement solution.
Ensure the continued performance of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Repair Kit 34.923 - NW 1 1/2". This professional repair kit includes a durable NBR seal and a precision-engineered bearing set, specifically designed for DGR Swivels with a nominal width of 1 1/2 inches. Built for demanding high-pressure applications, it is ideal for both industrial and food service environments. Restore smooth, leak-free operation and extend equipment life with this essential replacement kit.
Restore your Mosmatic DGR Swivel to optimal performance with the Mosmatic DGR Swivel Repair Kit 34.922 - NW 1". This complete replacement kit includes a high-quality NBR seal and precision bearing set, engineered for DGR Swivels with a nominal width of 1 inch. Designed for high-pressure industrial and food service applications, it ensures smooth, leak-free operation and extends the life of your swivel. Maintain reliability and performance with this essential repair solution.
Keep your Mosmatic DGR Swivel operating at peak performance with the Mosmatic DGR Swivel Repair Kit 34.921 - NW 3/4". This professional-grade replacement kit includes a durable NBR seal and a precision bearing set, specifically designed for DGR Swivels with a nominal width of ¾ inch. Ideal for high-pressure industrial and food service applications, this kit ensures smooth, reliable, and leak-free swivel operation. Extend the life of your equipment with this essential repair solution.

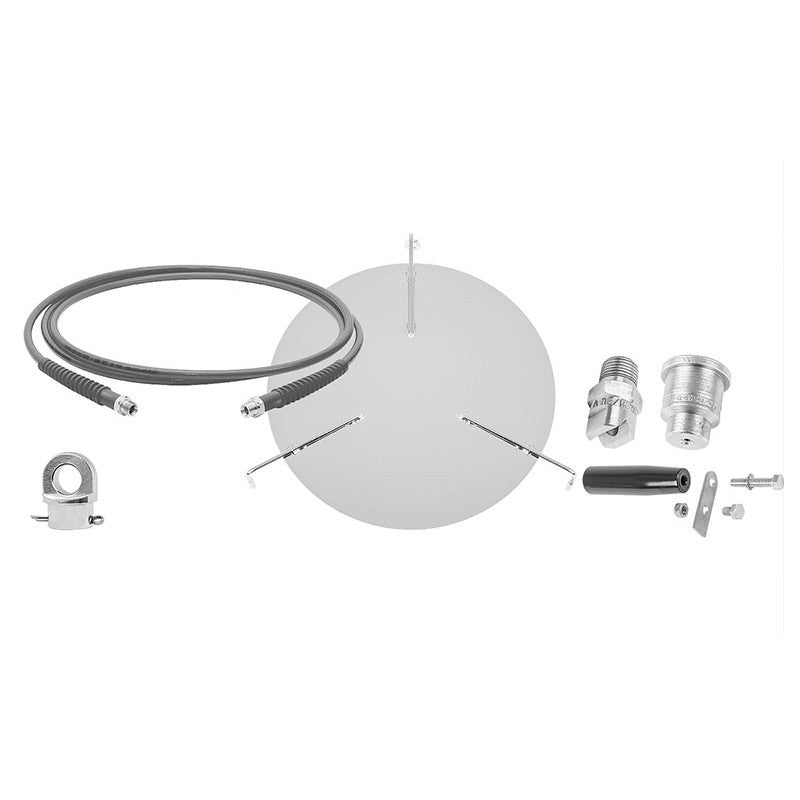

Restore the performance of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Repair Kit 34.920 - NW ½". This comprehensive replacement kit includes a high-quality NBR seal and bearing set, designed specifically for DGR Swivels with a nominal width of ½ inch. Engineered for high-pressure applications, it is ideal for industrial and food service use, ensuring smooth, leak-free operation. Keep your swivel in top condition with this essential repair solution.
Enhance the reliability and lifespan of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Seal Kit 34.915 - NW 2". This premium replacement kit includes durable NBR (Nitrile Butadiene Rubber) seals, specifically engineered for DGR Swivels with a nominal width of 2 inches. Ideal for demanding high-pressure applications, it is perfect for industrial and food service environments, ensuring consistent, leak-free operation. Maintain peak performance with this essential replacement part.
Maintain peak performance of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Seal Kit 34.914 - NW 1 ½". This high-quality replacement kit includes robust NBR (Nitrile Butadiene Rubber) seals, specifically designed for DGR Swivels with a nominal width of 1 ½ inches. Built for high-pressure applications, it is ideal for industrial and food service environments, delivering reliable, leak-free operation. Keep your equipment operating efficiently with this essential replacement part.
Maintain the superior performance of your Mosmatic DGR Swivel with the Mosmatic DGR Swivel Seal Kit 34.913 - NW 1". This professional-grade replacement kit features high-quality NBR (Nitrile Butadiene Rubber) seals, specifically designed for DGR Swivels with a nominal width of 1 inch. Built to withstand high-pressure conditions, it is ideal for industrial and food service applications, ensuring long-lasting, leak-free operation. Keep your swivel operating at its best with this essential replacement part.
