The Mosmatic DGVI Swivel 32.754 is a precision-engineered stainless steel swivel designed for high-pressure hose reels, HP-Guns, and hydraulic applications. Featuring a live-rotation design and robust stainless steel construction, this swivel is built to perform under maximum pressure with zero maintenance required.
With a single thrust ball bearing and O-ring NBR seal system (upgradable to EPDM or FKM), this swivel ensures smooth rotation, excellent seal integrity, and corrosion resistance in the toughest industrial environments.
Applications
-
High-pressure hose reels
-
Hydraulic tools and lines
-
HP-Guns and industrial washdown systems
-
Tangle-free hose management
-
Pressure cleaning machinery
Features
-
Material: 100% stainless steel for maximum durability
-
Thread IN (G1): 3/8" NPTM
-
Thread OUT (G2): 3/8" NPTF
-
Overall Length: 2.75"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Benefits: Live rotation, compact build, maintenance-free, corrosion-resistant
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTM
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.75"
Length 2 (L2): 0.43"
Weight: 6.4 oz
The Mosmatic DGVI Swivel 32.779 is designed for high-performance applications in high-pressure hose reels, hydraulic systems, and HP-Guns. Built from stainless steel, it delivers maximum durability, live rotation under pressure, and seamless integration in dynamic environments.
Equipped with a single thrust ball bearing and O-ring NBR seal system (optional EPDM or FKM), this swivel is maintenance-free, corrosion-resistant, and engineered to maintain pressure without binding—ensuring a tangle-free, smooth user experience.
Applications
-
High-pressure hose reels
-
Hydraulic connections
-
High-performance HP-Guns
-
Tangle-free cleaning equipment
-
Industrial fluid transfer systems
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 3/8" NPTF
-
Overall Length: 3.20"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Design: Compact, corrosion-resistant, and maintenance-free
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.60
Thread In: G1 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 3.20"
Weight: 6.2 oz

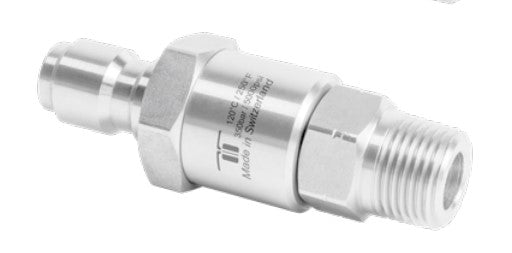

The Mosmatic DGVI Swivel 32.778 is a durable, stainless steel swivel engineered for high-pressure hose reels, HP-Guns, and hydraulic systems. With a robust 3/8" NPTM inlet, this swivel ensures live rotation under full system pressure, helping to prevent hose tangling and improve workflow efficiency.
Designed for reliability and performance in demanding environments, it features a single thrust ball bearing, corrosion-resistant stainless steel housing, and a maintenance-free O-ring NBR seal system—with optional EPDM or FKM seals available for compatibility with specific applications.
Applications
-
High-pressure hose reels
-
Hydraulic and pneumatic systems
-
HP-Guns and industrial sprayers
-
Tangle-free hose connections
-
Commercial cleaning systems
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 3/8" NPTM
-
Overall Length: 2.90"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Design: Compact, corrosion resistant, maintenance free
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.60"
Thread In: G1 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.90"
Length 2 (L2): 0.47"
Weight: 5.1 oz

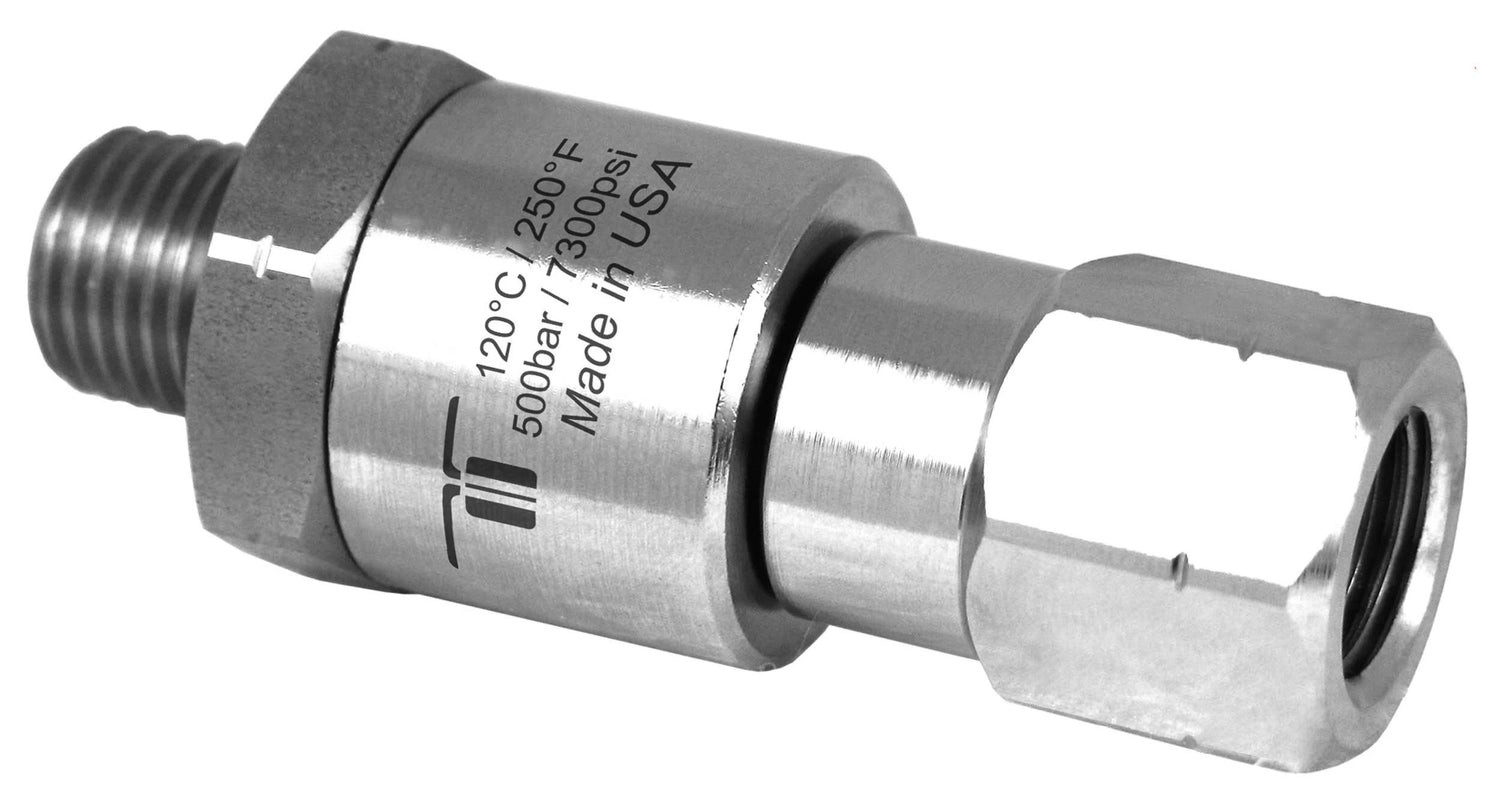

The Mosmatic DGVI Swivel 32.752 is engineered for high-performance in HP-Guns, hydraulic systems, and high-pressure hose reels. Built entirely from stainless steel, this swivel offers live rotation under maximum pressure and is designed to handle intense working conditions while remaining maintenance-free.
Its single thrust ball bearing system and O-ring NBR seal (optional EPDM or FKM) deliver reliable rotation, corrosion resistance, and leak prevention. This swivel is ideal for professionals needing compact strength and maximum durability in demanding environments.
Applications
-
High-pressure hose reels
-
HP-Guns and pressure washer systems
-
Hydraulic applications
-
Tangle-free hose systems
-
Industrial cleaning equipment
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 1/4" NPTM
-
Thread OUT (G2): 1/4" NPTF
-
Overall Length: 2.60"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Benefits: Live rotation, corrosion resistance, compact, maintenance free
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTM
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.60"
Length 2 (L2): 0.39"
Weight: 5.2 oz
The Mosmatic DGVI Swivel 32.894 is a robust, stainless steel swivel engineered for high-pressure hose reels, hydraulic systems, and HP-Guns. With a thread IN of 1/2" NPTM and thread OUT of 1/2" NPTF, it enables live rotation under full pressure, improving equipment longevity and operator control.
Built with a single thrust ball bearing and an NBR O-ring seal system (optional EPDM or FKM), the 32.894 offers reliable performance and low maintenance in demanding applications. Its stainless steel construction ensures long-term resistance to corrosion.
Applications
-
HP-Guns and pressure washers
-
High-pressure hose reels
-
Industrial hydraulics
-
Tangle-free hose systems
-
Commercial washdown equipment
Features
-
Material: 100% Stainless Steel
-
Thread IN (G1): 1/2" NPTM
-
Thread OUT (G2): 1/2" NPTF
-
Overall Length: 2.95"
-
Nominal Width (NW): 3/8"
-
Wrench Size (SW): 1.06"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearings: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM/FKM)
-
Performance: Live rotation, corrosion-resistant, maintenance-free design
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTM
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 1.06"
Wrench Size 2 (SW2): 1.06"
Length 1 (L1) (overall length) : 2.95"
Length 2 (L2): 0.59"
Weight: 8.8 oz

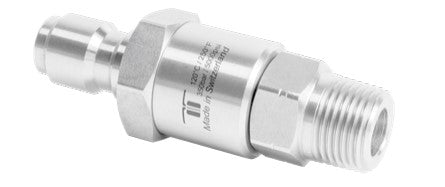

The Mosmatic DGVI Swivel 32.773 is a high-performance stainless steel swivel connector designed for use in high-pressure hose reels, hydraulic systems, and HP-Guns. With a 1/4" NPTM inlet, this swivel delivers live rotation under pressure for smooth, tangle-free hose movement.
Built for durability and corrosion resistance, it features a single thrust ball bearing and a reliable O-ring NBR seal system. The compact design makes it perfect for tight installations in industrial and commercial cleaning systems.
Applications
-
High-pressure hose reels
-
Hydraulic equipment
-
Pressure washing and HP-Guns
-
Tangle-free hose management
-
Industrial cleaning systems
Features
-
Material: Complete stainless steel construction
-
Thread IN (G1): 1/4" NPTM
-
Overall Length: 2.80"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Performance: Live rotation, corrosion resistant, maintenance free
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.47
Thread In: G1 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.67"
Length 1 (L1) (overall length) : 2.80"
Length 2 (L2): 0.43"
Weight: 4.2 oz
The Mosmatic DGVI Swivel 32.763 delivers exceptional performance in high-pressure applications. Crafted from durable stainless steel, this swivel is built for HP-guns, hydraulic systems, and tangle-free hose reel setups. Its single bearing system with a thrust ball bearing ensures smooth live rotation under pressure.
Designed for durability and reliability, this swivel includes an O-ring NBR seal system (optional EPDM or FKM), supports up to 7300 PSI, and offers maintenance-free operation. Perfect for professionals needing compact power in a corrosion-resistant form factor.
Applications
-
High-pressure hose reels
-
Hydraulic systems
-
Pressure washer guns (HP-Guns)
-
Industrial cleaning equipment
-
Tangle-free hose applications
Features
-
Material: Stainless steel construction
-
Thread IN: 3/8" NPTM
-
Thread OUT: 3/8" NPTM
-
Overall Length: 2.48"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Advantages: Compact, corrosion resistant, maintenance free, live rotation under full load
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTM
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.48"
Length 2 (L2): 0.43"
Length 3 (L3): 0.47"
Weight: 5.4 oz
The Mosmatic DGVI Swivel 32.774 is engineered for high-pressure cleaning and fluid applications, offering smooth and reliable rotation under pressure. Designed with premium stainless steel, this swivel ensures corrosion resistance and durability in the most demanding environments.
Built for HP-Guns, hose reels, and hydraulic systems, it features a single thrust ball bearing and an O-ring NBR seal system (with optional EPDM or FKM). Maintenance free and compact, this swivel prevents hose tangling while enabling live rotation at maximum pressure.
Applications
-
High-pressure hose reels
-
Hydraulic systems
-
HP-Guns and pressure washing equipment
-
Tangle-free hose management
-
Industrial and commercial cleaning setups
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 1/4" NPTF
-
Overall Length: 3.00"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (Optional EPDM or FKM)
-
Performance: Maintenance-free, corrosion-resistant, compact design
Specs
Pressure: 5000 psi (35 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
D (Diameter): ø0.47
Thread In: G1 1/4" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 3.00"
Weight: 5.0 oz
The Mosmatic DGVI Swivel 32.768 is a high-performance stainless steel swivel engineered for high-pressure hose reels, hydraulics, and HP-Guns. With 3/8" NPTF inlet and 3/8" NPTM outlet threads, this swivel allows for smooth, live rotation under maximum pressure, ensuring efficiency and longevity in demanding systems.
Built with a durable single thrust ball bearing and O-ring NBR seal system (with optional EPDM or FKM), the 32.768 is maintenance free and corrosion resistant, providing reliable operation even under extreme conditions.
Applications
-
High-pressure hose reels
-
Hydraulic systems
-
HP-Guns and pressure washers
-
Commercial wash equipment
-
Tangle-free hose connections
Features
-
Material: Full stainless steel body
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTM
-
Overall Length: 2.60"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal Type: O-ring NBR (optional EPDM or FKM)
-
Performance: Live rotation, corrosion-resistant, zero maintenance
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 2.60"
Length 2 (L2): 0.47"
Weight: 5.9 oz
The Mosmatic 32.910 DGVI Swivel is a high-quality swivel joint designed to maximize flexibility and reduce hose strain in paint spray guns, HP-guns, and other multi-directional applications. Made from brass, nickel-plated components, and stainless steel, this swivel offers outstanding durability and performance in high-pressure environments.
This model features a 1/8" NPTF inlet, 1/8" NPTM outlet, and a nominal width of 1/4", with a total length of 4.17". It includes a single thrust ball bearing, a reinforced inner shaft, and a maintenance-free design. The integrated NBR O-ring seal system (optional EPDM or FKM) provides leak-free operation under pressure. With a 4000 PSI rating, support for 30 RPM, and a maximum temperature of 250°F, this swivel ensures smooth, unrestricted motion where it’s needed most.
Applications
-
Paint spray guns and airless paint systems
-
High-pressure guns and hose connections
-
Multi-directional hose routing
-
Automotive, industrial, and surface coating equipment
-
Pressure cleaning systems requiring hose maneuverability
Key Features
-
Thread Inlet: 1/8" NPTF | Thread Outlet: 1/8" NPTM
-
Overall Length: 4.17" | Nominal Width: 1/4"
-
Made from brass, nickel-plated components, and stainless steel
-
360° swivel articulation for enhanced mobility
-
Thrust ball bearing system ensures smooth operation
-
Includes NBR O-ring seal system (EPDM/FKM optional)
-
Maintenance-free with reinforced inner shaft
-
Rated to 4000 PSI, 30 RPM, and 250°F
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated, Stainless Steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread IN: 1/8"NPTF
Thread OUT: 1/8"M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75
Wrench Size 2 (SW2): 0.40
Length 1 (L1) (overall length) : 4.17
Length 2 (L2): 0.60
Length 3 (L3): 2.00
Weight: 13.8 oz
The Mosmatic DGVI Swivel 32.769 is a premium stainless steel swivel connector designed for high-pressure hose reels, HP-Guns, and hydraulic systems. It features 3/8" NPTF inlet and outlet ports with a single thrust ball bearing, enabling smooth live rotation under maximum pressure.
Crafted with robust stainless steel, this swivel ensures superior corrosion resistance, low maintenance, and long-lasting performance in demanding environments. Ideal for tangle-free hose operations in pressure washing and hydraulic applications.
Applications
-
High-pressure hose reels
-
Hydraulic systems
-
HP-Guns and pressure washers
-
Commercial cleaning equipment
-
Tangle-free hose installations
Features
-
Material: Full stainless steel construction
-
Thread IN (G1): 3/8" NPTF
-
Thread OUT (G2): 3/8" NPTF
-
Overall Length: 2.87"
-
Nominal Width (NW): 1/4"
-
Wrench Size (SW): 0.94"
-
Max Pressure: 7300 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing System: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Performance: Live rotation, zero maintenance, corrosion resistant
Specs
Pressure: 7300 psi (50 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.94"
Wrench Size 2 (SW2): 0.87"
Length 1 (L1) (overall length) : 2.87"
Weight: 7.1 oz
The Mosmatic 32.915 DGVI Swivel is a precision-engineered swivel designed to improve hose mobility and reduce operator fatigue in paint spray guns, HP-guns, and multi-directional cleaning systems. Built from brass, nickel-plated components, and stainless steel, it ensures high durability and consistent performance in high-pressure environments.
This swivel features a 1/4" NPTF inlet, 1/4" NPTM outlet, a nominal width of 1/4", and an overall length of 4.45". It includes a single thrust ball bearing, a reinforced inner shaft, and is maintenance-free for extended reliability. The integrated NBR O-ring seal (with optional EPDM or FKM) delivers leak-free operation. Rated up to 4000 PSI, 30 RPM, and 250°F, this swivel is ideal for heavy-duty, multi-angle usage.
Applications
-
Paint spray guns and industrial coating systems
-
HP-guns for pressure washing
-
Multi-directional hose assemblies
-
Automotive, marine, and industrial cleaning setups
-
High-pressure fluid delivery systems requiring flexibility
Key Features
-
Thread Inlet: 1/4" NPTF | Thread Outlet: 1/4" NPTM
-
Overall Length: 4.45" | Nominal Width: 1/4"
-
Made from brass, nickel-plated components, and stainless steel
-
360° swivel articulation for full-range hose mobility
-
Single thrust ball bearing for smooth rotation
-
Reinforced inner shaft for added strength
-
Maintenance-free design for long-term performance
-
NBR O-ring seal (EPDM/FKM optional)
-
Rated up to 4000 PSI, 30 RPM, and 250°F
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated, Stainless Steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread IN: 1/4"NPTF
Thread OUT: 1/4"M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75
Wrench Size 2 (SW2): 0.67
Length 1 (L1) (overall length) : 4.45
Length 2 (L2): 0.90
Length 3 (L3): 2.00
Weight: 15.0 oz
Mosmatic DGV Swivel 1"NPSH-F/M SW41/36 32.923
Stainless Steel Version
This is a specially designed swivel used for flooder hoses.

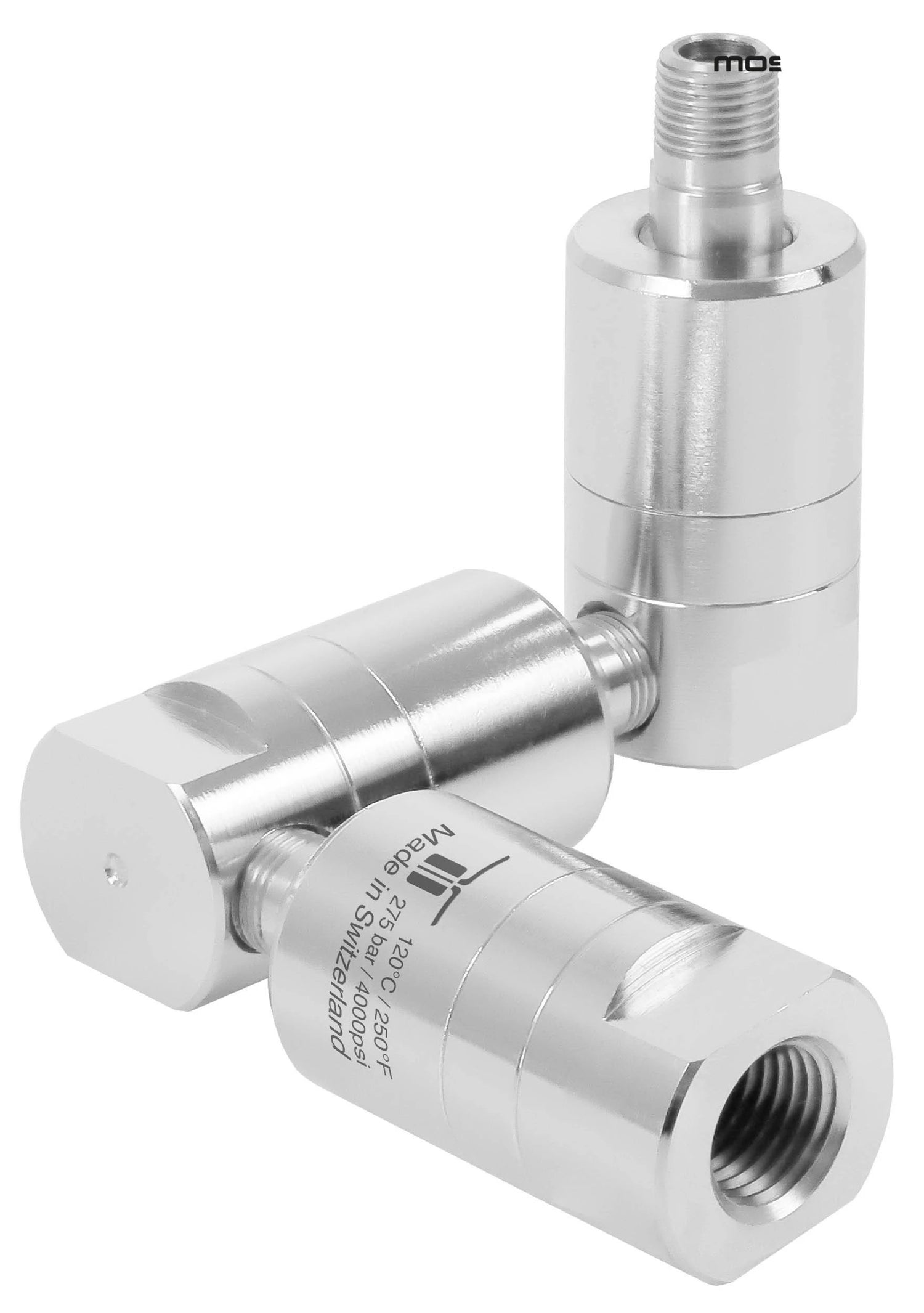

The Mosmatic 32.906 DGVI Swivel is a high-performance swivel joint engineered to enhance the flexibility and handling of paint spray guns, HP-guns, and multi-directional hose setups. Constructed from brass, nickel-plated components, and stainless steel, this swivel ensures long-lasting durability and smooth operation in high-pressure environments.
Designed with a 1/4" NPTF inlet and 1/8" NPTM outlet, the swivel offers a nominal width of 1/4" and a compact length of 4.17". It features a single thrust ball bearing system, a reinforced inner shaft, and a maintenance-free design. The NBR O-ring seal (optional EPDM or FKM) ensures leak-free performance, while its full 360° articulation supports up to 4000 PSI, 30 RPM, and 250°F, making it ideal for professional applications.
Applications
-
Paint spray guns and airless spraying systems
-
HP-guns for pressure washing
-
Multi-directional hose assemblies
-
Industrial and automotive refinishing equipment
-
High-pressure fluid delivery in confined or mobile setups
Key Features
-
Made from brass, nickel-plated, and stainless steel
-
Thread Inlet: 1/4" NPTF | Thread Outlet: 1/8" NPTM
-
Overall Length: 4.17" | Nominal Width: 1/4"
-
Rated for 4000 PSI, 30 RPM, and 250°F max temperature
-
Includes NBR O-ring seal system (EPDM and FKM optional)
-
Single thrust ball bearing for smooth swivel action
-
Reinforced inner shaft for added strength
-
Maintenance-free, full 360° swivel design
Specs
Pressure: 4000 psi
Temperature: 250°F
RPM: max 30 rpm
Material Type: Brass, Nickel plated, Stainless Steel
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread IN: 1/4"NPTF
Thread OUT: 1/8"M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.75
Wrench Size 2 (SW2): 0.40
Length 1 (L1) (overall length) : 4.17
Length 2 (L2): 0.60
Length 3 (L3): 2.00
Weight: 13.8 oz
