The Mosmatic WheelBlaster Compact - 84.609 is a high-performance, space-saving wheel cleaning solution designed for vehicle wash systems that demand power and precision in a smaller footprint. Built from polished stainless steel, this compact yet robust unit delivers powerful cleaning action through a moveable wash head that allows for easy adjustment of height and cleaning angle based on your application needs.

Equipped with a DYTI swivel, rotor arm, and four stabilizer nozzles, the WheelBlaster Compact achieves high-impact cleaning at a distance, offering up to 48" of surface coverage from 40" away. Its compact form makes it ideal for installations where space is limited but performance cannot be compromised.

Engineered to handle up to 4000 PSI of pressure, temperatures up to 250°F, and rotational speeds up to 2000 RPM, this cleaning head is compatible with detergents and chemicals ranging from pH 3 to 12. It features a standard 3/4" NPTF thread-in connection for seamless integration into most wash systems. Note: Cleaning nozzles are not included.

Applications

• Compact and space-restricted car wash systems

• Fleet and truck wash facilities

• Automotive service centers and detail shops

• Agricultural and industrial vehicle maintenance

• Custom wash bays with limited mounting space

Features

• Polished Stainless Steel Body: Durable, rust-resistant construction

• Compact Design: Ideal for space-limited wash bays

• Adjustable Cleaning Head: Fine-tune height and spray angle for targeted results

• DYTI Swivel & Rotor Arm: Smooth, high-speed rotation up to 2000 RPM

• 4 Stabilizer Nozzles: Increase cleaning force and coverage (main nozzles not included)

• Wide Cleaning Range: Covers up to 48" from a 40" distance

• High-Performance Rating: Operates up to 4000 PSI and 250°F

• Chemical Compatibility: Works with solutions in the pH 3–12 range

• Standard Connection: 3/4" NPTF thread for universal fit

Video

Included

Wheelblaster Head: No

Stand: No

Swivel: DYTIs

Rotor arm: 4"/4"

Stablizier Nozzle : 4x 14.902

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜" NPTF

Throughput medium: ph 3-12

Weight: 9.3 lbs

The Mosmatic WheelBlaster Pro with Stand - 84.546 is a cutting-edge wheel and underbody cleaning system engineered for maximum impact and flexibility in professional vehicle wash environments. Constructed from polished stainless steel, this heavy-duty cleaning unit is built to perform in high-demand applications, delivering superior cleaning power for wheels, chassis, and hard-to-reach vehicle components.

The adjustable wash head allows seamless control of height and cleaning angle, ensuring optimal coverage and precision. Equipped with a rotor arm, DYTI swivel, and four stabilizer nozzles, this system delivers high-impact cleaning at a distance—up to 48" of coverage from 40" away. The 39" stainless steel stand supports the mounting of multiple heads for even greater surface area reach and operational efficiency.

Designed for use in environments with pressures up to 4000 PSI, temperatures up to 250°F, and rotational speeds of up to 2000 RPM, the WheelBlaster Pro is compatible with a wide range of chemicals (pH 3–12) and features a ⅜" NPTF thread-in. This unit arrives fully equipped and ready for integration—nozzles not included.

Applications

• Commercial car wash tunnels and bays

• Fleet and truck wash systems

• Public transportation vehicle maintenance

• Agriculture and construction equipment cleaning

• Heavy-duty industrial cleaning systems

Features

• Polished Stainless Steel Construction: Built for corrosion resistance and long-term durability

• Adjustable Cleaning Angle & Height: Customizable wash head for precision cleaning

• High Impact at Distance: Cleans up to 48" from 40" away

• Rotor Arm with DYTI Swivel: Smooth, controlled rotation up to 2000 RPM

• Stabilizer Nozzles Included: Four nozzles increase reach and cleaning power (main nozzles sold separately)

• Mount Multiple Heads: 39" stand allows expansion for broader cleaning coverage

• High-Pressure & Temperature Tolerance: Rated for 4000 PSI and 250°F

• Chemical Compatibility: Operates effectively with cleaning agents from pH 3 to 12

• Thread-In Connection: Standard ⅜" NPTF inlet

Included

Wheelblaster Head: Yes

Stand: Yes

Swivel: DYTIs

Rotor arm: 6"/6"

Stablizier Nozzle : 4x 14.901

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜" NPTF

Diameter: 10"

Throughput medium: ph 3-12

Weight: 27.0 lbs

The Mosmatic WheelBlaster WBL 21" - 84.519 is a high-performance wheel and undercarriage cleaning solution, built for demanding vehicle wash environments. Crafted from polished stainless steel, this premium 21" unit delivers powerful, high-impact cleaning while maintaining exceptional durability and chemical resistance.

Designed with a DYT swivel featuring a quadruple bearing system, this model ensures ultra-smooth rotation, extended service life, and outstanding performance under continuous use. The unit includes a rotor arm and four stabilizer nozzles, increasing impact strength and cleaning distance for maximum coverage and precision.

Engineered to handle pressures up to 4000 PSI, temperatures up to 250°F, and rotation speeds up to 2000 RPM, the WBL 21" offers unmatched efficiency in vehicle wash systems. The unit connects via a ⅜" NPTF thread-in inlet and includes four 1/8" NPTF nozzle ports, and is chemically compatible with agents ranging from pH 3 to 12.
Note: High-pressure nozzles are not included.

Applications

• Tunnel car washes and automated wash bays

• Fleet and heavy truck cleaning systems

• Bus, train, and public transport maintenance

• Commercial vehicle detailing and service centers

• Agricultural and industrial vehicle wash operations

Features

• Quadruple Bearing System: Enhanced durability and smooth rotation

• Polished Stainless Steel Construction: Corrosion-resistant and built to last

• 21" Rotor Arm: Wide coverage for faster, more efficient cleaning

• DYT Swivel with Rotor Arm: Ensures reliable, high-speed 360° operation

• 4 Stabilizer Nozzles: Improves distance and cleaning power (main nozzles not included)

• High Performance Ratings: Handles up to 4000 PSI and 250°F

• Nozzle Configuration: ⅜" NPTF thread-in, 4x 1/8" NPTF nozzle ports

• Chemical Compatibility: Supports solutions within pH 3–12 range

Included

Wheelblaster Head: No

Stand: No

Swivel: DYT

Rotor arm: 18.5"/14"

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜" NPTF

Throughput medium: ph 3-12

Weight: 18.7 lbs

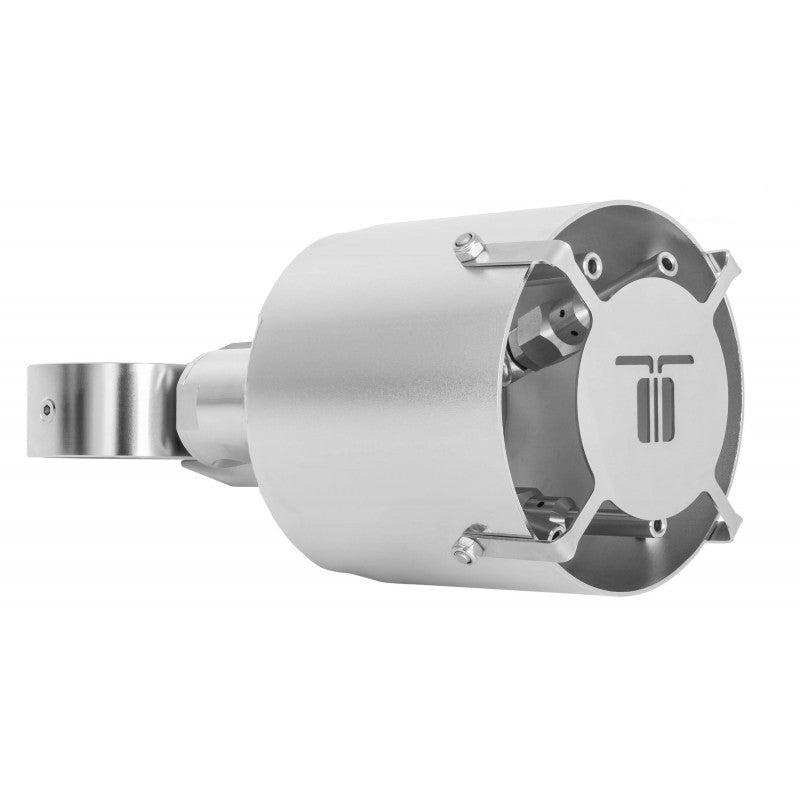

The Mosmatic WheelBlaster Pro without Stand - 84.596 is a powerful and compact wheel cleaning solution engineered for high-performance vehicle wash systems. Crafted from polished stainless steel, this unit offers unmatched cleaning efficiency with a moveable wash head that allows for seamless height and angle adjustment, delivering precision cleaning for wheels, wheel wells, and undercarriages.

This model features a 10" diameter rotor head, equipped with a DYTI swivel, rotor arm, and four stabilizer nozzles designed to extend cleaning distance and enhance impact force. Capable of cleaning up to 48" of surface area from 40" away, this unit is ideal for installations where a separate mounting structure is already in place or custom mounting is preferred.

With the ability to withstand up to 4000 PSI of pressure, temperatures up to 250°F, and rotational speeds of up to 2000 RPM, the WheelBlaster Pro is optimized for high-demand wash environments. It supports cleaning agents with a pH range of 3-12 and includes a standard 3/8" NPTF thread-in connection. Note: Cleaning nozzles are not included.

Applications

• Automatic and tunnel car washes

• Truck and fleet wash systems

• Public transport and commercial vehicle cleaning

• Agricultural and industrial equipment washing

• Custom-built wash bay installations

Features

• Polished Stainless Steel Construction: Corrosion-resistant and built for durability

• Compact Design: 10" rotor head ideal for tight spaces and precise installations

• Adjustable Wash Head: Selectable angle and height for targeted cleaning

• DYTI Swivel & Rotor Arm: Allows smooth 360° rotation up to 2000 RPM

• Stabilizer Nozzles: Enhance cleaning distance and impact force (main nozzles sold separately)

• Wide Cleaning Coverage: Cleans up to 48" from a 40" distance

• High-Pressure & Temperature Performance: Handles 4000 PSI and 250°F

• Chemical Compatibility: Works with detergents ranging from pH 3-12

• Standard Connection: 3/8" NPTF thread-in for easy system integration

 Video

Included

Wheelblaster Head: No

Stand: No

Swivel: DYTIs

Rotor arm: 6"/6"

Stablizier Nozzle : 4x 14.901

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: 3/8" NPTF

Diameter: 10"

Throughput medium: ph 3-12

Weight: 11.2 lbs

The Mosmatic WheelBlaster WBL 21" - 84.504 is a high-performance cleaning tool specifically designed for professional vehicle wash systems. With its polished stainless steel construction and advanced design, this 21-inch wheel blaster delivers exceptional cleaning power for wheels, wheel wells, and underbody components.

Equipped with a DYF swivel, rotor arm, and four stabilizer nozzles, the WBL 21" offers enhanced reach and impact force for deep, effective cleaning. The nozzle configuration increases the cleaning radius and ensures thorough dirt and debris removal in a fraction of the time. Its triple bearing system ensures smoother rotation, improved longevity, and reduced maintenance, making it ideal for high-volume, high-speed wash applications.

Designed to operate under high pressures up to 4000 PSI, temperatures up to 250°F, and rotational speeds up to 2000 RPM, this unit excels in high-demand environments. It features a ⅜" NPTF thread-in inlet and four 1/8" NPTF nozzle ports. With chemical compatibility ranging from pH 3 to 12, this wheel blaster integrates seamlessly into existing wash systems.
Note: Cleaning nozzles are not included.

Applications

• Tunnel and rollover car washes

• Commercial fleet and truck wash stations

• Public transit and heavy vehicle maintenance

• Detail shops and service centers

• High-volume vehicle wash bays

Features

• Polished Stainless Steel Body: Corrosion-resistant and built for durability

• 21" Rotor Arm: Wide cleaning coverage for maximum efficiency

• DYF Swivel with Rotor Arm: Smooth 360° operation for even cleaning results

• 4 Stabilizer Nozzles: Increased impact and coverage (main HP nozzles not included)

• High-Pressure & Temperature Rating: Operates at up to 4000 PSI and 250°F

• Nozzle Connections: Inlet thread ⅜" NPTF, nozzle ports 4x 1/8" NPTF

• High-Speed Performance: Rotational speed up to 2000 RPM

• Chemical Compatibility: Suitable for pH 3–12 cleaning agents

• Triple Bearing System: Provides smooth operation and extended lifespan

Included

Wheelblaster Head: No

Stand: No

Swivel: DYF

Rotor arm: 16"/10"

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜" NPTF

Throughput medium: ph 3-12

Weight: 15.8 lbs

The Mosmatic Low Volume WBP250 Replacement - Part #84.599 is a set of two stainless steel components engineered for use with the Mosmatic Undercarriage Cleaner with Ramp. Designed to reduce water consumption without sacrificing performance, these low volume WBP250 parts are ideal for maximizing efficiency in professional vehicle wash systems.

Withstanding pressures up to 1000 PSI and temperatures up to 250°F, they deliver consistent and reliable operation in demanding environments. Compatible with a wide pH range (3-12), these replacements are perfect for systems using a variety of chemical cleaners. Built from high-grade stainless steel, the WBP250 replacements are built to last, providing long-term value and dependable performance.

Applications

• Replacement for Mosmatic Undercarriage Cleaner with Ramp

• Commercial vehicle wash bays

• Fleet maintenance and industrial wash stations

• Low water volume systems requiring high efficiency

• Chemical wash applications using pH 3-12 cleaners

Features

• Includes: Two Low Volume WBP250 replacement parts

• Material: Durable stainless steel for corrosion resistance

• Pressure Rating: Up to 1000 PSI

• Temperature Rating: Up to 250°F for hot water cleaning

• Chemical Compatibility: Works with pH range 3-12

• Low Volume Efficiency: Designed to conserve water while maintaining effectiveness

• Reliable and Long-Lasting: Engineered for commercial-grade usage

Video

Specs

Material Type: Stainless steel

Pressure: 1000 PSI

Thread In (Water connection for WBP (Wheel Blaster Pro)): 4x 3/8" NPTF

Temperature: 250°F

Throughput medium: ph 3-12

Weight: 10.6 lbs

The Mosmatic Stationary Undercarriage Cleaner TUWs – 80.640 is a heavy-duty, industrial-grade solution for permanent vehicle wash installations, including fixed ramp-over and sub-floor wash systems. Constructed with high-quality stainless steel plates and boxes, this unit features quad bearing swivels and precision-welded, balanced rotor arms for consistent, vibration-free operation.

Its high-lift wash design effectively removes heavy debris while safely cleaning the vehicle’s undercarriage without causing damage. Designed for high-volume applications, the TUWs 80.640 operates at pressures up to 4000 PSI, temperatures up to 250°F, and is compatible with cleaning agents in the pH 3–12 range. The system includes a modular design and compact footprint, and it must be equipped with 4 EG-style nozzles (not included), specified based on your pump setup.

Note: Always verify local wastewater runoff regulations before installation.

Applications

• Permanent undercarriage cleaning systems in wash bays

• Fleet maintenance and commercial vehicle facilities

• High-volume car wash operations

• Ramp-over or in-ground wash platforms

• Heavy-duty wash stations requiring high pressure and flow

Features

• High-Lift Design: Removes heavy dirt without damaging vehicle underbodies

• Material: Industrial-grade stainless steel for durability and corrosion resistance

• Quad Bearing Swivels: Smooth rotation and long service life

• Balanced Rotor Arms: Welded for consistent cleaning performance

• Modular & Compact: 29.5" x 11.8" x 10.8" body for easy integration

• Stabilizer Nozzles: For steady spray and cleaning precision

• Water Connection: 3/4" NPTF inlet, 2" water drain

• Performance Specs: Up to 4000 PSI, 250°F, 2000 RPM

• Cleaning Surface:

  • 4" ground clearance = 13" surface

  • 8" ground clearance = 16" surface

  • 12" ground clearance = 18" surface

• Chemical Compatibility: pH 3–12 cleaning media

Included

Swivels : 2x DYT

Rotor arms : 8"/10"

Stabilizer nozzles : 4x 14.901

One HP Nozzle 1503 1/8"

* 4 of EG Nozzles Needed - NOT INCLUDED

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: 2000 RPM

Thread In (Water connection for ramp) : 3/4" NPTF

Length: 29.5"

Width: 11.8"

Height: 10.8"

Throughput medium: ph 3-12

Weight: 70.5 lbs

Manuals

Mosmatic Undercarriage Cleaner Stationary Manual

Mosmatic splash guards are a must prevent water from entering into pay station coin/card slots causing unwanted damage.Choose between teh standard version and the flexible version.The flexible version has spring-loaded mounting, adding extra endurance. Existing units already equipped with a Mosmatic splash guard, can be easily upgraded to the new system

• Delivered ready to install
• A must for every pay station
• Protects the coin slot

Bracket version: round, Weight 0.2 lbs

The Mosmatic WheelBlaster WBL 21" - 84.509 is a high-performance wheel and undercarriage cleaning solution, built for demanding vehicle wash environments. Crafted from polished stainless steel, this premium 21" unit delivers powerful, high-impact cleaning while maintaining exceptional durability and chemical resistance.

Designed with a DYT swivel featuring a quadruple bearing system, this model ensures ultra-smooth rotation, extended service life, and outstanding performance under continuous use. The unit includes a rotor arm and four stabilizer nozzles, increasing impact strength and cleaning distance for maximum coverage and precision.

Engineered to handle pressures up to 4000 PSI, temperatures up to 250°F, and rotation speeds up to 2000 RPM, the WBL 21" offers unmatched efficiency in vehicle wash systems. The unit connects via a ⅜" NPTF thread-in inlet and includes four 1/8" NPTF nozzle ports, and is chemically compatible with agents ranging from pH 3 to 12.
Note: High-pressure nozzles are not included.

Applications

• Tunnel car washes and automated wash bays

• Fleet and heavy truck cleaning systems

• Bus, train, and public transport maintenance

• Commercial vehicle detailing and service centers

• Agricultural and industrial vehicle wash operations

Features

• Quadruple Bearing System: Enhanced durability and smooth rotation

• Polished Stainless Steel Construction: Corrosion-resistant and built to last

• 21" Rotor Arm: Wide coverage for faster, more efficient cleaning

• DYT Swivel with Rotor Arm: Ensures reliable, high-speed 360° operation

• 4 Stabilizer Nozzles: Improves distance and cleaning power (main nozzles not included)

• High Performance Ratings: Handles up to 4000 PSI and 250°F

• Nozzle Configuration: ⅜" NPTF thread-in, 4x 1/8" NPTF nozzle ports

• Chemical Compatibility: Supports solutions within pH 3–12 range

Included

Wheelblaster Head: No

Stand: No

Swivel: DYT

Rotor arm: 16"/10"

Specs

Material Type: Stainless steel

Pressure: 4000 PSI

Temperature: 250°F

RPM: up to 2000

Thread In: ⅜" NPTF

Throughput medium: ph 3-12

Weight: 18.5 lbs

The Mosmatic Bay Package 65.937 offers a complete dual bay setup to equip your self-service car wash with all the essential components for maximum efficiency, function, and a polished aesthetic. Engineered from high-quality stainless steel, this package provides a cohesive and professional finish while ensuring long-term durability in high-use environments. From ceiling booms to spray guns, wand holders, and brush buckets, everything is included for a streamlined installation. Designed for convenience, this kit simplifies the car wash setup process by delivering all necessary equipment in a single package.

Applications

• Self-service car wash bays

• Commercial vehicle wash stations

• Car wash upgrades and renovations

• Multi-bay car wash installations

Key Features

• 2x DKZ-Booms (65.019): 5'1", polished stainless steel, ceiling-mounted

• 1x Straight Wand (26.980): 20"/8" with nozzle guard

• 1x HP Nozzle (2507): High-pressure precision cleaning

• 1x DGV Gun Swivel (32.564): 3/8" NPTF to 3/8" NPTM

• 1x Spring Wand Holder (29.097): Floor-mounted with recovery port

• 1x HP Gun with Weep System (29.082): 4500 psi, 300°F

• 1x Brush Wand (25.922): 41"/32", swiveling for flexibility

• 1x Brush Bucket (29.027): Stainless steel, 2" drain, with overflow

• 2x Mat Holders (90.050): Wall-mount, stainless steel

• 2x Comfort HP Hoses (90.090): NW 1/4", 15'5", 2900 psi, 140°F

Contains

65.019 - 2x - DKZ-Boom, 5'1", polished

26.980 - 1x - Wand straight, 20"/8", with nozzle guard

2507 - 1x - High pressure nozzle 2507

32.564 - 1x - DGV gun swivel, 3/8" NPTF - 3/8" NPTM

29.097 - 1 x - Wand-Holder spring model, with recovery port, floor mounted, stainless steel

29.082 - 1x - HP-Gun with weep-system, 4500psi, 300°F

25.922 - 1x - Brush Wand straight, 41"/32", swiveling

29.027 - 1x - Brush-Bucket wall- and floor mounted, 2" drain plug with overflow, stainless steel

90.050 - 2x - Mat-holders, stainless steel

90.090 - 2x - HP-hose comfort, NW 1/4″, 2900 psi, 140°F, length: 15'5″

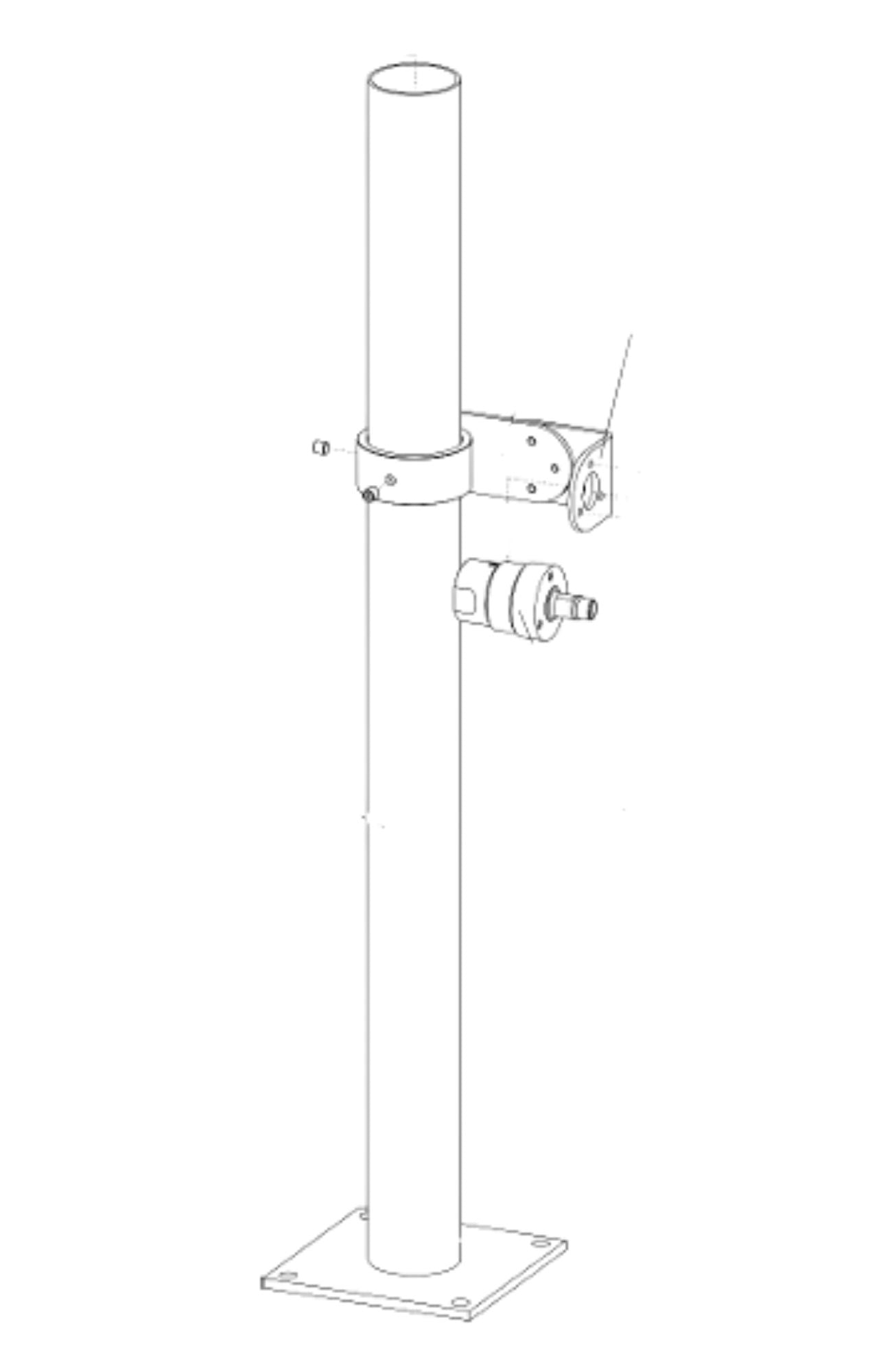

Mosmatic item 904.683 is a replacement mounting bracket for the Wheelblaster Pro.

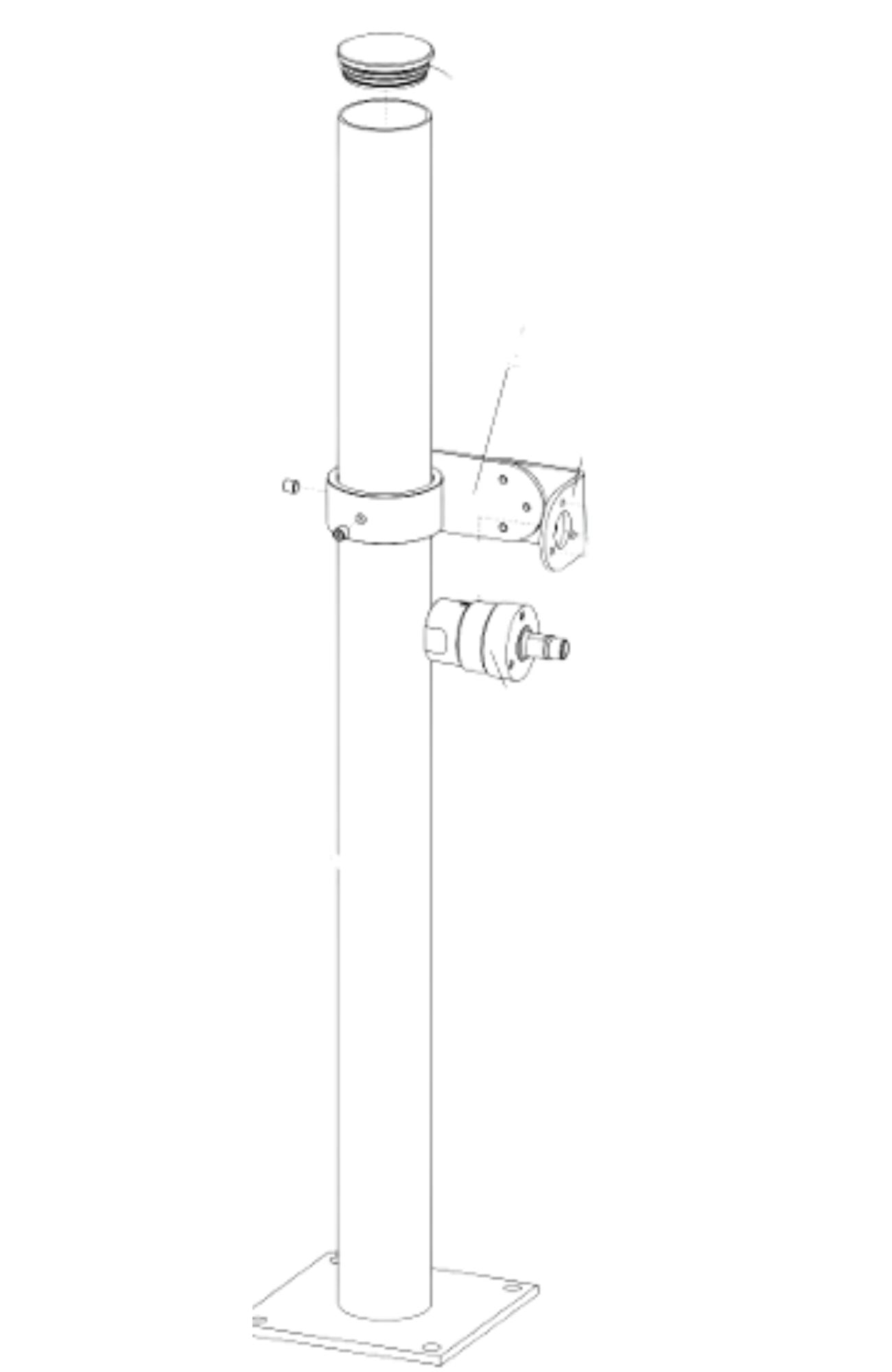

Mosmatic item 903.988 is a replacement height adjustment welded adjuster for the Wheelblaster Pro.

Mosmatic Pro Undercarriage Cleaner Ramp + Pump Stand – Most Popular Bundle

The Mosmatic Pro Undercarriage Cleaner Ramp + Pump Stand Bundle is a quasi- complete, professional-grade solution designed for high-volume vehicle wash operations that demand consistent, high-performance underbody cleaning.

Built around Mosmatic’s industry-leading stainless steel undercarriage system and paired with a powerful industrial pump stand, this bundle gives you the core infrastructure needed to deploy a reliable, high-output wash station in commercial or fleet environments.

System Overview

The Mosmatic Undercarriage Cleaner with Ramp – 80.506 is engineered for efficient, full-width chassis cleaning across a wide range of vehicle types. Constructed from heavy-duty stainless steel, it is designed to withstand demanding environments while maintaining long-term corrosion resistance.

This system utilizes six precision spray heads and is optimized for high-flow applications, delivering consistent cleaning performance at pressures up to 1000 PSI and temperatures up to 250°F.

Paired with a high-output pump stand, this bundle provides the power and flow required to properly operate the system at its intended performance level.

Video

Included

Mosmatic Undercarriage System

• Mosmatic Undercarriage Cleaner with Ramp Set Up - 80.506
  • 1x Stainless Steel Ramp - 80.508
  • 2x Riggers - 80.550
  • 2x Low Volume WBP140 Units -84.589
  • 2x WBP250 Units - 84.599
  • 2x Stands - 903.986
• 2x Mosmatic Undercarriage Cleaner with Ramp - Extension - 84.907
• 1x Mosmatic Hose Kit - 80.560

• 16x Stabilizer Nozzles - 14.902 (4x Ramp, 8x HP Wheel Blasters, 4x Low Volume Wheel Blasters)


Clean Direct Pump Stand

• Industrial stainless steel pump system (siphon feed)

• Master Control Box
• Photo Eye System
• Integrated motor starter enclosure
• Stainless steel housing

• Vehicle detection treadle

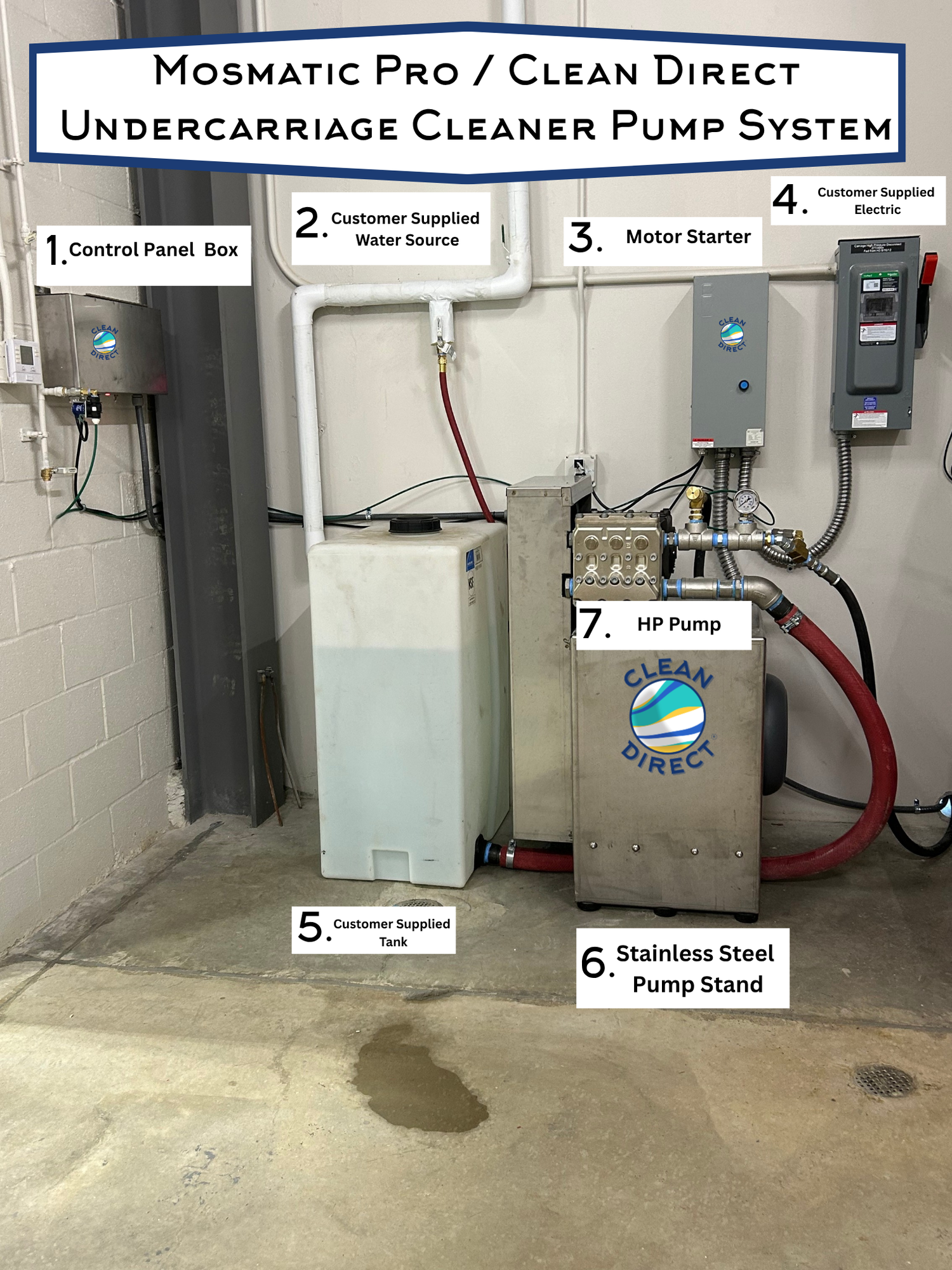

Components supplied by Clean Direct (as pictured):

#1 Control Panel Box
#3 Motor Starter
#6 Stainless Steel Pump Stand (includes gauge and unloader preplumbed)
#7 High Pressure Pump
*Main Pump Stand Hoses and accessories are included but customer may need to supply some additional hoses, fittings, connectors etc based upon their specific install needs.

Specifications

Pump Stand

• Pump Output: 40 GPM
• Operating Pressure: 800 PSI
• Motor Size: 30 HP
• Electrical Requirement: 480V, 3-Phase AC
• Starter: Includes 480V Motor Starter Panel
• Configuration: Skid-mounted for stationary installation (picture is stationary)

Performance Requirements

To achieve proper performance, the system must be supported by adequate utilities:

• Water Supply: Minimum 24 GPM (higher recommended for optimal results)
• Buffer Tank: Typically 80+ gallons minimum (final sizing based on supply conditions)
• Power Supply: 480V, 3-phase electrical service required
• Pressure Range: 800–1000 PSI operating range

Key Features

• Full-Width Cleaning Coverage: 4’ 9.6” system length for complete vehicle undercarriage cleaning
• High Flow Design: Engineered for systems operating at 24+ GPM
• Durable Construction: Stainless steel components for long-term corrosion resistance
• Chemical Compatibility: Supports detergents with pH range of 3–12
• High Temperature Rated: Handles water up to 250°F
• Modular System: Expandable with accessories like extensions, hose kits, and collision protection
• Commercial-Grade Output: Designed for fleet wash bays, car washes, and industrial applications

Installation & Setup Notes

This is a DIY / customer-installed system. Clean Direct does not provide installation services.

• Customer is responsible for all plumbing and electrical work
• A buffer tank is required and must be sized appropriately for your water supply
• Some basic hoses and components may be included, but additional fittings, hoses, and connectors will likely be required
• System layout and configuration will vary based on facility design

Important Considerations

• Minimum ground clearance: 4.8”
• Always verify local wastewater and runoff regulations before installation

Ideal Applications

• Fleet maintenance facilities
• Commercial truck and equipment wash bays
• Car wash tunnels and self-serve bays
• Industrial vehicle cleaning operations
• Facilities requiring high-output undercarriage sanitation


UL (Underwriters Laboratories)

• Individual components are UL Listed

• Needs to be installed by a licensed electrician
• Final installation must be built according to NEC (National Electric Code)


Bottom Line

This bundle removes the guesswork by pairing the Clean Direct high-flow pump system with Mosmatic’s proven undercarriage cleaning platform. It’s built for operators who want a serious, scalable solution—not a pieced-together setup.

The Mosmatic Wheelblaster Pro is the new "must have" for vehicle wash system. The wash head is moveable and the desire cleaning angle and height can be selected according to the application. The unit comes equipped with 4 stabilizer nozzles. That increase the distance and impact to achieve optimal cleaning. It is possible to cover a larger cleaning area by mounting various cleaning heads on the 39" high stand. Choose the correct EG nozzle to match your pump. (Nozzles not included.)

• Polished stainless steel
• Equipped with stabilizer nozzles
• Seamless height and angle adjustable
• Multiple cleaning heads can be installed
• High impact at a distance

 Video

The Undercarriage Cleaner – Dual Ramp (80.518) is a heavy-duty stainless steel ramp system designed for use with Mosmatic undercarriage cleaning units. This configuration includes the dual ramp assembly and two center ramp sections only, providing a stable, precision-aligned platform for dual undercarriage cleaner installations.

Engineered for demanding commercial and industrial wash environments, the dual ramp system supports high-performance cleaning with a pressure rating of up to 4000 PSI and temperature tolerance up to 250°F. It features two 3/8" NPT water inlets and accommodates eight 1/8" NPT nozzle connections, allowing efficient water distribution across dual cleaning units. The system is compatible with cleaning solutions in a pH range of 3–12, making it suitable for a wide range of detergents and wash chemicals.

Constructed from corrosion-resistant stainless steel, the dual ramp is built for long-term durability, structural stability, and consistent performance. It is intended for permanent installation and must be securely anchored to the ground using appropriate fastening hardware (not included). This ramp system is ideal for facilities requiring increased undercarriage wash coverage, higher throughput, or dual-rotor cleaning configurations.

Applications

• Dual undercarriage cleaner installations
• Commercial vehicle and fleet wash systems
• Industrial wash bays and service facilities
• High-pressure underbody cleaning operations
• Fixed wash stations using pH-balanced or mildly acidic/alkaline solutions

Features

• Configuration: Dual ramp system with two center ramp sections (ramp only)
• Material: Corrosion-resistant stainless steel construction
• Water Connections: 2 × 3/8" NPT inlet
• Nozzle Connections: 8 × 1/8" NPT
• Pressure Rating: Supports up to 4000 PSI (27.5 MPa)
• Temperature Tolerance: Up to 250°F
• Chemical Compatibility: pH 3–12
• RPM Rating: Max. 2000 RPM (system-rated)
• Installation: Designed for fixed mounting; anchoring hardware not included
• Durability: Built for continuous commercial and industrial use

Video

Specs

Material Type: Stainless steel

Pressure: 1000 PSI

Temperature: 250°F

Thread In (Water connection for ramp) : 3/8 NPTM

Min Ground Clearance: 4.8"

Throughput medium: ph 3-12
