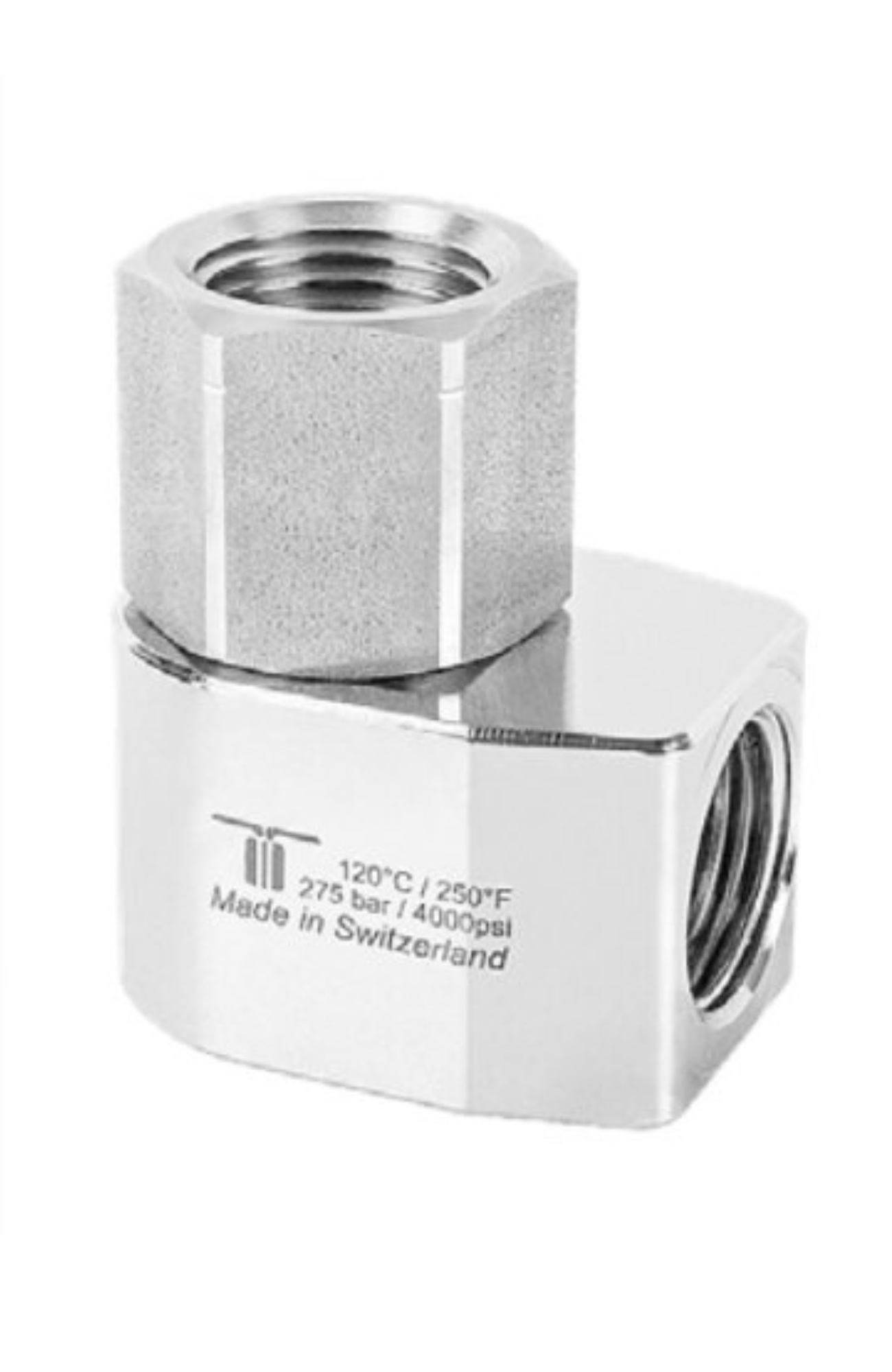

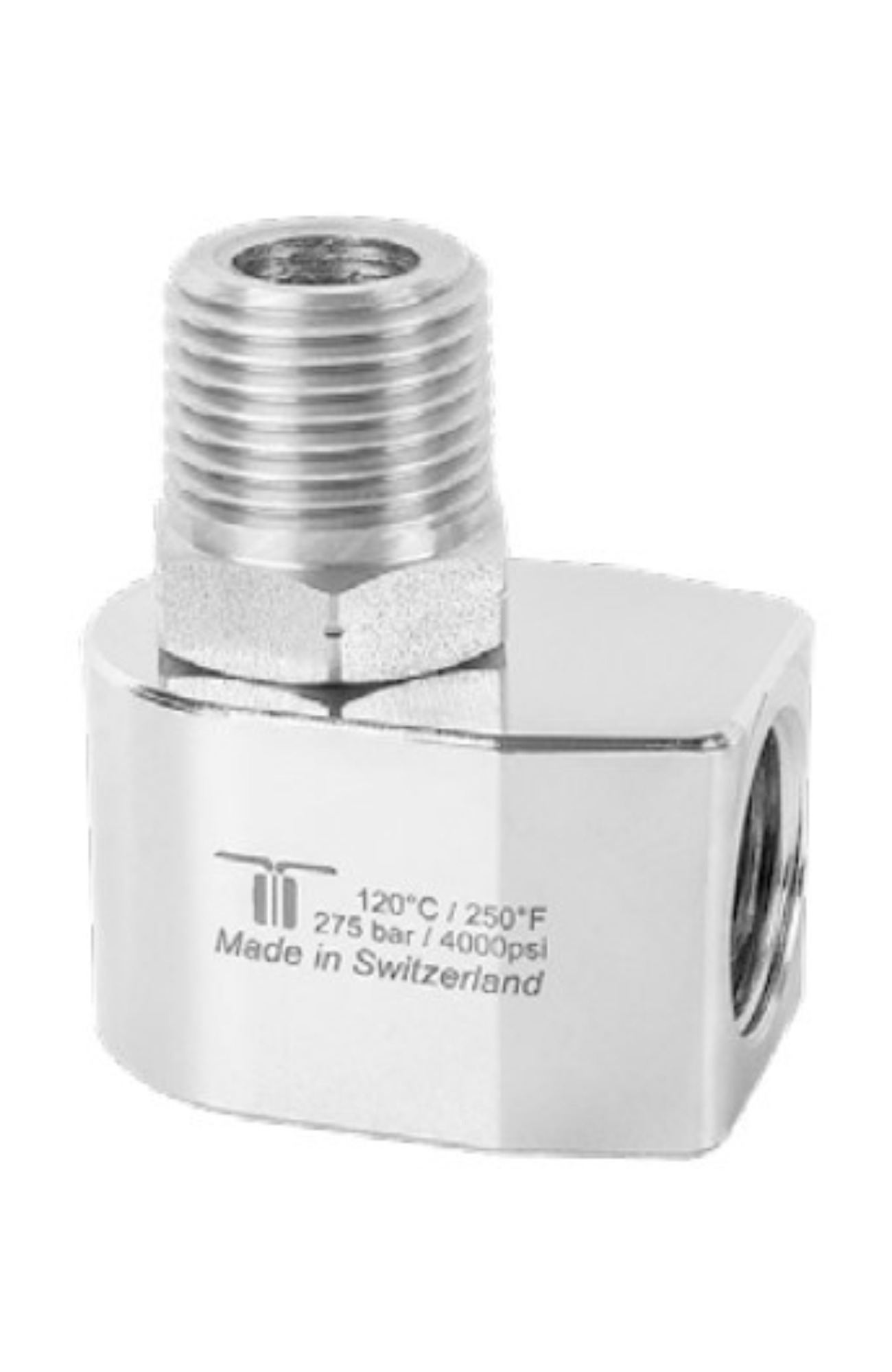

WDE Rotary Union/Swivel
Sort by:
The Mosmatic WDG Swivel 40.453 is a robust, high-performance swivel designed for long-lasting use in high-pressure cleaning systems. Constructed from nickel-plated brass, this swivel delivers corrosion resistance and durability in demanding environments. It features a sliding bearing for smooth, low-friction rotation and a sealing system that includes a standard O-ring NBR with support ring, and optional EPDM or FKM seals to meet specific temperature or chemical compatibility needs. With 1/2" NPTF inlet to 1/2" NPTM outlet, it handles up to 4000 psi, 30 RPM, and 250°F, making it ideal for professional hose reels, ceiling booms, and pressure cleaners.
Applications
-
Industrial pressure washer setups
-
Ceiling booms and wall booms
-
Heavy-duty hose reels and spray systems
-
Food and chemical washdown equipment
-
Inline hose swivel in high-volume flow systems
Features
-
Nickel-plated brass construction for strength and corrosion protection
-
Sliding bearing ensures smooth, controlled rotation
-
Thread IN: ½" NPTF | Thread OUT: ½" NPTM
-
Dimensions: Height – 1.1" | Overall Length – 2.17"
-
Nominal Width (NW): ½"
-
Rated for up to 4000 psi operating pressure
-
Temperature range up to 250°F
-
Max rotational speed: 30 RPM
-
Sealing system: O-ring NBR with support ring, optional EPDM or FKM available
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 1.1
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.52
Length 5 (L5): 0.59
Length 6 (L6): 0.1
Weight: 9.3 oz

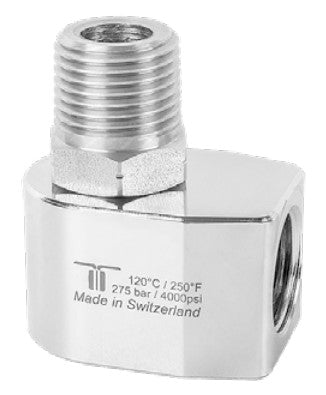

The Mosmatic WDG Swivel 40.451 is a compact, high-pressure swivel designed for precision and durability in demanding cleaning systems. Built from nickel-plated brass, it offers excellent corrosion resistance and long-term performance. This swivel features a sliding bearing for smooth rotation and is sealed with a high-quality O-ring NBR and support ring, with optional EPDM or FKM seals available for specific chemical or thermal requirements. With 1/4" NPTF inlet and 1/4" NPTM outlet, this swivel supports up to 4000 psi, 30 RPM, and 250°F, making it ideal for high-performance hose reels, ceiling booms, and pressure washers.
Applications
-
High-pressure hose reels
-
Ceiling booms and wall booms
-
Food industry washdown systems
-
High-pressure cleaners and foaming tools
-
Compact inline hose or lance connectors
Features
-
Nickel-plated brass construction for durability and corrosion resistance
-
Sliding bearing ensures consistent, low-friction rotation
-
Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTM
-
Compact size: Height – 0.87" | Overall Length – 1.65"
-
Nominal Width (NW): 1/4"
-
Rated for up to 4000 psi working pressure
-
Handles operating temperatures up to 250°F
-
Supports 30 RPM for light to moderate rotational demands
-
O-ring NBR with support ring (optional EPDM or FKM seal variants) for enhanced sealing performance
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.75
Height (H): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.65
Length 3 (L3): 1.14
Length 4 (L4): 1.12
Length 5 (L5): 0.39
Length 6 (L6): 0.1
Weight: 7.9 oz
The Mosmatic WDG Swivel 40.452 is a high-performance, nickel-plated brass swivel engineered for long-lasting operation in high-pressure cleaning systems. Ideal for use with hose reels, ceiling booms, and pressure washers, this swivel includes a sliding bearing for smooth, controlled rotation and is sealed with a durable O-ring NBR and support ring, with optional EPDM or FKM seal materials available to meet specific chemical or temperature requirements. With a 3/8" NPTF inlet and 3/8" NPTM outlet, the swivel supports pressures up to 4000 psi, temperatures up to 250°F, and rotation speeds up to 30 RPM, making it a reliable solution for professional-grade cleaning applications.
Applications
-
High-pressure hose reels and boom arms
-
Ceiling- or wall-mounted cleaning systems
-
Industrial spray tools and washers
-
Food-grade and sanitary cleaning systems
-
Swivel joints in high-pressure fluid lines
Features
-
Nickel-plated brass construction offers excellent corrosion resistance
-
Sliding bearing provides smooth and stable rotational function
-
Thread IN: ⅜" NPTF | Thread OUT: ⅜" NPTM
-
Compact form: Height – 0.94" | Overall Length – 1.77"
-
Nominal Width (NW): ⅜"
-
Rated for up to 4000 psi of pressure
-
Withstands temperatures up to 250°F
-
Max operational speed of 30 RPM
-
Sealing system includes O-ring NBR/support ring, with optional EPDM or FKM
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.75
Height (H): 0.94
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.77
Length 3 (L3): 1.14
Length 4 (L4): 1.20
Length 5 (L5): 0.43
Length 6 (L6): 0.1
Weight: 8.1 oz
The Mosmatic WDE Swivel 43.459 is a high-quality nickel-plated brass swivel engineered for use in ceiling booms, high-pressure hose reels, pressure cleaners, and food processing environments. It features a sliding bearing for smooth, low-friction rotation and a dependable O-ring NBR seal to ensure leak-free performance. For additional chemical or temperature resistance, EPDM or FKM seals are also available. With a 3/8" NPTF inlet and 1/2" NPTF outlet, this swivel supports up to 4000 psi, operates at speeds up to 30 RPM, and withstands temperatures up to 250°F, making it ideal for heavy-duty and sanitary applications.
Applications
-
High-pressure hose reels
-
Ceiling boom systems
-
Industrial pressure washers and sprayers
-
Sanitary washdown systems in the food industry
Key Features
-
Nickel-plated brass body for corrosion resistance and hygienic use
-
Sliding bearing for reliable, consistent rotation
-
Thread IN: 3/8" NPTF | Thread OUT: 1/2" NPTF
-
Overall Length: 2.17"
-
Nominal Width (NW): 1/2"
-
Rated for 4000 psi operating pressure
-
Max operating temperature: 250°F
-
Supports up to 30 RPM rotational speed
-
O-ring NBR seal standard; EPDM or FKM available for specific fluid compatibility
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 1.06
Height (H): 1.1
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.52
Length 5 (L5): 0.1
Weight: 10.8 oz
The Mosmatic WDE Swivel 43.458 is a premium nickel-plated brass swivel engineered for demanding environments such as ceiling booms, high-pressure hose reels, pressure cleaners, and food industry applications. Built for durability and long-lasting performance, it features a sliding bearing that ensures smooth rotation and stability during operation. The swivel is sealed with a reliable O-ring NBR, with optional EPDM or FKM seals available to meet specific chemical and thermal compatibility requirements. With 1/2" NPTF inlet and outlet threads, this swivel supports 4000 psi, 30 RPM, and temperatures up to 250°F.
Applications
-
High-pressure hose reel systems
-
Ceiling boom assemblies
-
Commercial and industrial pressure washers
-
Food-grade and sanitary fluid handling systems
Key Features
-
Nickel-plated brass construction for corrosion resistance and hygiene compliance
-
Sliding bearing enables smooth, controlled rotation
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF
-
Overall Length: 2.17"
-
Nominal Width (NW): 1/2"
-
Rated for 4000 psi working pressure
-
Maximum operating temperature: 250°F
-
Designed for rotational speeds up to 30 RPM
-
Sealed with O-ring NBR, with EPDM or FKM optional for specific applications
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 1.06
Height (H): 1.1
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.52
Length 5 (L5): 0.1
Weight: 10.2 oz
The Mosmatic WDE Swivel 43.457 is a high-performance nickel-plated brass swivel designed for ceiling booms, high-pressure hose reels, pressure washers, and food industry systems. This swivel is engineered for smooth operation and long-lasting durability with its sliding bearing mechanism. It features a reliable O-ring NBR seal, with optional EPDM or FKM materials available to handle more aggressive chemicals or elevated temperatures. With …œ" NPTF inlet and outlet threads, it is rated for 4000 psi, supports 30 RPM, and operates at temperatures up to 250°F.
Applications
-
Ceiling boom assemblies
-
High-pressure hose reels
-
Pressure cleaning systems
-
Sanitary and food-grade fluid transfer
Key Features
-
Nickel-plated brass construction for durability and corrosion resistance
-
Sliding bearing provides smooth, stable rotation
-
Thread IN: …œ" NPTF | Thread OUT: …œ" NPTF
-
Overall Length: 1.77"
-
Nominal Width (NW): …œ"
-
Rated for 4000 psi working pressure
-
Withstands temperatures up to 250°F
-
Operates at speeds up to 30 RPM
-
Standard O-ring NBR seal, with optional EPDM or FKM for enhanced chemical compatibility
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.75
Height (H): 0.94
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.77
Length 3 (L3): 1.14
Length 4 (L4): 1.20
Length 5 (L5): 0.1
Weight: 7.9 oz
The Mosmatic WDE Swivel 43.456 is a compact, high-performance nickel-plated brass swivel designed for use in ceiling booms, high-pressure hose reels, pressure cleaners, and food industry systems. Built for reliability and cleanliness, it features a sliding bearing for smooth rotation and is sealed with a durable O-ring NBR, with optional EPDM or FKM seals for enhanced chemical or thermal resistance. With 1/4" NPTF inlet and outlet ports, this swivel supports 4000 psi, operates up to 30 RPM, and withstands temperatures up to 250°F, making it ideal for compact, high-pressure fluid connections.
Applications
-
Ceiling boom systems
-
High-pressure hose reels
-
Pressure washers and cleaning equipment
-
Food industry and sanitary fluid systems
Key Features
-
Nickel-plated brass body for corrosion resistance and food-grade compatibility
-
Sliding bearing enables stable, low-friction rotation
-
Thread IN: ¼" NPTF | Thread OUT: ¼" NPTF
-
Overall Length: 1.65"
-
Nominal Width (NW): ¼"
-
Rated for 4000 psi working pressure
-
Handles temperatures up to 250°F
-
Operates at speeds up to 30 RPM
-
O-ring NBR seal standard; EPDM or FKM optional for specialized use
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4" NPTF
Thread Out: G2 1/4" NPTF
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.75
Height (H): 0.87
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 1.65
Length 3 (L3): 1.14
Length 4 (L4): 1.12
Length 5 (L5): 0.1
Weight: 8.3 oz
The Mosmatic WDE Swivel 43.454 is a high-performance nickel-plated brass swivel engineered for demanding applications in the food industry, as well as ceiling booms, high-pressure hose reels, and pressure cleaning systems. Designed for smooth operation and long-lasting durability, it features a sliding bearing for stable rotation and is sealed with a dependable O-ring NBR, with optional EPDM or FKM seals available for chemical and temperature resistance. With a 3/8" NPTF inlet and 1/2" NPTM outlet, this swivel supports pressures up to 4000 psi, temperatures up to 250°F, and rotation speeds up to 30 RPM.
Applications
-
Ceiling boom systems
-
High-pressure hose reels
-
Food-grade cleaning systems
-
Commercial and industrial pressure washers
Key Features
-
Nickel-plated brass construction for corrosion resistance and hygiene compliance
-
Sliding bearing for smooth and consistent rotation
-
Thread IN: 3/8" NPTF | Thread OUT: 1/2" NPTM
-
Overall Length: 2.17"
-
Nominal Width (NW): 1/2"
-
Rated for up to 4000 psi operating pressure
-
Handles temperatures up to 250°F
-
Max operating speed: 30 RPM
-
Sealing: O-ring NBR standard, EPDM or FKM optional for special media compatibility
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: 30
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR / Support ring (EPDM or FKM optional)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 1.1
Length 1 (L1): 1.77
Length 2 (L2) (overall length): 2.17
Length 3 (L3): 1.14
Length 4 (L4): 1.52
Length 5 (L5): 0.59
Length 6 (L6): 0.1
Weight: 9.9 oz
