DGEI Rotary Union/Swivel
Sort by:
The Mosmatic DGE Swivel - 34.765 is a rugged, high-flow stainless steel swivel designed for high-pressure applications where thrust and radial forces must be managed reliably. Equipped with 1x thrust ball bearing and 2x sliding bearings, this swivel delivers stable, low-RPM rotation and long-term durability. Its corrosion-resistant stainless steel construction makes it ideal for demanding environments such as pharmaceutical processing, food and beverage sanitation, automatic car wash systems, and industrial fluid handling.
Applications:
-
Food and beverage cleaning and transfer systems
-
Pharmaceutical production and CIP processes
-
Rotary spray arms in car wash systems
-
Industrial chemical handling and washdown
Key Features:
-
Corrosion-resistant stainless steel housing
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial loads under high pressure
-
High-flow design with smooth low-RPM operation
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTF
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 3.54"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTF
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.42
Wrench Size 2 (SW2): 1.97
Diameter (D1): 2.35"
Length 1 (L1) (overall length): 3.54"
Length 2 (L2): 2.56
Weight: 44oz

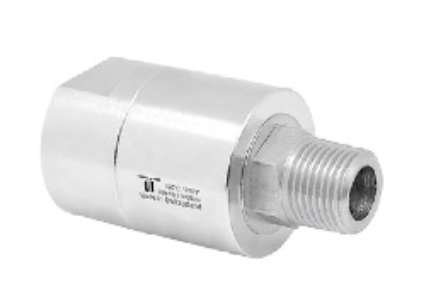

The Mosmatic DGE Swivel - 34.753 is a precision-engineered stainless steel swivel built for high-pressure, high-flow applications in demanding environments. Designed to manage thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for long-lasting, stable performance. Ideal for pharmaceutical, food processing, industrial cleaning, and automatic car wash systems, it offers a corrosion-resistant design, a 5000 PSI pressure rating, and heat resistance up to 250°F.
Applications:
-
Pharmaceutical manufacturing and clean-in-place systems
-
Food and beverage processing and sanitation lines
-
Automatic car wash sprayers and rinsing systems
-
Industrial washdown and fluid transfer systems
Key Features:
-
Durable stainless steel body for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow design supports efficient liquid transfer
-
Withstands both thrust and radial loads
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 2.17"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65
Length 1 (L1) (overall length): 2.17"
Length 2 (L2): 2.17
Length 3 (L3): 0.59
Weight: 18.9oz

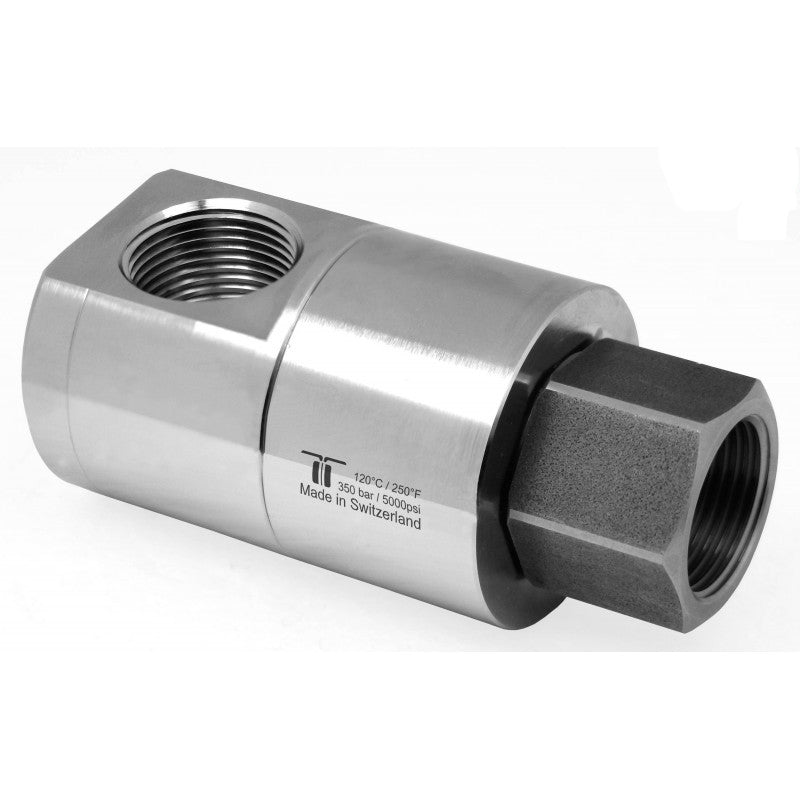

The Mosmatic DGE Swivel - 34.783 is a high-quality stainless steel swivel designed for high-pressure fluid systems that demand durability and precision. Engineered to handle both thrust and radial forces, this swivel features a robust bearing system with 1x thrust ball bearing and 2x sliding bearings for smooth, long-lasting performance. With a pressure rating of 5000 PSI and a temperature tolerance up to 250°F, it's perfectly suited for continuous operation in pharmaceutical, food service, industrial, and automatic car wash applications.
Applications:
-
Pharmaceutical clean-in-place (CIP) systems
-
Food and beverage processing and sanitation
-
Industrial high-pressure washdown and chemical delivery
-
Rotary spray systems in car washes
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Built to handle both thrust and radial loads
-
High-flow, low-RPM design optimized for long service life
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.82"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW1): 1.06
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.82"
Length 2 (L2): 2.09
Length 4 (L4): 0.63
Length 5 (L5): 0.63
Weight: 22.8oz
The Mosmatic DGE Swivel - 34.773 is a high-performance stainless steel swivel engineered for high-pressure environments that require reliable operation under both thrust and radial loads. Featuring a robust bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, long-lasting performance in continuous-use applications. Rated for 5000 PSI and resistant to temperatures up to 250°F, it's an ideal choice for pharmaceutical, food service, automatic car wash, and industrial cleaning systems.
Applications:
-
Clean-in-place (CIP) systems in pharmaceutical production
-
Food and beverage sanitation and fluid handling
-
Industrial pressure cleaning and washdown lines
-
Rotary arms and sprayers in automatic car wash systems
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial forces
-
High-flow performance with smooth rotation at low RPM
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.82"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTM
Nominal Width (NW): 1/2"
Wrench Size (SW1): 0.87
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.82"
Length 2 (L2): 2.09
Length 3 (L3): 0.59
Length 4 (L4): 0.63
Length 5 (L5): 0.75
Weight: 23.2oz

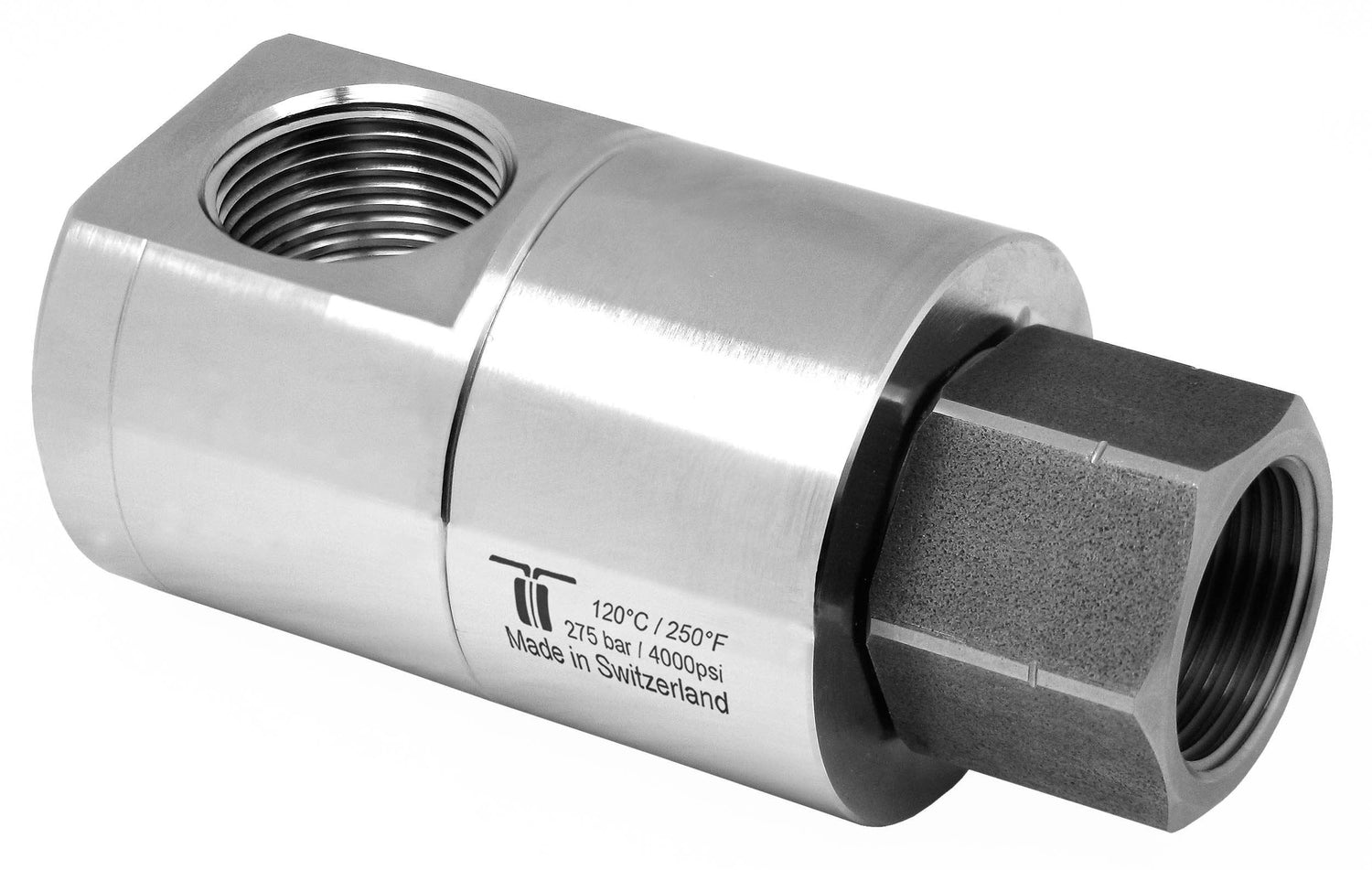

The Mosmatic DGE Swivel - 34.782 is a premium stainless steel swivel designed for high-pressure applications where superior handling of thrust and radial forces is critical. Featuring a robust bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, reliable operation even under continuous heavy-duty use. Built to withstand up to 5000 PSI and temperatures reaching 250°F, it’s an ideal choice for pharmaceutical, food service, industrial washdown, and automatic car wash systems.
Applications:
-
Food and beverage sanitation and high-pressure fluid systems
-
Pharmaceutical processing and clean-in-place (CIP) operations
-
Industrial chemical handling and washdown stations
-
Rotary connections in automatic car wash equipment
Key Features:
-
Corrosion-resistant stainless steel construction for durability
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Handles both thrust and radial force applications efficiently
-
High-flow capacity with low-RPM, high-pressure operation
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF
-
Nominal Width (NW): 3/8"
-
Diameter: 1.65"
-
Overall Length: 3.39"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTF
Nominal Width (NW): 3/8"
Wrench Size (SW1): 0.87
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.39"
Length 2 (L2): 2.09
Length 4 (L4): 0.67
Length 5 (L5): 0.55
Weight: 23.5oz

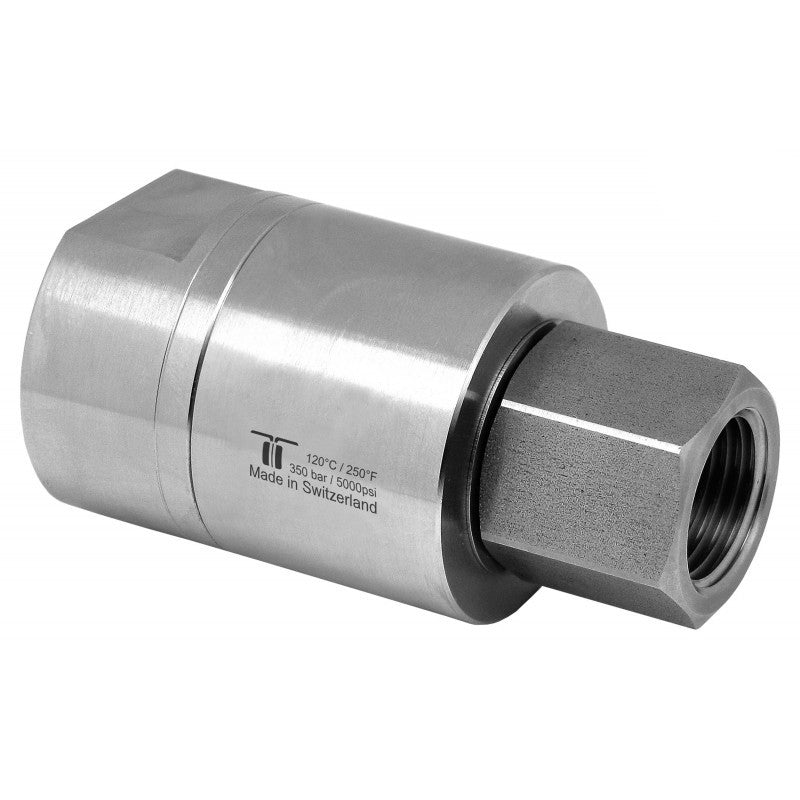

The Mosmatic DGE Swivel - 34.763 is a precision-engineered stainless steel swivel designed to handle thrust and radial forces in high-pressure and high-flow applications. Featuring 1x thrust ball bearing and 2x sliding bearings, this swivel ensures smooth, reliable performance in continuous-use systems. With a robust pressure rating of 5000 PSI and resistance to temperatures up to 250°F, it's ideal for demanding operations in pharmaceutical, food processing, automatic car wash, and industrial fluid handling systems.
Applications:
-
Pharmaceutical clean-in-place (CIP) systems
-
Food and beverage production and sanitation
-
High-pressure spray systems in car washes
-
Industrial cleaning and chemical distribution
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed for high-flow, low-RPM, high-pressure environments
-
Supports both radial and thrust load applications
-
Thread IN: 1/2" NPTF | Thread OUT: 1/2" NPTF
-
Nominal Width (NW): 1/2"
-
Diameter: 1.65"
-
Overall Length: 3.15"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2"NPTF
Thread Out: G2 1/2"NPTF
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.38
Diameter (D1): 1.65"
Length 1 (L1) (overall length): 3.15"
Length 2 (L2): 2.58
Weight: 22.0oz

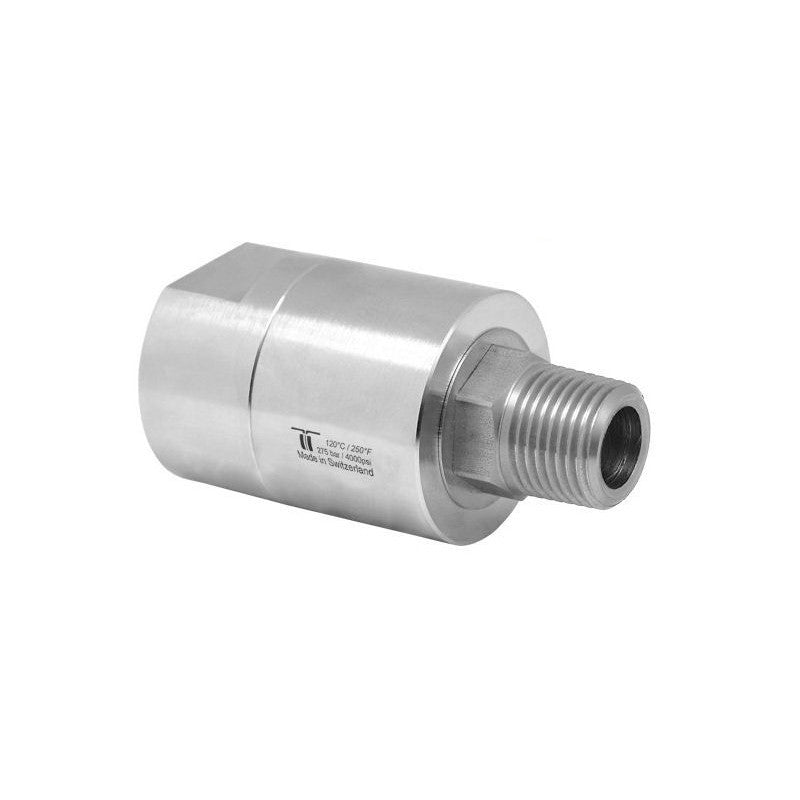

The Mosmatic DGE Swivel - 34.757 is a high-quality stainless steel swivel engineered for high-pressure, high-flow systems requiring reliable performance under thrust and radial loads. Designed for use in pharmaceutical processing, food and beverage sanitation, industrial washdown, and automatic car wash systems, this swivel is built to withstand demanding environments. It features 1x thrust ball bearing and 2x sliding bearings to ensure smooth, long-lasting operation. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, this swivel provides both durability and efficiency.
Applications:
-
Food and beverage processing and cleaning lines
-
Pharmaceutical clean-in-place (CIP) systems
-
Automatic car wash rotary spray assemblies
-
Industrial chemical and fluid handling systems
Key Features:
-
Durable stainless steel body for corrosion and chemical resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Supports both thrust and radial force applications
-
High-flow performance for low-RPM, high-pressure use
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.33"
-
Overall Length: 4.61"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTM
Nominal Width (NW): 1 1/2"
Wrench Size 1 (SW1): 1.97
Wrench Size 2 (SW2): 2.76
Diameter (D1): 3.33"
Length 1 (L1) (overall length): 4.61"
Length 2 (L2): 3.07
Length 3 (L3): 0.79
Weight: 95.3oz
The Mosmatic DGE Swivel - 34.754 is a high-performance stainless steel swivel engineered for high-pressure, high-flow operations across a variety of demanding environments. Designed to support both thrust and radial forces, this swivel features 1x thrust ball bearing and 2x sliding bearings for smooth, reliable operation. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, it’s perfect for applications in pharmaceutical manufacturing, food processing, industrial cleaning, and automatic car wash systems.
Applications:
-
Pharmaceutical fluid handling and CIP systems
-
Food and beverage sanitation and spray lines
-
Car wash sprayers and rotary connections
-
Industrial washdown and chemical systems
Key Features:
-
Rugged stainless steel construction for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
High-flow capacity for demanding applications
-
Supports both radial and thrust forces at low RPM
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 3.66"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTM
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.06
Wrench Size 2 (SW2): 1.58
Diameter (D1): 1.97"
Length 1 (L1) (overall length): 3.66"
Length 2 (L2): 2.58
Length 3 (L3): 0.63
Weight: 27.8oz
The Mosmatic DGE Swivel - 34.772 is a precision-built stainless steel swivel designed to manage thrust and radial forces in high-pressure, high-flow applications. Featuring a robust bearing system with 1x thrust ball bearing and 2x sliding bearings, this swivel ensures smooth, consistent operation even under continuous use. Rated for up to 5000 PSI and resistant to temperatures up to 250°F, it’s the perfect solution for demanding pharmaceutical, food service, industrial washdown, and automatic car wash systems.
Applications:
-
High-pressure fluid transfer in food and beverage production
-
Pharmaceutical clean-in-place (CIP) systems
-
Industrial washdown and chemical spray lines
-
Rotary arms and sprayers in automatic car wash facilities
Key Features:
-
Durable stainless steel construction for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed to handle both thrust and radial loads
-
High-flow performance for low-RPM applications
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM
-
Nominal Width (NW): 3/8"
-
Diameter: 1.65"
-
Overall Length: 3.46"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTM
Nominal Width (NW): 3/8"
Wrench Size 1 (SW1): 0.87
Diameter 1 (D1): 1.65"
Diameter 2 (D2): 1.65
Length 1 (L1) (overall length): 3.46"
Length 2 (L2): 2.09
Length 3 (L3): 0.43
Length 4 (L4): 0.67
Length 5 (L5): 0.55
Weight: 22.5oz

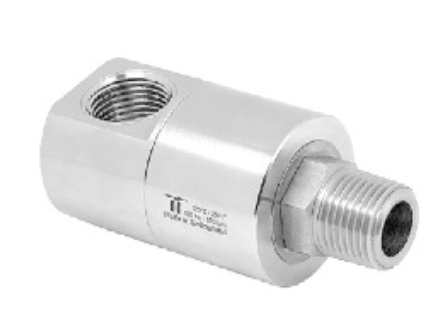

The Mosmatic DGE Swivel - 34.774 is a durable, high-performance stainless steel swivel designed for high-pressure, high-flow systems requiring reliable handling of both thrust and radial forces. Built with a robust bearing system—featuring 1x thrust ball bearing and 2x sliding bearings—this swivel ensures smooth, consistent rotation even under demanding continuous use. With a pressure rating of 5000 PSI and temperature tolerance up to 250°F, it’s ideal for pharmaceutical, food service, automatic car wash, and industrial cleaning applications.
Applications:
-
Food and beverage production and sanitation systems
-
Pharmaceutical clean-in-place (CIP) operations
-
High-pressure washdown and fluid systems in industry
-
Rotary spray systems in automatic car washes
Key Features:
-
Corrosion-resistant stainless steel construction
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Manages both thrust and radial forces under high pressure
-
Smooth low-RPM operation with high-flow efficiency
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTM
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 4.35"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTM
Nominal Width (NW): 3/4"
Wrench Size (SW1): 1.06
Diameter 1 (D1): 1.97"
Diameter 2 (D2): 1.97
Length 1 (L1) (overall length): 4.35"
Length 2 (L2): 2.40
Length 3 (L3): 0.63
Length 4 (L4): 0.75
Length 5 (L5): 0.87
Weight: 35.7oz
The Mosmatic DGE Swivel - 34.775 is a robust stainless steel swivel designed for high-pressure applications that demand durability, hygiene, and smooth rotation. Built to withstand both thrust and radial forces, it features a precision-engineered bearing system consisting of 1x thrust ball bearing and 2x sliding bearings. This swivel is corrosion resistant and built for continuous use in pharmaceutical, food service, automatic car wash, and industrial cleaning systems. With a pressure rating of 2900 PSI and a max temperature of 250°F, it delivers long-term, high-flow performance.
Applications:
-
Food and beverage processing and sanitation
-
Pharmaceutical clean-in-place (CIP) systems
-
Industrial washdown and chemical handling
-
Rotary spray assemblies in automatic car washes
Key Features:
-
Stainless steel body for superior corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Supports both thrust and radial loads in high-pressure use
-
Designed for high-flow, low-RPM environments
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTM
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 4.84"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTM
Nominal Width (NW): 1"
Wrench Size (SW1): 1.42
Diameter 1 (D1): 2.35"
Diameter 2 (D2): 2.83
Length 1 (L1) (overall length): 4.84"
Length 2 (L2): 2.52
Length 3 (L3): 0.71
Length 4 (L4): 1.18
Length 5 (L5): 1.14
Weight: 77.1oz

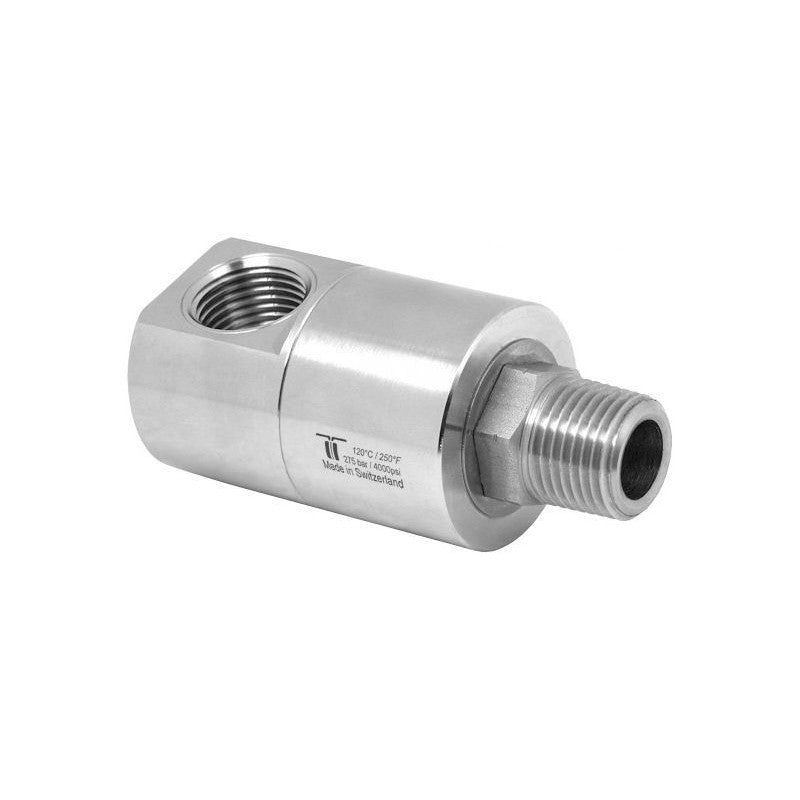

The Mosmatic DGE Swivel - 34.776 is a high-performance stainless steel swivel engineered for high-pressure applications requiring dependable rotation under thrust and radial forces. Designed with a durable bearing system—including 1x thrust ball bearing and 2x sliding bearings—this swivel provides smooth, reliable operation in continuous-duty cycles. With a pressure rating of 2900 PSI and temperature resistance up to 250°F, it is corrosion resistant and ideal for use in pharmaceutical, food processing, automatic car washes, and industrial fluid systems.
Applications:
-
Food and beverage sanitation and fluid transfer systems
-
Pharmaceutical manufacturing and CIP applications
-
Industrial high-pressure washdown and rinsing stations
-
Rotary spray systems in automatic car wash setups
Key Features:
-
Stainless steel construction for excellent corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed to handle both thrust and radial loads
-
Supports high-flow, low-RPM applications
-
Thread IN: 1 1/4" NPTF | Thread OUT: 1 1/4" NPTM
-
Nominal Width (NW): 1 1/4"
-
Diameter: 2.76"
-
Overall Length: 5.65"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi Temperature: 250°F RPM: Max. 30 Material Type: Stainless Steel Inner Part: Stainless Steel Seal: O-ring NBR Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi) Thread In: G1 1 1/4"NPTF Thread Out: G2 1 1/4"NPTM Nominal Width (NW): 1 1/4" Wrench Size (SW1): 1.47 Diameter 1 (D1): 2.76" Diameter 2 (D2): 3.07 Length 1 (L1) (overall length): 5.65" Length 2 (L2): 2.84 Length 3 (L3): 0.79 Length 4 (L4): 1.18 Length 5 (L5): 1.30 Weight: 92.5oz
The Mosmatic DGE Swivel - 34.777 is a heavy-duty stainless steel swivel engineered for high-pressure operations where managing thrust and radial forces is essential. Featuring a durable bearing system—with 1x thrust ball bearing and 2x sliding bearings—this swivel ensures long-lasting, smooth rotation under continuous load. Corrosion-resistant and built for high-flow performance, it is ideal for demanding pharmaceutical, food service, industrial, and automatic car wash applications. Rated for up to 2900 PSI and 250°F, it delivers outstanding reliability in harsh environments.
Applications:
-
Food and beverage processing and sanitation systems
-
Pharmaceutical manufacturing and CIP systems
-
Industrial high-pressure cleaning and fluid transfer
-
Automatic car wash rotary spray arms
Key Features:
-
Robust stainless steel construction for maximum corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Smooth low-RPM operation handling both thrust and radial forces
-
High-flow capacity ideal for continuous-use applications
-
Thread IN: 1 1/2" NPTF | Thread OUT: 1 1/2" NPTM
-
Nominal Width (NW): 1 1/2"
-
Diameter: 3.33"
-
Overall Length: 6.12"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1 1/2"NPTF
Thread Out: G2 1 1/2"NPTM
Nominal Width (NW): 1 1/2"
Wrench Size (SW1): 1.97
Diameter 1 (D1): 3.33"
Diameter 2 (D2): 3.98
Length 1 (L1) (overall length): 6.12"
Length 2 (L2): 3.17
Length 3 (L3): 0.79
Length 4 (L4): 1.42
Length 5 (L5): 1.42
Weight: 182.9oz
The Mosmatic DGE Swivel - 34.780 is a robust stainless steel swivel designed for high-pressure applications involving both thrust and radial forces. Built for durability and precision, this swivel features a robust bearing system that includes 1x thrust ball bearing and 2x sliding bearings, ensuring smooth, long-lasting performance. With a pressure rating of 5000 PSI and temperature resistance up to 250°F, it is ideal for continuous operation in pharmaceutical, food service, industrial, and automatic car wash environments.
Applications:
-
Food and beverage production and sanitation
-
Clean-in-place (CIP) systems in pharmaceutical facilities
-
Industrial washdown and chemical processing
-
Rotary arms and sprayers in automatic car wash systems
Key Features:
-
Heavy-duty stainless steel body for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Designed to support both thrust and radial load applications
-
High-flow, low-RPM swivel for continuous-duty use
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF
-
Nominal Width (NW): 3/4"
-
Diameter: 1.97"
-
Overall Length: 4.35"
-
Max Pressure: 5000 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTF
Nominal Width (NW): 3/4"
Wrench Size (SW1): 1.26
Diameter 1 (D1): 1.97"
Diameter 2 (D2): 1.97
Length 1 (L1) (overall length): 4.35"
Length 2 (L2): 2.40
Length 4 (L4): 0.75
Length 5 (L5): 0.87
Weight: 36.0oz
The Mosmatic DGE Swivel - 34.785 is a durable stainless steel swivel engineered for high-pressure environments requiring precise management of thrust and radial forces. Featuring a reliable bearing system with 1x thrust ball bearing and 2x sliding bearings, this swivel ensures smooth operation under continuous use. Designed for a max pressure of 2900 PSI and temperature resistance up to 250°F, it is the ideal solution for pharmaceutical, food processing, industrial, and automatic car wash applications.
Applications:
-
Food and beverage production and sanitation systems
-
Pharmaceutical clean-in-place (CIP) and processing lines
-
Industrial washdown and chemical distribution
-
Rotary spray arms in automatic car washes
Key Features:
-
Heavy-duty stainless steel construction for corrosion resistance
-
With 1x thrust ball bearing and 2 x sliding bearings
-
Engineered to handle both thrust and radial loads
-
High-flow performance designed for low-RPM applications
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTF
-
Nominal Width (NW): 1"
-
Diameter: 2.35"
-
Overall Length: 4.65"
-
Max Pressure: 2900 PSI
-
Max RPM: 30
-
Max Operating Temperature: 250°F
Specs
Pressure: 2900 psi
Temperature: 250°F
RPM: Max. 30
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTF
Nominal Width (NW): 1"
Wrench Size (SW1): 1.42
Diameter 1 (D1): 2.35"
Diameter 2 (D2): 2.83
Length 1 (L1) (overall length): 4.65"
Length 2 (L2): 2.52
Length 4 (L4): 1.18
Length 5 (L5): 1.14
Weight: 74.3oz
Showing 15/24
Next
