The Mosmatic 902.752 Extension is a precision-engineered component designed to extend ceiling boom systems by 4 inches. Made from durable stainless steel, this extension delivers strength, corrosion resistance, and easy integration into existing Mosmatic setups.
Ideal for adjusting boom height or reach, it offers a simple solution for customizing installations in car wash bays, industrial wash environments, and service areas where optimized equipment alignment is essential.
Applications
-
Ceiling boom height or reach adjustment
-
Car wash and detailing system installations
-
Industrial pressure washer systems
-
Equipment configurations requiring added clearance
Key Features
-
Extension Length: 4 inches
-
Material: Stainless steel for long-term durability
-
Designed for Mosmatic ceiling boom compatibility
-
Improves equipment positioning and workflow
-
Quick to install and secure in place
-
Suitable for commercial and industrial environments
The triple ceiling boom works great for your prep area or in wash bays. For use with water, oil or air.
- 3x360° booms on one stem
- Ideal solution when space is limited
- Solid construction
L1 5'9", L2 6'3", L3 6'9", Weight 58 lbs
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- Inlet (top & side): 3/8" NPTF (other options available)
- Outlet: 3/8" NPTF (other options available)
- Throughput medium: water, oil, air at pH 3-12
Note: This item must be freight shipped due to it being oversized. Our price includes freight shipping to continental USA.
The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.
- 360° smooth rotation
- Rated to 4000psi
- Sealed bearing design
- Multiple industrial application
- High flow versions available
L1 9'10",Weight 30.2 lbs
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- Inlet (top & side): 3/8" NPTF (other options available)
- Outlet: 3/8" NPTF (other options available)
- Throughput medium: water, oil, air at pH 3-12
The classic straight ceiling boom has uses in many industrial fields. A few examples are car wash, food processing, mining and manufacturing. A real all-around product with versatile applications anywhere liquids, air or gas are used.
- 360° smooth rotation
- Rated to 4000psi
- Sealed bearing design
- Multiple industrial application
- High flow versions available
L1 4'9",Weight 22.5 lbs
Technical data
- Pressure: 4000 psi (27.5 MPa)
- Temperature: 250°F
- Inlet (top & side): 3/8" NPTF (other options available)
- Outlet: 3/8" NPTF (other options available)
- Throughput medium: water, oil, air at pH 3-12
The Mosmatic Ceiling Boom Z-Series DKZ (65.039) delivers a premium, space-efficient solution for enhancing self-service car wash bays. With a length of 5 ft 9 in, this boom is constructed from polished stainless steel for maximum durability, corrosion resistance, and a refined, professional look.
Its distinctive Z-shaped design allows multiple booms to be installed in a single bay, supporting expanded services such as foam application systems and air drying units. Featuring 360° rotation, the boom provides smooth, unrestricted movement for optimal user experience. Engineered for performance, it handles up to 4000 PSI and temperatures of up to 250°F, and is compatible with water, oil, and air across a pH range of 3 to 12. Environmentally friendly and easy to integrate, the DKZ is a smart investment for high-performing wash bays.
Applications
-
Self-service car wash installations
-
Foam and chemical dispensing systems
-
Overhead air drying systems
-
Multi-boom wash bay layouts
Key Features
-
5 ft 9 in boom arm for extended coverage
-
360° swivel rotation for user-friendly operation
-
Polished stainless steel for lasting protection and style
-
3/8" NPTF inlet and outlet for easy system integration
-
Supports up to 4000 PSI and 250°F
-
Compatible with water, oil, air (pH 3–12)
-
Eco-conscious construction with long-term durability
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
Material Type: Stainless Steel (INOX)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTF
Length: 5'9"
Throughput/medium: water, oil, air at pH 3-12
Weight: 26 lbs
The Mosmatic Ceiling Boom Z-Series DKZ (65.029) is the ideal upgrade for self-service car wash bays seeking to expand operational capabilities and enhance customer experience. Measuring 5 ft 5 in, this boom is crafted from polished stainless steel, offering a clean, corrosion-resistant finish and a modern, professional appearance.
The boom's distinctive Z-shape design allows for the installation of multiple units within one bay, making it easy to integrate foam applications and air drying systems—increasing both functionality and revenue potential. With 360° rotation, the DKZ provides smooth, unrestricted motion for maximum user control. Rated for up to 4000 PSI and 250°F, and compatible with water, oil, and air (pH 3–12), this boom is engineered for durability, performance, and eco-conscious efficiency.
Applications
-
Self-service car wash bays
-
Foam delivery system integration
-
Air drying system support
-
Multi-unit wash bay configurations
Key Features
-
5 ft 5 in stainless steel boom for extended reach
-
360° rotation for complete bay coverage
-
Corrosion-resistant polished finish
-
3/8" NPTF inlet and outlet for standard fit
-
Handles up to 4000 PSI and 250°F
-
Compatible with water, oil, air (pH 3–12)
-
Eco-friendly, long-lasting construction
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
Material Type: Stainless Steel (INOX)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTF
Length: 5'5"
Throughput/medium: water, oil, air at pH 3-12
Weight: 24 lbs

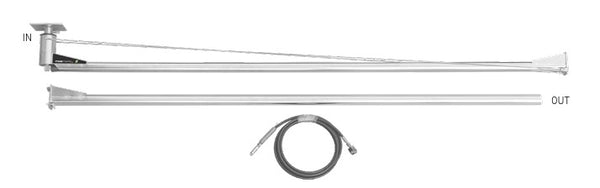

The Mosmatic Ceiling Boom DKPL (66.639) is a heavy-duty straight-arm boom engineered for extended reach and reliability in a wide range of industrial settings. With a length of 13ft 11in, this boom is ideal for large-scale applications where coverage and mobility are critical. Its 360° smooth rotation and sealed bearing design ensure fluid motion and minimal maintenance, even in high-demand environments.
Rated for up to 4000 PSI and 250°F, this boom handles water, oil, and air with a pH range of 3-12. It features 3/8" NPTF inlets on the top and side, plus a 3/8" outlet, allowing for seamless integration into existing systems. Perfect for use in car washes, food processing, mining operations, and manufacturing, the DKPL boom offers excellent durability and versatility. It is also designed with environmental sustainability in mind.
Applications
- Large self-service and automatic car wash bays
- Food and beverage processing facilities
- Mining operations and industrial fluid handling
- Manufacturing and heavy-duty plant systems
- Compressed air, gas, and liquid delivery networks
Key Features
- 13ft 11in straight-arm ceiling boom for extended reach
- 360° rotation with sealed bearing design
- 3/8" NPTF inlets, top and side, plus 3/8" outlet
- Rated for 4000 PSI and 250°F
- Compatible with water, oil, and air, pH 3-12
- Ideal for expansive and demanding industrial use
- Environmentally friendly and low-maintenance
Specs
Pressure: 4000 psi, 27.5 MPa
Temperature: 250°F
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTF
Length: 13ft 11in
Throughput/Medium: Water, oil, air at pH 3-12
Weight: 33.5 lbs
The Mosmatic Ceiling Boom DKPL (66.699) is a heavy-duty straight-arm boom engineered for extended reach and reliability in a wide range of industrial settings. With an impressive length of 19 ft 0 in, this boom is ideal for large-scale applications where coverage and mobility are critical. Its 360° smooth rotation and sealed bearing design ensure fluid motion and minimal maintenance, even in high-demand environments.
Rated for up to 4000 PSI and 250°F, this boom handles water, oil, and air with a pH range of 3–12. It features 3/8" NPTF inlets (top and side) and a 3/8" outlet, allowing for seamless integration into existing systems. Perfect for use in car washes, food processing, mining operations, and manufacturing, the DKP boom offers unmatched durability and versatility. It is also designed with environmental sustainability in mind.
Applications
-
Large self-service and automatic car wash bays
-
Food and beverage processing facilities
-
Mining operations and industrial fluid handling
-
Manufacturing and heavy-duty plant systems
-
Compressed air, gas, and liquid delivery networks
Key Features
-
19 ft straight-arm ceiling boom for maximum reach
-
360° rotation with sealed bearing design
-
3/8" NPTF inlets (top and side) + 3/8" outlet
-
Rated for 4000 PSI and 250°F
-
Compatible with water, oil, and air (pH 3–12)
-
Ideal for expansive and demanding industrial use
-
Environmentally friendly and low-maintenance
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTF
Length: 19'0"
Throughput/medium: water, oil, air at pH 3-12
Weight: 39.5 lbs
Engineered for versatility and durability, the Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP (9’10") is the industry standard for high-performance overhead applications. Made from premium polished stainless steel, this ceiling-mounted boom is designed to deliver reliable 180° or 360° smooth rotation for maximum operational efficiency in demanding environments.
Ideal for a wide range of industrial uses—including truck washes, food processing facilities, mining operations, and manufacturing plants—this high-flow boom supports water, oil, and air media with a pH range of 3–12. Featuring a 1/2" nominal width, sealed bearing design, and NPTF inlet/outlet connections, it handles pressures up to 2200 psi and temperatures up to 250°F.
Key Features:
-
9’10" polished stainless steel boom
-
180º or full 360º smooth rotation
-
Sealed bearing for long-lasting performance
-
Handles water, oil, and air (pH 3–12)
-
1/2" NPTF inlet and outlet
-
Max pressure: 2200 psi | Max temp: 250°F
-
Widely used in industrial, automotive, and food sectors
Built to perform under extreme conditions, this Mosmatic ceiling boom is your all-in-one solution for efficient fluid and gas handling from above.
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 9’
Throughput medium: water, oil, and air at ph 3-12.
Weight: 29.3 lbs
Engineered for demanding industrial environments, the Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP offers high performance, durability, and flexibility. This 9-foot ceiling-mounted boom is constructed from premium polished stainless steel (INOX), providing exceptional resistance to corrosion and wear.
Designed for applications involving water, oil, or air (pH range 3–12), this boom supports up to 2200 PSI and 250°F, making it ideal for truck washes, mining operations, food processing, and manufacturing plants.
Key features include smooth 180º/360º rotation, a sealed bearing system for extended service life, and a high-flow 1/2" nominal width for optimal throughput. Both inlet and outlet ports are 1/2" NPTF, offering easy compatibility with standard systems.
A true all-purpose solution, the Mosmatic DKP boom ensures reliable overhead fluid or air delivery in a wide range of industrial applications.
Key Features:
-
180º/360º smooth rotation
-
High-flow design for optimized performance
-
Durable INOX stainless steel construction
-
1/2" nominal width with 1/2" NPTF inlet and outlet
-
Handles up to 2200 PSI and 250°F
-
Suitable for water, oil, air (pH 3–12)
-
Corrosion-resistant and built for industrial-grade durability
Whether you're upgrading a wash bay or improving fluid handling in your facility, the DKP ceiling boom is a reliable, efficient choice for streamlined operation and long-term use.
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 9’
Throughput medium: water, oil, and air at ph 3-12.
Weight: 29.3 lbs
The Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP (8'2") is a high-performance stainless steel ceiling boom designed for demanding industrial environments. Featuring a sleek, durable construction with polished stainless steel, it provides reliable operation in applications requiring water, air, or oil flow.
Engineered for versatility, this ceiling boom is ideal for use in truck washes, food processing facilities, mining operations, and manufacturing plants. The sealed bearing design ensures smooth, maintenance-free rotation up to 360°, while the high-flow capability supports efficient throughput.
Key Features:
-
180º/360º smooth rotation
-
High-flow design for optimized performance
-
Durable INOX stainless steel construction
-
1/2" nominal width with 1/2" NPTF inlet and outlet
-
Handles up to 2200 PSI and 250°F
-
Suitable for water, oil, air (pH 3–12)
-
Corrosion-resistant and built for industrial-grade durability
Whether you're upgrading a wash bay or improving fluid handling in your facility, the DKP ceiling boom is a reliable, efficient choice for streamlined operation and long-term use.
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 8’ 2"
Throughput medium: water, oil, and air at ph 3-12.
Weight: 28.4 lbs
Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP 7'5" | High-Performance Stainless Steel Swivel Arm
Enhance your industrial workspace with the Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP (7’5"), a high-quality stainless steel swivel arm engineered for durability and versatility. This classic straight ceiling boom is ideal for a wide range of demanding environments such as truck washes, food processing facilities, mining operations, and manufacturing plants.
Constructed with corrosion-resistant polished stainless steel, the boom offers 360° smooth rotation and supports high-flow throughput of water, air, and oil (pH 3–12), withstanding temperatures up to 250°F and pressures of 2200 PSI. Its sealed bearing design ensures long-lasting, maintenance-free operation.
Key Features:
-
180°/360° smooth rotation for flexible positioning
-
Robust 1/2" nominal width for high flow efficiency
-
Sealed bearings for extended service life
-
Compatible with water, air, and oil applications
-
Inlet/Outlet: 1/2" NPTF | Length: 7’5"
Whether you’re outfitting a wash bay or an industrial line, the DKP model delivers reliability, performance, and exceptional fluid management.
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 7’ 5"
Throughput medium: water, oil, and air at ph 3-12.
Weight: 27.4 lbs
Experience robust, high-performance ceiling-mounted fluid management with the Mosmatic 1/2" Ceiling Boom featuring a polished stainless steel INOX-Pipe and a durable DKP design. With a reach of 6 feet 9 inches, this precision-engineered boom is ideal for demanding industrial environments such as truck and vehicle wash stations, food processing facilities, mining operations, and manufacturing plants.
Built to deliver versatility and reliability, this ceiling boom supports a wide range of media, including water, oil, and air (pH 3–12), and handles pressures up to 2200 PSI and temperatures up to 250°F. The sealed bearing construction enables smooth 180º/360º rotation, while the high-flow 1/2" nominal width ensures efficient throughput.
Whether you're upgrading your wash bay or streamlining production, the Mosmatic DKP ceiling boom offers premium durability and performance in every rotation.
Key Features:
-
180º/360º smooth swivel rotation
-
1/2" nominal width for high flow performance
-
Polished stainless steel INOX-Pipe (6'9")
-
Sealed bearing design for long-lasting use
-
Compatible with water, oil, and air (pH 3–12)
-
Rated for 2200 PSI and up to 250°F
-
1/2" NPTF inlet and outlet
-
Designed for multi-industry use
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 6’ 9"
Throughput medium: water, oil, and air at ph 3-12.
Weight: 26.4 lbs
Engineered for high-performance fluid and air handling, the Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP (6'3" length) is a reliable solution for industrial environments. Built with durable, polished stainless steel, this ceiling boom is designed for versatile applications in truck wash systems, food processing facilities, mining operations, and manufacturing plants.
The unit features a sealed bearing design and enables smooth 180º to 360º rotation, ensuring flexible and tangle-free operation. With a high flow capacity and a 1/2" nominal width, it supports a throughput of water, oil, or air (pH 3–12), operating efficiently under pressure up to 2200 PSI and temperatures up to 250°F. This rugged, low-maintenance ceiling boom offers unmatched durability and fluid handling precision.
Key Features:
-
6'3" polished INOX stainless steel pipe
-
180°/360° smooth rotation
-
1/2" NPTF inlet and outlet
-
Sealed bearing for long-term reliability
-
Handles water, air, oil (pH 3–12)
-
Rated for up to 2200 PSI and 250°F
-
Ideal for car and truck wash bays, food processing, and heavy-duty industrial use
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 6’ 3"
Throughput medium: water, oil, and air at ph 3-12.
Weight: 25.4 lbs
Mosmatic 1/2" Ceiling Boom with INOX-Pipe – DKP (5'9") is a high-performance, stainless steel ceiling boom engineered for demanding industrial applications. With a sleek 5'9" polished INOX-Pipe and robust 1/2" NPTF inlet/outlet, this unit delivers outstanding reliability and versatility.
Ideal for environments such as truck wash stations, food processing plants, mining sites, and manufacturing facilities, this straight boom is a go-to solution for controlled distribution of liquids, air, or gas.
Key features include:
-
360º smooth rotation for full operational coverage
-
High flow design supporting efficient throughput
-
Sealed bearing system ensures longevity and smooth operation
-
1/2" nominal width for balanced pressure flow
-
Durable stainless steel construction with pressure capacity up to 2200 PSI
-
Temperature resistance up to 250°F
-
Compatible with water, oil, and air (pH range: 3–12)
Whether you're upgrading a wash bay or optimizing industrial fluid distribution, the DKP ceiling boom offers dependable, precision performance for any heavy-duty application.
Specs
Pressure: 2200 psi
Temperature: 250°F
Thread In: 1/2 NPTF
Thread Out: 1/2 NPTF
Length: 5’ 9"
Throughput medium: water, oil, and air at ph 3-12.
Weight: 24.4 lbs
