Product Description

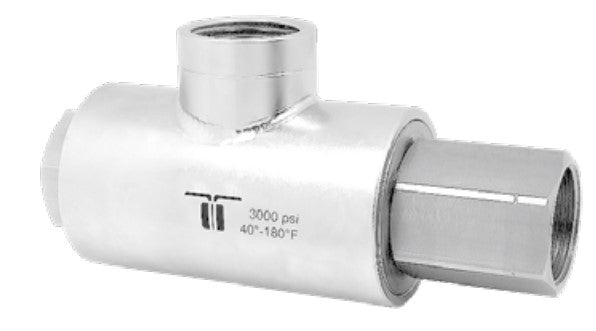

The Mosmatic WDRS Swivel 41.647 is a heavy-duty stainless steel swivel coupling engineered for large-diameter, high-pressure applications such as automatic car wash systems, industrial hose reels, and high-flow transfer lines. Designed for durability and smooth performance, this swivel provides reliable rotation and leak-resistant operation under demanding conditions.
The swivel features a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, ensuring stable, low-friction operation and extended service life. Its corrosion-resistant stainless steel body is ideal for use with water, chemicals, and compressed air, making it well-suited for industrial and commercial environments.
This model offers a Thread In of 2 ½” NPTF and a Thread Out of 2 ½” NPTF, with a nominal width (NW) of 2 ½”, an overall diameter of 5.51”, and an overall length of 9.70”. Rated for up to 3000 PSI, the swivel operates at speeds up to 50 RPM and within a temperature range of 40°F to 180°F. It supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
Large-diameter high-flow water and chemical transfer lines
-
Pneumatic tool and compressed air systems
-
Rotary spray equipment and surface cleaners
-
Commercial cleaning and fluid handling setups
Features
-
Stainless steel construction for superior durability and corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth and stable rotation
-
NBR O-ring seal for reliable leak protection and long service life
-
Thread In: 2 ½” NPTF | Thread Out: 2 ½” NPTF
-
Nominal Width (NW): 2 ½”
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 50
-
Overall Diameter: 5.51” | Overall Length: 9.70” | Height: 3.94”
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: max 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 2 1/2" NPTF
Thread Out: G2 2 1/2" NPTF
Nominal Width (NW): 2 1/2"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Height (H): 3.94
Length 1 (L1) (overall length) : 9.90
Length 2 (L2): 6.89
Length 3 (L3): 1.14
Diameter (D) (overall diameter): 5.51
Weight: 528 oz
