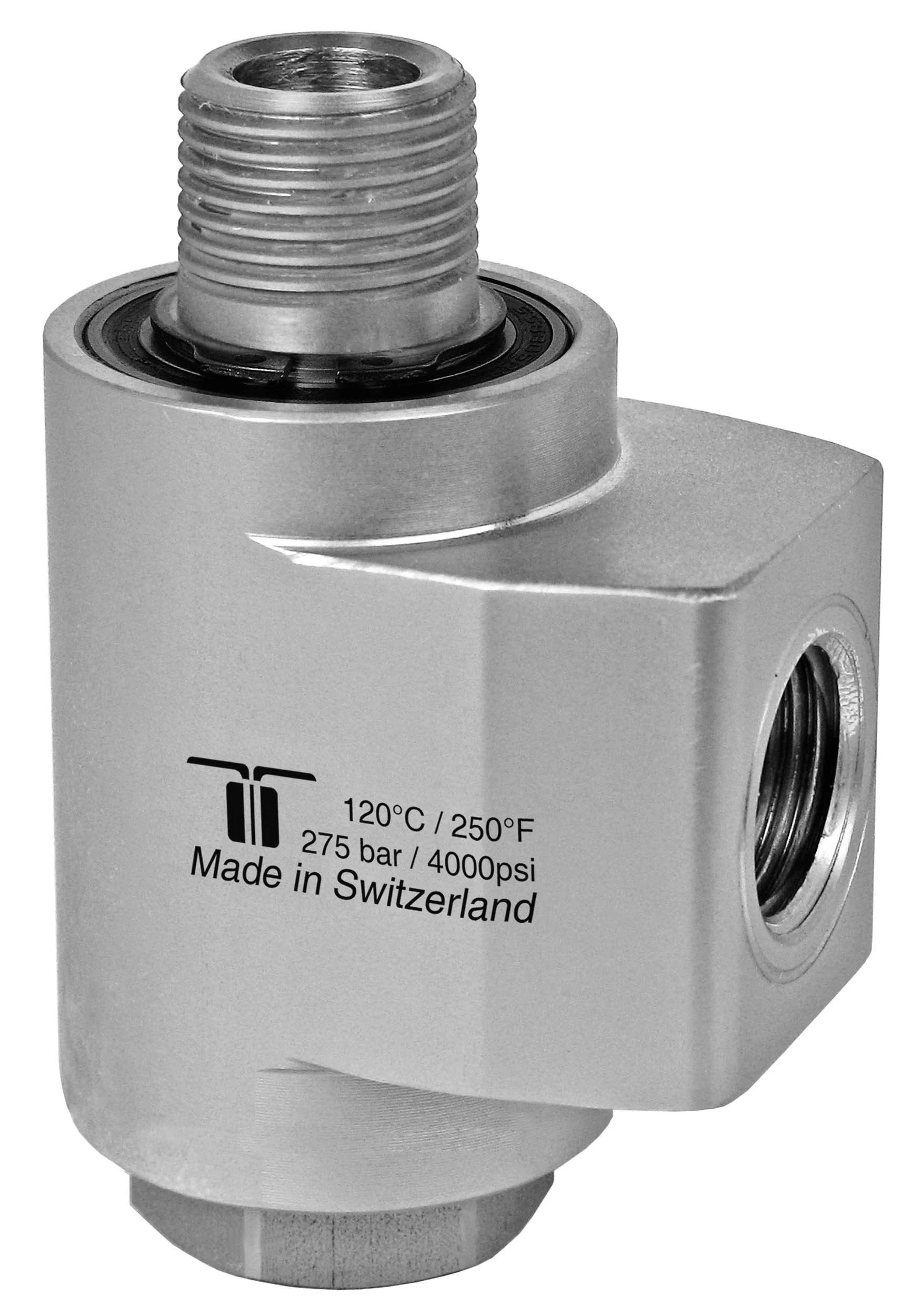

Mosmatic Rotary Unions - WDBL Swivel - G1 3/8"NPTF G2 3/8"NPTM - 43.262

$141.95 $157.72

Brand: Mosmatic


Product Description

Celling booms, high pressure hose reels, high pressure cleaner

  • Slide or dual bearings systems
  • Stainless steel
  • Maintenance free
  • without snap ring, for Mosmatic ceiling boom

G1 (F) 3/8”NPTF, G2 (M) 3/8”NPTM, NW 3/8”, H 1.81, L1 1.77, L2 2.72, L3 1.14, L4 1.53,L5 0.43, SW 0.87, max RPM 200, Weight 15.7oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM: see chart (max. rpm)
    • Body: brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM)
    • Bearing: WDB: sliding bearing, WDBL: 2x radial ball bearings, WDBS: 2x radial ball bearings
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)



Mosmatic Ceiling Boom Z Series Main Diagram

Mosmatic Legend
