Rotary Unions and Swivels
Mosmatic Swivels & Rotary Unions
Mosmatic designs and manufactures high-quality, superior stainless steel products for the commercial car wash industry and high pressure cleaning market. Mosmatic swivels are engineered for smooth operation under high pressure conditions and are created to be long-lasting and maintenance free.
Mosmatic swivels are used in ceiling and wall car wash booms, air booms, automatic car washes, self-service car wash bays. They are also used in specialized industrial cleaning systems. Unique specialty items like Duct Cleaners, Spinning Head Spiders, Manhole Cleaners, Undercarriage Cleaners - just to name a few - can be found at The Mosmatic Professional.
Sort by:
The Mosmatic DGR Swivel - 34.411 is a high-performance stainless steel swivel engineered for use in high-pressure systems where both thrust and radial forces are present. Ideal for industrial and food service applications, this swivel features a quadruple bearing system—two radial ball bearings and two thrust ball bearings—for optimal load distribution and smooth rotation. Built for high-flow applications, its stainless steel body provides excellent corrosion resistance in harsh environments, ensuring long-lasting durability and consistent performance.
Applications:
-
Industrial high-pressure fluid systems
-
Food processing and sanitary washdown equipment
-
Chemical handling and transfer systems
-
High-flow rotary joints in automated processes
Key Features:
-
Corrosion-resistant stainless steel construction
-
Quadruple bearing system: 2x radial + 2x thrust ball bearings
-
Designed to handle both thrust and radial loads
-
High-flow capability for efficient performance
-
Thread IN: 1" NPTF | Thread OUT: 1" NPTM
-
Nominal Width (NW): 1"
-
Diameter: 2.36"
-
Overall Length: 5.31"
-
Max Pressure: 3000 PSI
-
Max RPM: 130
-
Operating Temperature Range: 40°F to 180°F
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: 130
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1"NPTF
Thread Out: G2 1"NPTM
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.81
Wrench Size 2 (SW2): 1.42
Diameter (D): 2.36"
Length 1 (L1) (overall length): 5.31"
Length 2 (L2): 3.78
Length 3 (L3): 0.71
Weight: 59oz
The Mosmatic 59.653 DYT Swivel is a robust, stainless steel swivel designed for high-pressure, self-rotating cleaning applications where both thrust and radial forces are present. Ideal for surface cleaners and industrial parts washers, this swivel offers superior performance, longevity, and reliability.
Built with a quadruple bearing system - including two radial ball bearings and two thrust ball bearings - this model ensures smooth and stable rotation even at high RPMs and heavy loads. The carbide seal system provides extended life and leak protection, while integrated weep holes serve as an early warning for seal wear or failure. With a pressure rating of 5000 PSI, a max speed of 2000 RPM, and a temperature limit of 250°F, it’s designed to withstand the rigors of professional cleaning operations.
Applications
-
High-pressure surface cleaners
-
Industrial and commercial parts washers
-
Rotary nozzles and spray bar systems
-
Self-rotating robotic cleaning tools
-
Automated pressure washing equipment
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: 3/8" NPT Male
-
Material: Full stainless steel construction for corrosion resistance
-
Quadruple Bearing System: 2 radial + 2 thrust ball bearings
-
Seal Type: Durable carbide seal for extended life
-
Seal Failure Detection: Built-in weep holes for early alert
-
Max Pressure: 5000 PSI
-
Max Temperature: 250°F
-
RPM Rating: Up to 2,000
-
Compact, High-Strength Design: Perfect for demanding, high-load environments
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.43"
Weight: 53.7 oz
The Mosmatic WDRS Swivel 41.920 is a high-performance stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for reliable rotation and long service life, this swivel provides exceptional performance in demanding environments where durability and leak-free operation are essential.
Featuring a robust dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.920 ensures smooth, stable rotation with effective leak prevention. Its stainless steel construction delivers excellent corrosion resistance, making it suitable for water, chemicals, and compressed air systems.
This swivel offers a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTM, with a nominal width of 1/2", overall diameter of 1.77", and length of 6.10". Rated for pressures up to 3000 PSI, the unit operates at speeds up to 150 RPM and temperatures ranging from 40°F to 180°F. Compatible with media in the pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer lines
-
Pneumatic and compressed air tool connections
-
Rotary spray equipment and surface cleaners
-
Commercial cleaning and spraying systems
Features
-
Stainless steel construction for superior corrosion resistance and durability
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for reliable leak protection and extended service life
-
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 150
-
Overall Diameter: 1.77" | Overall Length: 6.10" | Height: 1.57"
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 150
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 1.06
Height (H): 1.57
Length 1 (L1) (overall length) : 6.10
Length 2 (L2): 2.76
Length 3 (L3): 0.60
Length 4 (L4): 3.31
Diameter (D) (overall diameter): 1.77
Weight: 33 oz
The Mosmatic WDRS Swivel 41.461 is a heavy-duty, stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Engineered for optimal performance and longevity, this swivel ensures smooth rotation, high stability, and reliable sealing in demanding environments.
Built with a dual bearing system that includes two radial ball bearings and an NBR O-ring seal, the WDRS 41.461 provides low-friction operation and long-lasting durability. Its corrosion-resistant stainless steel body makes it suitable for water, chemicals, and compressed air, supporting consistent performance even in harsh conditions.
The swivel features a Thread In of 1" NPTF and a Thread Out of 1" NPTM, with a nominal width of 1", an overall diameter of 2.20", and a length of 5.35". Designed to handle pressures up to 3000 PSI, it operates efficiently at speeds up to 110 RPM and temperatures between 40°F and 180°F. It is compatible with media ranging from pH 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer systems
-
Pneumatic tool connections and compressed air lines
-
Surface cleaners and rotary spray equipment
-
Commercial cleaning and fluid handling setups
Features
-
Corrosion-resistant stainless steel construction
-
Dual bearing system with 2x radial ball bearings for smooth rotation
-
NBR O-ring seal for reliable leak prevention and long service life
-
Thread In: 1" NPTF | Thread Out: 1" NPTM
-
Nominal Width (NW): 1"
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 110
-
Overall Diameter: 2.20" | Overall Length: 5.35" | Height: 1.89"
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 110
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1" NPTF
Thread Out: G2 1" NPTM
Nominal Width (NW): 1"
Wrench Size 1 (SW1): 1.42
Height (H): 1.89
Length 1 (L1) (overall length) : 5.35
Length 2 (L2): 3.94
Length 3 (L3): 0.71
Length 4 (L4): 2.91
Diameter (D) (overall diameter): 2.20
Weight: 56 oz
The Mosmatic WDRS Swivel 41.261 is a heavy-duty, stainless steel swivel designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for durability and smooth operation, this swivel ensures reliable performance under demanding conditions where consistent rotation and leak-free sealing are essential.
Engineered with a dual bearing system featuring two radial ball bearings and an NBR O-ring seal, the WDRS 41.261 provides superior rotational stability and long service life. Its stainless steel construction offers excellent corrosion resistance, making it suitable for use with water, chemicals, and compressed air in both commercial and industrial environments.
This model features a Thread In of 1/2" NPTF and a Thread Out of 1/2" NPTM, with a nominal width of 1/2". It is designed to handle up to 3000 PSI, operates at speeds up to 150 RPM, and withstands temperatures from 40°F to 180°F. Compatible with media in the pH 3–12 range and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial hose reels and high-flow applications
-
High-pressure cleaning equipment
-
Pneumatic tool connections and compressed air systems
-
Surface cleaners and rotary spray equipment
-
Commercial cleaning and spraying setups
Features
-
High-strength stainless steel construction for corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth rotation
-
Reliable NBR O-ring seal for effective leak prevention
-
Thread In: 1/2" NPTF | Thread Out: 1/2" NPTM
-
Nominal Width (NW): 1/2"
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 150
-
Overall Diameter: 1.77" | Overall Length: 4.33" | Height: 1.57"
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 150
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTM
Nominal Width (NW): 1/2"
Wrench Size 1 (SW1): 1.06
Height (H): 1.57
Length 1 (L1) (overall length) : 4.33
Length 2 (L2): 3.15
Length 3 (L3): 0.60
Length 4 (L4): 2.36
Diameter (D) (overall diameter): 1.77
Weight: 33 oz
The Mosmatic 58.159 DYFI Swivel is a robust female x female INOX swivel designed for high-pressure and hygienic applications. It features 3/8" NPTF inlet and outlet, a carbide seal, and sealed stainless steel bearings to ensure smooth rotation up to 4000 psi.
Its stainless steel construction offers excellent resistance to corrosion and harsh chemicals, making it perfect for food-grade, marine, and industrial environments.
Applications
-
Food industry washdown
-
Marine and chemical systems
-
Car wash systems with 3/8" NPT connections
-
High-pressure cleaning equipment
-
Inline stainless hose assemblies
Features
-
Stainless steel housing and internals
-
Female x Female: 3/8" NPTF ports
-
Carbide sealing with weep hole indicator
-
Maintenance-free, sealed swivel
-
Rated to 4000 psi with 360° smooth rotation
Specs
Product Type: High-pressure swivel – DYFI
Part Number: 58.159
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 3/8" NPTF
Thread Out (G2): 3/8" NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.87"
Diameter (D): 2.36"
Length (L1): 1.76"
Weight: 11.0 oz
The Mosmatic 58.168 DYFI is a stainless steel rotary swivel designed for high-pressure systems requiring 3/8" NPTF (inlet) and G3/8" BSPP (male outlet) connections. Its INOX construction makes it highly resistant to corrosion, ideal for harsh or hygienic environments.
Equipped with a carbide seal, sealed bearing system, and weep holes, this swivel delivers smooth 360° operation and long-lasting durability under pressures up to 4000 psi.
Applications
-
Food industry and chemical environments
-
Pressure washer booms and lances
-
Marine and sanitary cleaning equipment
-
BSPP (G-thread) compatible systems needing stainless performance
Features
-
Stainless steel body and internal components
-
Maintenance-free 360° swivel
-
Carbide sealing with weep hole alert system
-
Rated for 4000 psi
-
NPT-to-BSPP threaded transition
Specs
Product Type: High-pressure swivel – DYFI
Part Number: 58.168
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 3/8" NPTF
Thread Out (G2): G3/8" M
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Diameter (D): 2.36"
Length 1 (L1): 1.49"
Length 2 (L2): 0.39"
Weight: 13.2 oz
The Mosmatic 58.158 DYFI is a stainless steel rotary swivel designed for high-pressure fluid systems requiring 3/8" NPTF inlet and 3/8" NPTM outlet connections. With its corrosion-resistant INOX construction, it's ideal for chemically aggressive or food-grade environments.
The swivel features sealed bearings, a carbide seal, and weep hole design, offering 360° rotation and maintenance-free performance under 4000 psi.
Applications
-
High-pressure industrial and food-grade cleaning
-
Chemical and marine environments
-
Washdown and sanitizing systems
-
Pressure washer booms, reels, and arms
Features
-
Stainless steel housing and internal components
-
Maintenance-free, sealed design
-
Carbide seal with weep hole failure indication
-
Straight connection: 3/8" NPTF to 3/8" NPTM
-
Full 360° rotation under load
Specs
Product Type: High-pressure swivel – DYFI
Part Number: 58.158
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 3/8" NPTF
Thread Out (G2): 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Diameter (D): 2.36"
Length 1 (L1): 1.49"
Length 2 (L2): 0.47"
Weight: 10.4 oz

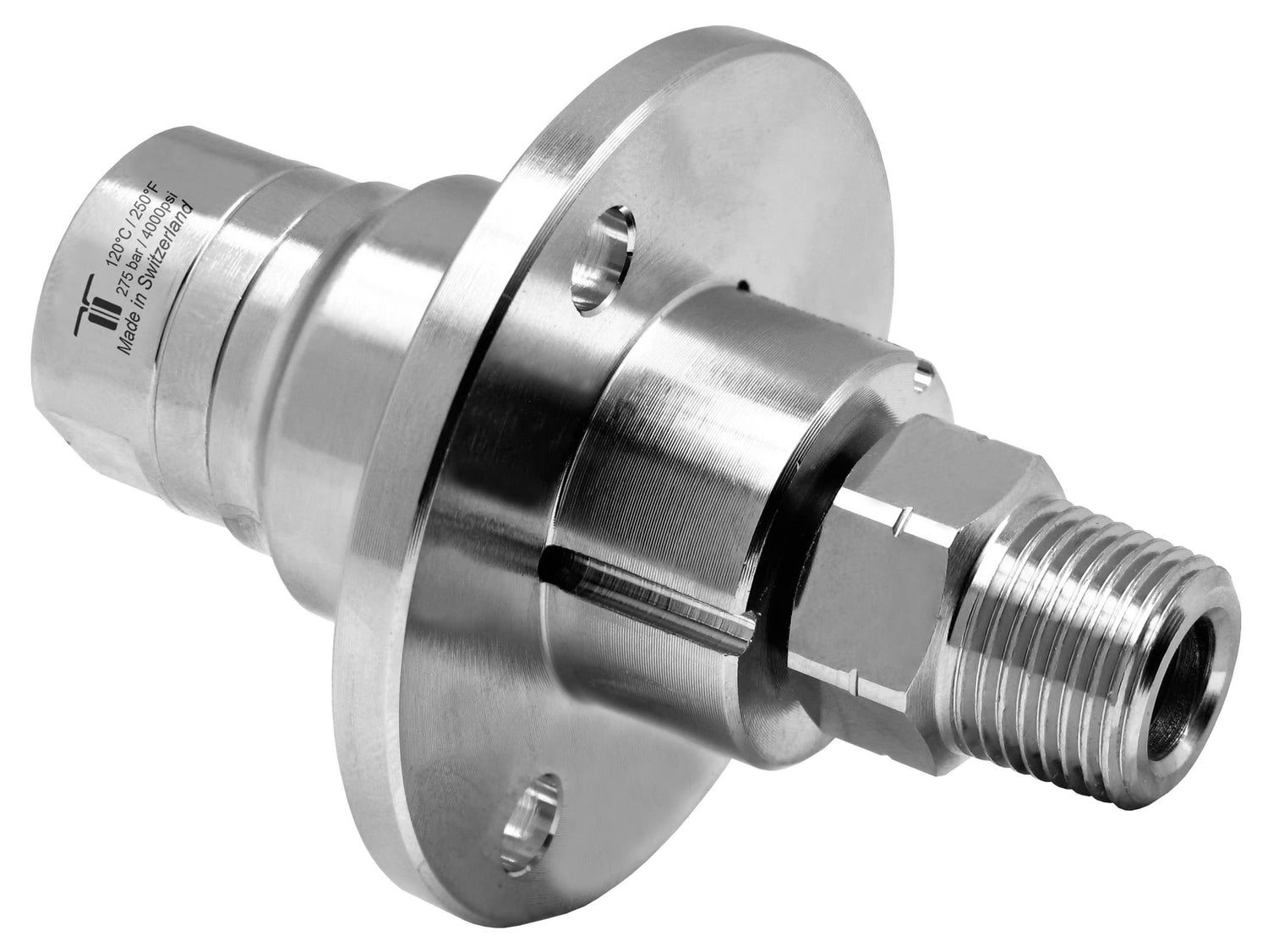

The Mosmatic 58.151 DYF Swivel is a high-performance rotary union for high-pressure cleaning systems. Featuring a 3/8" NPTF inlet and a 1/4" NPTM outlet, it offers a step-down connection ideal for transitioning between larger inlet hoses and smaller nozzles or spray lances.
Its nickel-plated brass body, combined with stainless steel internals and a carbide seal system, delivers smooth 360° rotation, reliability under high pressure, and long service life. Built for operating pressures up to 4000 psi, it includes weep holes to indicate seal wear or failure.
Applications
-
Pressure washers and mobile wash systems
-
Car wash underbody and boom systems
-
Industrial fluid transfer setups
-
Rotating nozzles with step-down connections
Features
-
Full 360° swivel with sealed bearing system
-
Carbide seal for durability and performance
-
Step-down: 3/8" to 1/4" threading
-
Maintenance-free design
-
Visual seal failure detection
-
Nickel-plated brass body for corrosion resistance
Specs
Product Type: High-pressure swivel – DYF
Part Number: 58.151
Pressure: 4000 psi
Temperature: 250°F
RPM: max. 2,000 rpm
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: Carbide
Throughput / Medium: pH 3–12 / filtered 10 microns / compressed air (290 psi)
Thread In (G1): 3/8" NPTF
Thread Out (G2): 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.67"
Diameter (D): 2.36"
Length 1 (L1): 1.45"
Length 2 (L2): 0.43"
Weight: 11.0 oz
The Mosmatic DGR Swivel - 34.312 is a high-performance stainless steel swivel designed to handle both thrust and radial forces in high-pressure environments. Perfect for industrial and food service applications, this swivel features a quadruple bearing system with two radial ball bearings and two thrust ball bearings, ensuring smooth, stable operation under heavy load. Its corrosion-resistant stainless steel construction makes it suitable for harsh, high-moisture, or chemical environments, while the high-flow design enhances system efficiency.
Applications:
-
Industrial high-pressure cleaning systems
-
Food and beverage processing equipment
-
Sanitation and washdown systems
-
Chemical transfer and fluid handling
Key Features:
-
Corrosion-resistant stainless steel body
-
Quadruple bearing system: 2x radial + 2x thrust ball bearings
-
Supports both radial and thrust load applications
-
High-flow performance for continuous-duty systems
-
Thread IN: 3/4" NPTF | Thread OUT: 3/4" NPTF
-
Nominal Width (NW): 3/4"
-
Diameter: 2.17"
-
Overall Length: 5.55"
-
Max Pressure: 3000 PSI
-
Max RPM: 150
-
Operating Temperature Range: 40°F to 180°F
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: 150
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/4"NPTF
Thread Out: G2 3/4"NPTF
Nominal Width (NW): 3/4"
Wrench Size 1 (SW1): 1.65
Wrench Size 2 (SW2): 1.26
Diameter (D): 2.17"
Length 1 (L1) (overall length): 5.55"
Length 2 (L2): 3.66
Weight: 53 oz
The Mosmatic 59.453 DYT 90° Swivel is a high-performance stainless steel swivel designed to handle high-pressure, self-rotating cleaning applications where both thrust and radial forces are present. Ideal for surface cleaners and parts washers in demanding industrial environments, this swivel offers durable construction and smooth, stable rotation.
This 90-degree swivel is equipped with a quadruple bearing system, which includes 2 radial ball bearings and 2 thrust ball bearings, ensuring balanced performance and extended service life under continuous load. A carbide seal system provides advanced leak protection, and weep holes offer early warning in case of seal failure.
Engineered to withstand up to 5000 PSI, 2000 RPM, and 250°F, the 59.453 swivel is built for precision, reliability, and long-lasting use in pressure cleaning systems that require angled flow paths.
Applications
-
90° surface cleaners for commercial and industrial cleaning
-
High-pressure parts washers
-
Self-rotating nozzles and spray systems
-
Robotic and automated wash systems
-
Cleaning equipment with space-saving or angled connection needs
Key Features
-
Thread In: 3/8" NPT Female
-
Thread Out: 3/8" NPT Male
-
Configuration: 90° swivel for compact or directional setups
-
Material: Stainless steel body and internals
-
Bearing System: 2 radial + 2 thrust ball bearings
-
Seal Type: Long-life carbide seal system
-
Seal Monitoring: Built-in weep holes for failure alerts
-
Max Pressure: 5000 PSI
-
Max Temperature: 250°F
-
Max RPM: 2000
-
Durable & Compact: Engineered for high-load, continuous-duty use
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/8" NPTF
Thread Out: 3/8" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 2.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.43"
Weight: 53.7 oz
The Mosmatic 59.902 DYT Swivel is a 90° stainless steel swivel engineered to withstand high-pressure, high-speed rotating cleaning applications involving thrust and radial forces. Designed for surface cleaners, parts washers, and rotary cleaning tools, this swivel delivers exceptional performance, durability, and leak resistance in harsh environments.
This heavy-duty swivel features a quadruple bearing system - comprising 2 radial ball bearings and 2 thrust ball bearings - for smooth, stable operation under continuous use. Its carbide seal system ensures long-lasting sealing even in extreme conditions, while weep holes provide an early alert to seal failure, helping prevent equipment damage and downtime.
With a pressure rating of 5000 PSI, speed capability of 2000 RPM, and temperature resistance up to 250°F, this swivel is built for powerful, high-efficiency cleaning systems that require angled, compact installation.
Applications
-
Heavy-duty 90° surface cleaners
-
High-pressure rotary nozzles and spray arms
-
Parts washers for industrial cleaning systems
-
Robotic and self-rotating pressure cleaning tools
-
Automated systems with angled connection points
Key Features
-
Thread In: 3/4" NPT Female
-
Thread Out: G3/8" Male
-
Angle: 90° configuration for directional system routing
-
Material: Stainless steel for corrosion resistance and longevity
-
Quadruple Bearing System: 2 radial + 2 thrust bearings
-
Seal Type: Carbide seal system for high durability
-
Seal Monitoring: Weep holes for early failure detection
-
Max Pressure: 5000 PSI
-
Max Temperature: 250°F
-
Max RPM: 2000
-
Built for Heavy Loads: Reliable performance under pressure and rotation
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 3/4" NPTF
Thread Out: G3/8" M
Nominal Width (NW): 3/8"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 3.62"
Length 2 (L2): 5.08"
Length 3 (L3): 0.47"
Weight: 61.7 oz
The Mosmatic 59.351 DYT Swivel is a 90° stainless steel swivel engineered for high-pressure, self-rotating applications requiring precision, durability, and resistance to both radial and thrust forces. Commonly used in surface cleaners and parts washers, this swivel allows for smooth, controlled motion in compact or angled setups.
This model features a quadruple bearing system with 2 radial ball bearings and 2 thrust ball bearings that provide stable rotation at high speeds. The carbide seal system offers excellent sealing performance even in the harshest conditions. An integrated weep hole system provides early detection of seal failure, extending the life of your equipment and minimizing unplanned downtime.
With a max pressure of 5000 PSI, 2000 RPM, and 250°F, this swivel is built for heavy-duty cleaning environments where reliability is critical.
Applications
-
High-pressure surface cleaners with angled setups
-
Industrial and commercial parts washing systems
-
Self-rotating rotary nozzles and spray bars
-
Robotic or automated pressure cleaning tools
-
Equipment with 90° connection requirements
Key Features
-
Thread In: 1/4" NPT Female
-
Thread Out: 1/4" NPT Male
-
Design: 90° swivel configuration for tight spaces
-
Material: Corrosion-resistant stainless steel
-
Quadruple Bearing System: 2 radial + 2 thrust bearings
-
Seal Type: Long-life carbide seal system
-
Seal Failure Detection: Integrated weep holes for maintenance alerts
-
Pressure Rating: Up to 5000 PSI
-
Speed Rating: Up to 2000 RPM
-
Temperature Rating: Up to 250°F
-
Compact and Rugged: Built for high-load, high-performance applications
Specs
Pressure: 5000 psi
Temperature: 250°F
RPM: max 2,000 rpm
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: Carbide
Throughput/medium: ph 3–12 / filtered 10 microns, compressed air (290 psi)
Thread In: 1/4" NPTF
Thread Out: 1/4" NPTM
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.63"
Diameter (D): 2.36"
Length 1 (L1): 3.83"
Length 2 (L2): 4.29"
Length 3 (L3): 0.47"
Weight: 45.9 oz
The Mosmatic WDRS Swivel 41.647 is a heavy-duty stainless steel swivel coupling engineered for large-diameter, high-pressure applications such as automatic car wash systems, industrial hose reels, and high-flow transfer lines. Designed for durability and smooth performance, this swivel provides reliable rotation and leak-resistant operation under demanding conditions.
The swivel features a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, ensuring stable, low-friction operation and extended service life. Its corrosion-resistant stainless steel body is ideal for use with water, chemicals, and compressed air, making it well-suited for industrial and commercial environments.
This model offers a Thread In of 2 ½" NPTF and a Thread Out of 2 ½" NPTF, with a nominal width (NW) of 2 ½", an overall diameter of 5.51", and an overall length of 9.70". Rated for up to 3000 PSI, the swivel operates at speeds up to 50 RPM and within a temperature range of 40°F to 180°F. It supports media with a pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
Large-diameter high-flow water and chemical transfer lines
-
Pneumatic tool and compressed air systems
-
Rotary spray equipment and surface cleaners
-
Commercial cleaning and fluid handling setups
Features
-
Stainless steel construction for superior durability and corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth and stable rotation
-
NBR O-ring seal for reliable leak protection and long service life
-
Thread In: 2 ½" NPTF | Thread Out: 2 ½" NPTF
-
Nominal Width (NW): 2 ½"
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 50
-
Overall Diameter: 5.51" | Overall Length: 9.70" | Height: 3.94"
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 290 psi
Temperature: 40°F - 180°F
RPM: max 50
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 2 1/2" NPTF
Thread Out: G2 2 1/2" NPTF
Nominal Width (NW): 2 1/2"
Wrench Size 1 (SW1): 3.35
Wrench Size 2 (SW2): 3.35
Height (H): 3.94
Length 1 (L1) (overall length) : 9.90
Length 2 (L2): 6.89
Length 3 (L3): 1.14
Diameter (D) (overall diameter): 5.51
Weight: 528 oz
The Mosmatic WDRS Swivel 41.662 is a heavy-duty stainless steel swivel coupling designed for high-pressure hose reels, automatic car wash systems, and industrial high-flow applications. Built for long-lasting durability and smooth rotation, this swivel delivers reliable, leak-free operation in demanding environments.
Featuring a dual bearing system with 2x radial ball bearings and an NBR O-ring seal, the WDRS 41.662 ensures low-friction, stable performance while minimizing wear and maintenance. Its robust stainless steel construction offers excellent corrosion resistance, making it ideal for use with water, chemicals, and compressed air systems.
This swivel is designed with a Thread In of 2" NPTF and a Thread Out of 2" NPTF, with a nominal width (NW) of 2", overall diameter of 3.54", and an overall length of 7.99". Rated for up to 3000 PSI, it operates at speeds up to 60 RPM and withstands temperatures from 40°F to 180°F. The unit is compatible with media in the pH range of 3–12 and 10-micron filtered compressed air up to 290 PSI.
Applications
-
Automatic car wash systems
-
Industrial high-pressure hose reels
-
High-flow water and chemical transfer lines
-
Pneumatic tool and compressed air connections
-
Rotary spray equipment and surface cleaners
-
Commercial cleaning and fluid handling systems
Features
-
Durable stainless steel construction for superior corrosion resistance
-
Dual bearing system with 2x radial ball bearings for smooth, stable rotation
-
NBR O-ring seal for effective leak prevention and long service life
-
Thread In: 2" NPTF | Thread Out: 2" NPTF
-
Nominal Width (NW): 2"
-
Max Pressure: 3000 PSI
-
Max Temperature Range: 40°F to 180°F
-
Max RPM: 60
-
Overall Diameter: 3.54" | Overall Length: 7.99" | Height: 2.76"
-
Compatible with pH 3–12 media and 10-micron filtered compressed air (290 PSI)
Specs
Pressure: 3000 psi
Temperature: 40°F - 180°F
RPM: max 60
Material Type: Stainless steel
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)
Thread In: G1 2" NPTF
Thread Out: G2 2" NPTF
Nominal Width (NW): 2"
Wrench Size 1 (SW1): 2.76
Wrench Size 2 (SW2): 2.76
Height (H): 2.76
Length 1 (L1) (overall length) : 7.99
Length 2 (L2): 5.28
Length 3 (L3): 4.10
Diameter (D) (overall diameter): 3.54
Weight: 190 oz
Showing 30/68
Next
