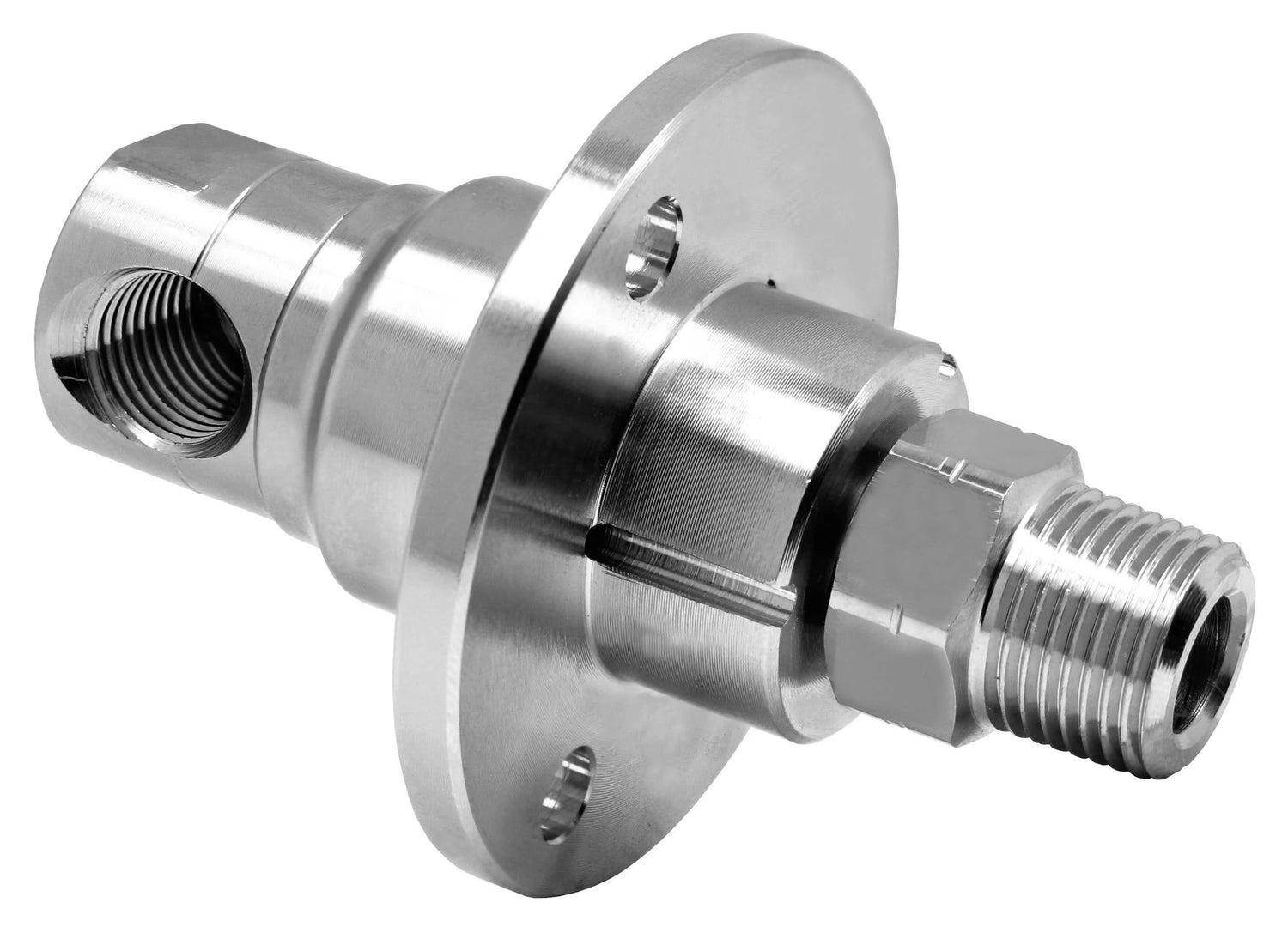

The Mosmatic DXFI 90° Swivel - 38.358 is a high-performance stainless steel swivel designed for high-RPM cleaning systems in demanding environments. Built for use in surface cleaners, tire washers, parts washers, and other self-rotating applications, this swivel offers smooth and efficient operation with maximum reliability. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for enhanced rotational stability. The ceramic seal system delivers excellent durability under pressure and high temperatures. Integrated weep holes provide early seal failure warning, and the flange mount allows for quick, secure installation.
Applications:
-
High-RPM self-rotating cleaning tools
-
Surface cleaners for commercial and industrial use
-
Tire and wheel cleaning equipment
-
Parts washers and degreasing systems
Key Features:
-
90° swivel configuration for optimized fluid routing
-
Corrosion-resistant stainless steel construction
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
High-performance ceramic seal system
-
Integrated weep holes for early seal failure detection
-
Flange mount for fast and secure installation
-
Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTM
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.49"
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Operating Temperature: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4"NPTF
Thread Out: G2 3/8"NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.75
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.49
Length 2 (L2): 0.47
Weight: 14.2oz

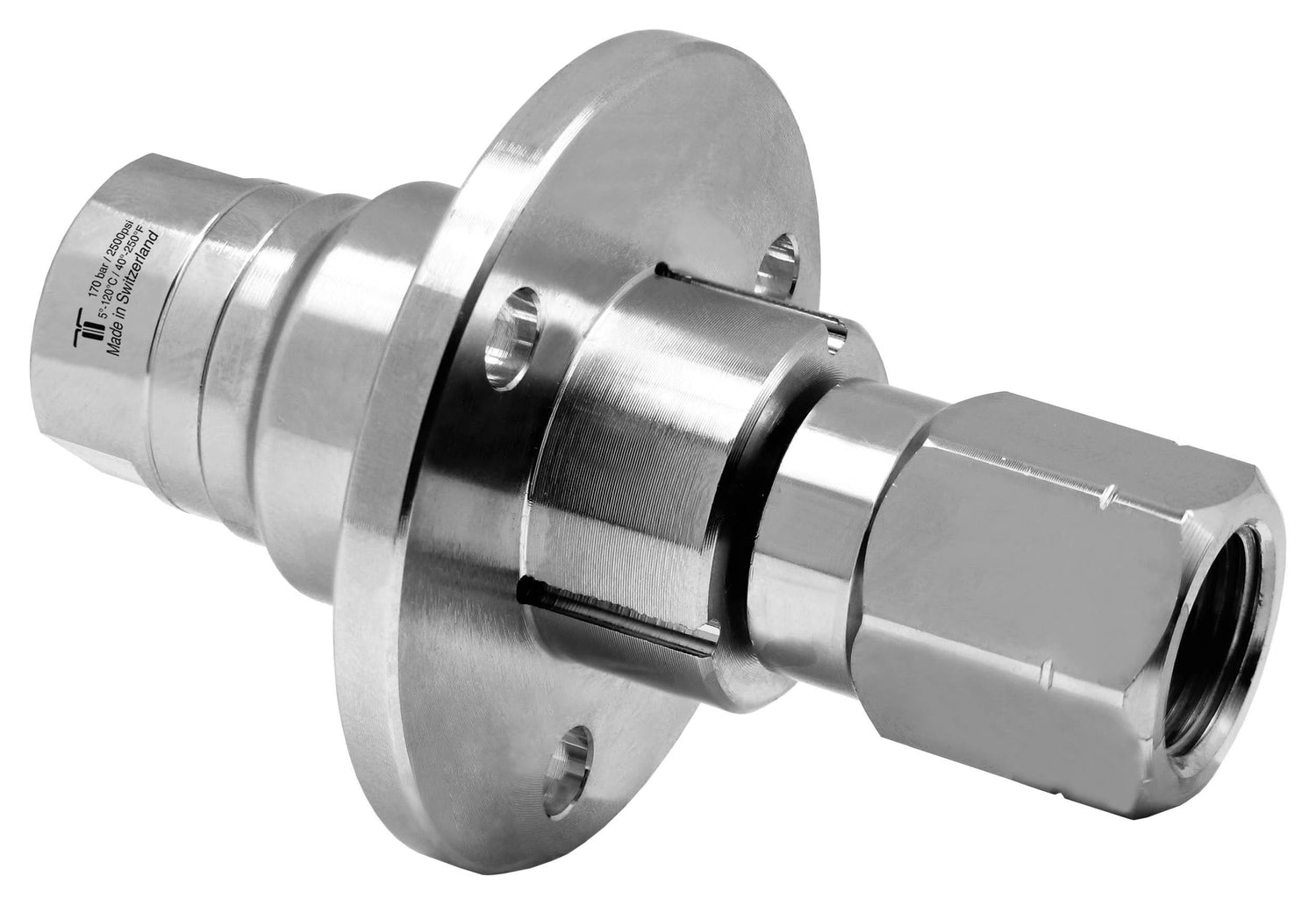

The Mosmatic DXFI Swivel - 38.159 is a premium stainless steel swivel designed for high-RPM, high-pressure cleaning systems. Engineered for longevity and precision, it is ideal for use in self-rotating applications such as surface cleaners, tire washers, and parts washers. This swivel features a durable triple bearing system—two radial ball bearings and one thrust ball bearing—for consistent, smooth rotation. Its ceramic seal system ensures exceptional performance under high heat and pressure, while built-in weep holes provide seal failure warning. A flange mount design allows for easy and secure installation.
Applications:
-
Self-rotating cleaning tools and high-RPM systems
-
Surface cleaners for industrial and commercial environments
-
Tire and wheel cleaning stations
-
Parts washers and automated cleaning systems
Key Features:
-
Corrosion-resistant stainless steel construction
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
Advanced ceramic seal system for high-pressure, high-temp use
-
Integrated weep holes for early seal failure detection
-
Flange mount for fast, stable installation
-
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTF
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.76"
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 3/8"NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.87
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.76
Weight: 10.0oz
The Mosmatic DXFI Swivel - 38.157 is a premium stainless steel swivel engineered for high-RPM, high-pressure applications in demanding cleaning environments. Designed for surface cleaners, self-rotating tools, tire washers, and industrial parts washers, this swivel provides exceptional durability and smooth performance. Its precision triple bearing system—two radial ball bearings and one thrust ball bearing—ensures reliable, long-lasting rotation. A ceramic seal system offers superior resistance to heat, pressure, and wear. Integrated weep holes provide early seal failure detection, while the flange mount allows for quick, secure installation.
Applications:
-
High-RPM self-rotating cleaning tools
-
Industrial and commercial surface cleaners
-
Tire and wheel cleaning equipment
-
Parts washers and degreasing systems
Key Features:
-
Durable stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
Long-lasting ceramic seal system for high-pressure use
-
Weep holes for proactive seal failure detection
-
Flange mount for quick and secure installation
-
Thread IN: 3/8" NPTF | Thread OUT: 1/4" NPTF
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.65"
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8"NPTF
Thread Out: G2 1/4"NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.75
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.65
Weight: 9.6oz
The Mosmatic DXFI Swivel - 38.059 is a high-performance stainless steel swivel designed for high-RPM, high-pressure cleaning applications. Built for durability and precision, this swivel is ideal for use in surface cleaners, parts washers, tire washers, and self-rotating cleaning tools. It features a reliable triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, long-lasting performance. The advanced ceramic seal system ensures optimal resistance to heat and pressure, while integrated weep holes provide early seal failure detection. A flange mount allows for easy and secure installation in demanding cleaning systems.
Applications:
-
High-RPM self-rotating cleaning tools
-
Industrial and commercial surface cleaners
-
Parts washers and degreasing equipment
-
Tire and wheel cleaning systems
Key Features:
-
Robust stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
Durable ceramic seal system for high-performance sealing
-
Weep holes for early seal failure warning
-
Flange mount for fast and secure installation
-
Thread IN: 1/4" NPTF | Thread OUT: 3/8" NPTF
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.76"
-
Max Pressure: 2500 PSI
-
Max Speed: 2000 RPM
-
Operating Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4"NPTF
Thread Out: G2 3/8"NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.87
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.76"
Weight: 10.4oz
The Mosmatic DXFI Swivel - 38.057 is a high-performance stainless steel swivel engineered for high-RPM and high-pressure cleaning applications. Designed for use in self-rotating tools, surface cleaners, tire washers, and industrial parts washers, this swivel delivers smooth, reliable performance under demanding conditions. It features a precision triple bearing system—two radial ball bearings and one thrust ball bearing—for superior rotational stability. The integrated ceramic seal system ensures long-term leak protection, while weep holes provide early seal failure detection. The flange mount enables fast, secure installation across a wide range of equipment setups.
Applications:
-
High-RPM self-rotating cleaning tools
-
Commercial and industrial surface cleaners
-
Tire and wheel washing systems
-
Parts washers and degreasing stations
Key Features:
-
Durable stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
Long-lasting ceramic seal system for high-pressure use
-
Weep holes for proactive seal failure indication
-
Flange mount for easy, secure installation
-
Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTF
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.65"
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Operating Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4"NPTF
Thread Out: G2 1/4"NPTF
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.75
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.65
Weight: 10.0oz
The Mosmatic DXFI 90° Swivel - 38.356 is a high-performance stainless steel swivel engineered for high-RPM, high-pressure cleaning applications requiring a 90-degree flow path. Designed for self-rotating systems such as surface cleaners, tire washers, and parts washers, this swivel offers long-lasting durability and precise performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and stable rotation. The integrated ceramic seal system provides excellent resistance to heat, pressure, and wear, while built-in weep holes offer early seal failure detection. Its flange mount ensures quick and secure installation.
Applications:
-
High-RPM self-rotating cleaning tools
-
Surface cleaners in industrial and commercial settings
-
Tire and wheel cleaning systems
-
Parts washers and automated cleaning stations
Key Features:
-
90° swivel design for optimized fluid routing
-
Stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial + 1x thrust ball bearing
-
High-durability ceramic seal system
-
Weep holes for seal failure warning
-
Flange mount for fast, secure installation
-
Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTM
-
Nominal Width (NW): 1/4"
-
Overall Diameter: 2.36"
-
Overall Length: 1.45"
-
Max Pressure: 2500 PSI
-
Max RPM: 2000
-
Operating Temperature Range: 40°F to 250°F
Specs
Pressure: 2500 psi
Temperature: 40°F - 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4"NPTF
Thread Out: G2 1/4"NPTM
Nominal Width (NW): 1/4"
Wrench Size 1 (SW1): 0.87
Wrench Size 2 (SW2): 0.67
Diameter (D) (overall diameter): 2.36"
Length 1 (L1) (overall length): 1.45
Length 2 (L2): 0.43
Weight: 12.5oz
