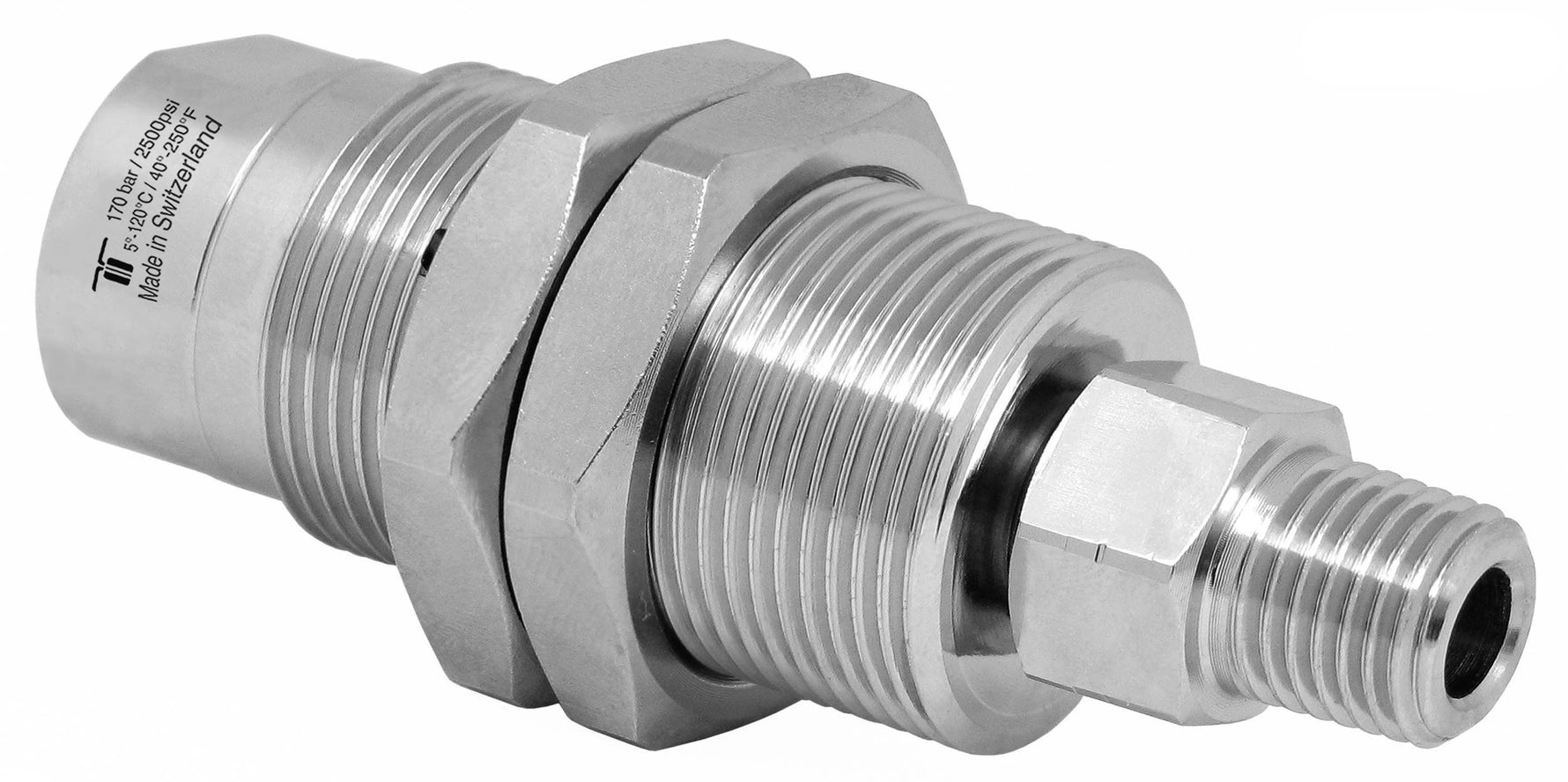

Product Description
Surface cleaners, parts washers, tire cleaners, high rpm, self rotating applications
- For Steam
- High speed, triple bearing systems
- Bulkhead fitting for mounting
- Corrosion resistant
- Highest quality and precision
- Maintenance free
G1 1/4”NPTF, G2 1/4”NPTM, NW 1/4”, SW1 0.87, SW2 0.67, SW3 1.34, L1 3.10, L2 0.43, Weight 9.9 oz
Technical data
- Pressure: 2500 psi(17 MPa)
- Temperature: 40°F-250 °F (max. 2’000 rpm)
- RPM: max. 2’000 rpm)
- Body: DGS: brass, nickel plated, DXGI: stainless steel
- Inner part: Stainless steel
- Seal: ceramic
- Bearing: 2x radial ball bearings, 1x thrust ball bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
