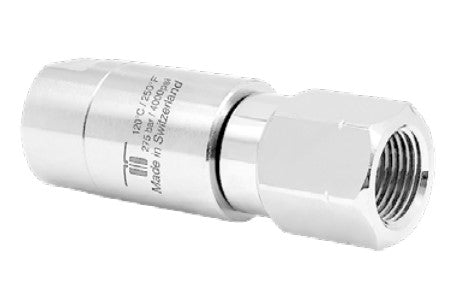

Product Description
Thrust and radial forces, high flow, automatic car wash systems, high pressure hose reels
- High speed triple bearing system
- Corrosion resistant
- Solid construction
- Long service life
- Maintenance free
G1 1/4”NPTF, G2 1/4” NPTF, M12x1-M NW 1/4”, SW1 0.87, SW2 0.75, L1 2.59, L2 0.47, D 0.98, Weight 5.7 oz,
Technical data
- Pressure: 4000 psi(27.5 MPa)
- Temperature: 90°F(at 1’000 rpm), 250°F (at 30 rpm)
- RPM: max. 1’000 rpm)
- Body: DGL: DGLI: stainless steel
- Inner part: Stainless steel
- Seal: O-ring NBR (optional: EPDM or FKM)
- Bearing: 2x radial ball bearings, 2x thrust ball bearing
- Throughput: pH 3-12
- Medium: filtered 10 microns, compressed air (290 psi)
