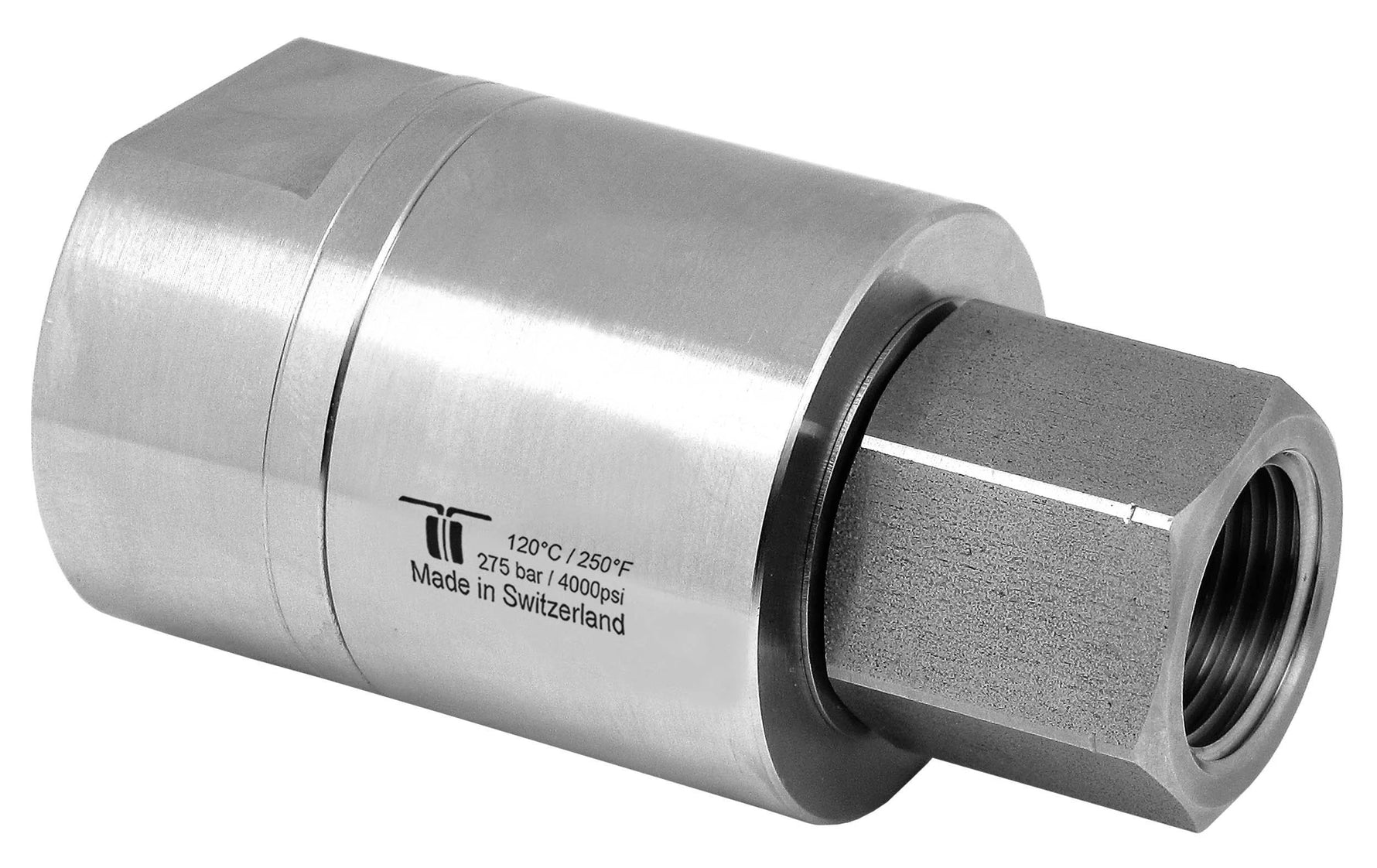

Mosmatic Rotary Unions DGE Swivel - G1 1/2"NPTF G2 1/2"NPTF NW 1/2in - 34.863

$165.03 $183.37

Brand: Mosmatic


Product Description

High flow, low rpm, automatic car wash systems, high pressure hose reels

  • Maintenance free
  • Sealed stainless steel bearings
  • High flow

G1 (F) 1/2”NPTF, G2 (F) 1/2”NPTF, NW 1/2”, SW1 1.06, SW2 1.38, L1 3.15, L2 2.17, D1 1.65, Weight 22.4 oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
