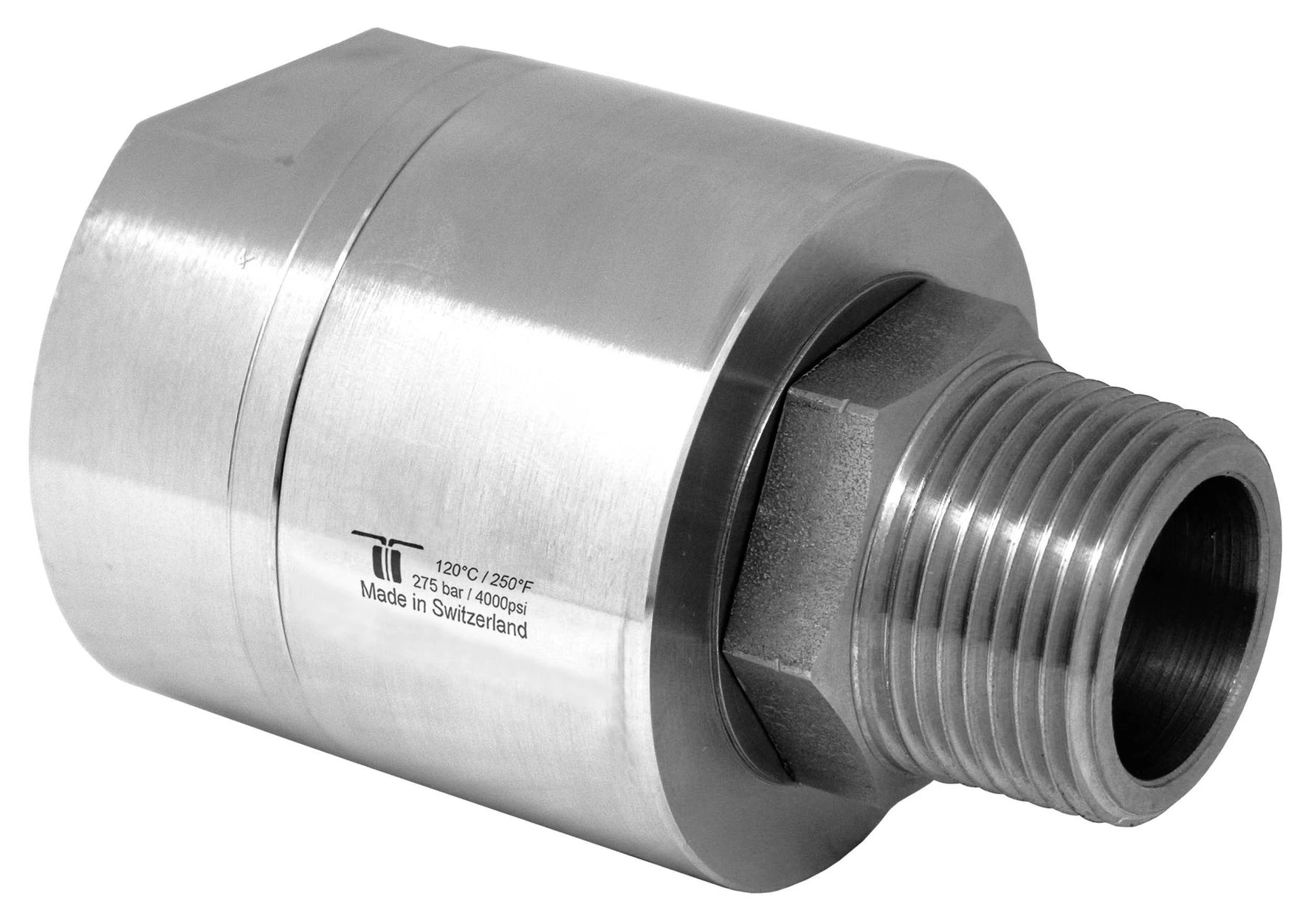

Mosmatic rotary unions DGE swivel G1 1"NPTF G2 1"NPTM NW 1in 34.855

$305.71 $339.68

Brand: Mosmatic


Product Description

High flow, low rpm, automatic car wash systems, high pressure hose reels

  • Maintenance free
  • Sealed stainless steel bearings
  • High flow

G1 (F) 1”NPTF, G2 (M) 1”NPTM, NW 1”, SW1 1.42, SW2 1.97, L1 3.54, L2 2.36, L3 0.71, D1 2.36, Weight 40.3 oz

Technical data

    • Pressure: 4000 psi (27.5 MPa)
    • Temperature: 250°F
    • RPM max. 30 rpm
    • Body:brass, nickel plated
    • Inner part: Stainless steel
    • Seal: O-ring NBR (optional: EPDM or FKM
    • Bearing: 1x thrust ball bearing, 1x radial ball bearing
    • Throughput: pH 3-12
    • Medium: filtered 10 microns, compressed air (290 psi)
