Product Description

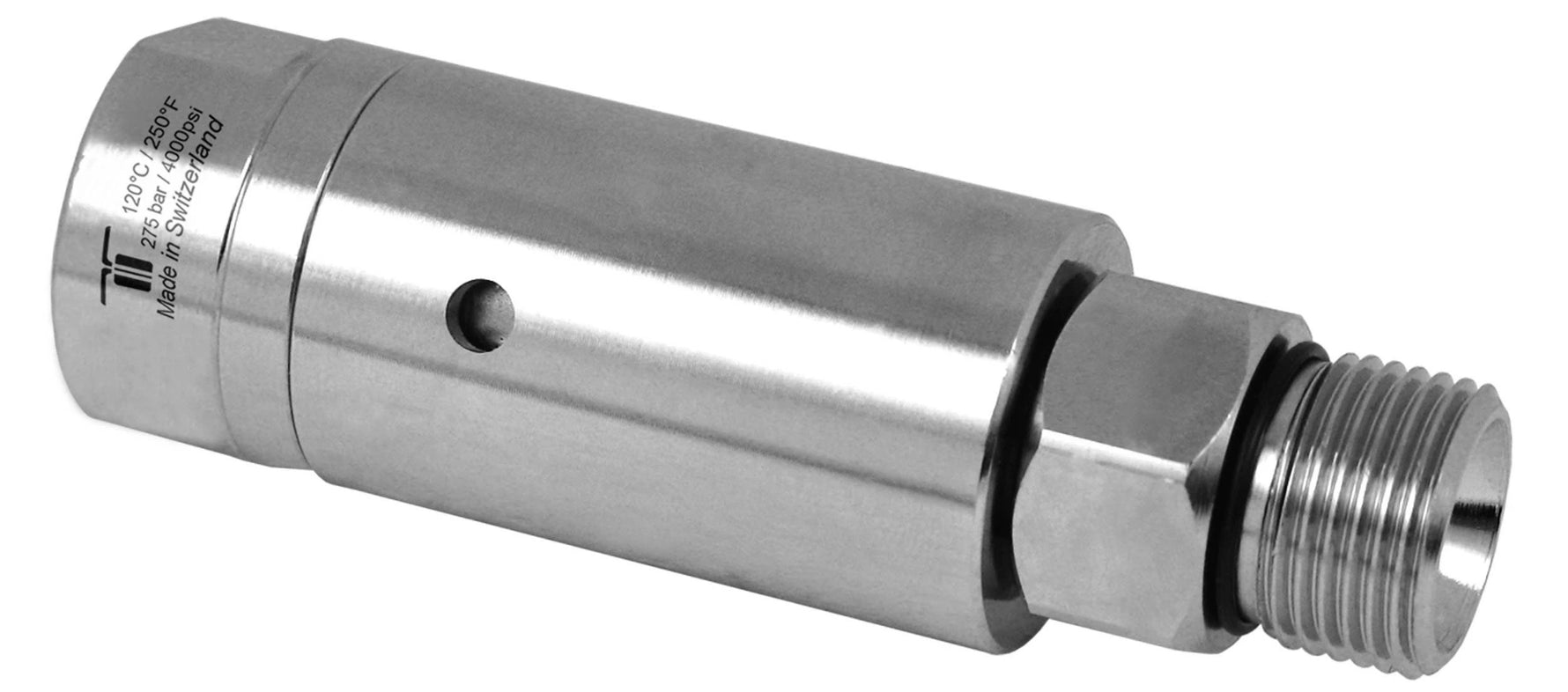

The Mosmatic DYLI Swivel 56.168 is a high-performance stainless steel swivel designed for high-speed, high-pressure cleaning systems. Ideal for industrial and commercial environments, this swivel is perfect for use in parts washers, tire cleaners, and rotary cleaning equipment. Featuring a precision-engineered triple bearing system—two radial ball bearings and one thrust ball bearing—it ensures smooth and reliable rotation. The integrated carbide seal system delivers long-lasting, leak-proof performance. Its corrosion-resistant stainless steel body and bulkhead mounting design make it both rugged and maintenance-free.
Applications
-
High-pressure cleaning systems
-
Parts washers
-
Tire and wheel cleaning equipment
-
High-speed rotary cleaning tools
-
Industrial and commercial cleaning setups
Key Features
-
Stainless steel construction for maximum corrosion resistance
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Carbide seal system for superior leak prevention and durability
-
Designed for high-speed, high-pressure performance
-
Maintenance-free operation
-
Bulkhead fitting for secure, fixed installation
-
Thread IN: 3/8” NPTF | Thread OUT: G3/8” M
-
Max Pressure: 4000 PSI
-
Max RPM: 2000
-
Max Temperature: 250°F
-
Overall Diameter: 0.98”
-
Overall Length: 3.14”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: Carbide
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8” NPTF
Thread Out: G2 G3/8” M
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Length 1 (L1) (overall length) : 3.14
Length 2 (L2): 0.39
Diameter (D1): 0.98
Weight: 7.2 oz
