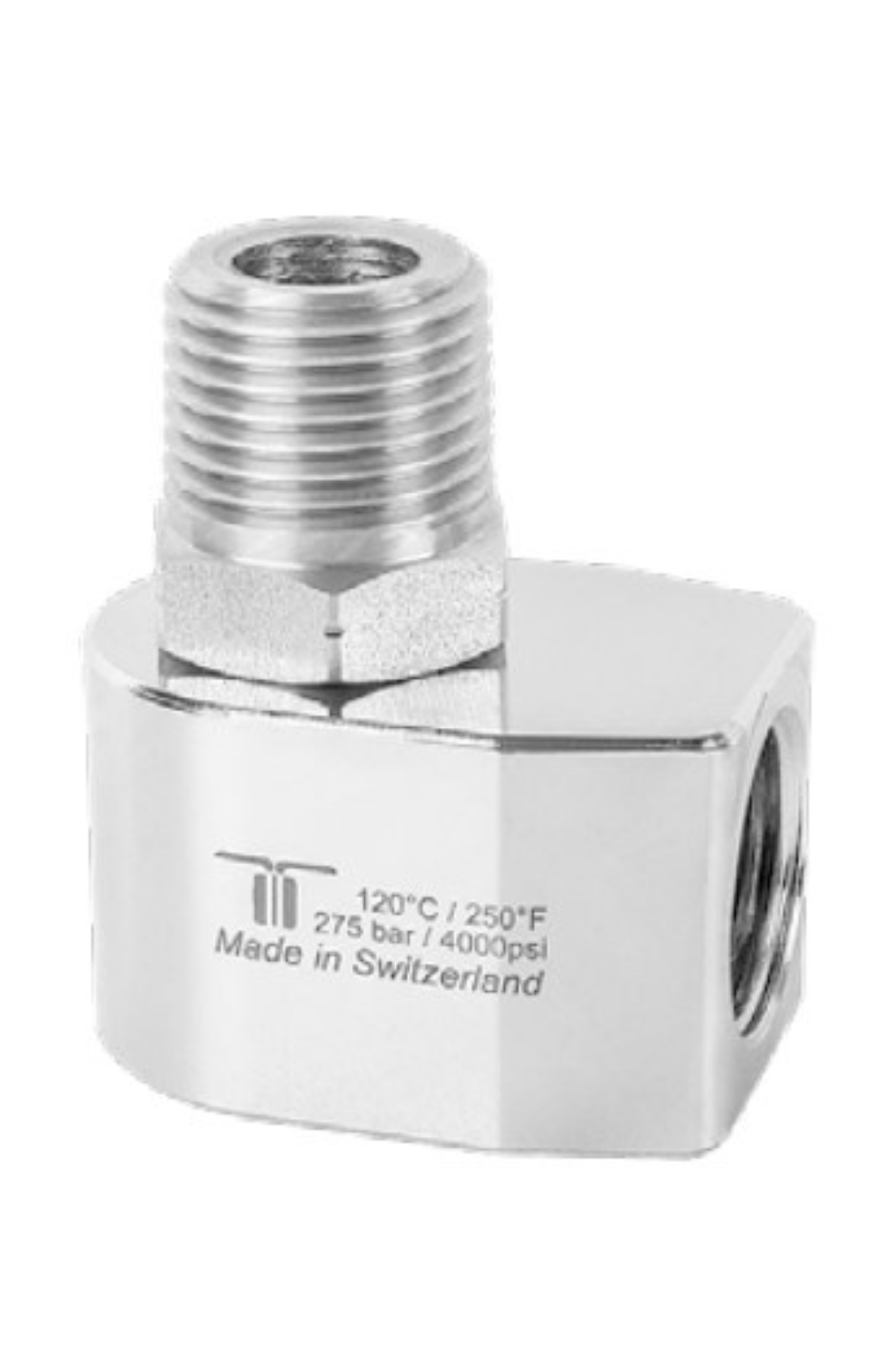

Mosmatic WDE Swivel - 43.454 - 3/8" NPTF to 1/2" NPTM

The Mosmatic WDE Swivel 43.454 is a high-performance nickel-plated brass swivel engineered for demanding applications in the food industry, as well as ceiling booms, high-pressure hose reels, and pressure cleaning systems. Designed for smooth operation and long-lasting durability, it features a sliding bearing for stable rotation and is sealed with a dependable O-ring NBR, with optional EPDM or FKM seals available for chemical and temperature resistance. With a 3/8" NPTF inlet and 1/2" NPTM outlet, this swivel supports pressures up to 4000 psi, temperatures up to 250°F, and rotation speeds up to 30 RPM.

Applications

• Ceiling boom systems

• High-pressure hose reels

• Food-grade cleaning systems

• Commercial and industrial pressure washers

Key Features

• Nickel-plated brass construction for corrosion resistance and hygiene compliance

• Sliding bearing for smooth and consistent rotation

• Thread IN: 3/8" NPTF | Thread OUT: 1/2" NPTM

• Overall Length: 2.17"

• Nominal Width (NW): 1/2"

• Rated for up to 4000 psi operating pressure

• Handles temperatures up to 250°F

• Max operating speed: 30 RPM

• Sealing: O-ring NBR standard, EPDM or FKM optional for special media compatibility

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR / Support ring (EPDM or FKM optional)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/2" NPTM

Nominal Width (NW): 1/2"

Wrench Size (SW): 0.87

Height (H): 1.1

Length 1 (L1): 1.77

Length 2 (L2) (overall length): 2.17

Length 3 (L3): 1.14

Length 4 (L4): 1.52

Length 5 (L5): 0.59

Length 6 (L6): 0.1

Weight: 9.9 oz
