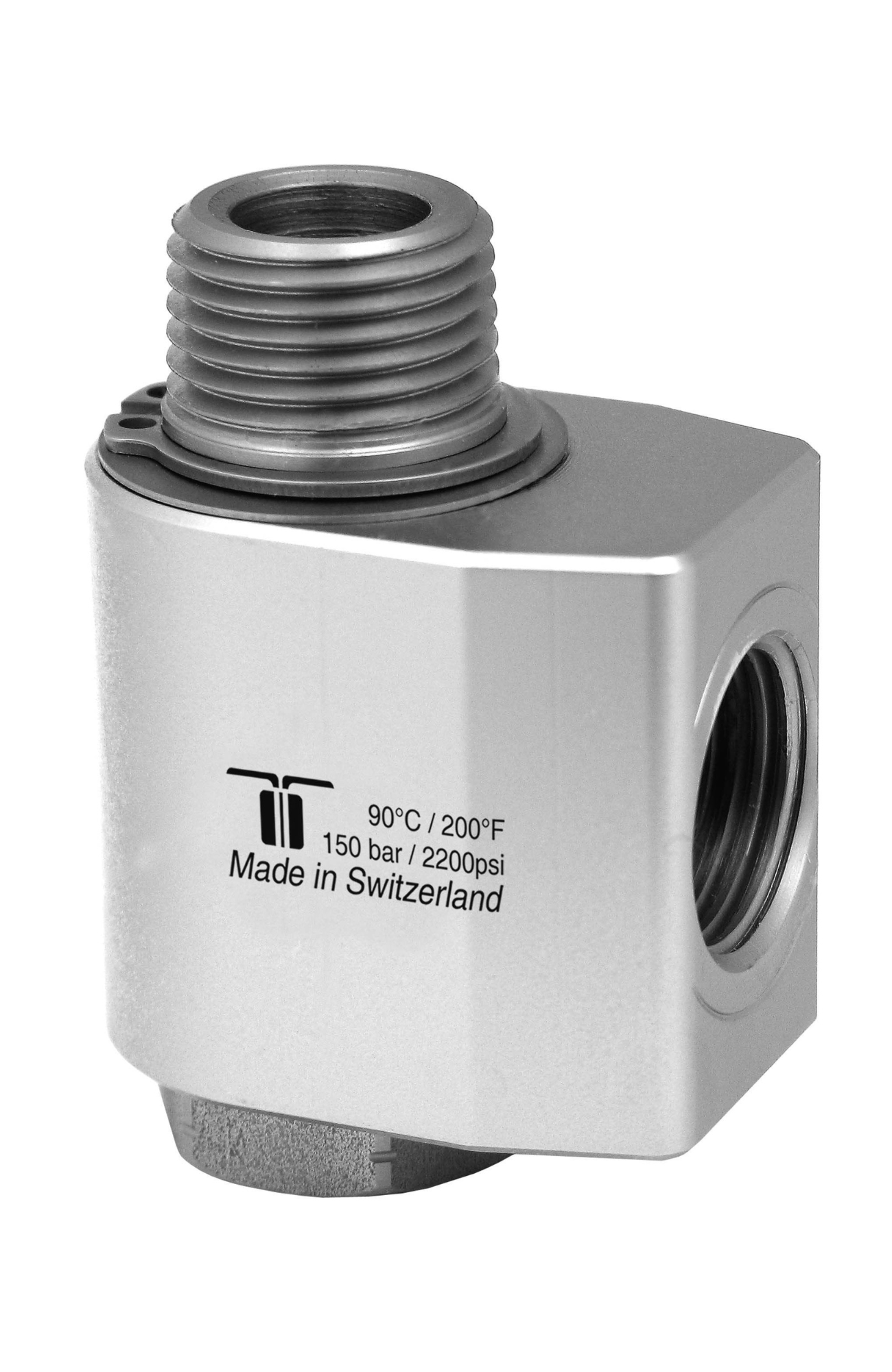

Mosmatic WDG Swivel - 40.211 - G1/2" F X R1/2" M

The Mosmatic WDG Swivel 40.211 is a robust, high-quality nickel-plated brass swivel engineered for high-pressure hose reels, ceiling booms, and pressure cleaning systems. Designed for durability and reliable operation, it features a sliding bearing that ensures smooth rotational movement even under continuous use. The swivel is sealed with an O-ring NBR for dependable leak prevention. With a G1/2" female inlet and R1/2" male outlet, it supports pressures up to 2200 psi, rotational speeds up to 30 RPM, and temperatures as high as 200°F.

Applications

• High-pressure hose reel systems

• Ceiling booms and overhead booms

• Pressure washers and surface cleaners

• General-purpose industrial cleaning equipment

Key Features

• Nickel-plated brass body for excellent corrosion resistance and longevity

• Sliding bearing provides stable and smooth rotation

• Thread IN: G1/2" Female | Thread OUT: R1/2" Male

• Dimensions: Height - 1.57" | Overall Length - 2.48"

• Nominal Width (NW): 1/2"

• Rated for up to 2200 psi working pressure

• Maximum operating temperature: 200°F

• Rotational speed: 30 RPM max

• Sealed with a durable O-ring NBR for leak protection

Specs

Pressure: 2200 psi

Temperature: 200° F

RPM: 30

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 G1/2" F

Thread Out: G2 R1/2" M

Nominal Width (NW): 1/2"

Wrench Size  (SW): 0.94

Height (H): 1.57

Length 1 (L1) :1.77

Length 2 (L2) (overall length): 2.48

Length 3 (L3): 1.14

Length 4 (L4) :1.42

Length 5 (L5) :0.43

Length 6 (L6): 0.28

Weight:13.5 oz
