The Mosmatic Wall Boom WAE (68.509) is a high-performance, wall-mounted boom designed for wash bays and outdoor cleaning areas where ceiling-mounted booms are not practical. With a length of 4 ft 9 in, this boom features a precision-engineered 180° smooth rotation and a return-to-rest wall bracket that ensures consistent positioning when not in use.

Equipped with a 3/8" NPTF inlet (top and side) and 3/8" outlet, the WAE boom supports a throughput medium of water, oil, and air across a pH range of 3–12. Rated for up to 4000 PSI and 250°F, it comes pre-installed with a durable, insulated high-pressure (HP) hose for enhanced operator safety and performance. Environmentally friendly and built to withstand heavy use, the WAE boom is a trusted solution for a variety of commercial and industrial cleaning operations.

Applications

• Outdoor vehicle wash areas

• Self-service and automated car washes

• Industrial equipment cleaning stations

• Fleet wash bays with limited ceiling access

• Food processing and manufacturing washdown areas

Key Features

• 4 ft 9 in wall-mounted boom

• 180° smooth rotation with return-to-rest bracket

• Insulated high-pressure (HP) hose included

• 3/8" NPTF inlets (top and side) + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Environmentally friendly and industrial-grade

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 22 lbs

The Mosmatic Wall Boom WAD (61.419) is a dual-arm wall-mounted boom system designed for outdoor wash bays, fleet maintenance areas, and industrial cleaning environments where ceiling installations are not feasible. With two independently rotating arms—5 ft 9 in (lower) and 5 ft 3 in (upper)—this unit provides extended reach and efficient dual-medium functionality. Each arm offers 180° smooth rotation and is supported by a return-to-rest wall bracket for clean, consistent storage.

Ideal for systems using both high and low pressure, the upper boom is recommended for low-pressure applications, such as foam brushes, while the lower boom supports high-pressure spray equipment. The unit is equipped with an insulated high-pressure (HP) hose, handles up to 4000 PSI, and supports operating temperatures up to 250°F. It is compatible with water, oil, and air (pH 3–12) and includes 3/8" NPTF inlets (top and side) with a 3/8" outlet, delivering environmentally friendly, high-performance operation.

Applications

• Outdoor and self-service car wash bays

• Truck, bus, and fleet wash stations

• Washdown areas in industrial or agricultural operations

• Cleaning systems requiring separate high and low pressure lines

• Locations with no ceiling mounting access

Key Features

• Dual-arm boom: 5 ft 9 in + 5 ft 3 in

• 180° smooth rotation on both booms with return-to-rest bracket

• Designed for dual-pressure operation (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF top and side inlets and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly and built for industrial performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 5'9"

Length 2: 5'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 43 lbs

The Mosmatic Wall Boom Extension WSA (60.532) is engineered to deliver maximum flexibility and extended reach for demanding wash environments. With a base length of 8 ft 2 in and a maximum reach of 7 ft 5 in, this extension arm is ideal for truck wash bays, aircraft hangars, mining operations, and industrial manufacturing plants.

When paired with the Mosmatic DKP ceiling boom (sold separately), this unit enables a working radius of up to 39 feet, offering operators exceptional coverage and smooth, reliable motion. Designed for single-medium flow, it features one internal pipe with 3/8" NPTF inlets (top and side) and a 3/8" NPTM outlet. Built to handle up to 4000 PSI and 250°F, the WSA extension is compatible with water, oil, and air (pH 3–12). Durable, environmentally conscious, and easy to integrate, it's a top-tier solution for expanding your operational range.

Applications

• Truck and fleet vehicle wash bays

• Aircraft maintenance and service areas

• Mining and heavy-duty equipment washdown

• Industrial manufacturing and processing plants

• Extended-reach wash applications with ceiling boom integration

Key Features

• 8 ft 2 in wall boom extension, 7 ft 5 in max reach

• Enables up to 39 ft working radius with DKP ceiling boom (sold separately)

• Single pipe = one inlet system for controlled medium flow

• 3/8" NPTF inlets (top and side) and 3/8" NPTM outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Built for smooth operation, solid durability, and environmental efficiency

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 8'2"

Max. Length: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 56 lbs

Black Boom Hose for 6'-9" WAE

Specifications:

Nominal Width (NW): 5/16"

Pressure: 5800psi

Temperature: 300°F

Total Length: L=70"

2 x cut ring fitt.

Specifications:

Nominal Width (NW): 5/16"

Pressure: 5800psi

Temperature: 300°F

Total Length: L=62"

2 x cut ring fitt.

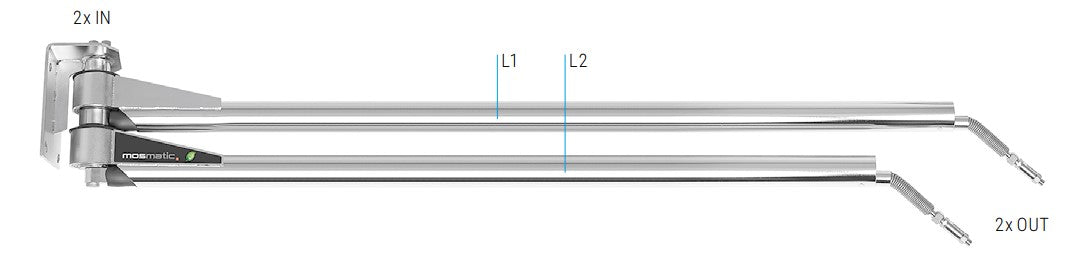

The Mosmatic Wall Boom WAD (61.449) is a dual-arm wall-mounted boom designed for outdoor wash bays, fleet cleaning stations, and industrial applications where ceiling-mounted solutions are not possible. With two independent boom arms—7 ft 5 in (lower) and 6 ft 9 in (upper)—this unit delivers extended reach, enhanced flexibility, and 180° smooth rotation for maximum operator control.

Equipped with a return-to-rest wall bracket, the booms automatically return to the selected resting position for efficient storage and safety. For dual-pressure systems, the upper boom is recommended for low-pressure applications, such as foam dispensing, while the lower boom supports high-pressure rinsing. The system includes a reliable insulated high-pressure (HP) hose, rated for up to 4000 PSI and 250°F, and supports water, oil, and air with a pH range of 3–12. It also features 3/8" NPTF inlets (top and side) and a 3/8" outlet, ensuring seamless installation in commercial environments.

Applications

• Self-service and commercial car wash bays

• Fleet and truck wash operations

• Industrial cleaning with high/low pressure needs

• Outdoor washdown areas with no ceiling mount access

• Agriculture and food industry cleaning systems

Key Features

• Dual boom arms: 7 ft 5 in + 6 ft 9 in

• 180° rotation on both booms with return-to-rest wall bracket

• Designed for dual-pressure use (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF inlets (top and side) + 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly, rugged industrial design

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 7'5"

Length 2: 6'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 45 lbs

The Mosmatic Wall Boom WAD (61.439) is a dual-arm, wall-mounted boom designed for demanding cleaning applications in outdoor wash bays, fleet service stations, and industrial environments where ceiling mounts aren’t an option. With boom lengths of 6 ft 9 in (lower) and 6 ft 3 in (upper), this unit provides extended coverage and flexible operation, featuring 180° smooth rotation on each arm.

Equipped with a return-to-rest wall bracket, this boom system ensures tidy and efficient storage. For dual-pressure applications, it is recommended to use the upper boom for low-pressure tasks, such as foam brushes, and the lower boom for high-pressure rinsing. The system includes a rugged insulated high-pressure (HP) hose, handles up to 4000 PSI, and withstands 250°F. Compatible with water, oil, and air across a pH range of 3–12, the unit also features 3/8" NPTF inlets (top and side) and a 3/8" outlet.

Applications

• Outdoor self-service car wash bays

• Truck and fleet wash stations

• Equipment washdown in industrial or agricultural settings

• Dual-pressure wash setups (rinse and foam)

• Facilities without ceiling mount capability

Key Features

• Dual boom lengths: 6 ft 9 in  + 6 ft 3 in

• 180° smooth rotation with return-to-rest wall bracket

• Designed for dual-pressure operation (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF top and side inlets with 3/8" outlet

• Rated for 4000 PSI and 250°F

• Handles water, oil, and air (pH 3–12)

• Eco-friendly and industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 6'9"

Length 2: 6'3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 44 lbs

The Mosmatic Wall Boom WAD (61.429) is a dual-arm wall-mounted boom designed for outdoor wash bays, fleet wash areas, and industrial cleaning stations where ceiling-mounted systems are not suitable. With dual boom lengths of 6 ft 3 in (lower) and 5 ft 9 in (upper), this unit offers extended range, enhanced maneuverability, and 180° smooth rotation on each arm. The return-to-rest wall bracket ensures organized and consistent storage when not in use.

Perfect for setups requiring both high and low pressure, the upper boom is recommended for low-pressure applications, such as foam brushes, while the lower boom handles high-pressure cleaning. This system includes a durable insulated high-pressure (HP) hose and is rated for up to 4000 PSI and 250°F. Compatible with water, oil, and air across a pH range of 3–12, it features 3/8" NPTF inlets (top and side) and a 3/8" outlet for flexible installation in commercial and industrial environments.

Applications

• Outdoor car wash bays with dual-tool setups

• Fleet, truck, and bus wash facilities

• Industrial and food processing washdown zones

• Equipment cleaning where ceiling mounting isn’t an option

• High- and low-pressure cleaning environments

Key Features

• Dual-arm lengths: 6 ft 3 in + 5 ft 9 in

• 180° smooth rotation with return-to-rest wall bracket

• Supports dual-pressure operation (low pressure on upper boom)

• Includes insulated high-pressure (HP) hose

• 3/8" NPTF top and side inlets and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Environmentally friendly, built for high-demand use

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 6'3"

Length 2: 5'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 43 lbs

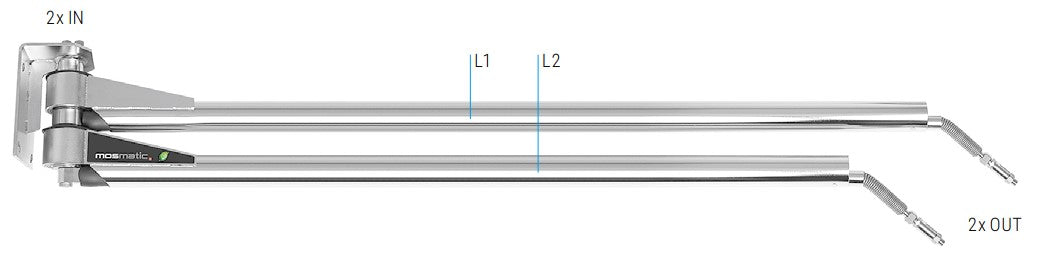

The Mosmatic Wall Boom WAD (61.409) is a dual-arm, wall-mounted boom engineered for high-efficiency use in outdoor wash bays, fleet cleaning stations, and industrial environments where ceiling mounting is not possible. With dual booms measuring 5 ft 3 in and 4 ft 9 in, this unit provides extended reach and flexible cleaning functionality. Each arm offers 180° smooth rotation, and the built-in wall bracket ensures the booms return to their preset resting positions after use.

Ideal for applications requiring both high and low pressure, this model is designed with low pressure routed through the upper boom for optimal safety and control. It features an insulated high-pressure (HP) hose, handles up to 4000 PSI, and withstands temperatures up to 250°F. Compatible with water, oil, and air across a pH range of 3–12, the WAD boom is a durable, environmentally friendly solution for dual-function cleaning setups.

Applications

• Self-service and commercial car wash bays

• Truck and fleet wash stations

• Industrial and agricultural equipment cleaning

• Washdown areas requiring dual high/low pressure setups

• Locations with no ceiling mount capability

Key Features

• Dual-arm boom: 5 ft 3 in + 4 ft 9 in

• 180° smooth rotation on each arm with return-to-rest wall bracket

• Designed for dual pressure applications (low pressure on upper boom)

• Insulated high-pressure (HP) hose included

• 3/8" NPTF inlets (top and side) and 3/8" outlet

• Rated for 4000 PSI and 250°F

• Compatible with water, oil, and air (pH 3–12)

• Eco-friendly and industrial-grade performance

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTF

Length 1: 5'3"

Length 2: 4'9"

Throughput/medium: water, oil, air at pH 3-12

Weight: 42 lbs

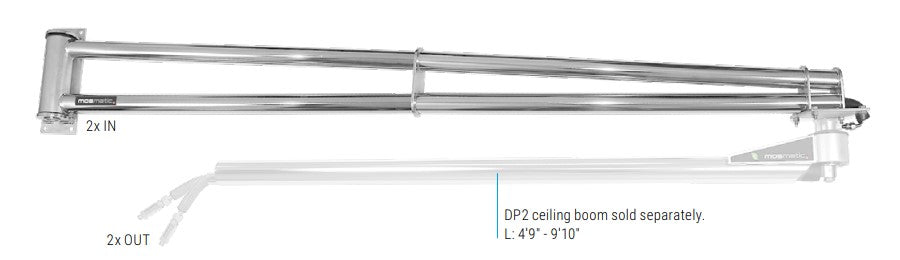

The Mosmatic WSA-2R Wall Boom Extension 60.912 delivers unmatched reach and dual-medium capacity, making it the ideal upgrade for demanding commercial and industrial wash bays. With a boom length of 9 ft 10 in and a maximum operating length of 9 ft, this extension ensures wide coverage and enhanced flexibility.

Featuring two internal pipes for separate media lines, this dual-inlet system is perfect for combining functions like high and low-pressure systems. It operates at up to 4000 psi and 250°F, making it suitable for tough cleaning jobs across a range of industries. For maximum reach—up to a 39-foot working radius—pair it with a Mosmatic DP2 Ceiling Boom (sold separately). Built for durability and smooth, reliable operation.

Applications

• Truck and fleet wash stations

• Aircraft maintenance and cleaning

• Mining and heavy-duty equipment wash bays

• Industrial manufacturing plants

• Dual-function washing setups (e.g., water/air or hot/cold pressure)

Key Features

• Boom length: 9'10", max working length: 9'

• Two internal pipes: supports 2 inlets for dual media

• Wall-mounted for maximum reach and flexibility

• Designed for use with DP2 Ceiling Boom (sold separately)

• Rated to 4000 psi and 250°F

• Compatible with water, oil, and air, pH 3–12

• Durable, environmentally conscious construction

• Smooth operation for extended work range

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 9'10"

Max. Length: 9'

Throughput/medium: water, oil, air at pH 3-12

Weight: 66 lbs

The Mosmatic WSA-2R Wall Boom Extension 60.911 is the ideal solution for applications requiring extended reach and dual-fluid functionality. With a boom length of 8 ft 2 in and a maximum operating length of 7 ft 5 in, this high-performance extension is engineered for demanding environments such as truck wash bays, mining facilities, aircraft maintenance areas, and industrial plants.

Designed with two inner pipes to handle separate media lines, this extension supports dual-inlet operation—perfect for setups involving simultaneous use of high and low-pressure systems. Built to operate at up to 4000 psi and 250°F, the WSA-2R ensures a durable, efficient, and environmentally friendly wash solution. Combine it with a Mosmatic DP2 Ceiling Boom (sold separately) to maximize your wash bay's working radius—up to 39 feet when configured correctly.

Applications

• Commercial truck and fleet wash stations

• Mining and heavy equipment maintenance

• Aircraft service and cleaning bays

• Manufacturing and industrial washing operations

• Dual-medium cleaning setups (air/water, hot/cold, etc.)

Key Features

• 8 ft 2 in boom length, 7 ft 5 in max reach

• Dual pipe system: 2 inner pipes = 2 inlets

• Compatible with Mosmatic DP2 Ceiling Boom (sold separately)

• Wall-mounted for optimized space and mobility

• Handles up to 4000 psi and 250°F

• Media support: water, oil, air, pH 3–12

• Smooth operation with durable construction

• Designed for environmentally responsible operations

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 8'2"

Max. Length: 7'5"

Throughput/medium: water, oil, air at pH 3-12

Weight: 60 lbs

The Mosmatic WSA-2R Wall Boom Extension (60.910) delivers maximum flexibility and extended reach for demanding wash environments. With a boom length of 6 ft 8 in and a maximum reach of 6 ft 3 in, this dual-pipe extension is engineered for industrial-grade applications requiring two separate media lines. Ideal for use in truck wash bays, aircraft maintenance, mining sites, and manufacturing facilities, this extension enhances efficiency and operator convenience.

Built for durability and smooth operation, the WSA-2R features a dual-pipe design with two inlets for managing separate fluids, and is capable of handling up to 4000 psi and 250°F. It is compatible with Mosmatic DP2 ceiling booms (sold separately) to create a complete high-performance wash system. The boom ensures a clean, clutter-free bay and a working radius up to 39 feet when configured correctly.

Applications

• Commercial truck and fleet wash bays

• Mining and heavy equipment maintenance

• Aircraft cleaning stations

• Industrial manufacturing facilities

• Any dual-medium fluid application requiring extended reach

Key Features

• 6 ft 8 in boom length, max reach 6 ft 3 in

• Two inner pipes for dual-medium operation (2 inlets)

• Compatible with Mosmatic DP2 ceiling boom (sold separately)

• Smooth, comfortable rotation and maneuverability

• Handles up to 4000 psi and 250°F

• Throughput medium: water, oil, air (pH 3–12)

• Wall-mounted for space efficiency and safety

• Environmentally friendly construction and materials

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

Thread In: 3/8" NPTF

Thread Out: 3/8" NPTM

B: 6'8"

Max. Length: 6'.3"

Throughput/medium: water, oil, air at pH 3-12

Weight: 55 lbs
