The Mosmatic DGL Swivel 31.051 is a brass, nickel-plated high-flow swivel engineered for handling thrust and radial forces in automatic car washes, high-pressure hose reels, and industrial cleaning systems. Built to withstand rigorous use, it ensures long-lasting, maintenance-free performance in both fixed and rotating setups.

Featuring a triple bearing system (2x radial and 1x thrust ball bearing), this swivel allows for stable, reliable rotation under high-pressure conditions. The O-ring NBR sealing system provides leak-proof operation and is upgradeable to EPDM or FKM seals for enhanced chemical compatibility. With a bulkhead mounting configuration and corrosion-resistant body, the DGL 31.051 is a trusted solution for demanding cleaning applications.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Robotic wash arms and gantry systems

• Industrial cleaning equipment

• High-flow pressure washing systems

Key Features

• Design: Straight inline swivel

• Material: Brass, nickel plated

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple (2x radial, 1x thrust)

• Thread IN (G1): 1/4" NPTF

• Thread OUT (G2): 1/4" NPTM

• Overall Diameter: 0.98"

• Overall Length: 2.55"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting Type: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.62"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.43"

Diameter (D) (overall diameter): 0.98"

Weight: 5.7 oz

The Mosmatic DGV Swivel 32.861 is a high-performance brass swivel designed for high-pressure applications such as hose connections, hydraulics, and HP-guns. Featuring nickel plating for enhanced corrosion resistance, this swivel includes a single thrust ball bearing and a durable NBR O-ring seal system (with optional EBDM or FKM upgrades). Its live rotation under full pressure ensures maximum flexibility and minimal hose wear. Built to Mosmatic’s exacting standards, this swivel is maintenance-free and built for longevity in tough environments.

Applications

• High-pressure HP-guns

• Hydraulic hose and line connections

• Industrial and commercial cleaning equipment

• Tangle-free hose reel systems

Features

• Material: Brass, nickel plated

• Thread Type: 1/2" NPTM inlet x 3/8" NPTM outlet

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal Type: NBR O-ring (optional EBDM or FKM)

• Bearing System: 1x thrust ball bearing

• Corrosion Resistant: Suitable for harsh conditions

• Maintenance Free: No lubrication required

• Compact Size: Overall length 2.76", NW 3/8", SW 1.06"

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.76"

Length 2 (L2): 0.59"

Length 3 (L3): 0.47"

Weight: 7.5 oz

The Mosmatic DGL Swivel 31.154 is a brass, nickel-plated swivel designed to handle thrust and radial forces in high-pressure, high-flow cleaning systems. Engineered for efficiency and reliability, it’s ideal for automatic car wash setups, hose reels, and other demanding cleaning environments.

Featuring a triple bearing system (2 radial and 1 thrust bearing) and an O-ring NBR seal system with optional EPDM or FKM upgrades, this swivel ensures long-lasting, low-maintenance performance. Its corrosion-resistant nickel-plated finish offers added durability in tough conditions.

Applications

• Automatic car wash systems

• High-pressure hose reels

• Vehicle wash bays

• Industrial cleaning systems

• Water recovery and undercarriage cleaning

Key Features

• Model: Mosmatic DGL 31.154

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Seal Type: O-ring NBR (optional EPDM or FKM)

• Bearing System: Triple bearing (2 radial, 1 thrust)

• Mounting Type: Bulkhead

• Corrosion Resistant: Yes

• Maintenance: Maintenance-free

• Overall Diameter: 0.98"

• Overall Length: 2.87"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Diameter (D) (overall diameter): 0.98"

Weight: 6.5 oz

The Mosmatic DGF Swivel - 35.463 is a high-performance swivel designed for use in high-pressure cleaning and industrial washing systems. Made from durable brass with a corrosion-resistant nickel-plated finish, this swivel offers exceptional reliability and long-lasting operation. Its advanced triple bearing system—featuring two radial ball bearings and one thrust ball bearing—ensures smooth, consistent rotation under high loads. The integrated O-ring NBR seal delivers dependable performance across a wide range of temperatures and pressures, making it ideal for tire cleaners, self-rotating tools, and parts washers.

Applications:

• High-pressure cleaning systems

• Tire and wheel washing equipment

• Industrial parts washers

• Self-rotating cleaning tools and machinery

Key Features:

• Durable brass construction with nickel-plated finish

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR for reliable sealing under pressure

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Temperature Range: 90°F @ 1000 RPM, 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.9oz

The Mosmatic DGVI Swivel 32.752 is engineered for high-performance in HP-Guns, hydraulic systems, and high-pressure hose reels. Built entirely from stainless steel, this swivel offers live rotation under maximum pressure and is designed to handle intense working conditions while remaining maintenance-free.

Its single thrust ball bearing system and O-ring NBR seal (optional EPDM or FKM) deliver reliable rotation, corrosion resistance, and leak prevention. This swivel is ideal for professionals needing compact strength and maximum durability in demanding environments.

Applications

• High-pressure hose reels

• HP-Guns and pressure washer systems

• Hydraulic applications

• Tangle-free hose systems

• Industrial cleaning equipment

Features

• Material: Full stainless steel construction

• Thread IN (G1): 1/4" NPTM

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 2.60"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 7300 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearing System: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM or FKM)

• Benefits: Live rotation, corrosion resistance, compact, maintenance free

Specs

Pressure: 7300 psi (50 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.60"

Length 2 (L2): 0.39"

Weight: 5.2 oz

The Mosmatic DGV Swivel 32.569 is a brass, nickel-plated swivel built for superior performance in high-pressure systems. Designed for HP-Guns, hydraulic applications, and hose connections, it provides smooth and reliable rotation under pressure. The single thrust ball bearing and O-ring NBR seal (with optional EBDM or FKM upgrades) offer leak-free operation and extended service life. This swivel is ideal for keeping hoses tangle-free while ensuring optimal flow and control, all in a compact, corrosion-resistant, and maintenance-free design.

Applications

• High-pressure spray guns

• Hydraulic and pneumatic hose connections

• Industrial fluid handling

• Hose reels and car wash systems

• Anti-kink swivel joints

Features

• Material: Brass, nickel plated

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTF

• Overall Length: 2.87"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional: EBDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Design Benefits: Compact, corrosion-resistant, tangle-free, maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.87"

Length 1 (L1) (overall length) : 2.87"

Weight: 7.1 oz

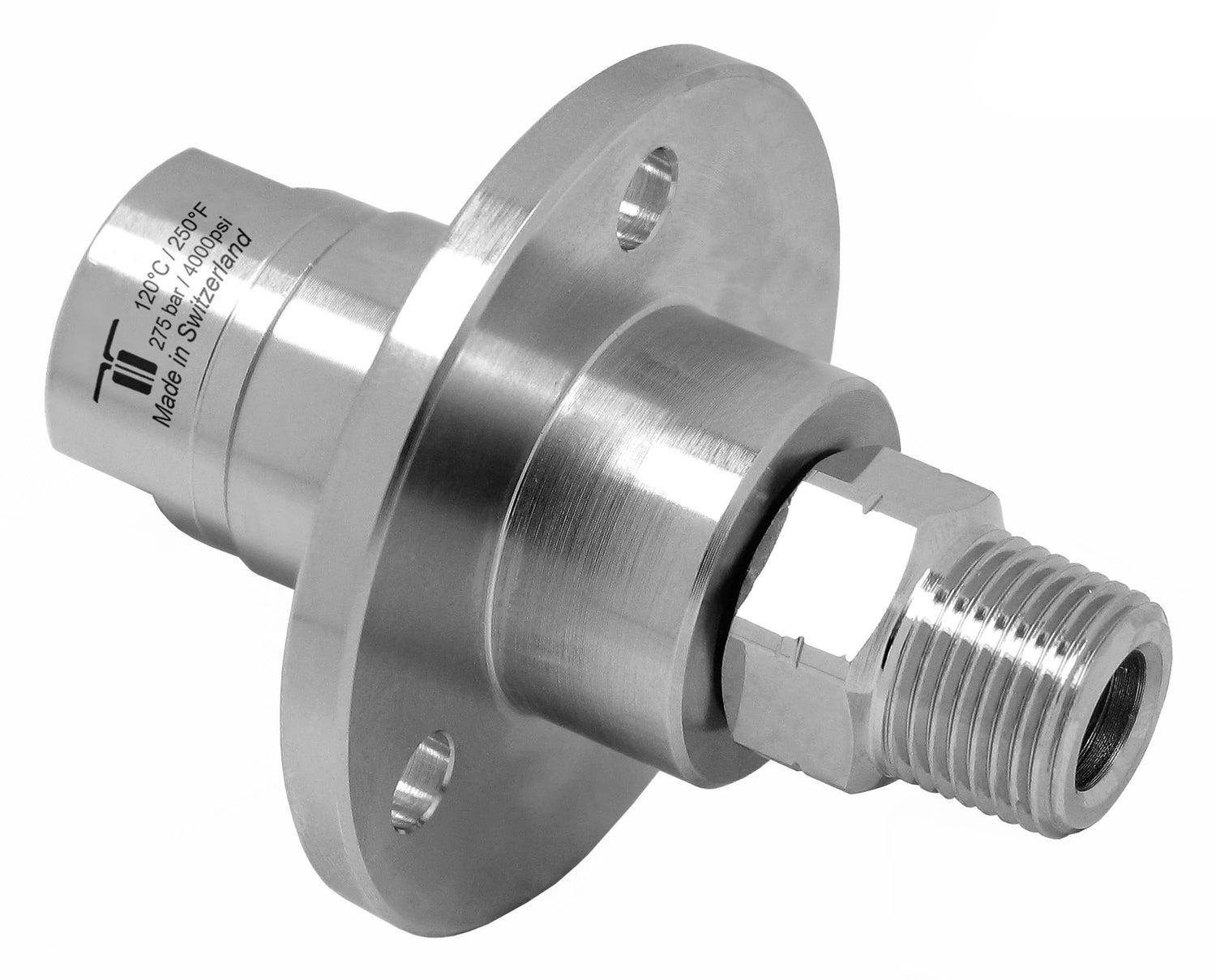

The Mosmatic DGF Swivel - 35.153 is a high-quality swivel engineered for precision and durability in high-pressure cleaning environments. Made from solid brass with a corrosion-resistant nickel-plated finish, this swivel is built for long-lasting performance in demanding applications such as tire cleaning systems, parts washers, and self-rotating cleaning equipment. It features a reliable triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth operation under high pressure and rotational stress. A robust O-ring NBR seal ensures excellent resistance to wear, heat, and fluid exposure.

Applications:

• High-pressure cleaning systems

• Tire and wheel washers

• Parts washing machines

• Self-rotating cleaning devices

Key Features:

• Durable brass construction with nickel plating for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• O-ring NBR seal for reliable, leak-free performance

• Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Rated up to 4000 PSI

• Max RPM: 1000

• Operating Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 3/8"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.47

Weight: 10.4oz

The Mosmatic DGVI Swivel 32.894 is a robust, stainless steel swivel engineered for high-pressure hose reels, hydraulic systems, and HP-Guns. With a thread IN of 1/2" NPTM and thread OUT of 1/2" NPTF, it enables live rotation under full pressure, improving equipment longevity and operator control.

Built with a single thrust ball bearing and an NBR O-ring seal system (optional EPDM or FKM), the 32.894 offers reliable performance and low maintenance in demanding applications. Its stainless steel construction ensures long-term resistance to corrosion.

Applications

• HP-Guns and pressure washers

• High-pressure hose reels

• Industrial hydraulics

• Tangle-free hose systems

• Commercial washdown equipment

Features

• Material: 100% Stainless Steel

• Thread IN (G1): 1/2" NPTM

• Thread OUT (G2): 1/2" NPTF

• Overall Length: 2.95"

• Nominal Width (NW): 3/8"

• Wrench Size (SW): 1.06"

• Max Pressure: 7300 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Bearings: 1x thrust ball bearing

• Seal System: O-ring NBR (optional EPDM/FKM)

• Performance: Live rotation, corrosion-resistant, maintenance-free design

Specs

Pressure: 7300 psi (50 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/2" NPTM

Thread Out: G2 1/2" NPTF

Nominal Width (NW): 3/8"

Wrench Size 1 (SW1): 1.06"

Wrench Size 2 (SW2): 1.06"

Length 1 (L1) (overall length) : 2.95"

Length 2 (L2): 0.59"

Weight: 8.8 oz

The Mosmatic DXLI Swivel 36.168 is a precision-engineered stainless steel swivel designed for high-pressure, high-RPM cleaning systems. Ideal for applications such as parts washers, tire cleaners, and rotating cleaning equipment, this swivel delivers exceptional durability, corrosion resistance, and operational performance. It features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for stable and smooth rotation under load. A ceramic seal system provides outstanding protection against pressure-related leaks and wear. Designed with a bulkhead fitting for secure mounting and built to be maintenance-free, the DXLI 36.168 ensures reliable, long-lasting performance in the most demanding environments.

Applications

• High-pressure cleaning systems

• Parts and component washers

• Tire and wheel cleaning systems

• Self-rotating, high-RPM cleaning tools

• Industrial and commercial wash bays

Key Features

• Stainless steel construction for maximum corrosion resistance

• Triple bearing system: 2x radial and 1x thrust ball bearing

• Ceramic seal system for long-lasting, leak-free operation

• Built for high-RPM and high-pressure performance

• Bulkhead mounting for stable, secure installation

• Maintenance-free operation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" M

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 0.98"

• Overall Length: 3.14"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Stainless steel

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.14"

Length 2 (L2): 0.39"

Diameter (D) (overall diameter): 0.98"

Weight: 6.7 oz

The Mosmatic DXF Swivel - 38.163 is a high-performance stainless steel swivel engineered for high-RPM, high-pressure cleaning applications. Designed for use in self-rotating systems, surface cleaners, tire washers, and parts washers, this swivel delivers exceptional durability and reliability. It features a robust triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth and efficient rotation under demanding conditions. A high-quality ceramic seal system offers superior wear and temperature resistance. Built-in weep holes serve as a seal failure warning system, and the flange mount ensures quick, secure installation.

Applications:

• Self-rotating high-RPM cleaning tools

• Surface cleaners for commercial and industrial use

• Parts washers and degreasing equipment

• Tire and wheel washing systems

Key Features:

• Heavy-duty stainless steel construction for corrosion resistance

• Triple bearing system: 2x radial + 1x thrust ball bearing

• Durable ceramic seal system for high-speed performance

• Weep holes for early seal failure detection

• Flange mount for secure and easy installation

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" Male

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.49"

• Pressure Rating: 2500 PSI

• Max RPM: 2000

• Temperature Range: 40°F to 250°F

Specs

Pressure: 2500 psi

Temperature: 40°F - 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel Plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8"NPTF

Thread Out: G2 G3/8"M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.75

Diameter (D) (overall diameter): 2.36"

Length 1 (L1) (overall length): 1.49

Length 2 (L2): 0.39

Weight: 12.7oz

The Mosmatic DGV Swivel 32.562 is a brass, nickel-plated swivel built for high-pressure cleaning systems and hydraulic hose connections. It enables live rotation under full pressure, improving equipment performance and operator handling. Engineered with a single thrust ball bearing and a reliable O-ring NBR seal system (optional EBDM or FKM), this swivel is corrosion resistant, maintenance free, and supports consistent operation in demanding applications.

Applications

• High-pressure HP-Guns

• Hydraulic and pneumatic systems

• Tangle-free hose connections

• Pressure cleaning tools

Features

• Material: Brass, nickel-plated

• Thread IN (G1): 3/8" NPTM

• Thread OUT (G2): 1/4" NPTF

• Overall Length: 2.63"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.94"

• Max Pressure: 4000 PSI

• Max RPM: 30

• Max Temperature: 250°F

• Seal System: O-ring NBR (optional EBDM or FKM)

• Bearing Type: 1x thrust ball bearing

• Key Benefits: Maintenance free, corrosion resistant, compact form factor

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 250°F

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTM

Thread Out: G2 1/4" NPTF

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.94"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 2.63"

Length 2 (L2): 0.43"

Weight: 5.7 oz

The Mosmatic DXL Swivel 36.163 is a precision-engineered brass swivel with nickel plating, designed for high-pressure and high-RPM cleaning systems. Ideal for tire cleaning, parts washers, and industrial washing equipment, this swivel provides exceptional durability, corrosion resistance, and leak-free performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, reliable rotation under pressure. The integrated ceramic seal system ensures long-term durability and superior leak protection in demanding environments. With a bulkhead fitting for secure mounting and a maintenance-free design, this swivel delivers high performance with minimal upkeep.

Applications

• High-pressure cleaning systems

• Tire and wheel washers

• Industrial parts washers

• Self-rotating high-RPM cleaning tools

• Commercial and industrial wash bays

Key Features

• Nickel-plated brass body for strength and corrosion resistance

• Triple bearing system: 2x radial, 1x thrust ball bearing

• Ceramic seal system for long-lasting, leak-free operation

• Built for high-RPM, high-pressure performance

• Bulkhead fitting for secure installation

• Maintenance-free for ease of use

• Thread IN: 3/8" NPTF | Thread OUT: G3/8" M

• Max Pressure: 2500 PSI (17 MPa)

• Max RPM: 2000

• Temperature Range: 40°F – 250°F

• Overall Diameter: 0.98"

• Overall Length: 3.14"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Length 1 (L1) (overall length) : 3.14"

Length 2 (L2): 0.39"

Diameter (D) (overall diameter): 0.98"

Weight: 6.7 oz

The Mosmatic DGG Swivel 33.653 is a high-quality brass, nickel-plated swivel engineered for demanding high-pressure cleaning systems. Ideal for parts washers, tire cleaners, and self-rotating cleaning applications, it offers superior performance and reliability.

This swivel features a triple bearing system with 2x radial ball bearings and 1x thrust ball bearing for long service life and smooth rotation. Designed with an O-ring NBR seal system (also available with optional EPDM or FKM seals), the 33.653 is maintenance-free and corrosion-resistant.

Built for precision and durability, the DGG 33.653 handles up to 4000 PSI, with performance suited for both high-speed and high-temperature applications.

Applications:

• High-pressure cleaning systems

• Self-rotating surface cleaners

• Parts washing systems

• Tire and undercarriage cleaning equipment

• Industrial and automotive cleaning setups

Key Features:

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple bearing system (2x radial, 1x thrust)

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Overall Diameter: 1.34"

• Overall Length: 2.63"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Maximum Pressure: 4000 PSI

• Maximum RPM: 1000

• Max Temperature:

  • 90°F at 1000 RPM

  • 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Operation: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.55"

Length 2 (L2): 0.47"

Weight: 7.6 oz

The Mosmatic DGG Swivel 33.153 is a high-precision, nickel-plated brass swivel designed for self-rotating, high-pressure cleaning systems. Built for performance and longevity, it features a triple bearing system—two radial ball bearings and one thrust bearing—for smooth, consistent operation in demanding environments.

This swivel includes an O-ring NBR seal system with optional upgrades to EPDM or FKM for specialized chemical resistance. The corrosion-resistant design, bulkhead mounting, and maintenance-free operation make it ideal for industrial cleaning setups.

Applications:

• High-pressure cleaning systems

• Parts washers

• Self-rotating cleaning heads

• Tire and undercarriage cleaners

• Automated car wash system

Key Features:

• Material: Brass, nickel plated

• Seal System: O-ring NBR (optional EPDM or FKM)

• Bearings: Triple system (2x radial, 1x thrust)

• Thread IN (G1): 3/8" NPTF

• Thread OUT (G2): 3/8" NPTM

• Overall Diameter: 1.34"

• Overall Length: 2.59"

• Nominal Width (NW): 1/4"

• Wrench Size (SW): 0.87"

• Max Pressure: 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F at 1000 RPM / 250°F at 30 RPM

• Mounting: Bulkhead fitting

• Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 1/4" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.59"

Length 2 (L2): 0.47"

Weight: 8.5 oz

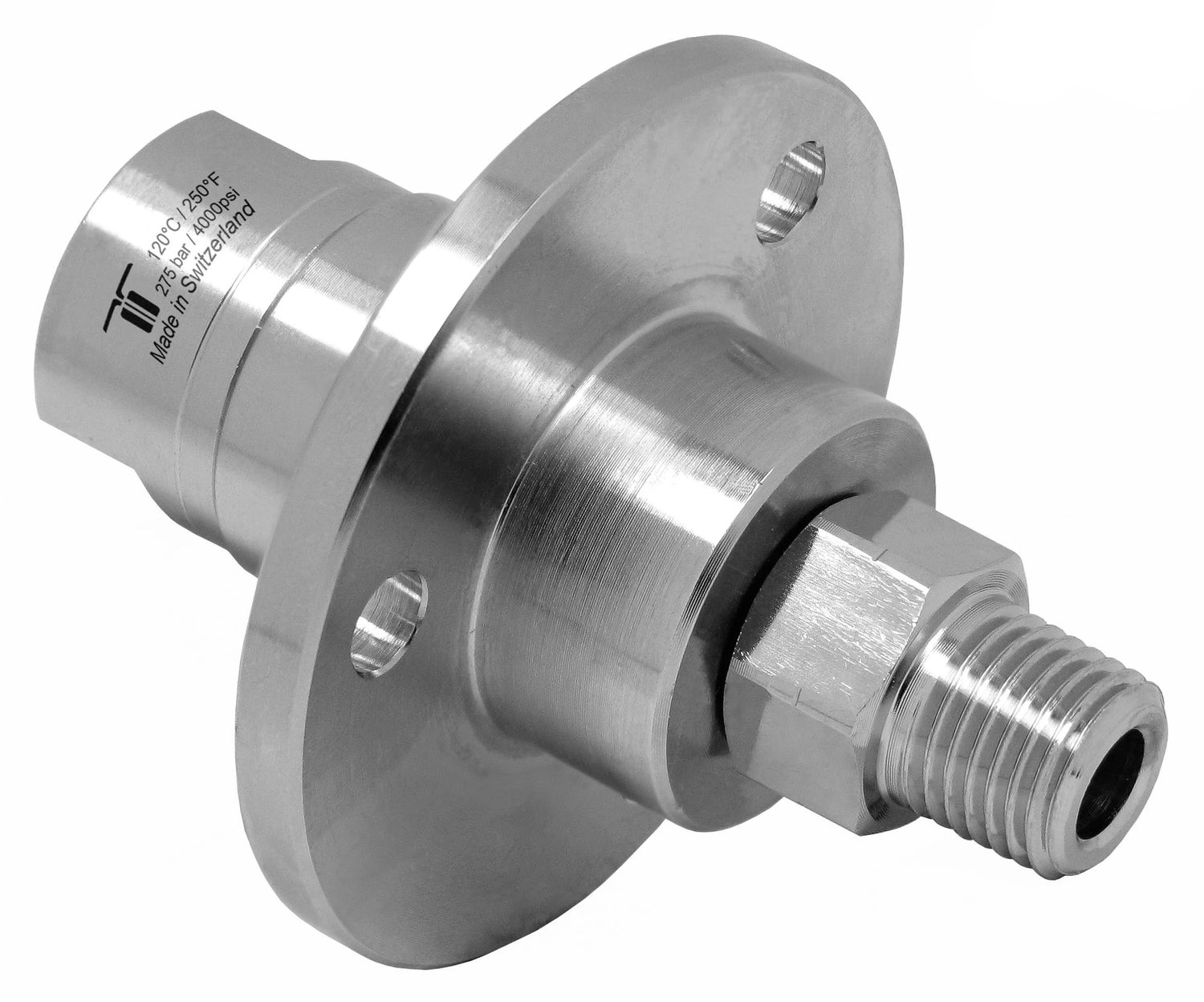

The Mosmatic DGF Swivel - 35.051 is a high-performance swivel designed for demanding high-pressure cleaning applications. Constructed from durable brass with a nickel-plated finish, this swivel ensures longevity and corrosion resistance. It features a precision-engineered triple bearing system (2x radial ball bearings and 1x thrust ball bearing) for smooth operation and extended service life. Engineered with an O-ring NBR seal, the DGF Swivel is ideal for self-rotating systems, tire cleaners, and parts washers operating under high loads and rotational speeds.

Applications:

• High-pressure cleaning systems

• Parts washers

• Tire cleaning equipment

• Self-rotating cleaning tools

Key Features:

• Brass construction with nickel plating for durability

• Triple bearing system: 2 radial + 1 thrust ball bearing

• Sealing: O-ring NBR

• Thread IN: 1/4" NPTF | Thread OUT: 1/4"

• Nominal Width (NW): 1/4"

• Overall Diameter: 2.36"

• Overall Length: 1.45"

• Pressure rating: Up to 4000 PSI

• Max RPM: 1000

• Max Temperature: 90°F @ 1000 RPM / 250°F @ 30 RPM

Specs

Pressure: 4000 psi

Temperature: 90°F (at 1,000 rpm) and 250°F (at 30 rpm).

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4"NPTF

Thread Out: G2 1/4"NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87

Wrench Size 2 (SW2): 0.67

Diameter (D) (overall diameter): 2.36

Length 1 (L1) (overall length): 1.45

Length 2 (L2): 0.43

Weight: 10.4oz
