Mosmatic rotary unions DKS swivel coupling G1 M22X1.5F G2 3/8"NPTM NW 1/4in 70.153

Mosmatic DKS Swivel Coupling - 70.153 - G1 M22X1.5F to G2 3/8"NPTM

(0)

$56.71 USD

The Mosmatic DKS Swivel Coupling 70.153 is a heavy-duty, high-pressure swivel coupling designed for industrial cleaning and hose connection applications. Crafted from corrosion-resistant, nickel-plated brass, this coupling delivers reliable performance and long-lasting durability in demanding environments.

It features a single thrust ball bearing and a ceramic seal system that provide smooth rotation and excellent sealing under high pressure. A flange ensures simple and secure installation, while integrated weep holes offer a built-in warning system for potential seal failure—minimizing downtime and enabling proactive maintenance.

With a Quick Connect Thread In of M22x1.5 F and a Thread Out of 3/8" NPTM, this swivel is built to handle pressures up to 3600 PSI and temperatures up to 250°F. It supports media with a pH range of 3–12 and filtered compressed air (10 microns) up to 290 PSI.

Applications

Industrial and commercial high-pressure cleaning
Hose and quick-connect coupling systems
Surface cleaners and rotating nozzles
Pneumatic and air-powered tool setups
Car wash systems and maintenance equipment
Pressure washing tools and accessories

Features

Durable nickel-plated brass construction
Long-lasting ceramic seal system
Smooth performance with single thrust ball bearing
Flange design for easy and secure installation
Weep holes for visual seal failure indication
Thread In: M22x1.5 F | Thread Out: 3/8" NPTM
Nominal Width (NW): ¼"
Max Pressure: 3600 PSI
Max Temperature: 250°F
Max RPM: 30
Dimensions: 1.34" diameter | 1.80" overall length
Compatible with pH 3–12 media and 10-micron filtered air (290 PSI)

Specs

Pressure: 3600 psi

Temperature: 250°

RPM: max 30 rpm

Material Type: Brass, nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR

Throughput/medium: ph 3-12, filtered 10 microns compressed air (290 psi)

Thread In: G1 M22X1.5F

Thread Out: G2 3/8"NPTM

Nominal Width (NW): ¼"

Wrench Size 1 (SW1): 0.75"

Wrench Size 2 (SW2):

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 1.80

Length 2 (L2): 0.47

Weight: 3.7 oz

Mosmatic rotary unions DGV swivel G1 1/4"NPTF G2 3/8"NPTF NW 1/4in 32.559

Mosmatic DGV Swivel - 32.559 - G1 1/4"NPTF G2 3/8"NPTF

(0)

$63.19 USD

Mosmatic rotary unions DXG swivel G1 1/4"NPTF G2 G3/8"M 37.063

Mosmatic DXG Swivel - 37.063 - G1 1/4"NPTF G2 G3/8"M

(0)

$296.28 USD

Mosmatic rotary unions DXG swivel 90 degrees G1 3/8"NPTF G2 G3/8"M 37.463

Mosmatic DXG Swivel - 37.463 - G1 3/8"NPTF G2 G3/8"M

(0)

$332.42 USD

The Mosmatic DXG 90° Swivel 37.463 is a high-precision nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning applications. Ideal for surface cleaners, parts washers, and tire cleaning systems, this 90-degree swivel is built to deliver exceptional durability and smooth operation in tough environments. It features a triple bearing system with two radial ball bearings and one thrust ball bearing for consistent, stable rotation. The ceramic seal system ensures extended leak-free performance under high-pressure conditions. With a corrosion-resistant finish, bulkhead fitting for secure mounting, and a maintenance-free design, this swivel is ready for demanding professional use.

Applications

Surface cleaners
Parts washers
Tire and wheel cleaning tools
High-RPM self-rotating cleaning equipment
Commercial and industrial pressure washing

Key Features

Nickel-plated brass body for excellent corrosion resistance
90-degree configuration for compact or angular setups
Triple bearing system: 2x radial, 1x thrust ball bearing
Ceramic seal system for long-lasting, leak-free performance
Designed for high-RPM, self-rotating applications
Bulkhead fitting for secure mounting
Maintenance-free operation
Thread IN: 3/8" NPTF | Thread OUT: G3/8" M
Max Pressure: 2500 PSI (17 MPa)
Max RPM: 2000
Temperature Range: 40°F – 250°F
Overall Diameter: 1.34"
Overall Length: 3.30"
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87"

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 G3/8" M

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30

Length 2 (L2): 0.39

Weight: 13.4 oz

Mosmatic rotary unions DGVI swivel G1 3/8"NPTM G2 3/8"NPTM 32.763

Mosmatic DGVI Swivel - 32.763 - G1 3/8"NPTM G2 3/8"NPTM

(0)

$117.17 USD

Mosmatic rotary unions DGV swivel G1 3/8"NPTM G2 1/4"NPTM 32.561

Mosmatic DGV Swivel - 32.561 - G1 3/8"NPTM G2 1/4"NPTM

(0)

$63.19 USD

Mosmatic rotary unions DGL swivel G1 1/4"NPTF G2 1/4"NPTF 31.052

Mosmatic DGL Swivel - 31.052 - G1 1/4"NPTF G2 1/4"NPTF

(0)

$143.96 USD

Mosmatic rotary unions DGG swivel 90 degrees G1 1/4"NPTF G2 3/8"NPTM 33.353

Mosmatic DGG Swivel - 33.353 - G1 1/4"NPTF G2 3/8"NPTM

(0)

$216.78 USD

The Mosmatic DGG Swivel 33.353 (90 Degrees) is a brass, nickel-plated swivel designed for high-pressure, self-rotating cleaning applications. With a durable 90° configuration, it’s perfect for systems requiring compact, directional rotation such as tire cleaners, parts washers, and industrial surface cleaners.

This high-performance swivel features a triple bearing system—2x radial ball bearings and 1x thrust ball bearing—for optimal rotation under pressure. The O-ring NBR seal system ensures leak-free performance, and can be optionally upgraded to EPDM or FKM seals for increased chemical compatibility. Built for corrosion resistance, bulkhead mounting, and maintenance-free operation, the DGG 33.353 ensures reliability in even the harshest cleaning environments.

Applications

High-pressure rotating cleaning systems
Parts washing equipment
Tire and undercarriage cleaning systems
Industrial surface cleaners
Self-rotating cleaning heads

Key Features

Design: 90° angled swivel
Material: Brass, nickel plated
Seal Type: O-ring NBR (optional EPDM or FKM)
Bearing System: Triple bearing (2x radial, 1x thrust)
Thread IN (G1): 1/4" NPTF
Thread OUT (G2): 3/8" NPTM
Overall Diameter: 1.34"
Overall Length: 2.75"
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87"
Max Pressure: 4000 PSI
Max RPM: 1000
Max Temperature:
- 90°F at 1000 RPM
- 250°F at 30 RPM
Mounting Type: Bulkhead fitting
Maintenance: Maintenance-free

Specs

Pressure: 4000 psi (27.5 MPa)

Temperature: 90°F at 1000 RPM, 250°F at 30 RPM

RPM: max 1,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: O-ring NBR (optional: EPDM or FKM)

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 1/4" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 2.75"

Length 2 (L2): 0.47"

Weight: 8.5 oz

Mosmatic Rotary Unions - DGV Swivel G1 3/8"NPTM G2 1/2"NPTF NW 1/4in - 32.924

(0)

$80.44 USD

Mosmatic rotary unions DXG swivel 90 degrees G1 3/8"NPTF G2 3/8"NPTM 37.453

Mosmatic DXG Swivel - 37.453 - G1 3/8"NPTF G2 3/8"NPTM

(0)

$332.42 USD

The Mosmatic DXG 90° Swivel 37.453 is a high-performance nickel-plated brass swivel engineered for high-RPM, self-rotating cleaning tools. Designed for surface cleaners, tire cleaners, and parts washers, this swivel offers precision performance and outstanding durability. Its triple bearing system—two radial ball bearings and one thrust ball bearing—ensures smooth, reliable rotation under pressure. The ceramic seal system provides excellent leak resistance and longevity, even in demanding high-pressure environments. Featuring a 90-degree design and bulkhead mounting, the DXG 37.453 is corrosion-resistant, maintenance-free, and built for professional use.

Applications

Surface cleaners
Parts washers
Tire and wheel cleaning systems
High-RPM self-rotating cleaning equipment
Commercial and industrial pressure washing tools

Key Features

Durable brass body with corrosion-resistant nickel plating
90-degree configuration for compact or angled installations
Triple bearing system: 2x radial, 1x thrust ball bearing
Ceramic seal system for superior leak protection
Designed for high-RPM, self-rotating equipment
Bulkhead fitting for stable and secure mounting
Maintenance-free construction
Thread IN: 3/8" NPTF | Thread OUT: 3/8" NPTM
Max Pressure: 2500 PSI (17 MPa)
Max RPM: 2000
Temperature Range: 40°F – 250°F
Overall Diameter: 1.34"
Overall Length: 3.30"
Nominal Width (NW): 1/4"
Wrench Size (SW): 0.87"

Specs

Pressure: 2500 psi (17 MPa)

Temperature: 40°- 250°

RPM: max 2,000 rpm

Material Type: Brass, Nickel plated

Inner Part: Stainless steel

Seal: Ceramic

Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)

Thread In: G1 3/8" NPTF

Thread Out: G2 3/8" NPTM

Nominal Width (NW): 1/4"

Wrench Size 1 (SW1): 0.87"

Wrench Size 2 (SW2): 0.75"

Wrench Size 3 (SW3): 1.34"

Diameter (D) (overall diameter): 1.34"

Length 1 (L1) (overall length) : 3.30"

Length 2 (L2): 0.47

Weight: 13.6 oz

Mosmatic rotary unions DXF swivel G1 3/8"NPTF G2 3/8"NPTM 38.158

Mosmatic DXFI Swivel - 38.158 - G1 3/8"NPTF to G2 3/8"NPTM

(0)

$426.36 USD

Mosmatic DGV Swivel - 32.854 - G1 3/8"NPTM G2 1/2"NPTF

(0)

$86.17 USD

Mosmatic rotary unions DGV swivel G1 3/8"NPTF G2 1/4"NPTF NW 1/4in 32.567

Mosmatic DGV Swivel - 32.567 - G1 3/8"NPTF G2 1/4"NPTF

(0)

$63.19 USD

Mosmatic rotary unions DGLI swivel G1 3/8"NPTF G2 3/8"NPTM 31.902

Mosmatic DGLI Swivel - 31.902 - G1 3/8"NPTF G2 3/8"NPTM

(0)

$224.69 USD

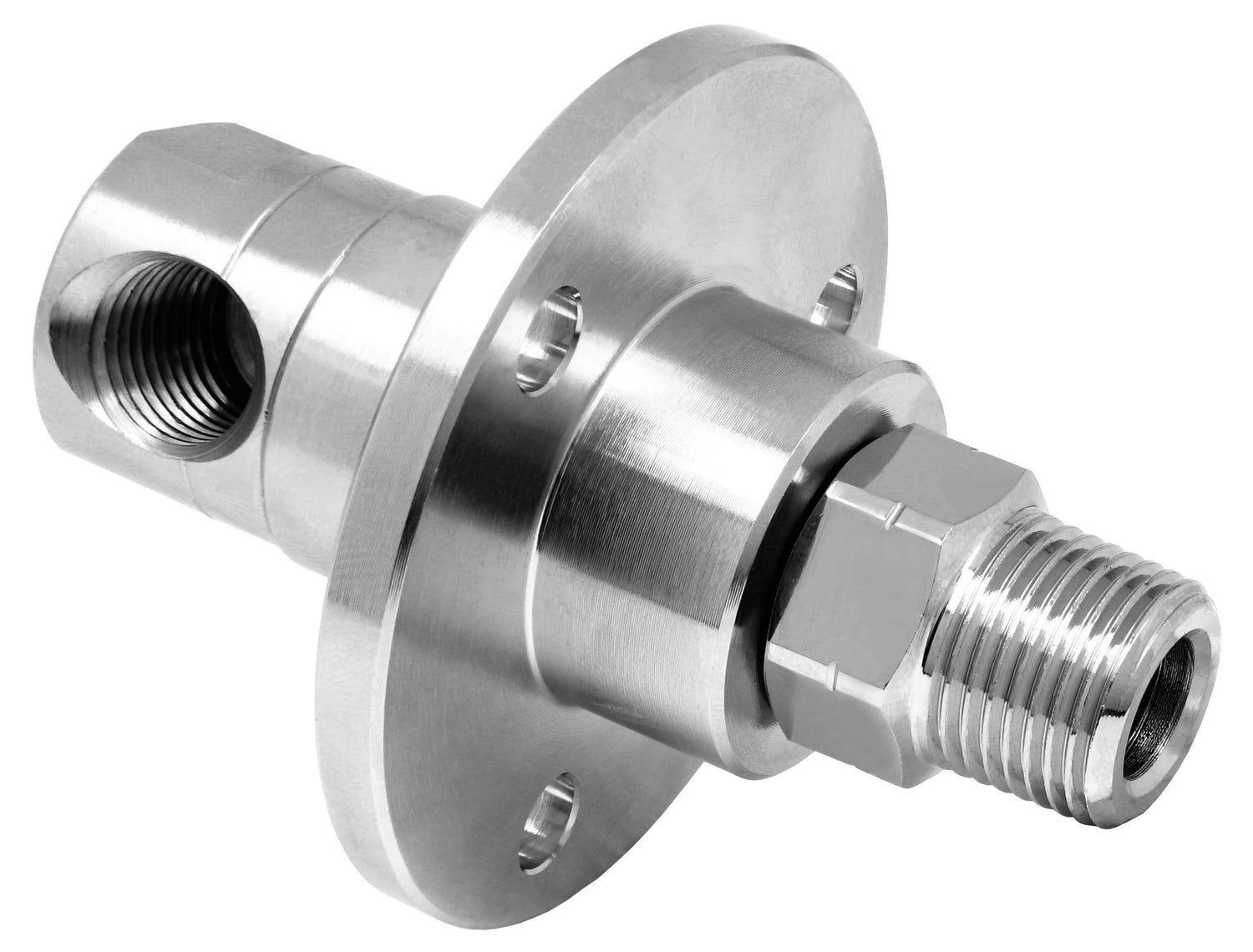

Mosmatic rotary unions DGF swivel 90 degrees G1 1/4"NPTF G2 3/8"NPTM 35.353

Mosmatic DGF Swivel - 35.353 - G1 1/4"NPTF to G2 3/8"NPTM

(0)

$224.69 USD
