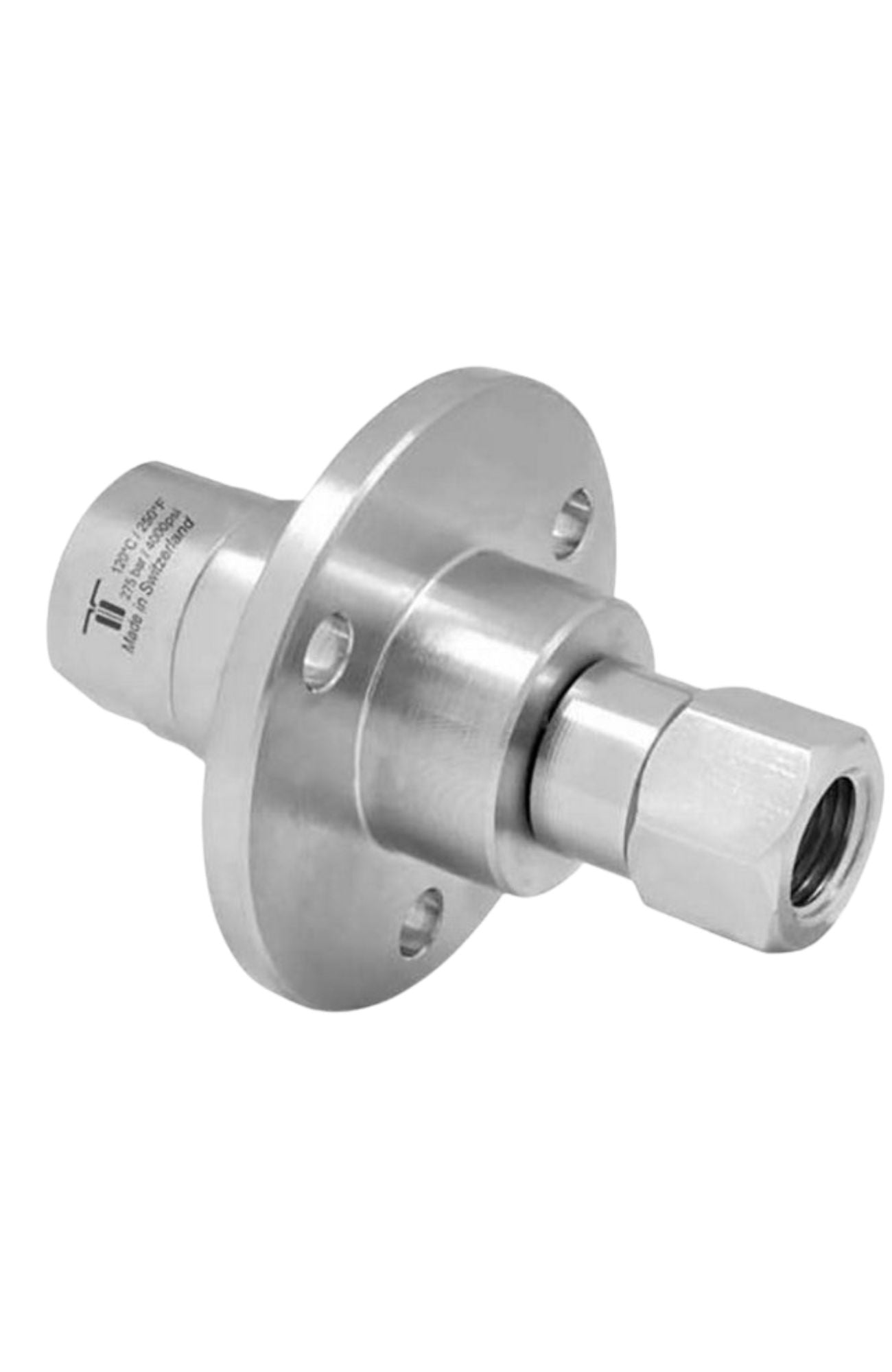

Mosmatic DGF Swivel - 35.004 - G1/4 F to G3/8 F

The Mosmatic DGF Swivel 35.004 is a precision-built swivel for high-pressure cleaning applications. Made from nickel-plated brass, it supports demanding wash systems and rotating equipment. It is suited for parts washers, tire cleaners, and self-rotating tools. The high-speed triple bearing system helps provide smooth rotation under load. It is rated for 275 bar and up to 1000 rpm. The flange design helps simplify installation in compatible cleaning systems.

*This specialty item may have long lead times and cannot be returned or refunded.

Specs

Pressure: 275 bar / approx. 3,989 psi

Temperature: 86°F at 1,000 rpm and 248°F at 30 rpm

RPM: max 1,000 rpm

Material Type: Brass, nickel plated

Bearing System: High speed triple bearing system

Installation: Flange mount

Maintenance: Maintenance free

Thread In: G1/4 F

Thread Out: G3/8 F

Nominal Width (NW): NW6

Wrench Size 1 (SW1): 22

Wrench Size 2 (SW2): 22

Length: 141 mm

Part Number: 35.004

Brand: Mosmatic

Product Type: DGF high pressure swivel
