Product Description

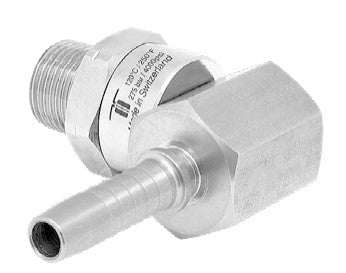

The Mosmatic DGK Swivel 32.481 – 90 Degrees is engineered for high-pressure spray guns, hydraulic systems, and hose applications where compact, efficient rotation is essential. Made of nickel-plated brass and stainless steel, this swivel provides live rotation under full pressure for smooth, tangle-free performance.
Built with a single thrust ball bearing and an NBR O-ring seal system (optional EPDM or FKM), the swivel delivers high durability and is completely maintenance-free. Ideal for setups demanding flexibility in tight spaces, the 90° elbow design improves handling without compromising performance.
Applications
-
High-pressure cleaning and HP guns
-
Hose connection swivel joints
-
Hydraulic and pneumatic tools
-
Tangle-free hose and boom systems
-
Industrial wash bays and machinery
Features
-
Material: Stainless steel & nickel-plated brass
-
Thread IN: 3/8" NPTM
-
Thread S1: 1/4"
-
Configuration: 90° elbow swivel
-
Overall Length: 1.95"
-
Nominal Width (NW): 1/8”
-
Wrench Size (SW): 0.94”
-
Max Pressure: 4000 PSI
-
Max RPM: 30
-
Max Temperature: 250°F
-
Bearing: 1x thrust ball bearing
-
Seal System: O-ring NBR (optional EPDM or FKM)
-
Performance: Maintenance-free with low torque
Specs
Pressure: 4000 psi (27.5 MPa)
Temperature: 250°F
RPM: max 30 rpm
Material Type: Stainless steel, Brass, Nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR (optional: EPDM or FKM)
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 3/8" NPTM
S1: 1/4"
Nominal Width (NW): 1/8”
Wrench Size 1 (SW1): 0.94"
Length 1 (L1) (overall length) : 1.95"
Lenght 2 (L2): 0.43"
Diameter 1 (D1): 0.27"
Diameter 2 (D2): 0.29"
Diameter 3 (D3): 0.37"
Weight: 5.5 oz
