Product Description

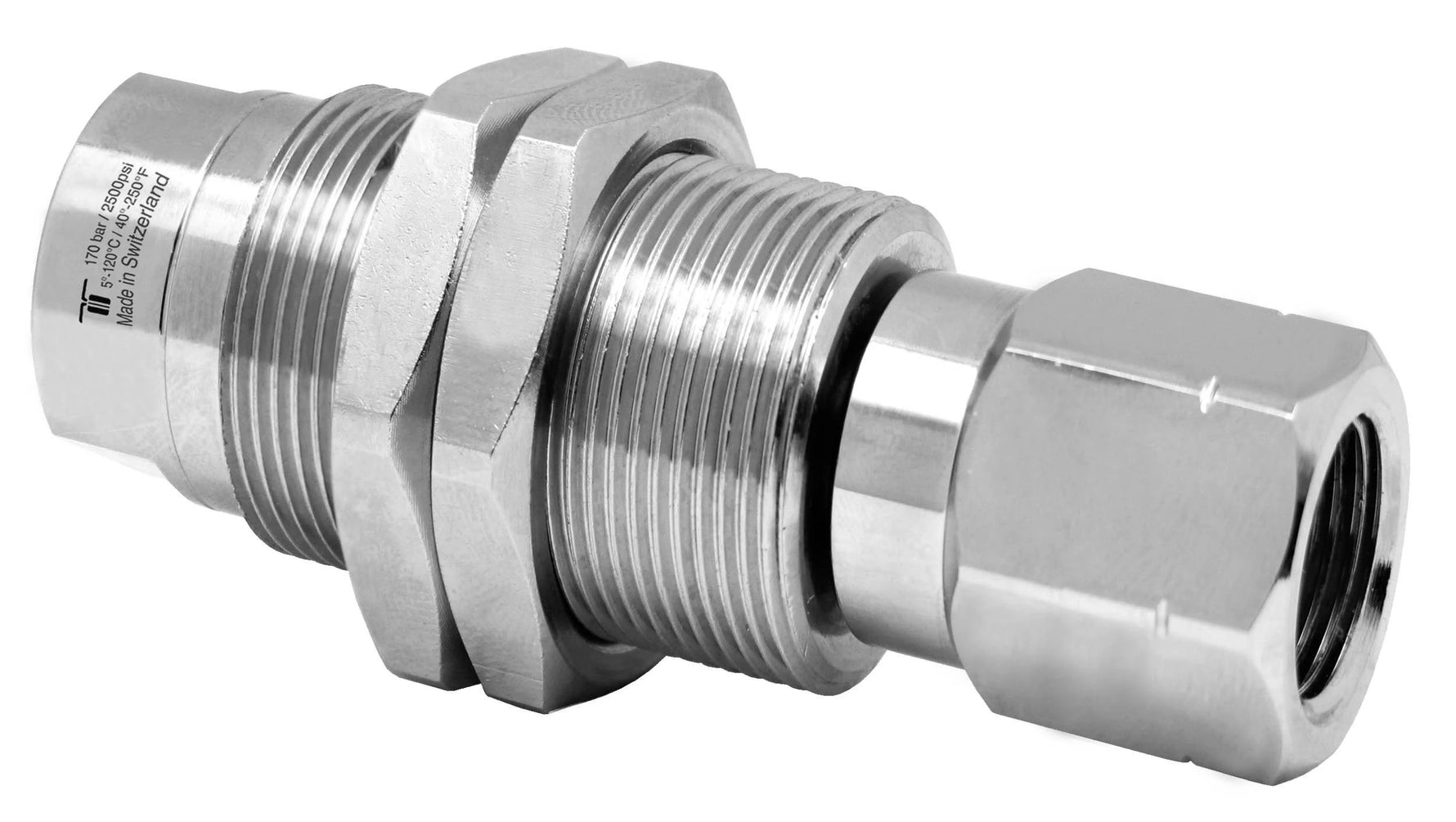

The Mosmatic DXGI Swivel 37.057 is a premium stainless steel swivel engineered for high-RPM, self-rotating cleaning applications. Designed for surface cleaners, parts washers, and tire cleaners, this swivel delivers industry-leading durability, precision, and performance. It features a triple bearing system—two radial ball bearings and one thrust ball bearing—for smooth, stable rotation. A ceramic seal system provides long-lasting, leak-free reliability under high pressure. With corrosion-resistant stainless steel construction, a secure bulkhead fitting, and a maintenance-free design, this swivel is built for demanding professional environments.
Applications
-
Surface cleaners
-
Parts washers
-
Tire and wheel cleaning tools
-
High-RPM self-rotating equipment
-
Industrial and commercial pressure washing systems
Key Features
-
High-strength stainless steel construction for corrosion resistance
-
Triple bearing system: 2x radial, 1x thrust ball bearing
-
Ceramic seal system for extended leak protection
-
Designed for high-RPM, self-rotating cleaning tools
-
Maintenance-free operation
-
Bulkhead fitting for fixed, secure mounting
-
Thread IN: 1/4" NPTF | Thread OUT: 1/4" NPTF
-
Max Pressure: 2500 PSI (17 MPa)
-
Max RPM: 2000
-
Temperature Range: 40°F – 250°F
-
Overall Diameter: 1.42”
-
Overall Length: 3.30”
-
Nominal Width (NW): 1/4”
-
Wrench Size (SW): 0.87”
Specs
Pressure: 2500 psi (17 MPa)
Temperature: 40°- 250°
RPM: max 2,000 rpm
Material Type: Stainless Steel
Inner Part: Stainless Steel
Seal: Ceramic
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/4” NPTF
Thread Out: G2 1/4” NPTF
Nominal Width (NW): 1/4”
Wrench Size 1 (SW1): 0.87"
Wrench Size 2 (SW2): 0.75"
Wrench Size 3 (SW3): 1.42"
Diameter (D) (overall diameter): 1.42"
Length 1 (L1) (overall length) : 3.30"
Weight: 7.8 oz
