Product Description

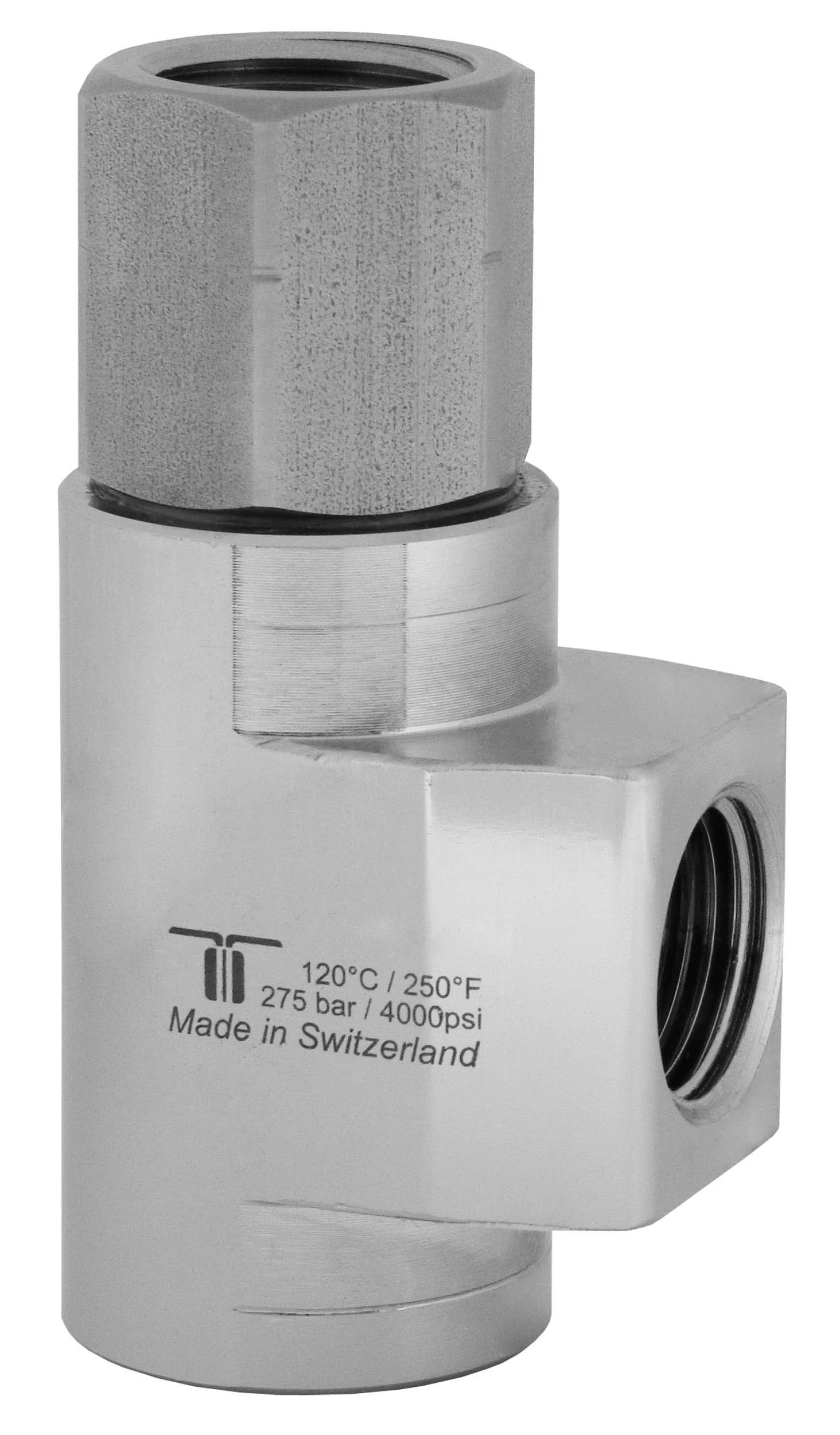

The Mosmatic WDCS Swivel 43.374 is a robust, high-performance swivel designed for use in high-pressure systems such as hose reels, ceiling booms, and pressure cleaners. Constructed from brass with a corrosion-resistant nickel plating, this swivel delivers superior durability in demanding environments. It features 2x radial ball bearings for smooth, high-speed rotation and a protection plate to safeguard internal components. Sealed with an O-ring NBR, the swivel is engineered to handle pressures up to 4000 psi, rotational speeds up to 200 RPM, and temperatures reaching 250°F.
Applications
-
High-pressure hose reels
-
Ceiling booms in wash bays and automotive shops
-
Pressure washers for industrial and commercial use
-
Car wash tunnels and detailing systems
-
Equipment requiring durable, protected swivel performance
Key Features
-
Nickel-plated brass construction for strength and corrosion protection
-
Dual radial ball bearings for smooth, high-RPM operation
-
Integrated protection plate for added durability
-
Thread IN: 1/2” NPTF | Thread OUT: 1/2” NPTF
-
Dimensions: Height – 2.20” | Overall Length – 3.24”
-
Nominal Width (NW): 1/2”
-
Rated for 4000 psi maximum working pressure
-
Operates at temperatures up to 250°F
-
Supports rotational speeds up to 200 RPM
-
O-ring NBR seal ensures leak-proof performance
Specs
Pressure: 4000 psi
Temperature: 250°
RPM: 200
Material Type: Brass, nickel plated
Inner Part: Stainless steel
Seal: O-ring NBR
Throughput/medium: ph 3-12 / filtered 10 microns, compressed air (290 psi)
Thread In: G1 1/2" NPTF
Thread Out: G2 1/2" NPTF
Nominal Width (NW): 1/2"
Wrench Size (SW): 0.87
Height (H): 2.20
Length 1 (L1) :1.77
Length 2 (L2) (overall length): 3.24
Length 3 (L3): 1.14
Length 4 (L4): 2.15
Length 5 (L5): 0.59
Weight:16.2 oz
