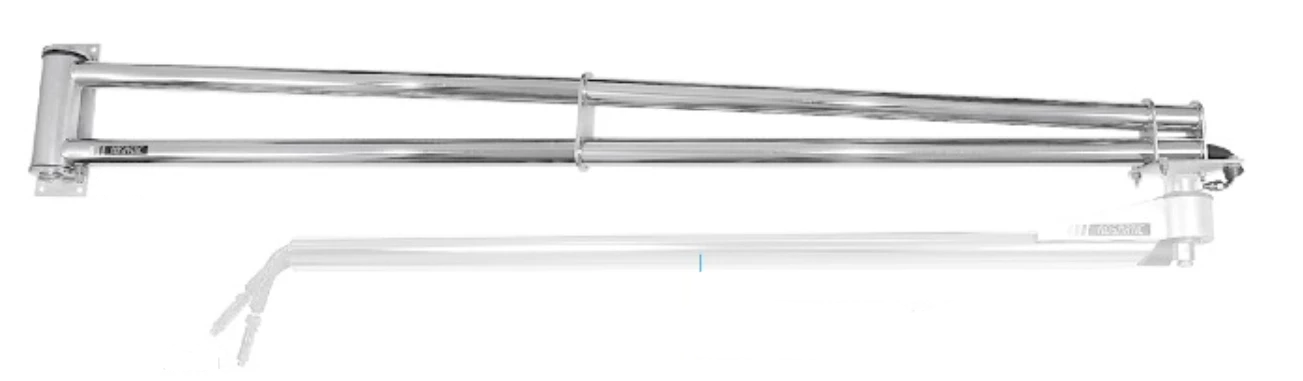

Mosmatic Wall Boom Extension WSA 2R 2 inner pipes 2 inlets 6ft 8in 60.910

$2,174.52 $2,416.13

Brand: Mosmatic


Product Description

Whenever extended lengths and maximum flexibility are required, the wall-boom-extension is perfect for the job. Prime examples are truck wash bays, mining facilities, air craft maintenance and manufacturing plants. When combined correctly, a working radius of 39' is possible.

  • Smooth, comfortable operation
  • Extended work radius
  • Solid construction
  • Add ceiling boom: DP2

B 6'8", L max 6'3", Weight 55 lbs

Technical data:

  • Pressure: 4000 psi (27.5 MPa)
  • Temperature: 250°F
  • Inlet (top & side): 3/8" NPTF (other options available)
  • Outlet: 3/8" NPTF (other options available)
  • Throughput medium: water, oil, air at pH 3-12

 DP2 Ceiling Boom Sold Separately.

Mosmatic Ceiling Boom Z Series Main Diagram



Mosmatic Ceiling Boom Z Set Up Diagrams



Mosmatic Legend
